Audio-Technica AT3600L Needle For Turntable LP Vinyl Record Player Phono Stylus AT91 Technics cartridge stand
4.8 (235 votes) | 900 orders
Price:
US $36.96
Discount Price:
US $
30.29
-18%
- Color
-
-

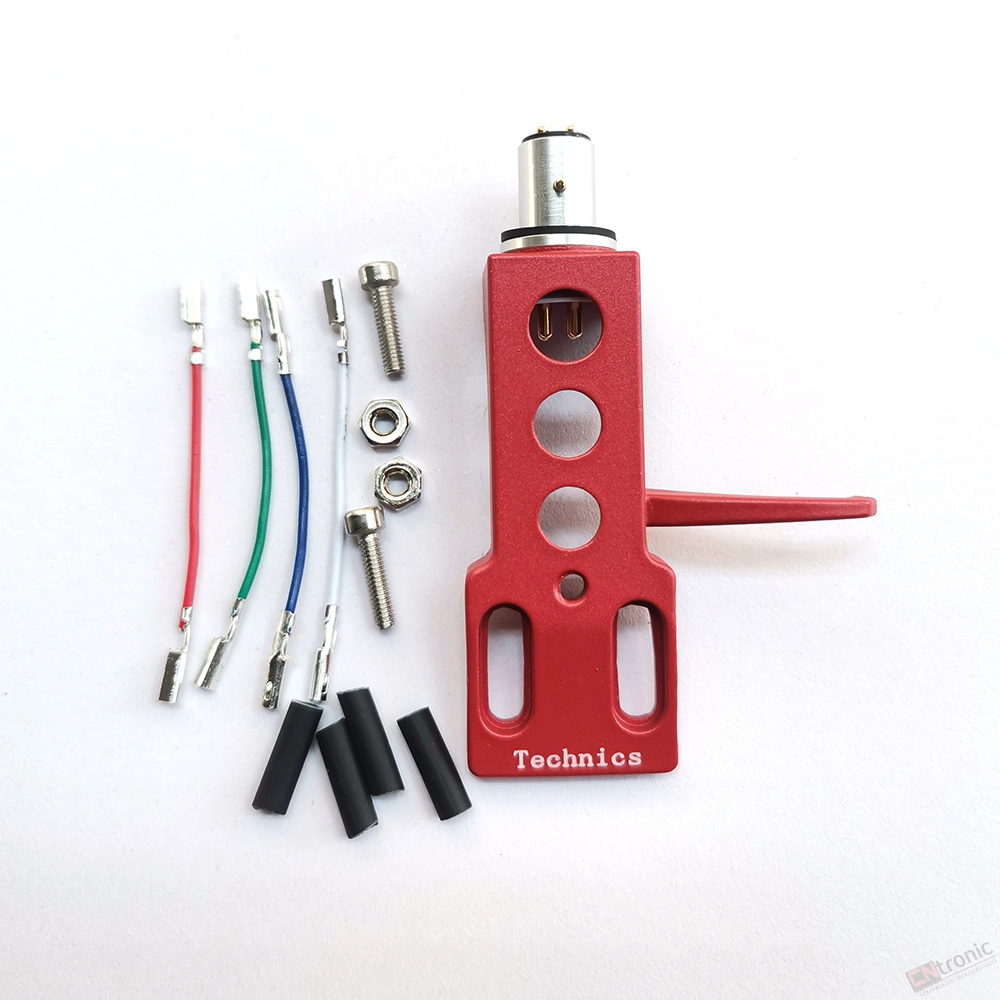

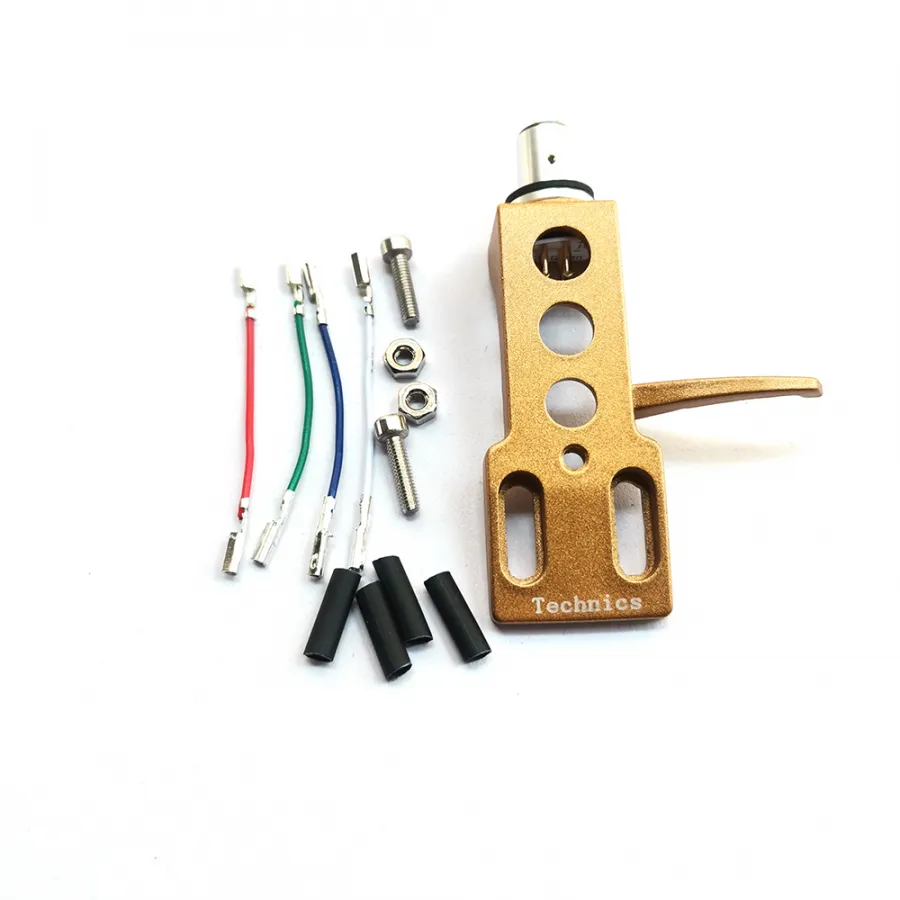

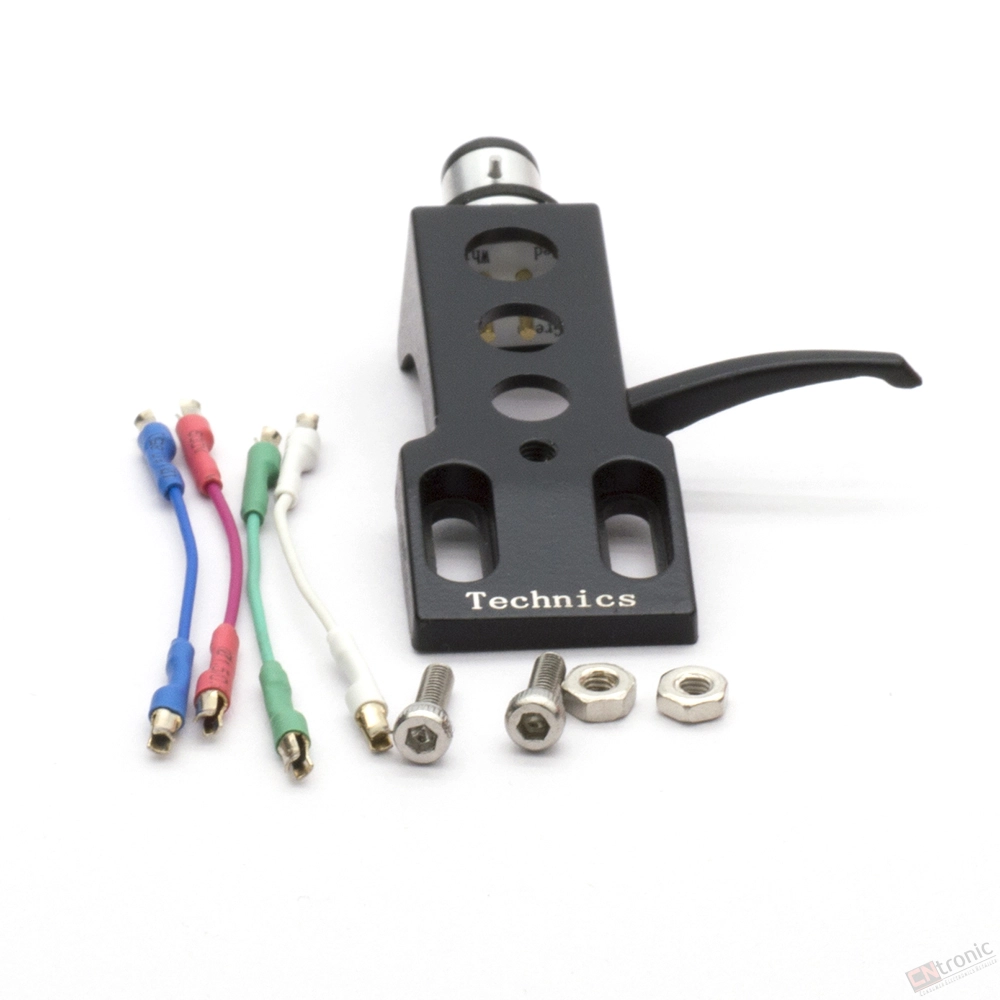

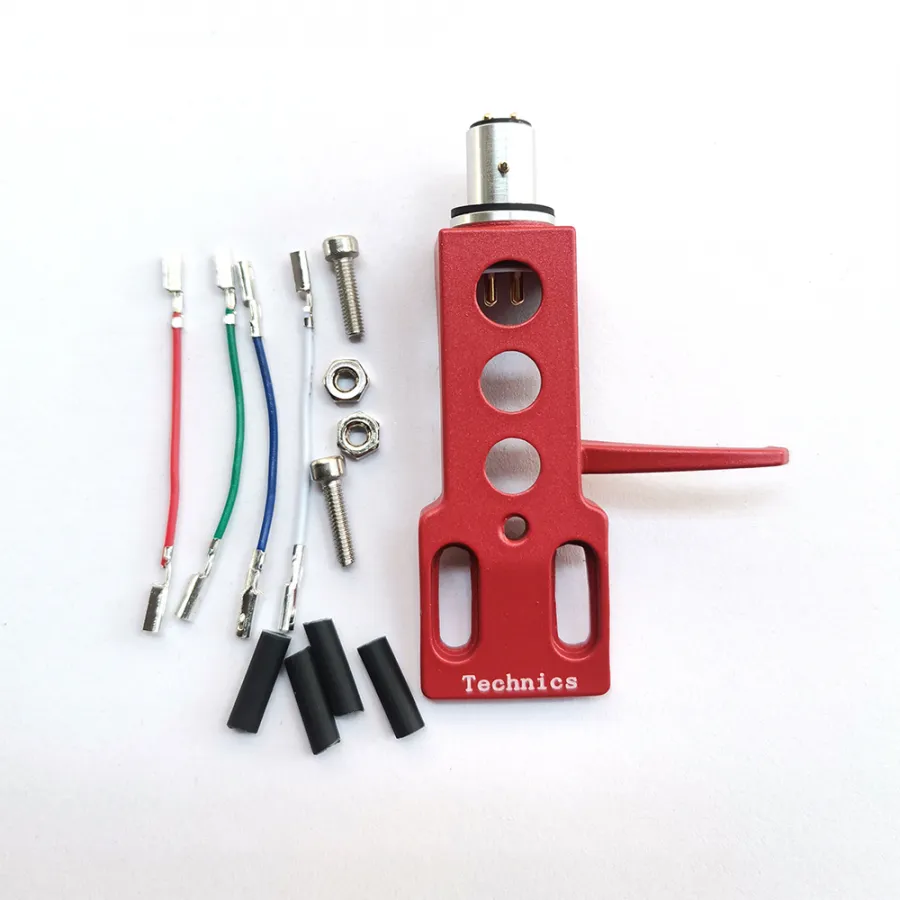

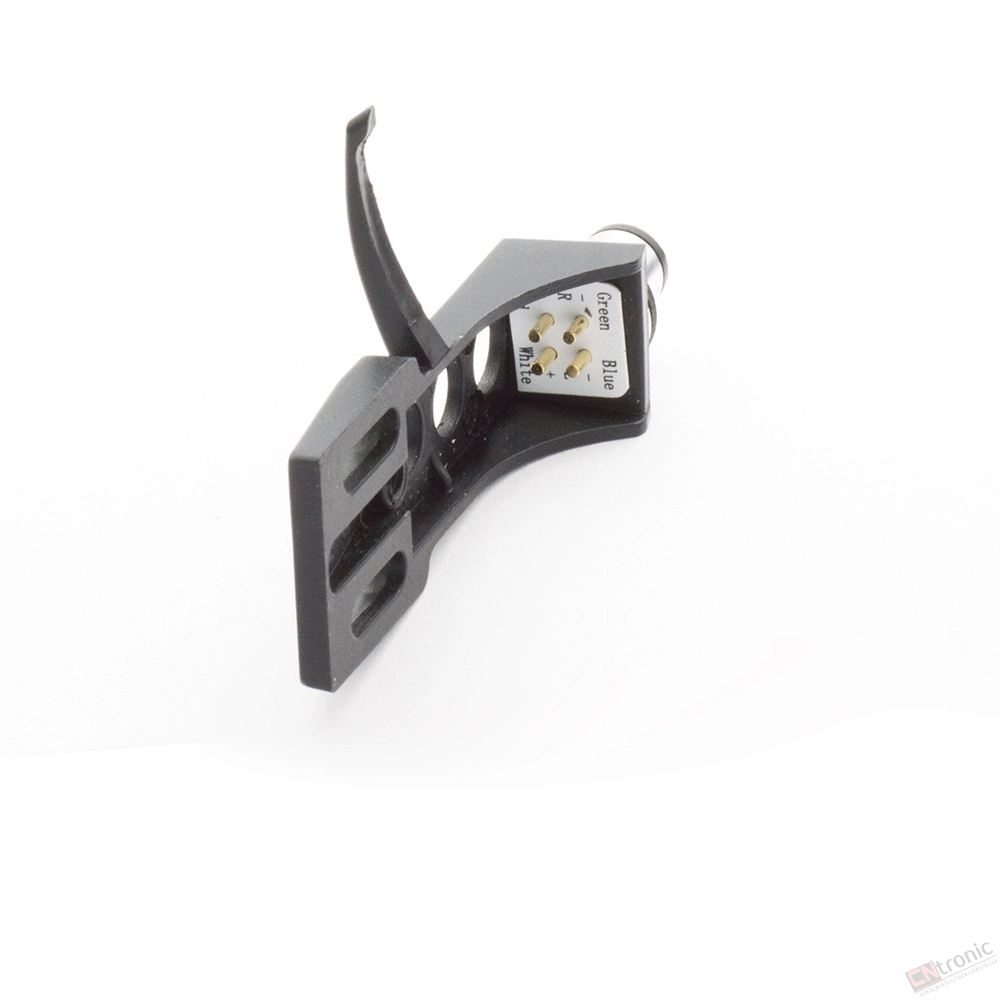

Cartridge stand:

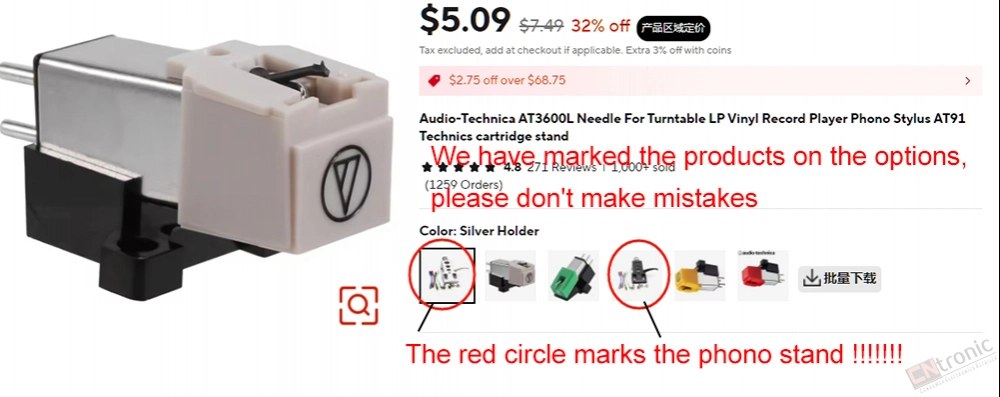

The options in this link are all separate products, not combination sets. If you buy a cartridge stand, you will only get the stand but not the cartridge. If you buy a cartridge, the stand will not be included. We have marked the products on the options, so please don't make mistakes (if you don't understand, you can check our picture annotations below). Thank you for your support.

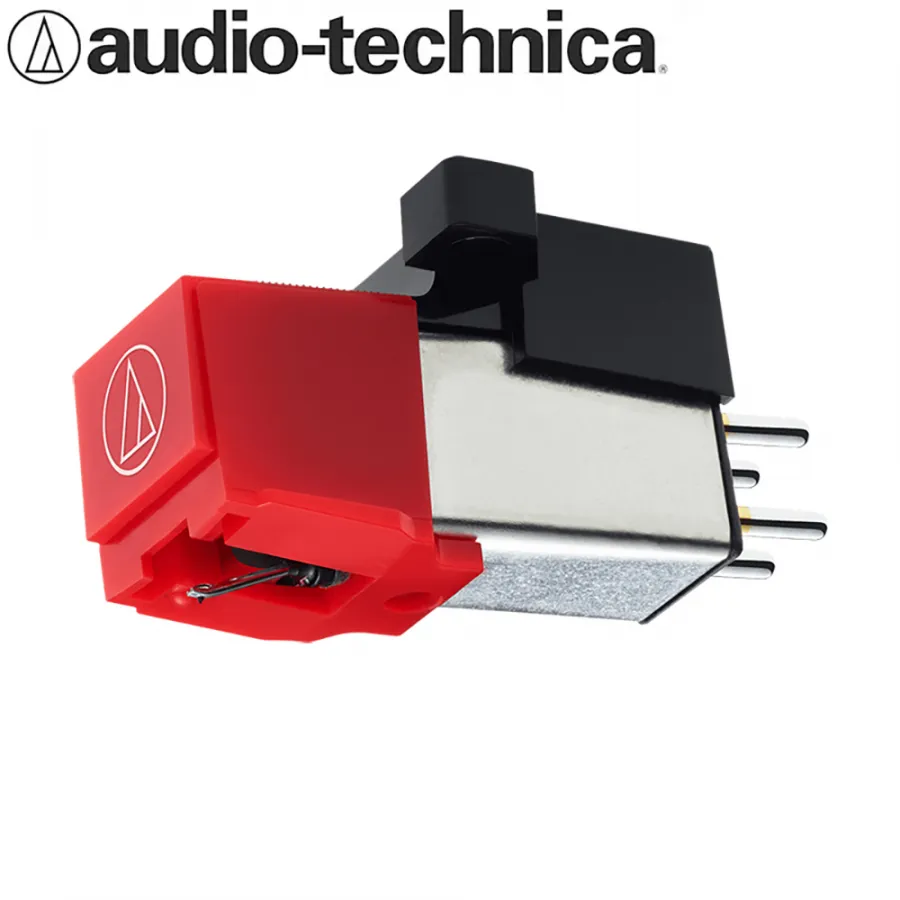

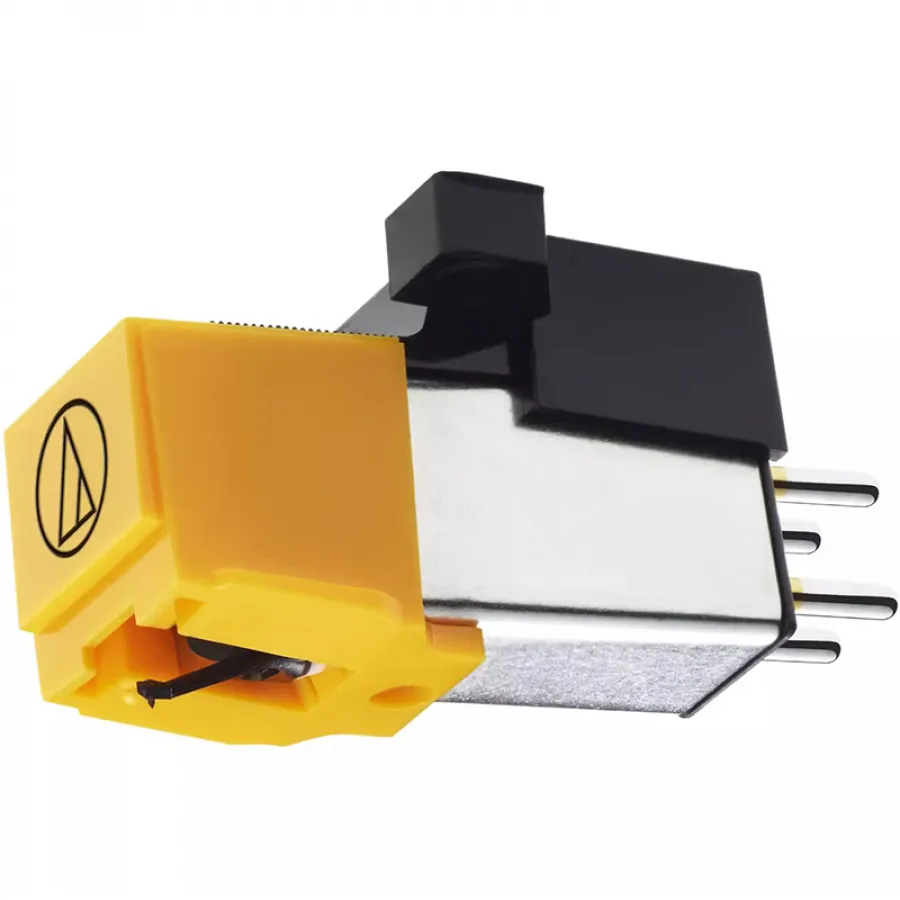

AT91 parameters
Frequency response: 20-20000Hz
Output voltage: 3.5MV (1khz, 5cm/sec)
Channel separation: 18dB (1khz)
Output balance: 2.5DB (1khz)
Acupuncture pressure: 1.5-2.5g (2.0g standard)
Coil impedance: 2.8kΩ (1khz)
DC resistance: 410Ω
Recommended load impedance: 47kΩ
Recommended load capacitance: 100-200pF
Coil inductance: 400mH (1khz)
Static compliance: 200x10-6 cm/dyne
Dynamic compliance: 6.5x10-6 cm/dyne (100hz)
Stylus: Jointed tapered tip
Stylus tip curvature radius: 0.6mil
Needle arm: carbon fiber rod
Vertical tracking angle: 20°
Size: 17.0*16.8*31.0mm (height*width*depth)
The stylus is a worn-out product, and its normal service life is about 300-400 hours. Except for damage caused by careless operation, the use of excessive needle pressure, shoddy inferior records and severely shaking turntables will shorten the life of the needle tip.

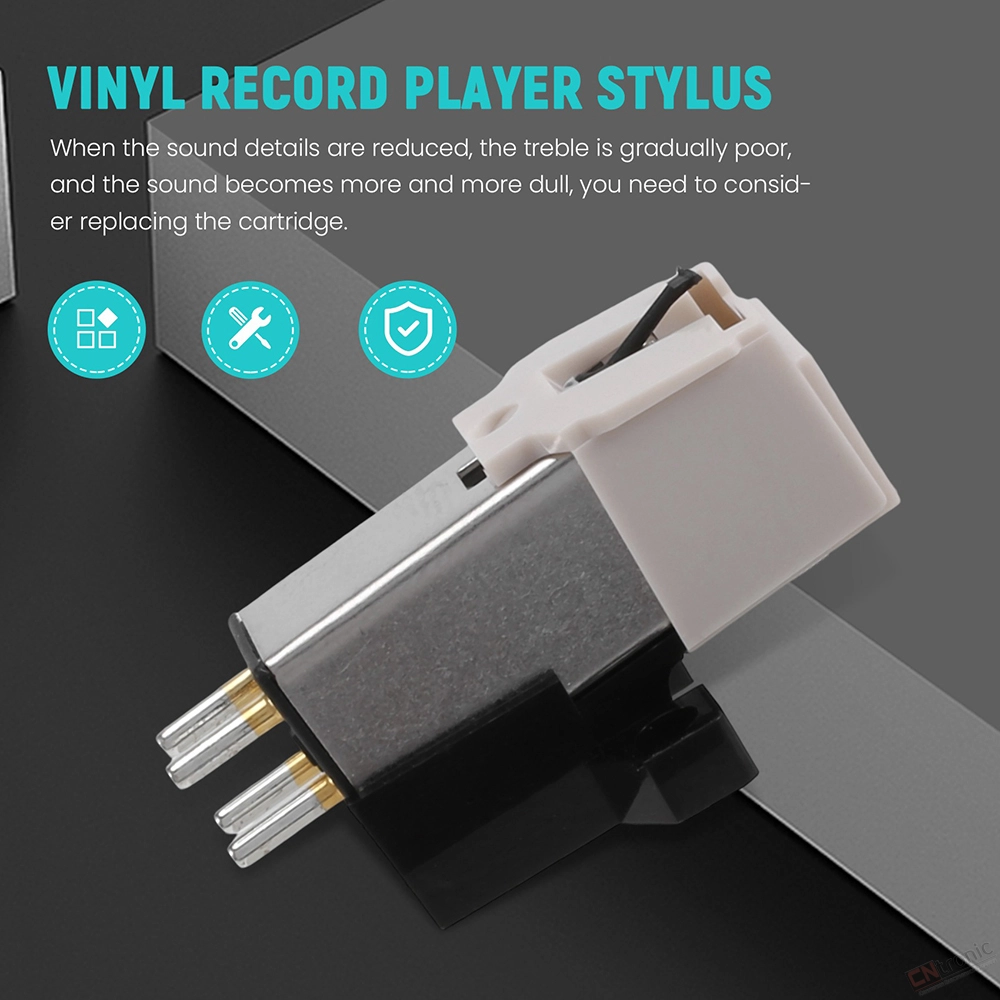

As the radius of curvature of the sharpened needle tip becomes larger, its ability to track high-frequency signals in the sound groove decreases. When the sound details are reduced, the treble is gradually poor, and the sound becomes more and more dull, you need to consider replacing the cartridge

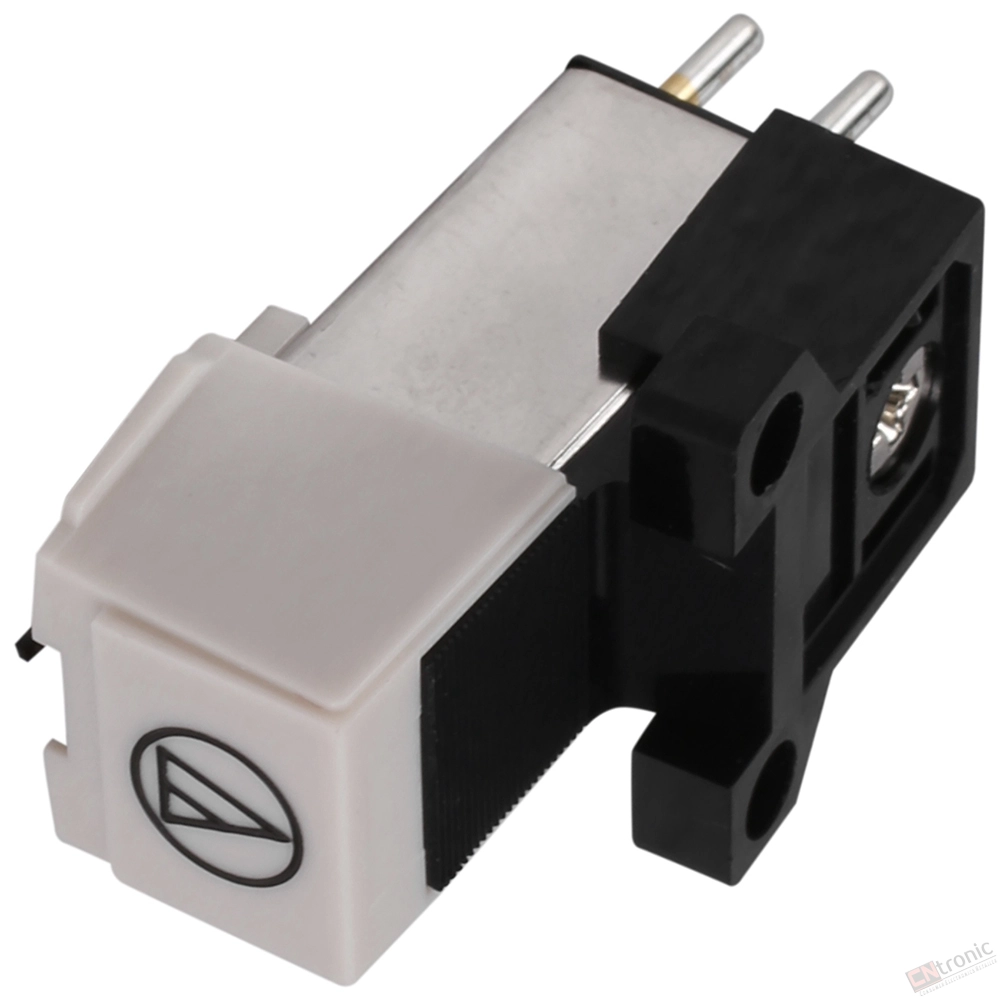

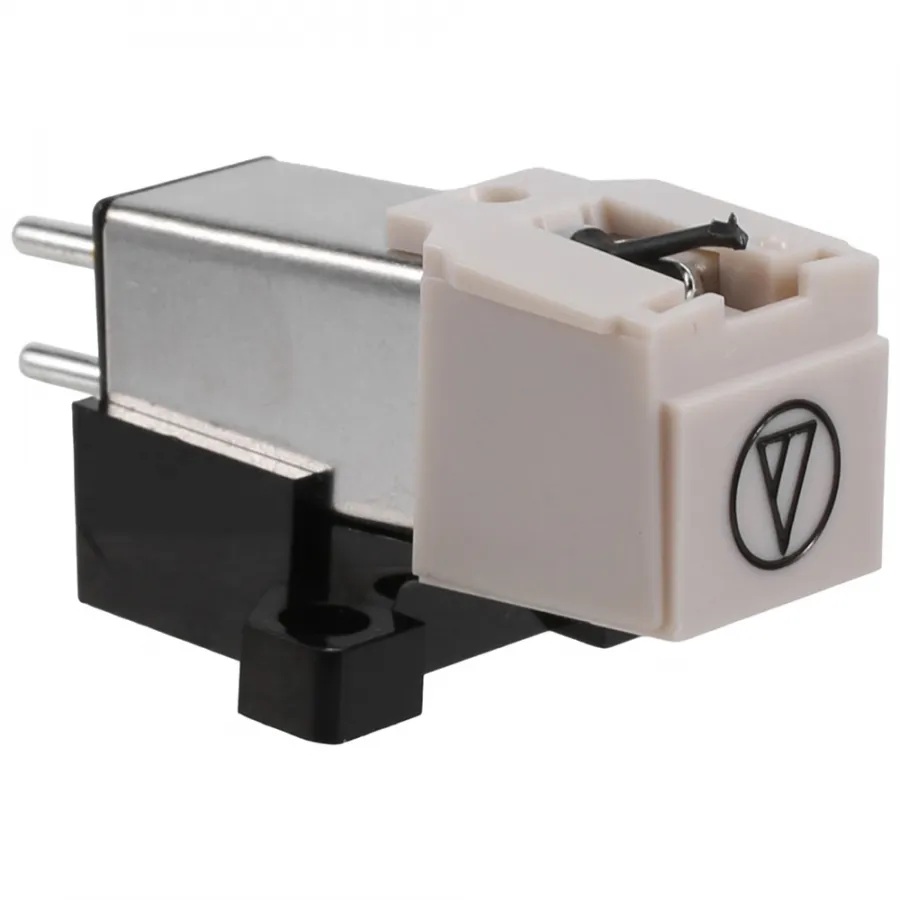

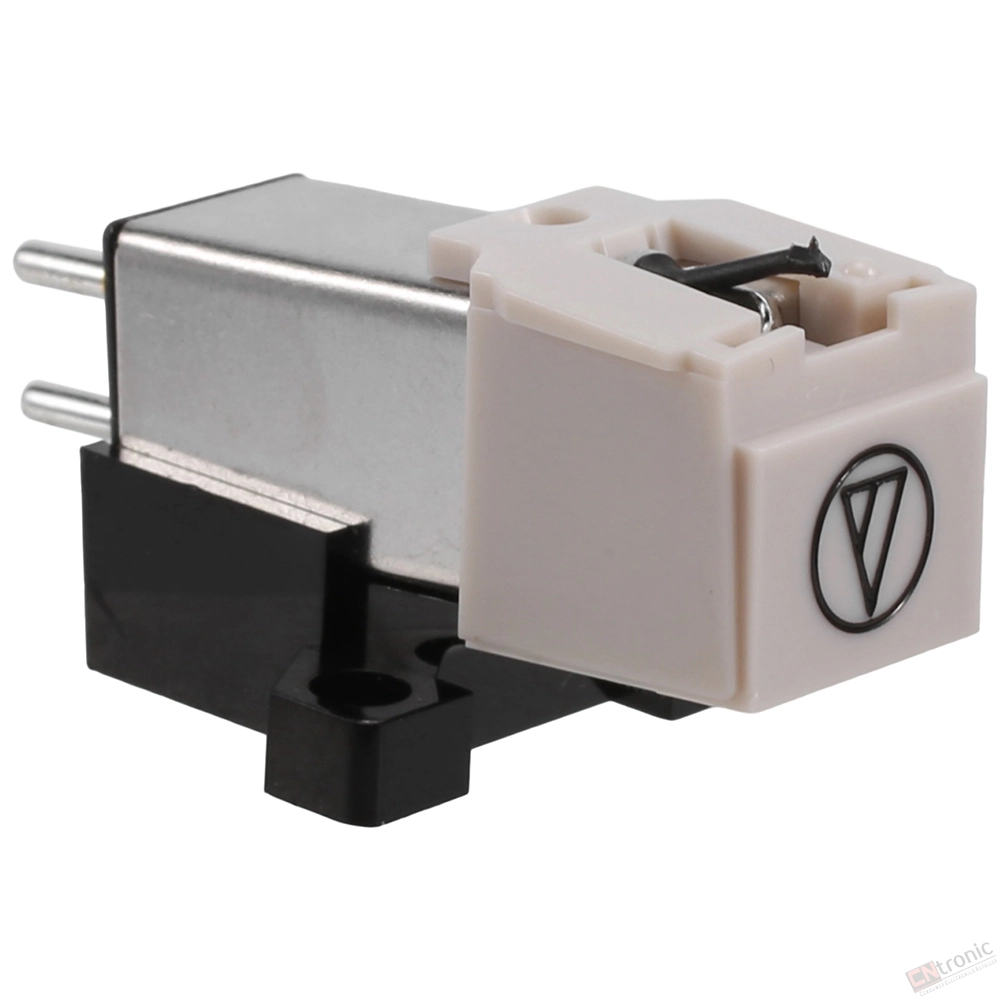

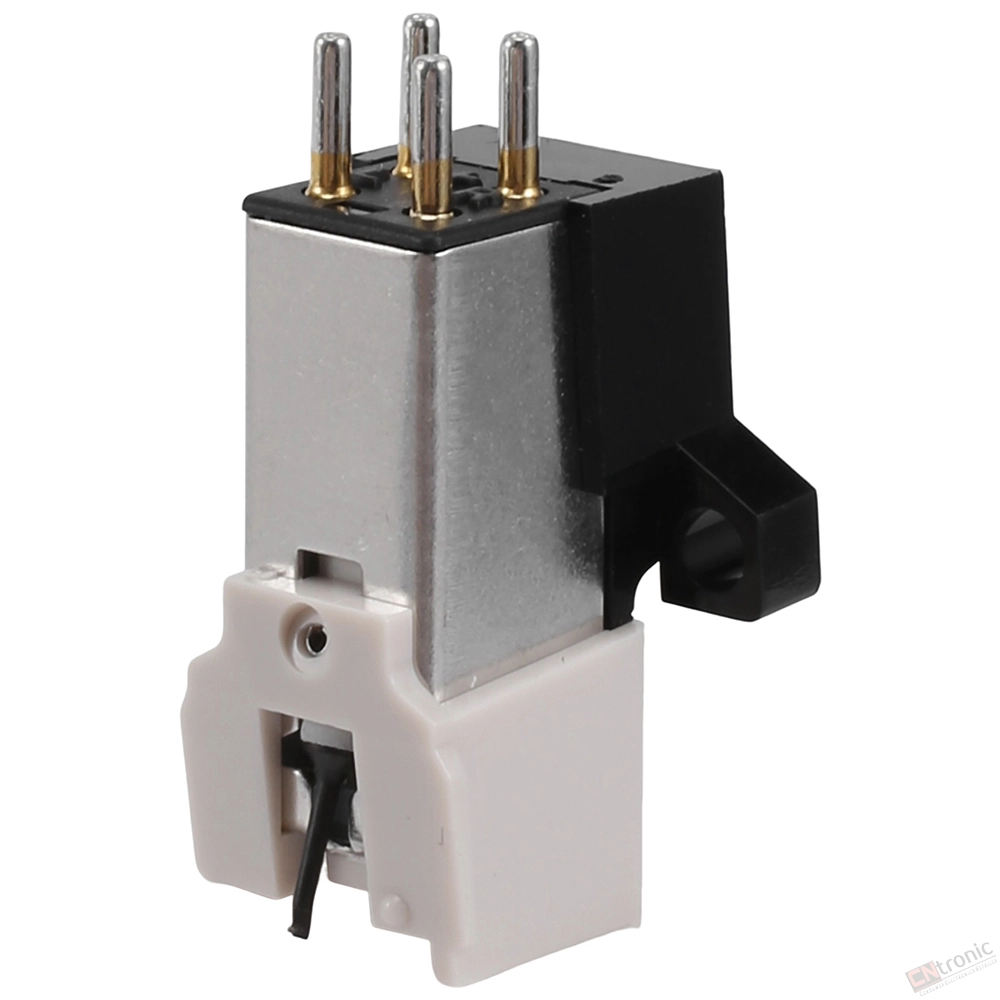

This AT3600L is a very high-quality cartridge with more than 50 years of production history, and the production technology is very mature. As an entry-level cartridge, the material of the stylus has not been reduced, and the tip is an extremely durable artificial diamond.
The needle bar is made of high-quality material, which not only enhances the hardness, but also ensures the sound level

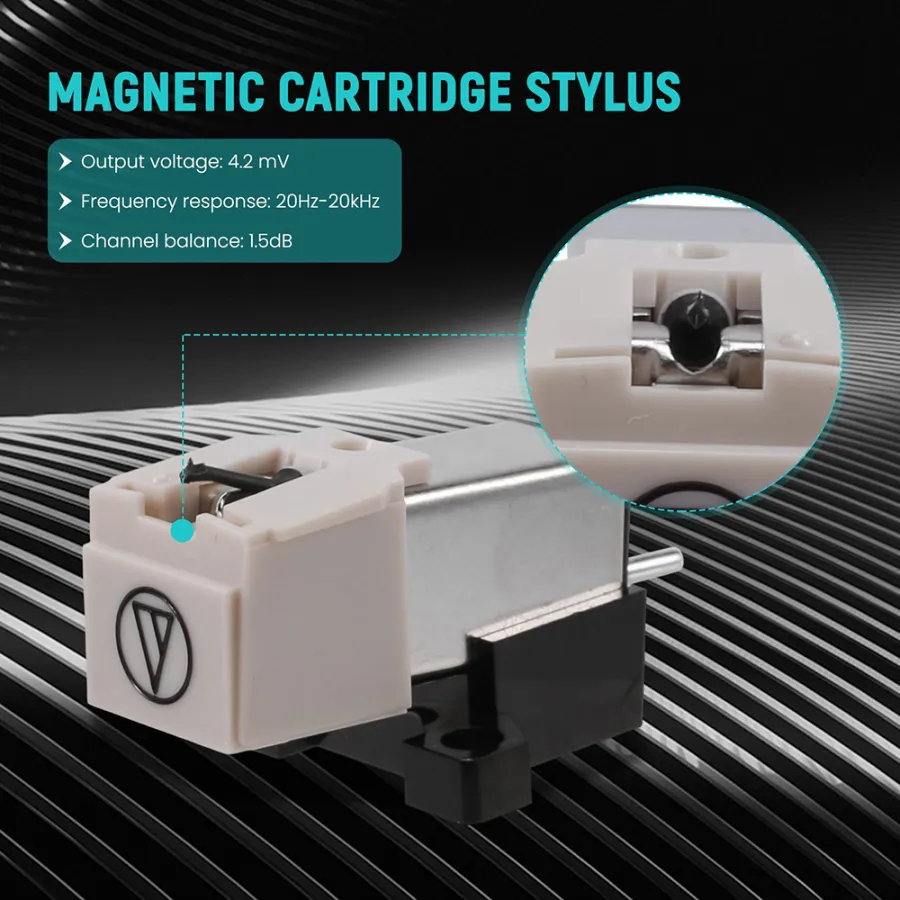

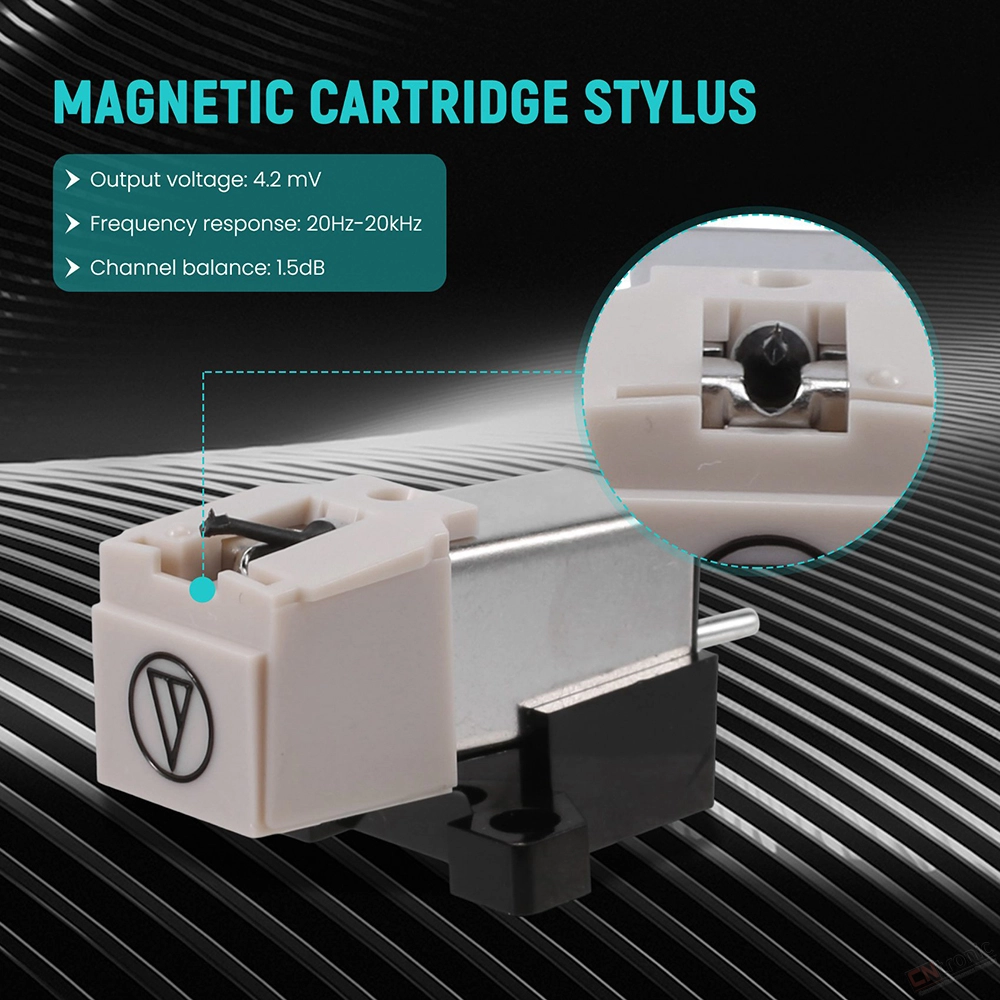

Output voltage: 4.2 mV
Frequency response: 20Hz-20kHz
Channel balance: 1.5dB
Stylus type: Highly polished and shaped.0006 inch conical diamond
Stylus construction: Bonded round shank
Colour:Silver
Material:plastic
Size:17 x 16.3 x 31mm
Package Contents:
1 x turntable stylus
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Packaging Details
- Unit Type:
- Package Weight: 0.080
- Package Size: 1x1x1
- Brand Name: lyele
- Origin: Mainland China
- Speeds: 33,45,78 RPM
- Hign-concerned Chemical: None
- Output Connectors: RCA
- Model Number: Audio-Technica AT3600L
- Audio-Technica: at3600l
- Audio-Technica: at91

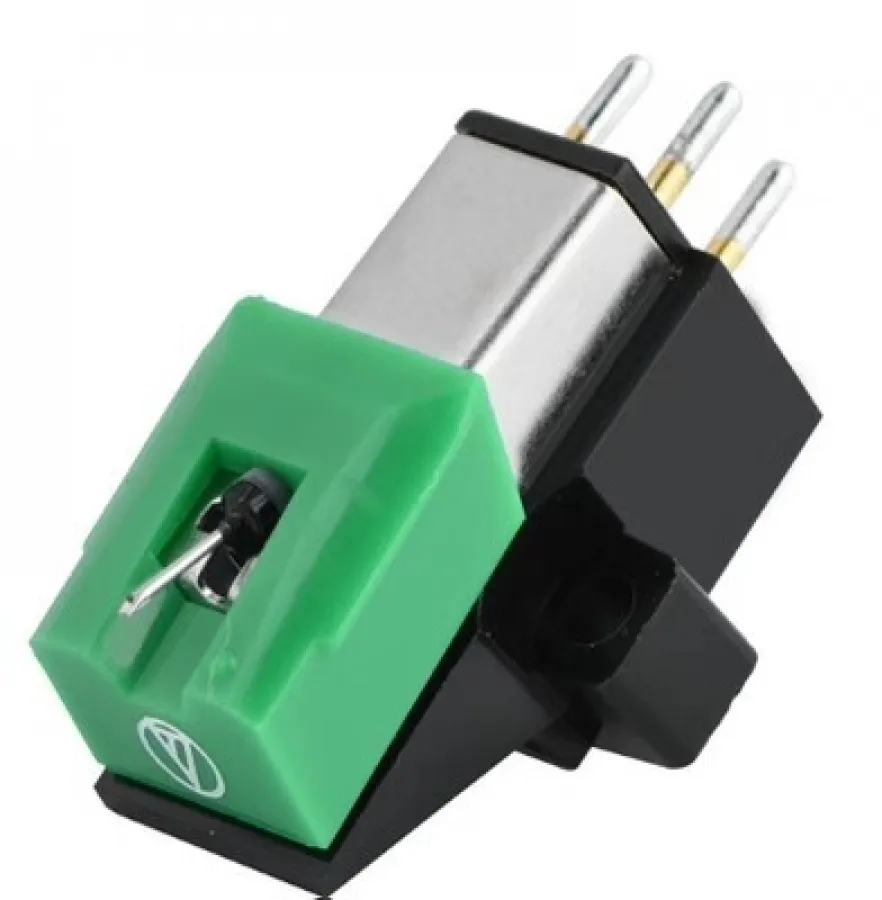

- Audio-Technica: at95e

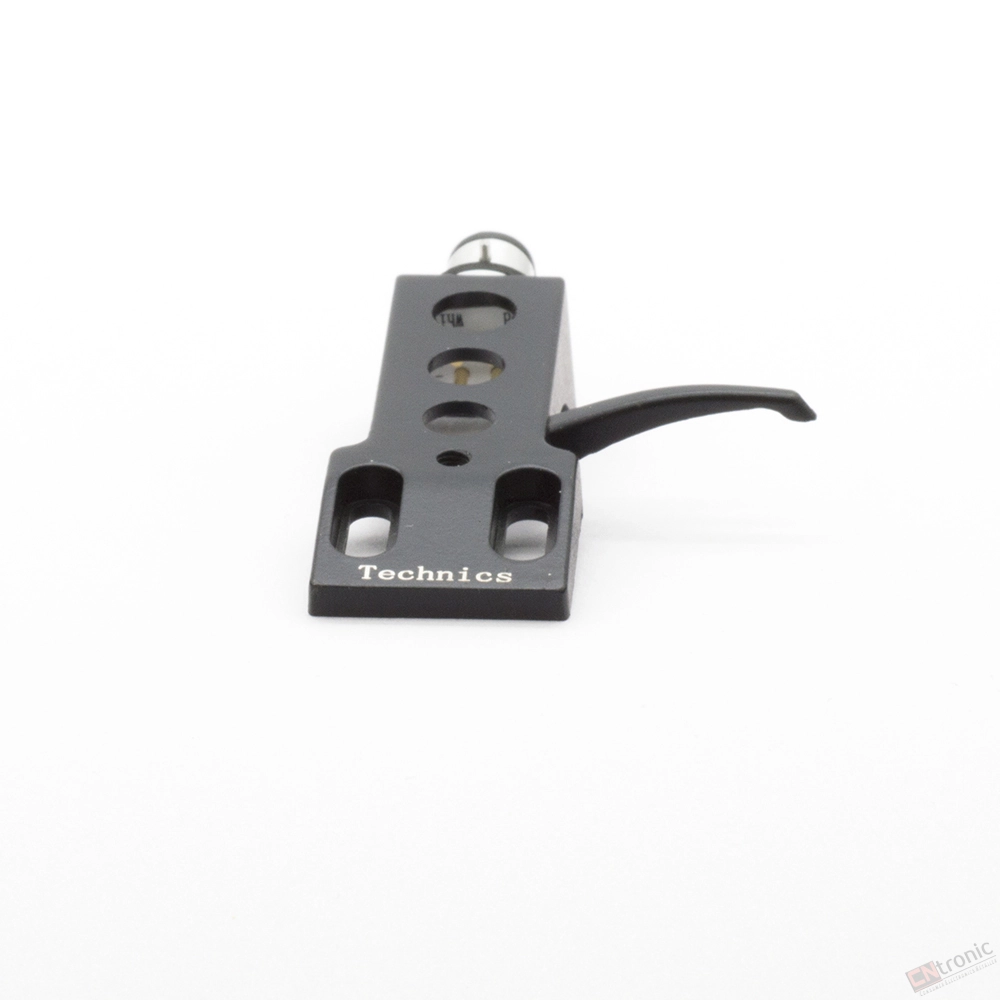

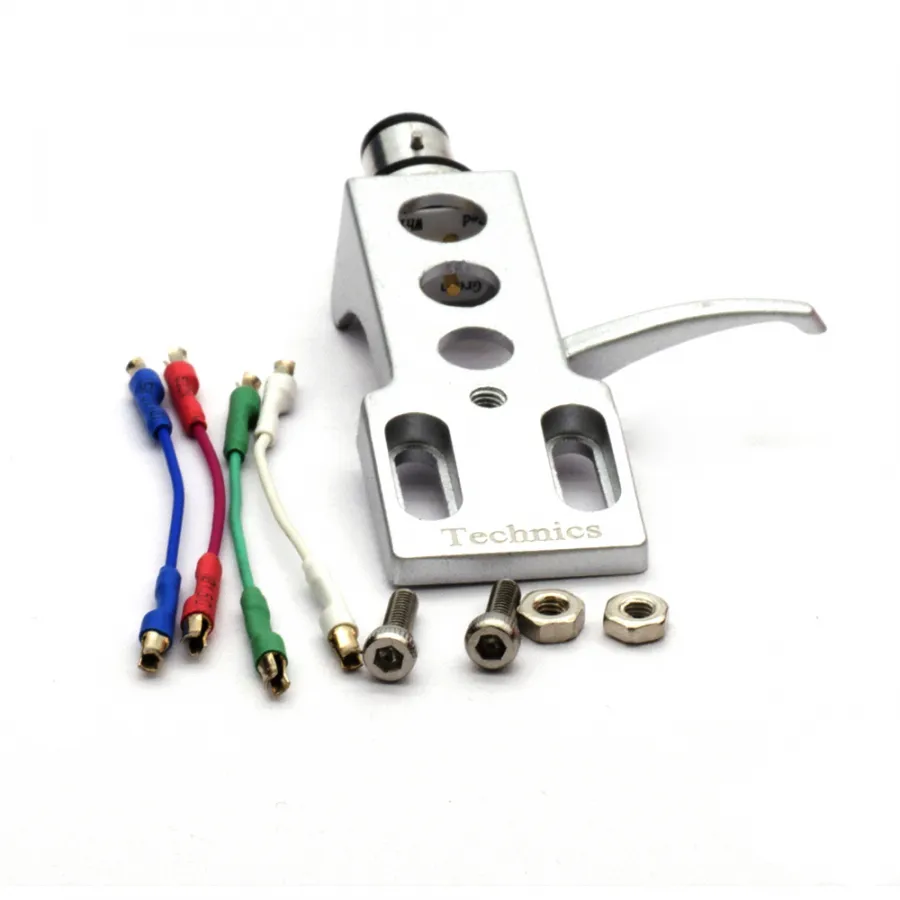

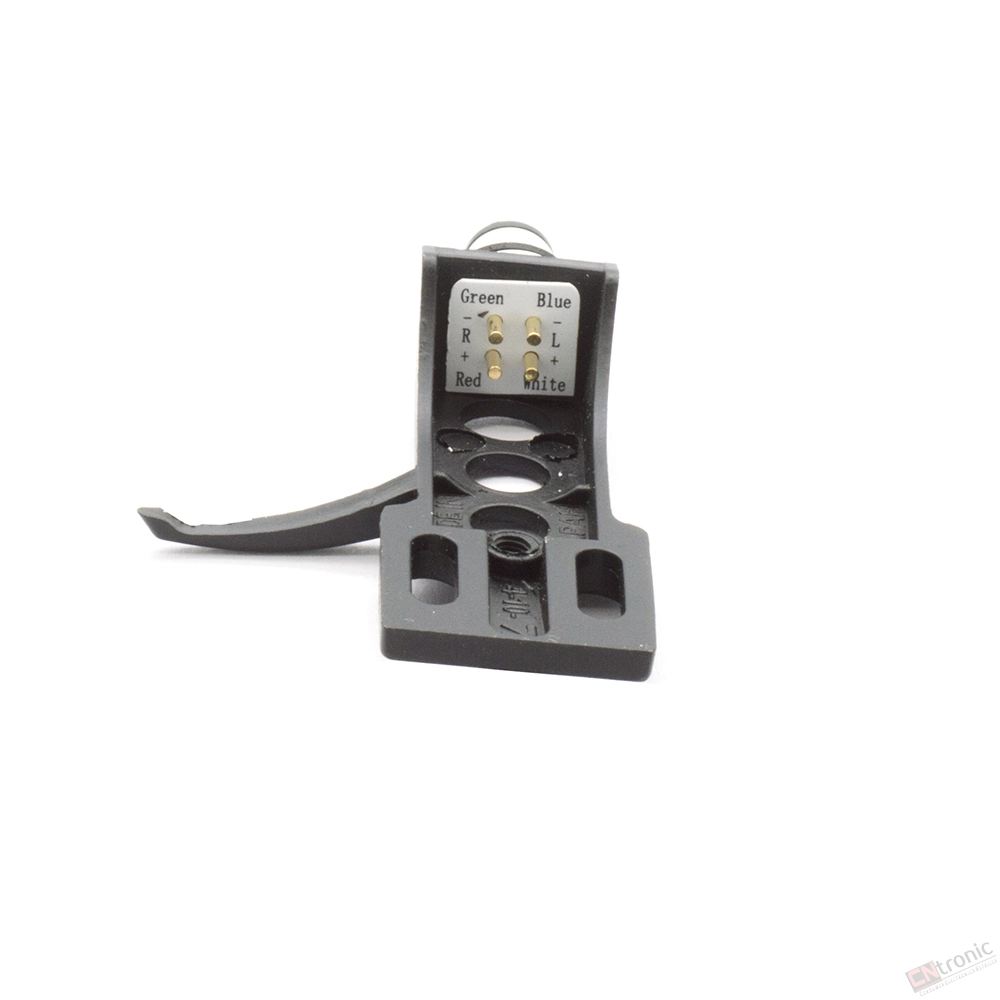

- cartridge stand: Technics
