AMPCOM Network Switch 16 Ports Switch Ethernet 1000Mbps Gigabit High Performance Smart Switcher RJ45 Hub Internet Injector
4.9 (141 votes) | 800 orders
Price:
US $117.27
Discount Price:
US $
58.84
-50%
- Color
-
-
【Product Description】
The 16-port Gigabit Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 16 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, easy to manage and maintain, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
【Main Features】
16*10/100/1000M RJ45 Ports
Apply to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
Ethernet port supports 10/100/1000M adaptive
Support auto MDI/MDIX
Panel indicators to monitor working status and help fault analysis
Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
Support port lightning protection Surge: common mode 4KV, differential mode 2KV; Electrostatic ESD: Air 8KV, Contact 6KV
【Application Environment】
Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
【Specifications】
I/O Interface
Power: DC 12V
Ethernet: 16*10/100/1000Mbps RJ45 Ports
Performance
Backplane bandwidth: 32Gbps
Pack Forwarding Rate: 23.8Mpps
Pack Cache: 4Mbit
MAC Address: 8K
Transfer Mode: Storage & Forwarding
Standard
Network protocol
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Network Medium :10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or aboveUTP(≤100m)
Environment
Working Environment
Working Temperature：-0~40°C
Storage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~95%，non-condensing
Power Voltage Power adapter input voltage: AC 100-240V 50/60Hz
Power adapter output voltage: 12V 1A
Indication
Indicator Light: Port light
Port light On: Link connect normal
Off: Link off
Flash: Data transmission
Physical Specifications
Structure size

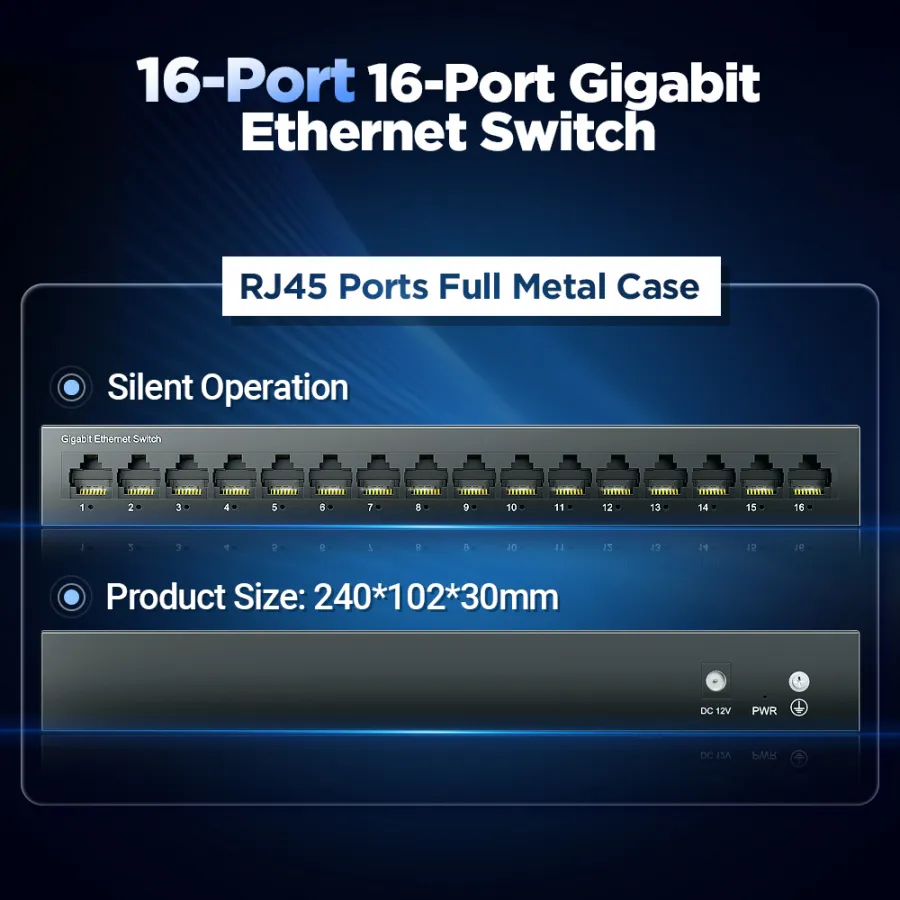

Product Size: 240*102*30mm
Package Size: 255*125*65mm
Product Net-Weight: 0.59Kg
Product Gross-Weight: 0.74Kg
Package List: Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Instructions 1 pc
16-Port Gigabit Easy Smart Switch
Easily expand your gigabit network and save energy

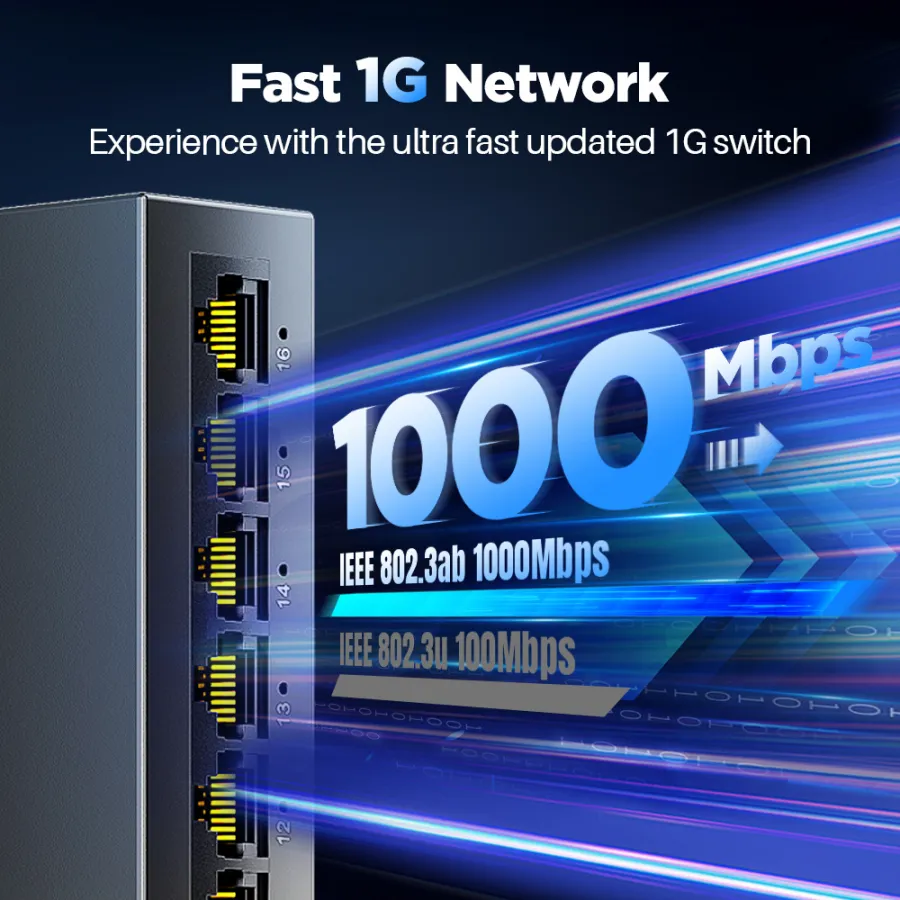

1000Mnps Speed

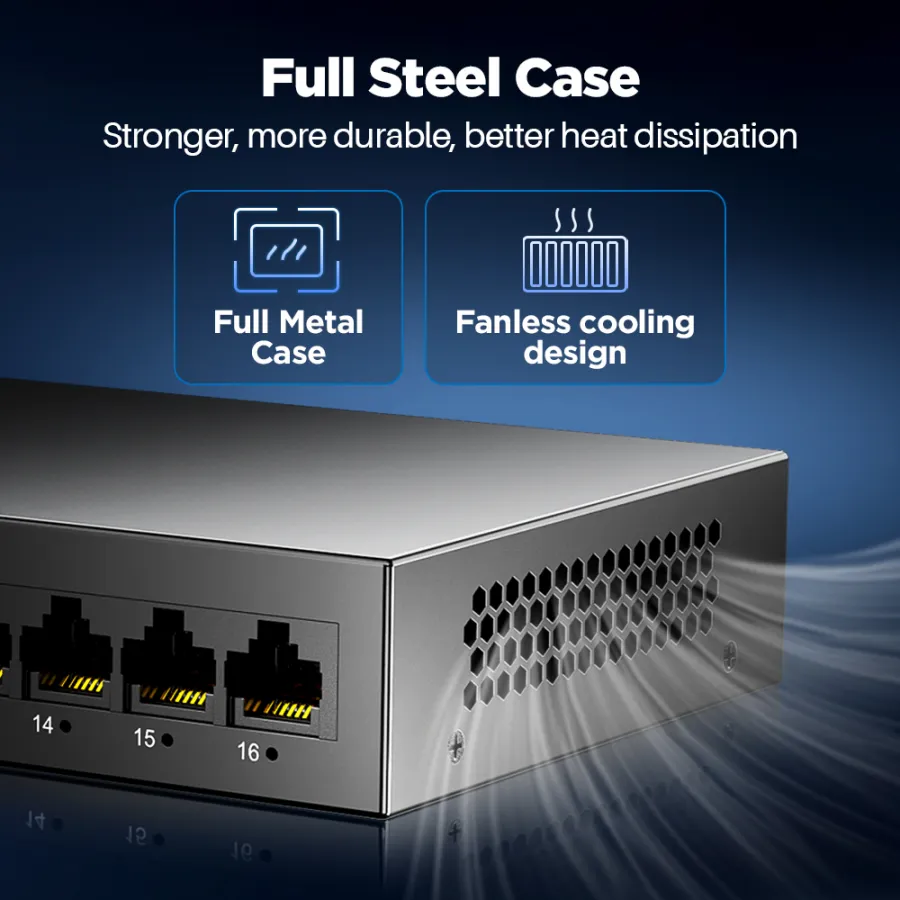

Full Metal Case/8 Port 1Gbps/Plug&Play/MDI/MDX

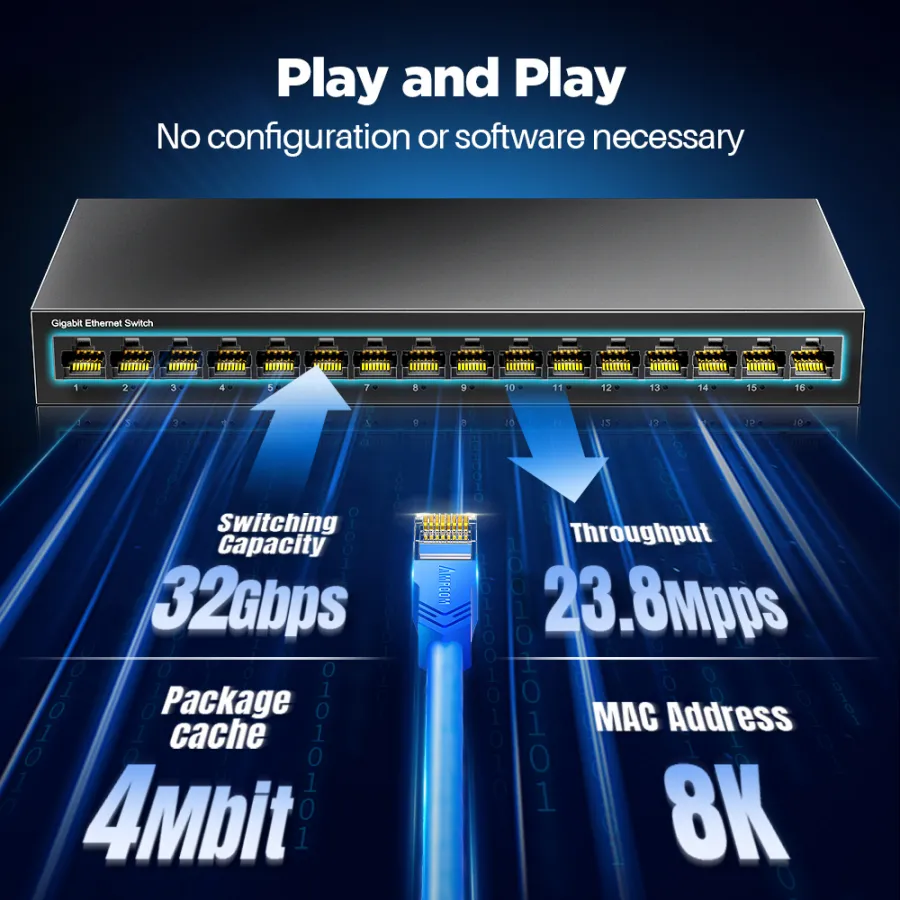

Plug&Play without Setting
Supports MDI/MDX without the need for configuration, automatically recognizes WAN/LAN
16 Full Gigabit Ports
1000Mbps WAN/LAN
High Switching Capacity
Provides faster data transmission, supports more devices, reduces the risk of network congestion, and facilitates large-scale network applications.

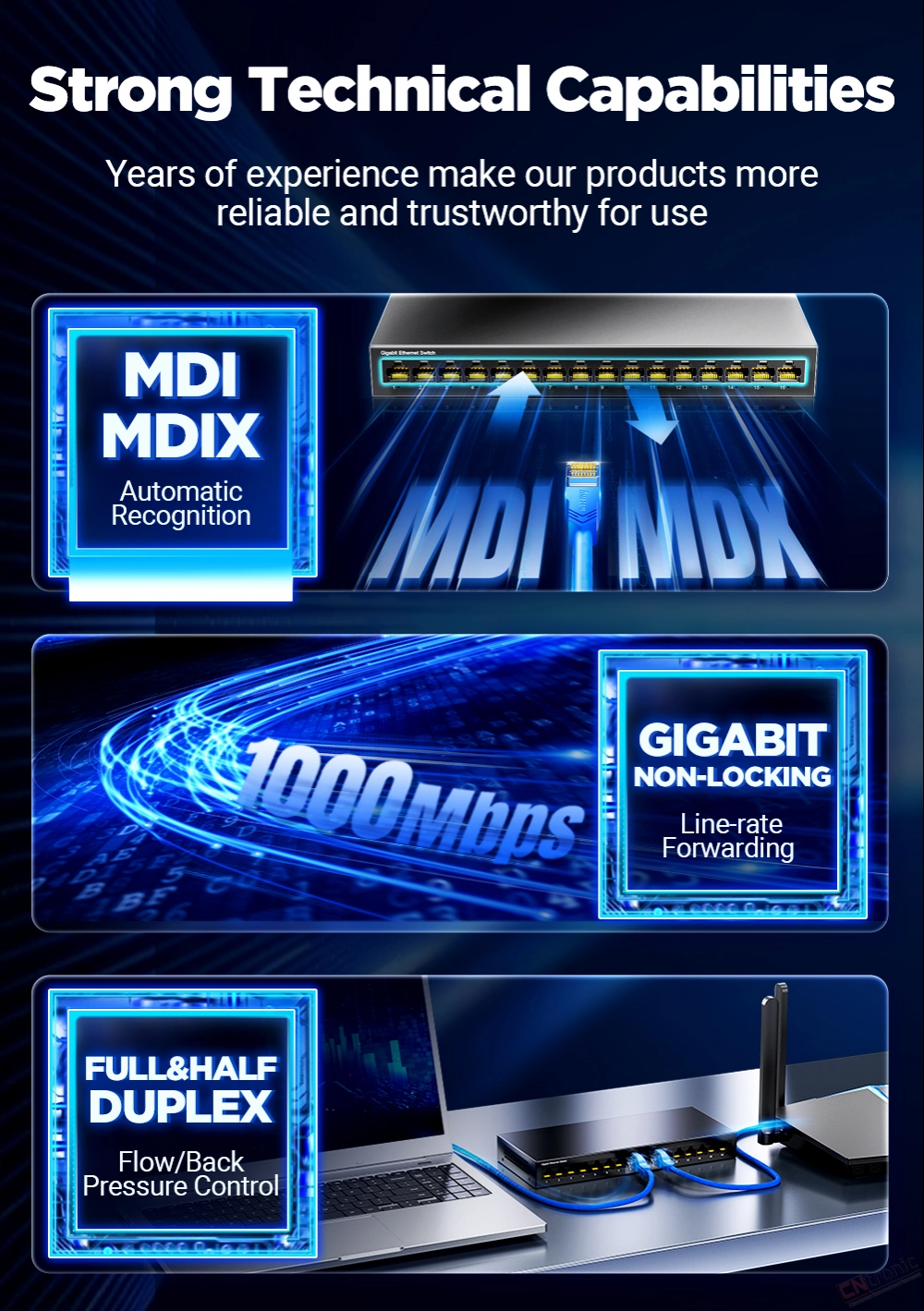

Strong Technical Capabilities
Years of experience make our products more reliable and trustworthy for use

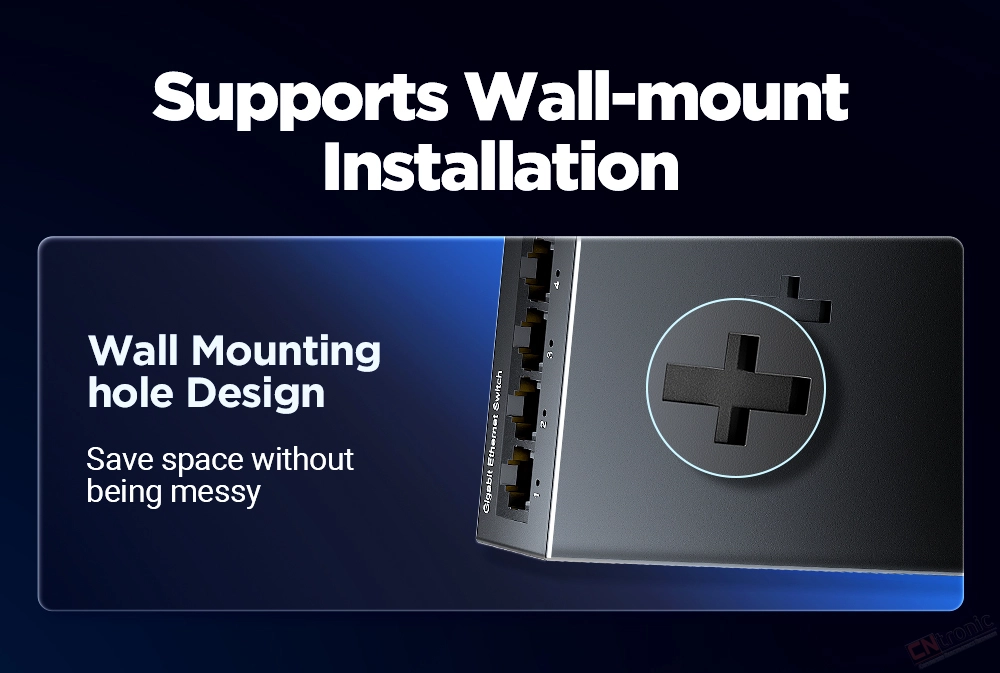

Supports Wall-mount Installation

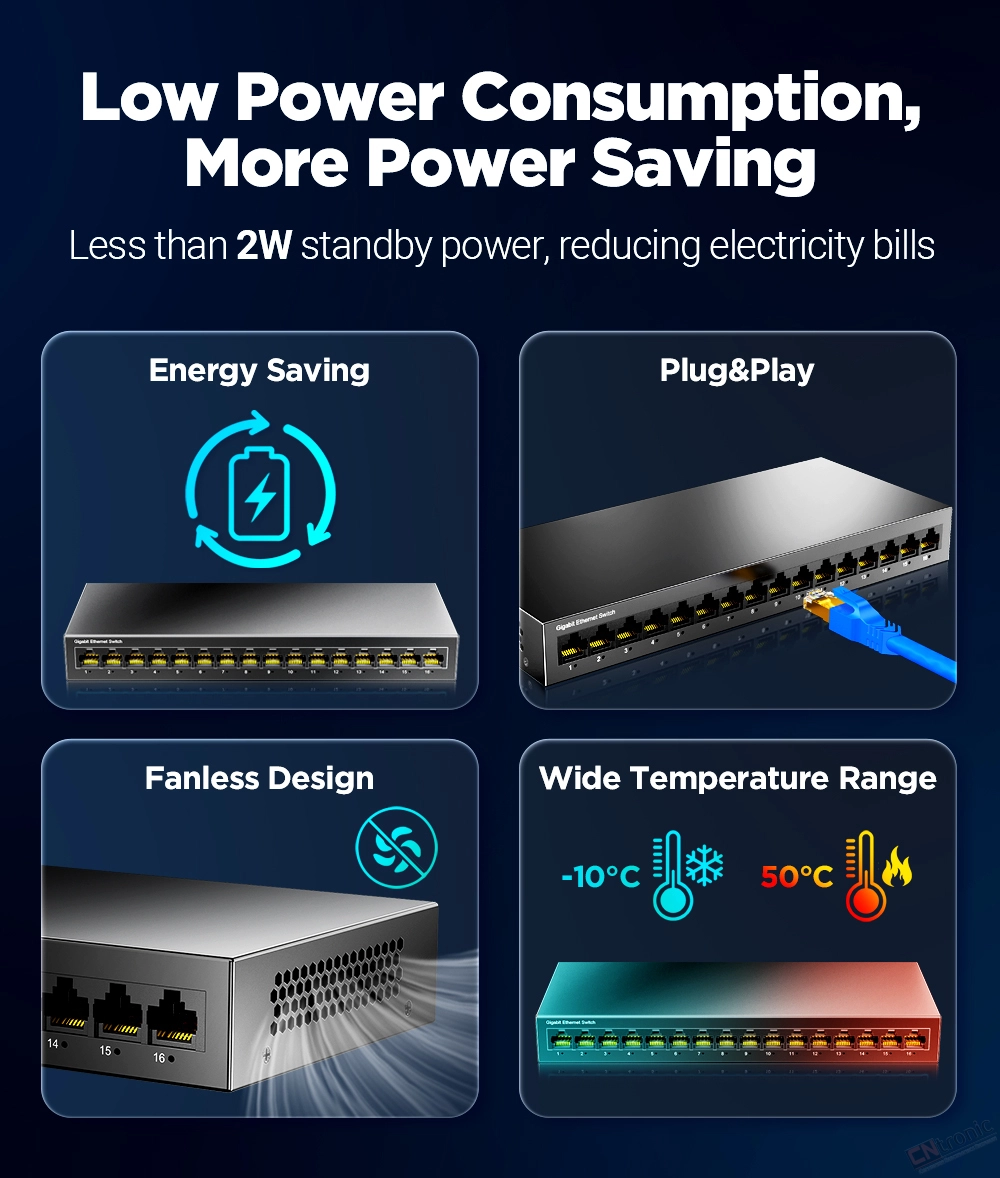

Low Power Consumption,More Power Saving
Less than 2W standby power, reducing electricity bills
4KV Lightning Protection
Common mode 4KV, differential mode 2KV; Electrostatic ESD: Air 8KV, Contact 6KV

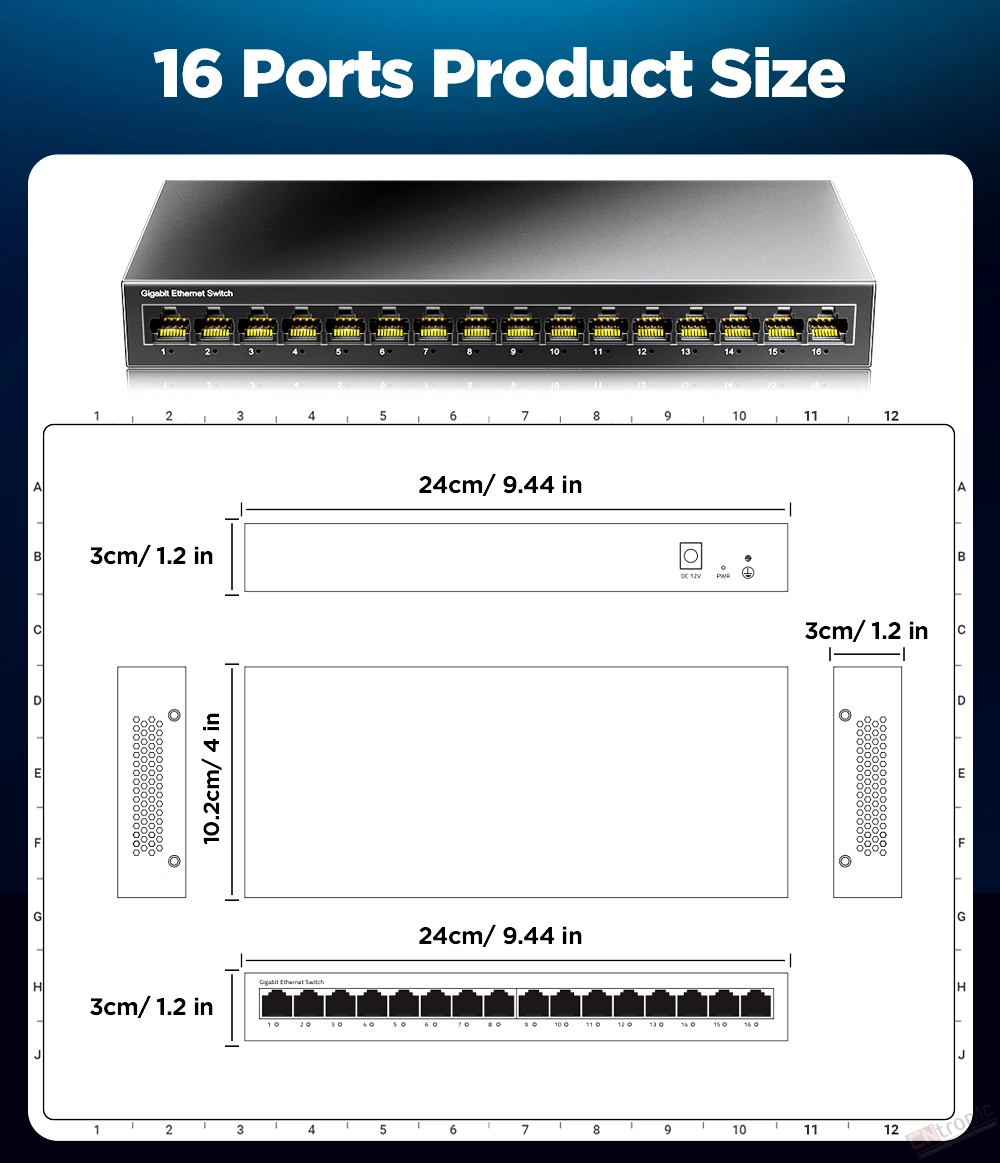

Product Size
Packaging Details
- Unit Type:
- Package Weight: 0.777
- Package Size: 20x8x32
- Brand Name: AMPCOM
- Origin: Mainland China
- Function: LACP
- Function: QoS
- Number of Interfaces: 15
- Certification: RoHS
- Switch Type: Gigabit Switch
- Package: Yes
- Communication Mode: Full-Duplex
- Model Number: WAMZX-SWG0050-M
- Transmission Rate: 10/100/1000Mbps
- VLAN: yes

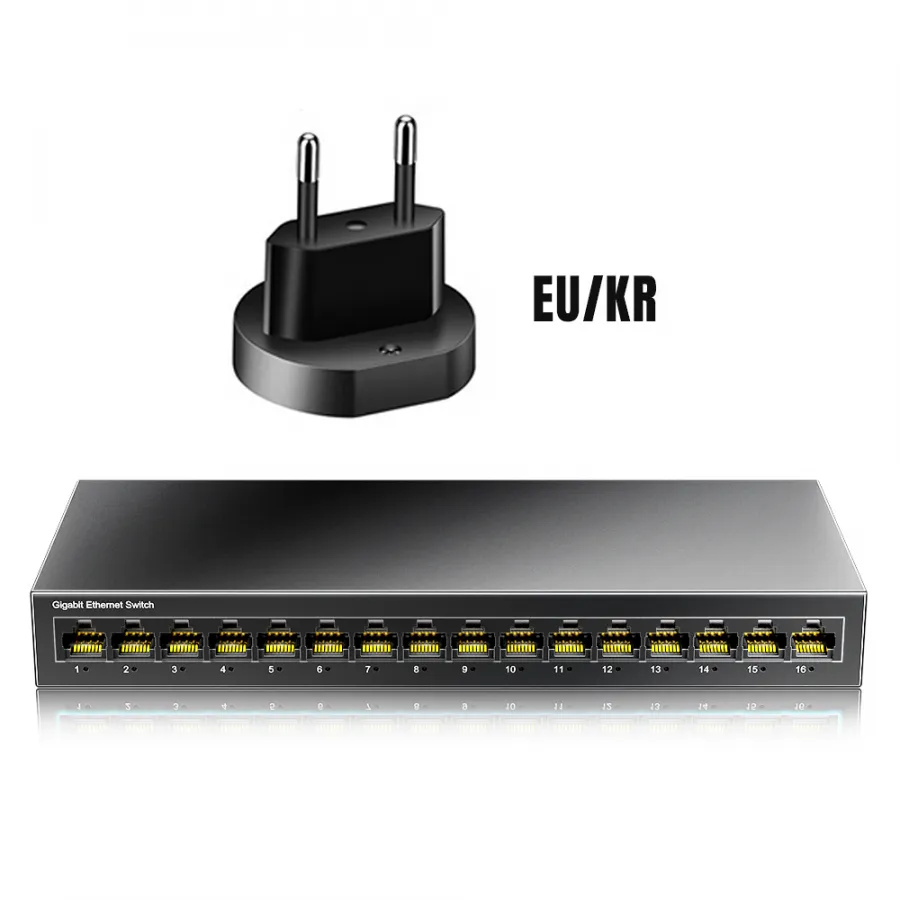

- Plug Type: EU Plug
- Switch Capacity: 32Gbps
- Choice: yes
