AMPCOM 25G DAC Cable SFP28 Passive Direct Attach Copper Twinax Cable, for Cisco, Mikrotik, Ubiquiti, Meraki
5.0 (1 votes) | 9 orders
Price:
US $111.83
Discount Price:
US $
76.16
-32%
Only Compatible for Cisco, Mikrotik, Fortinet, Ubiquiti, Netgear, D-Link, Linksys, Edge-core, EMC, F5, Meraki, QTC, Supermicro, and Other Open Switches

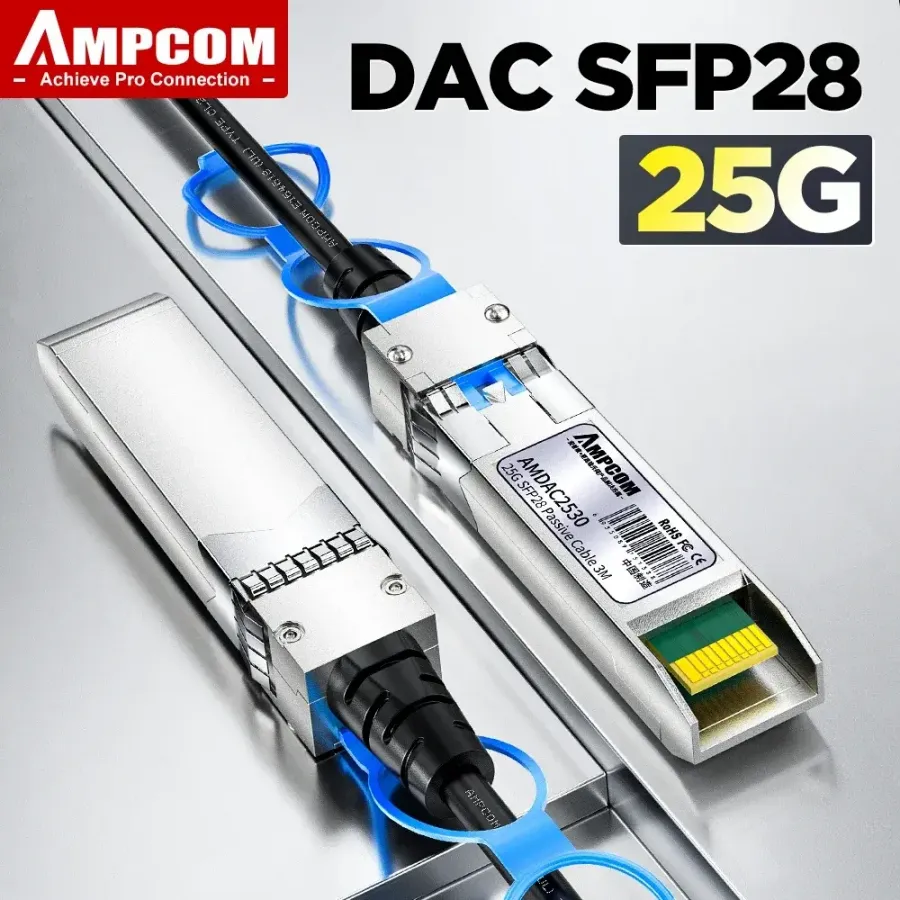

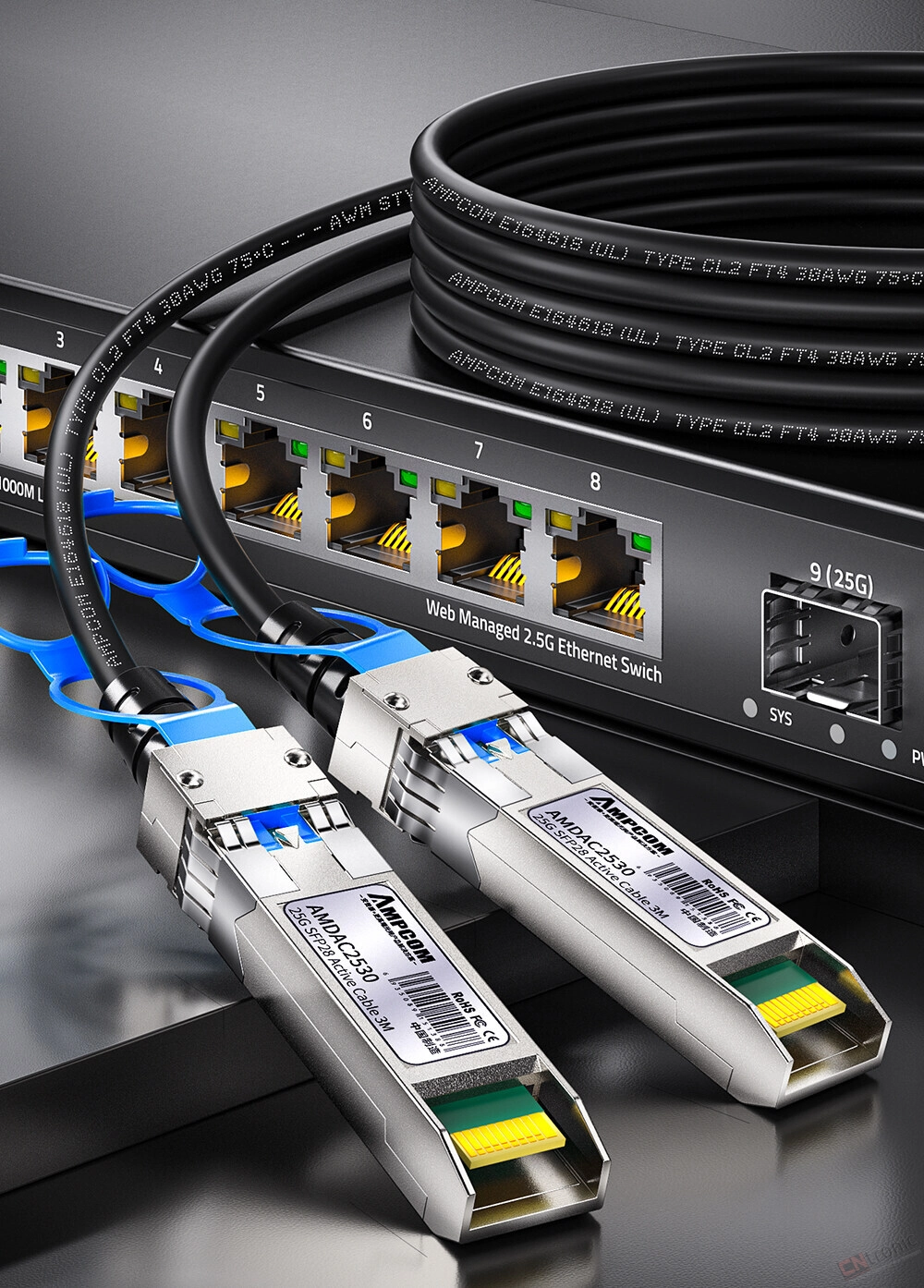

AMPCOM 25G SFP28 Direct Attach Copper Twinax Cable
(1/2/3/5Meter, AWG26/30, Active)
The AMPCOM DAC Cable is a hot-swappable passive direct attach copper cable assembly (also known as Twinax Cable or DAC) with SFP28 modules at both ends. It is developed specifically as a cost-effective and lower-power alternative to 25Gb SFP28 optics and Active Optical Cables (AOC), to meet the increasing needs of higher bandwidth in data centers.
The 25G SFP28 DAC cable fully complies with SFP28 Multi-Source Agreement (MSA) standards SFF-8402 and SFF-8432 specifications. It is designed for very short reach links in 25Gbps high-speed I/O interconnect applications such as high-performance computing (HPC) and high-density data center.
Features
• Up to 25Gb/s data rate
• Compliant with SFF-8402 and SFF-8432
• Compatible to SFP+ MSA SFF-8431
• Hot-pluggable SFP 20PIN footprint
• Lowest total system EMI solution
• Low insertion loss and low crosstalk
• Single 3.3V power supply
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
Specification
Product Series: Direct Attach Copper Twinax Cable
Form Factor : 25G SFP28 DAC
Data Rate: 25 Gb/s
Passive or actively equalized: Active
Supply Voltage: 3.3V
Cable Length: 1/2/3/5 meter
Cable impedance: 100 Ω
Cable Type: Twinax
Wire Gauge: 26/30 AWG
Minimum Cable Bend Radius: 40 mm
Cable Jacket Type: PVC
Connector: SFP28/SFP28
Digital Diagnostic Monitoring: Yes
Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C
Application: 25GbE and high density, 10GbE interconnects, Datacom/Telecom switch & router connections, Data aggregation and backplane
Aplications
SFF-8402
SFF-8432
MIL-STD-883C
RoHS
25G-25G SFP28 DAC Twinax Cable
Products Bullet Point
- Short-distance Cabling
- Broadly Compatiblility
- Silver Plated OFC
- High Bandwidth Low Latency
- Supports DDM Self-test
- Multiple Specifications Available

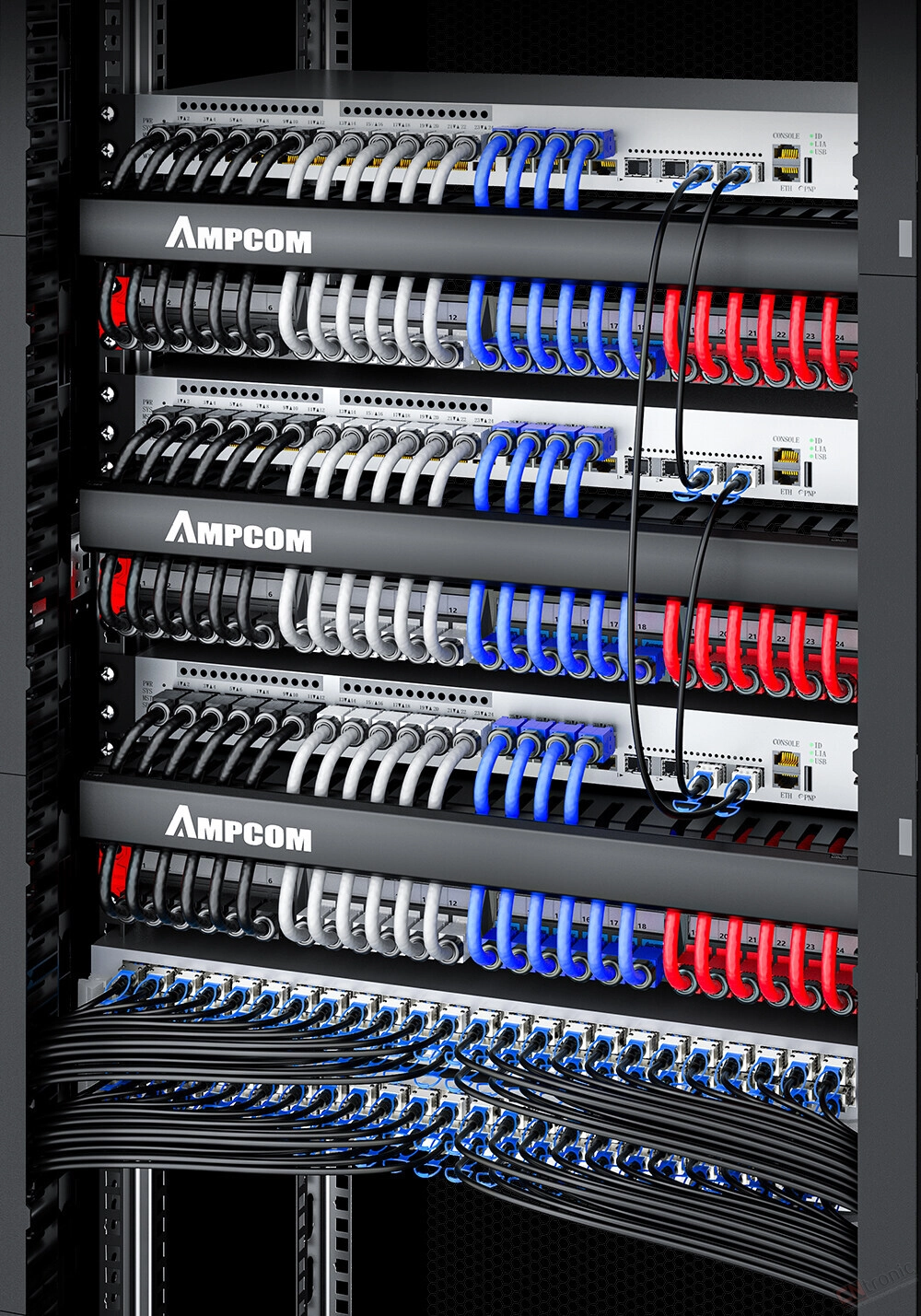

Low-Cost Cabling Solution
Direct attach copper is suitable for very short links and offer a cost effective way to establish a 25 Gigabit link between SFP28 25G ports within racks and across adjacent racks

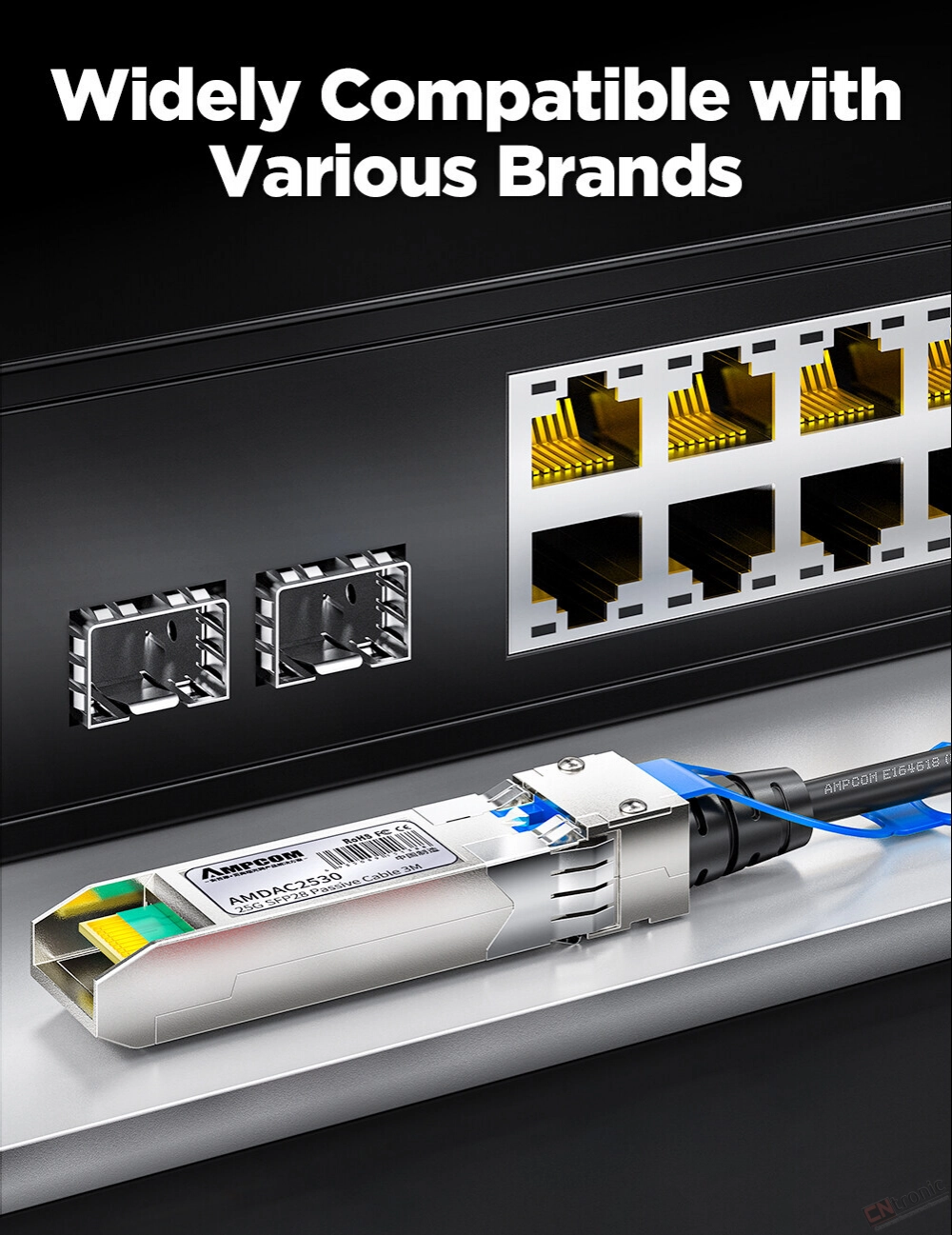

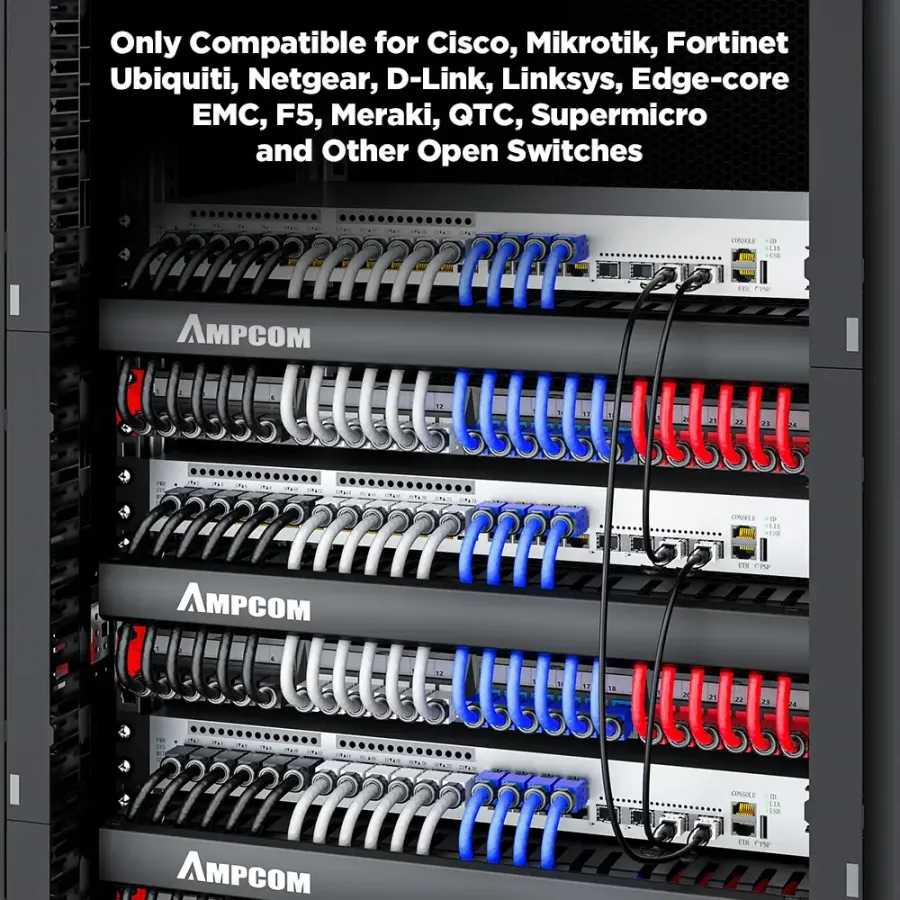

Widely Compatible with Various Brands
Only Compatible for Cisco, Mikrotik, Fortinet, Ubiquiti, Netgear, D-Link, Linksys, Edge-core, EMC, F5, Meraki, QTC, Supermicro, and Other Open Switches
The AMPCOM DAC Cable uses silver-plated oxygen-free copper wire, and multiple layers of shielding ensure stable transmission performance
Product Structure

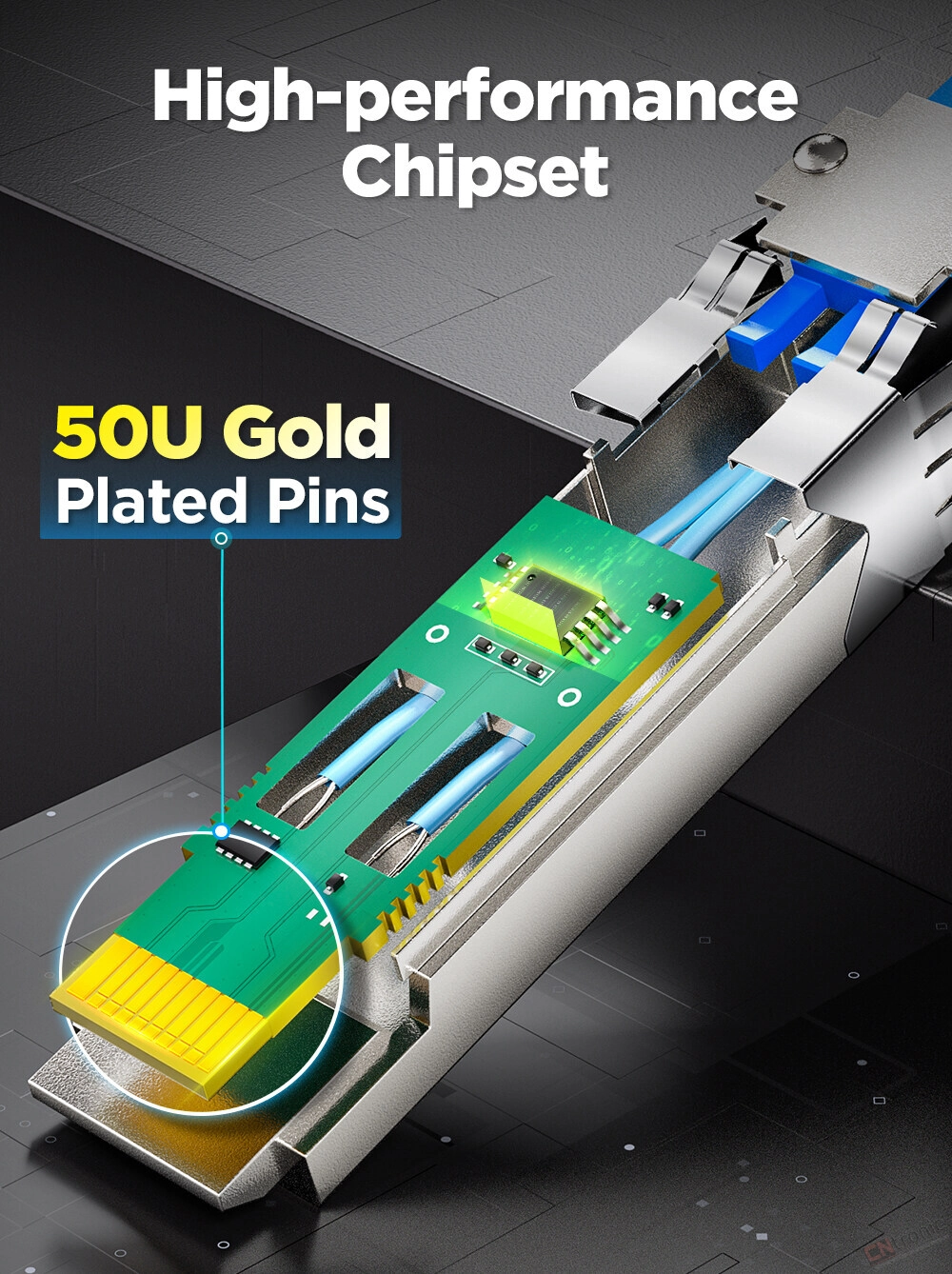

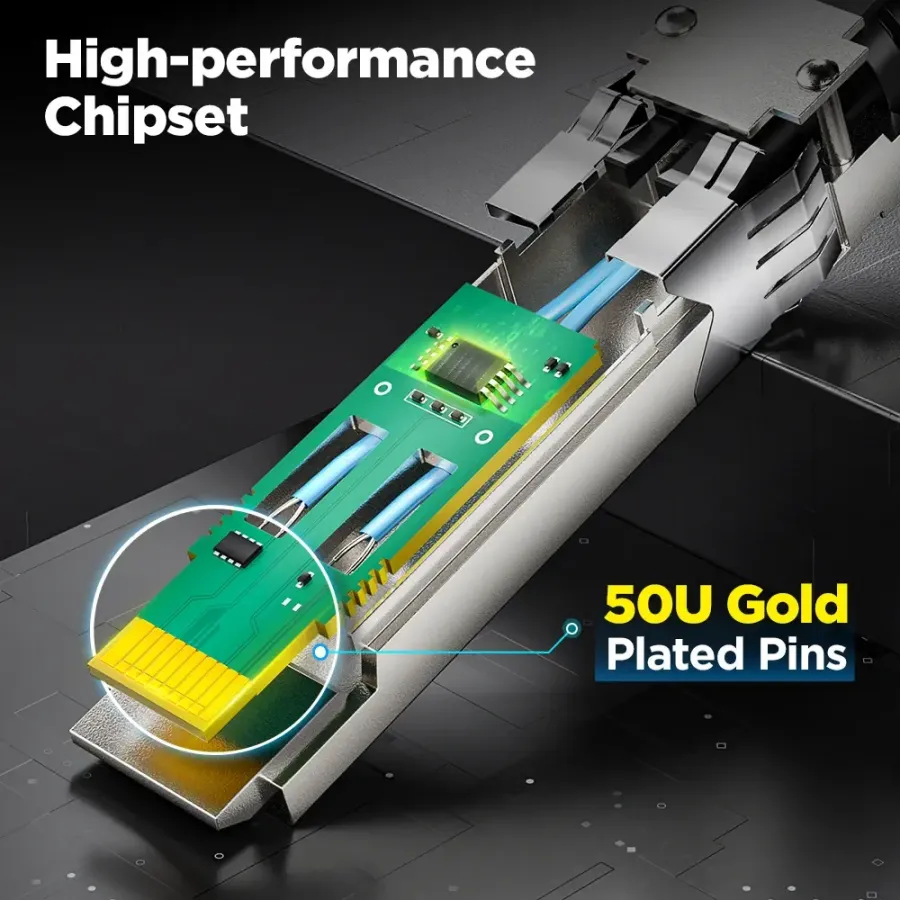

High-performance Chipset
With a built-in high-performance chip, data processing is fast and stable, effectively enhancing the real-time performance and efficiency of data transmission

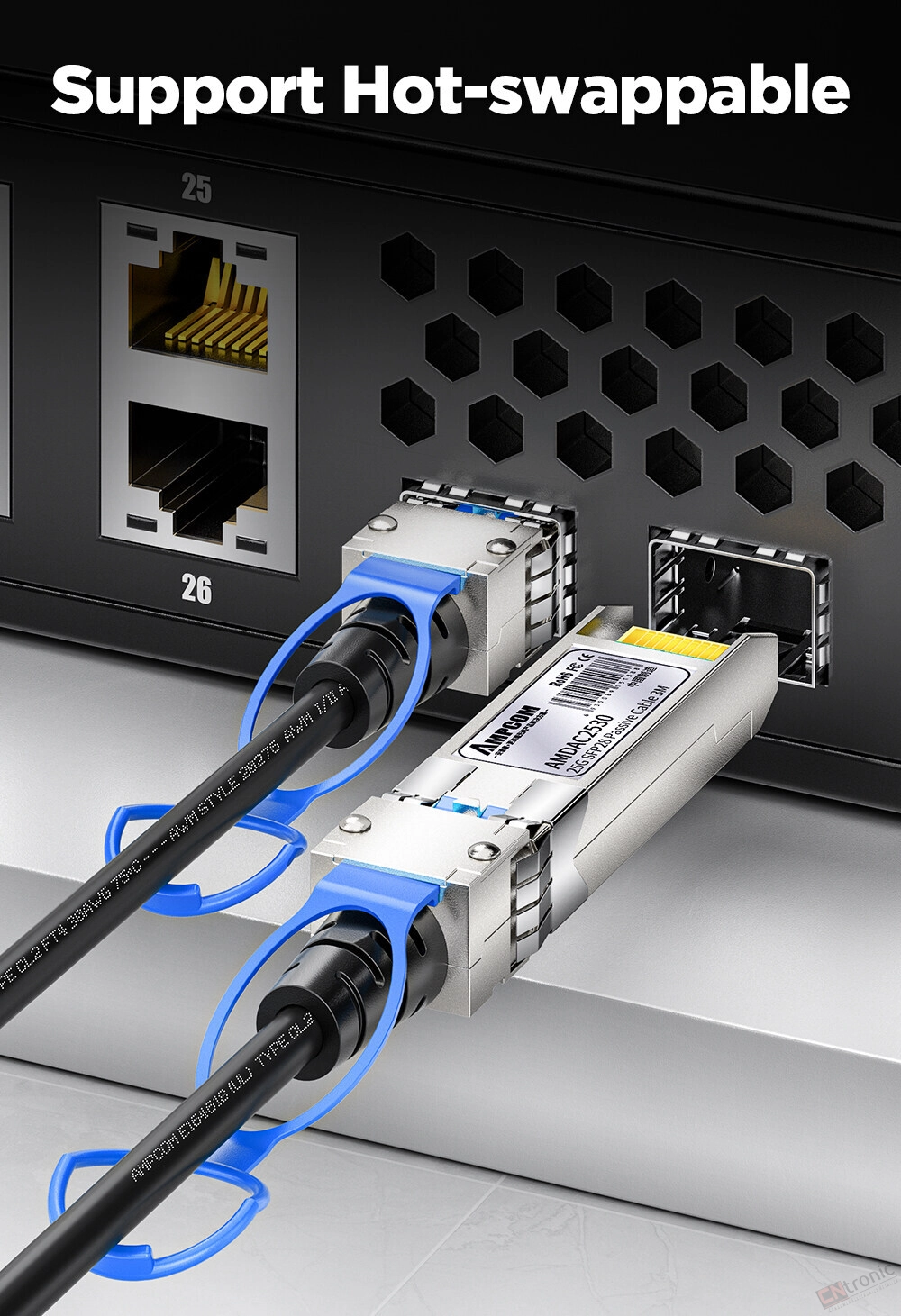

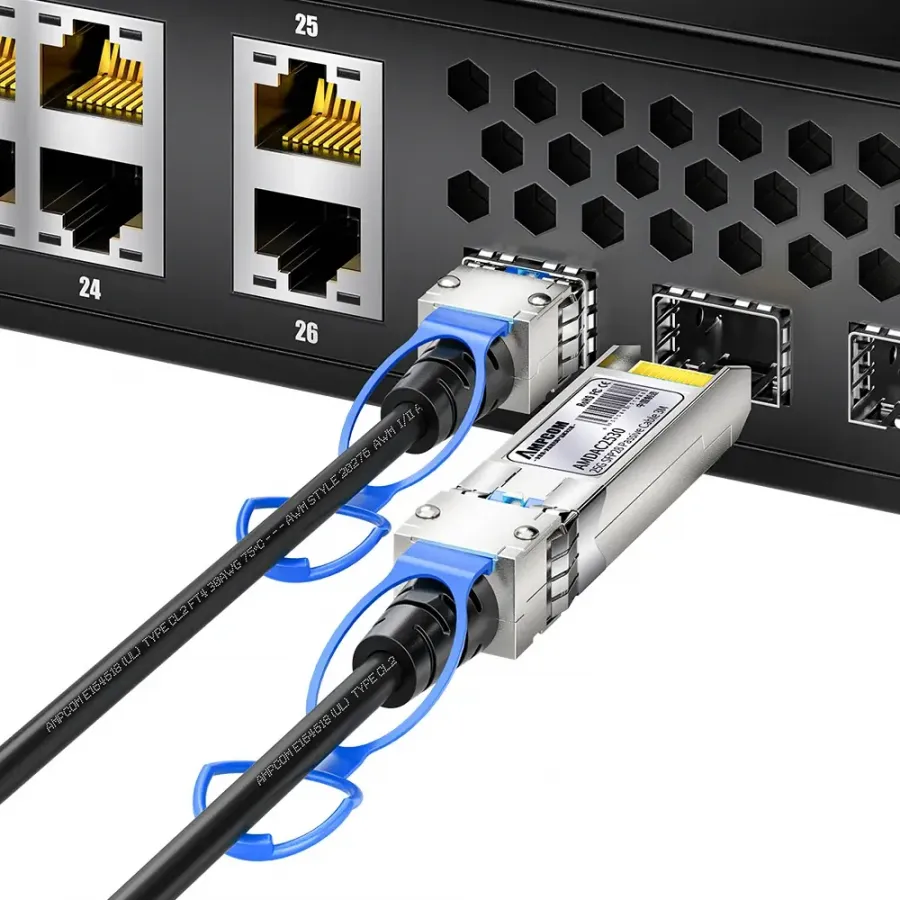

Support Hot-swappable
Driver-free direct connection for instant transmission, plug and play, without system popup warnings, ensuring efficient connectivity

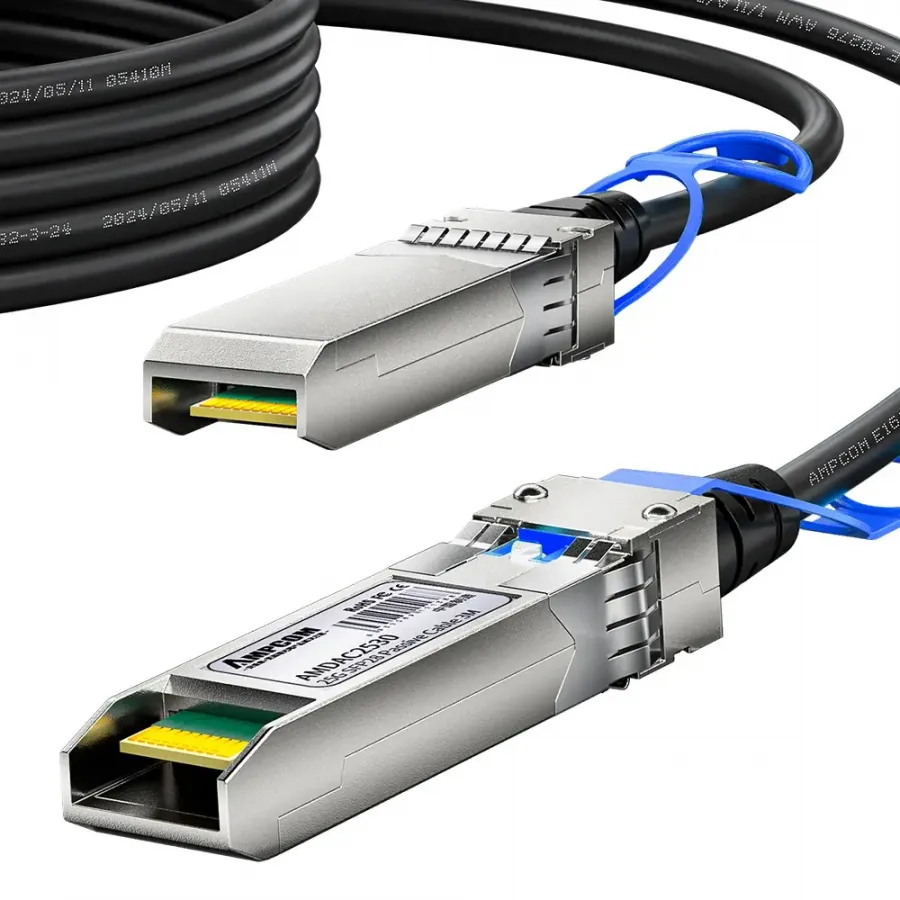

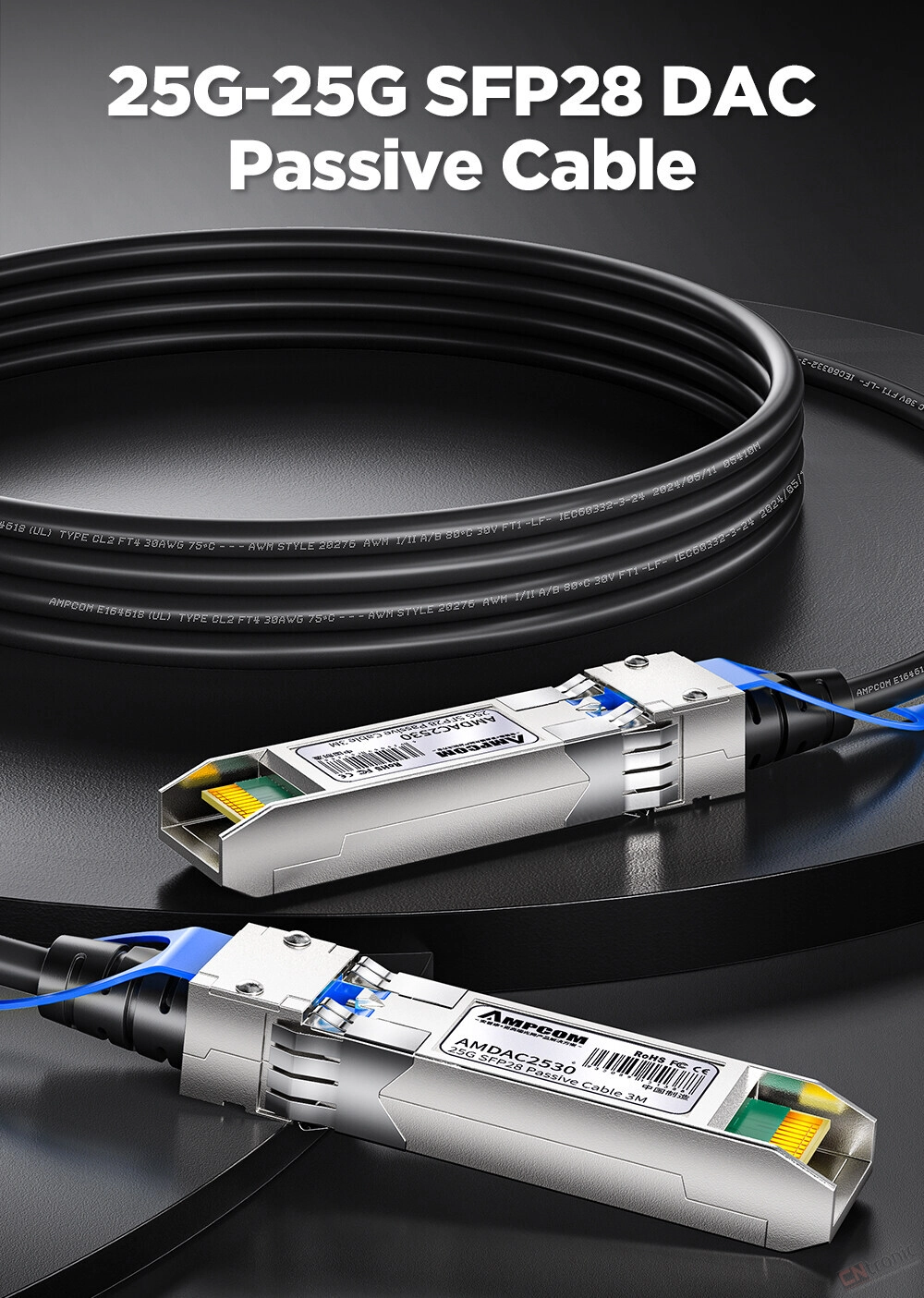

25G-25G SFP28 DAC Passive Cable
Direct 25G-to-25G transmission, using specialized cables for switch stacking, enables a low-cost solution for high-speed 25G transmission over short distances between devices.

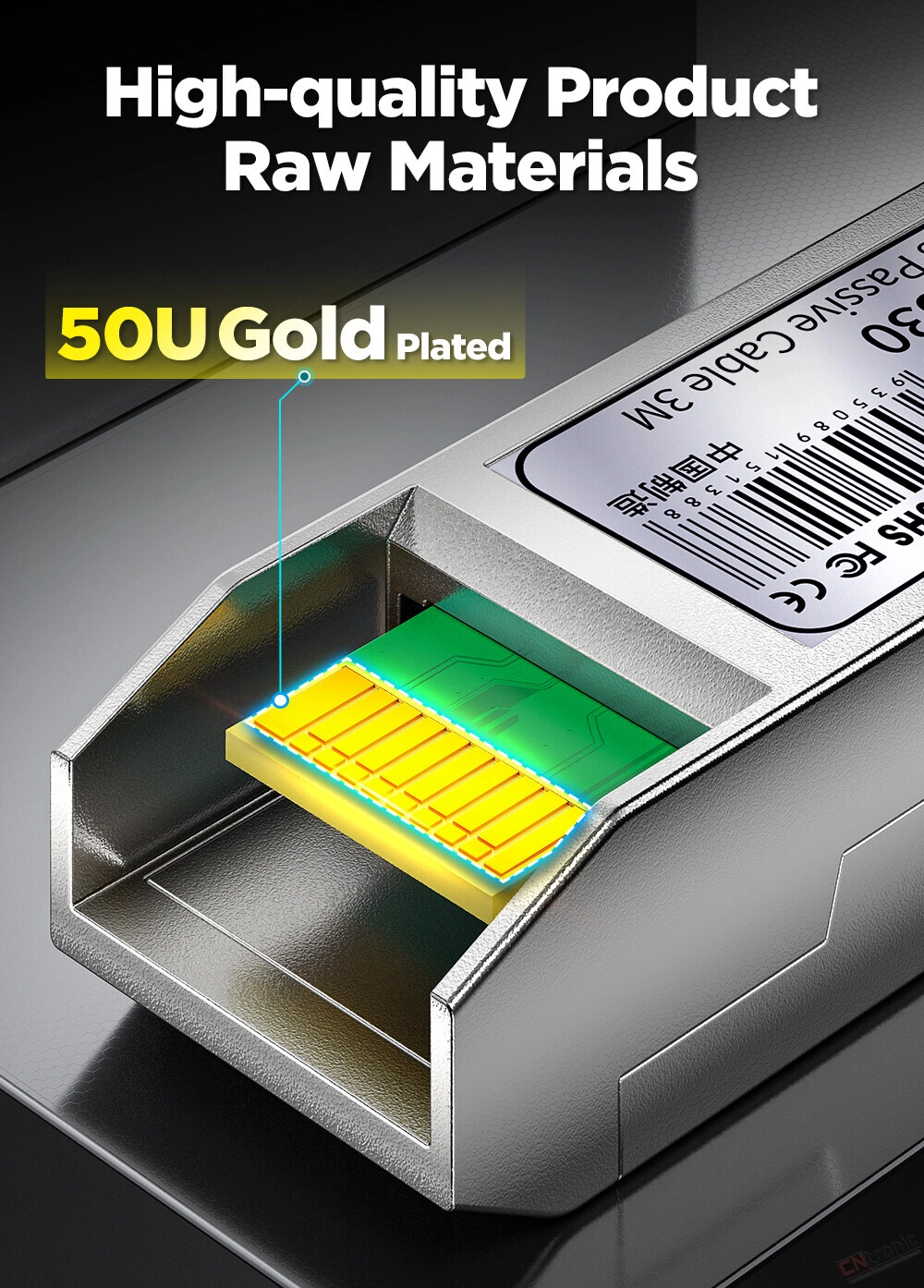

High-quality Product Raw Materials
The shell is made of high-quality zinc alloy for effective electromagnetic shielding. The PCB board is thickened and multi-layered, ensuring high quality. Connectors use high-quality 50U thick gold plating for stable transmission.

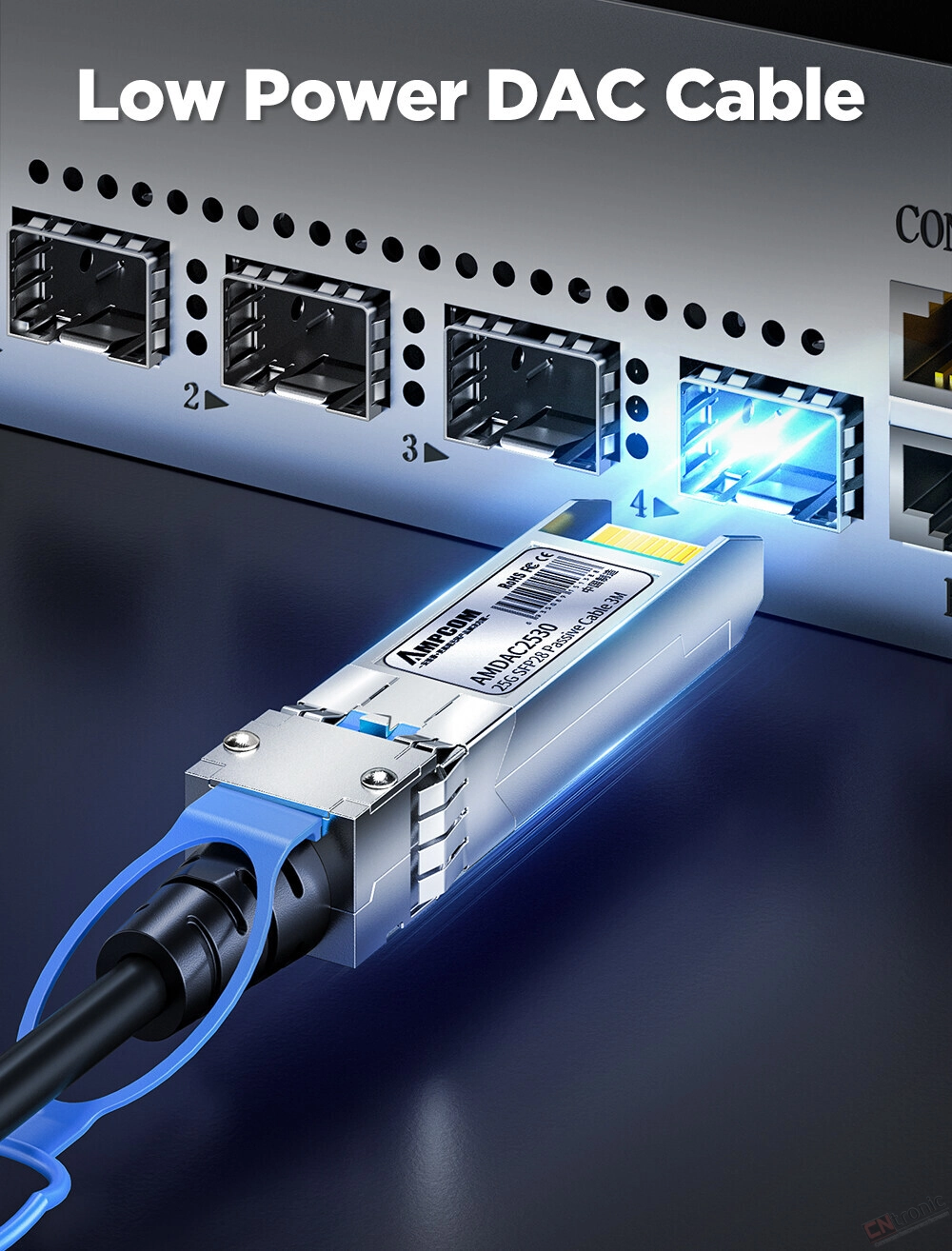

Low Power DAC Cable
No signal conversion needed DAC copper cable, no power supply needed, nearly zero power consumption.

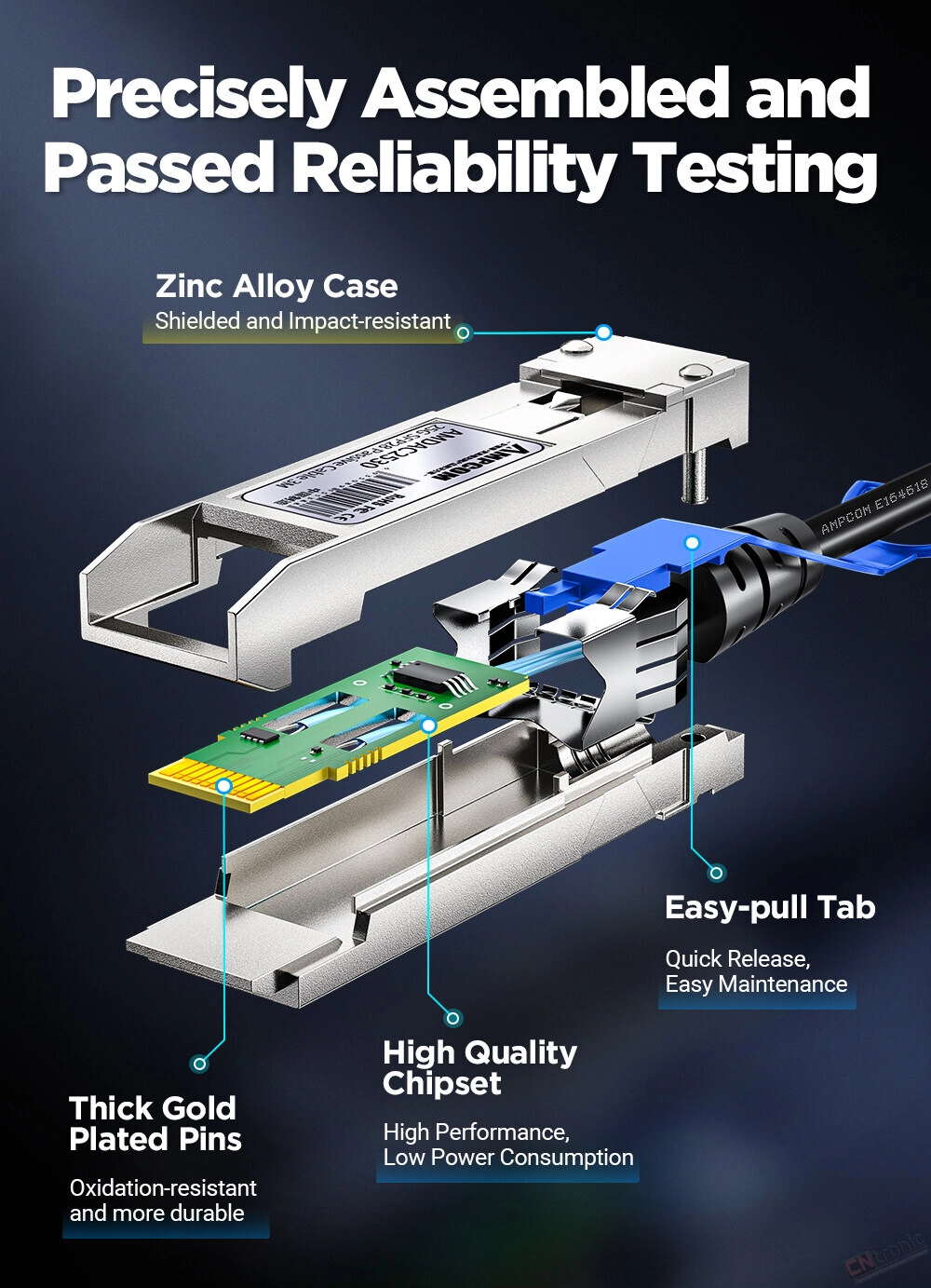

Precisely Assembled and Passed Reliability Testing
Strict quality control ensures user confidence. The product undergoes extensive testing to guarantee long-term reliability
Zinc Alloy Case——Shielded and Impact-resistant
Thick Gold Plated Pins——Oxidation-resistant and more durable
High Quality Chipset——High Performance, Low Power Consumption
Easy-pull Tab——Quick Release, Easy Maintenance

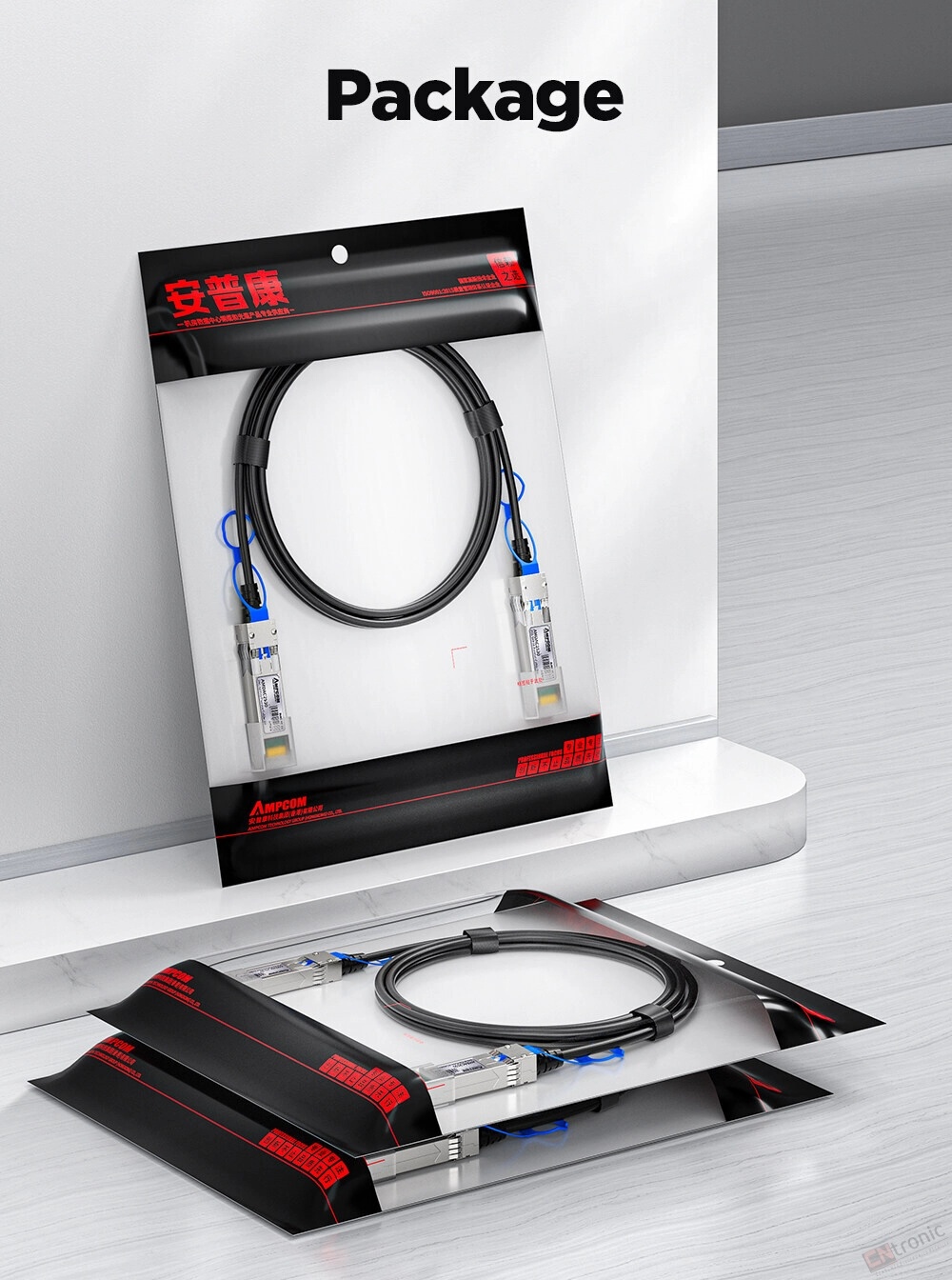

Package List
Packaging Details
- Unit Type:
- Package Weight: 0.150
- Package Size: 18x3x25
- Brand Name: AMPCOM
- Hign-concerned Chemical: None
- Origin: Mainland China
- Length: 1m
- Certification: RoHS
- Certification: UL
- Data Rate: 25 Gb/s
- Passive or actively equalized: Active
- Supply Voltage: 3.3V
- Cable Type: Twinax
- Cable Jacket Type: PVC
- Connector: SFP28/SFP28
- Digital Diagnostic Monitoring: Yes
- Cable impedance: 100 Ω
- Cable Length: 1/2/3/5 meter
- Wire Gauge: 26/30 AWG Minimum
- Environment Operating: 0°C to 70°C
- Storage: -40°C to 85°C
