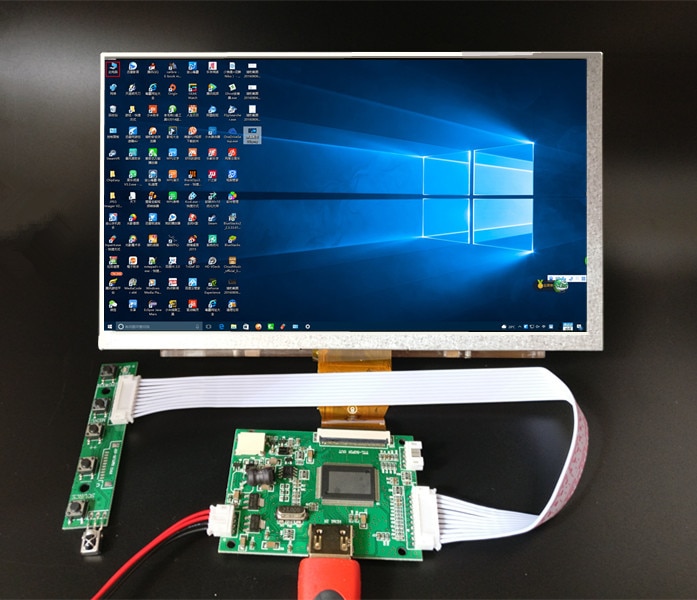

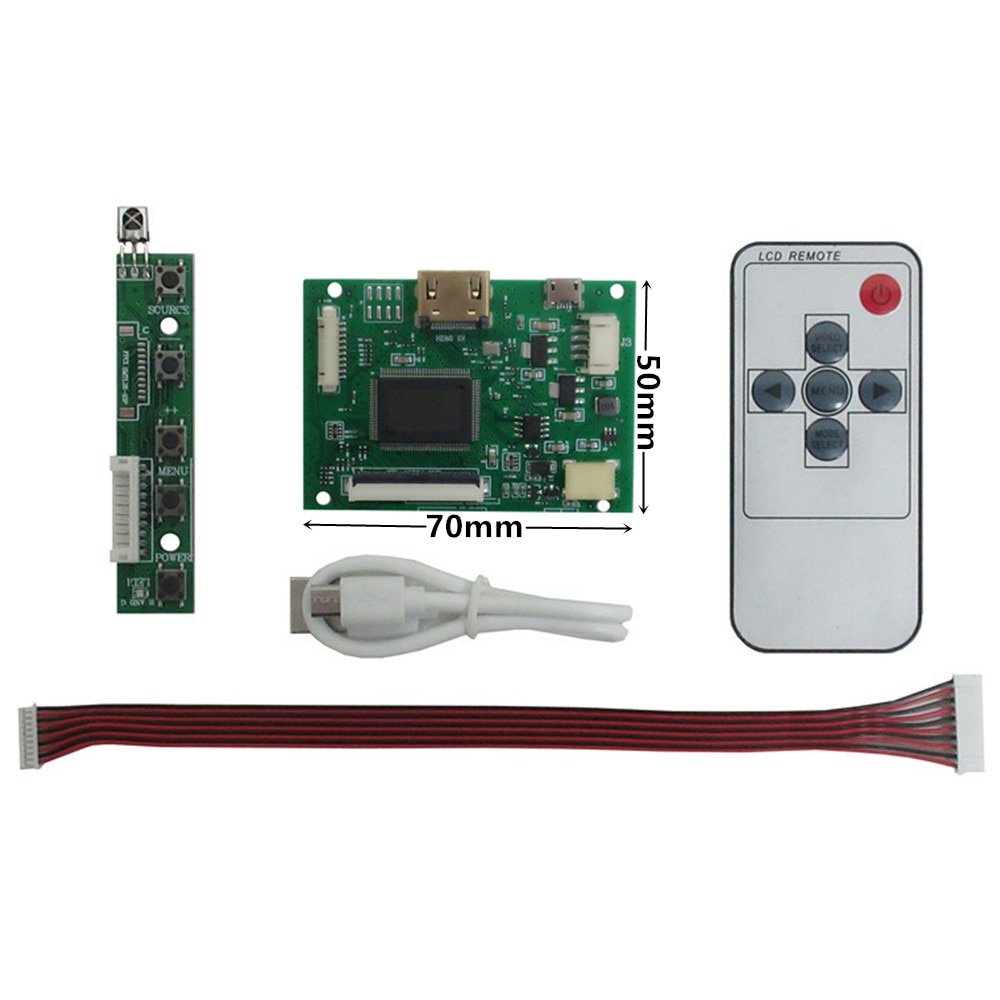

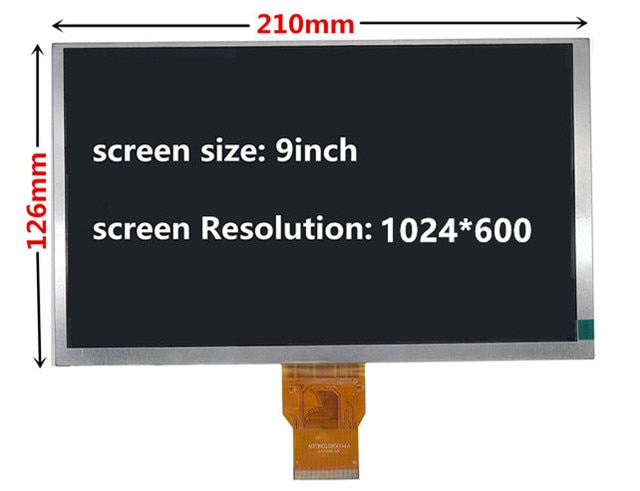

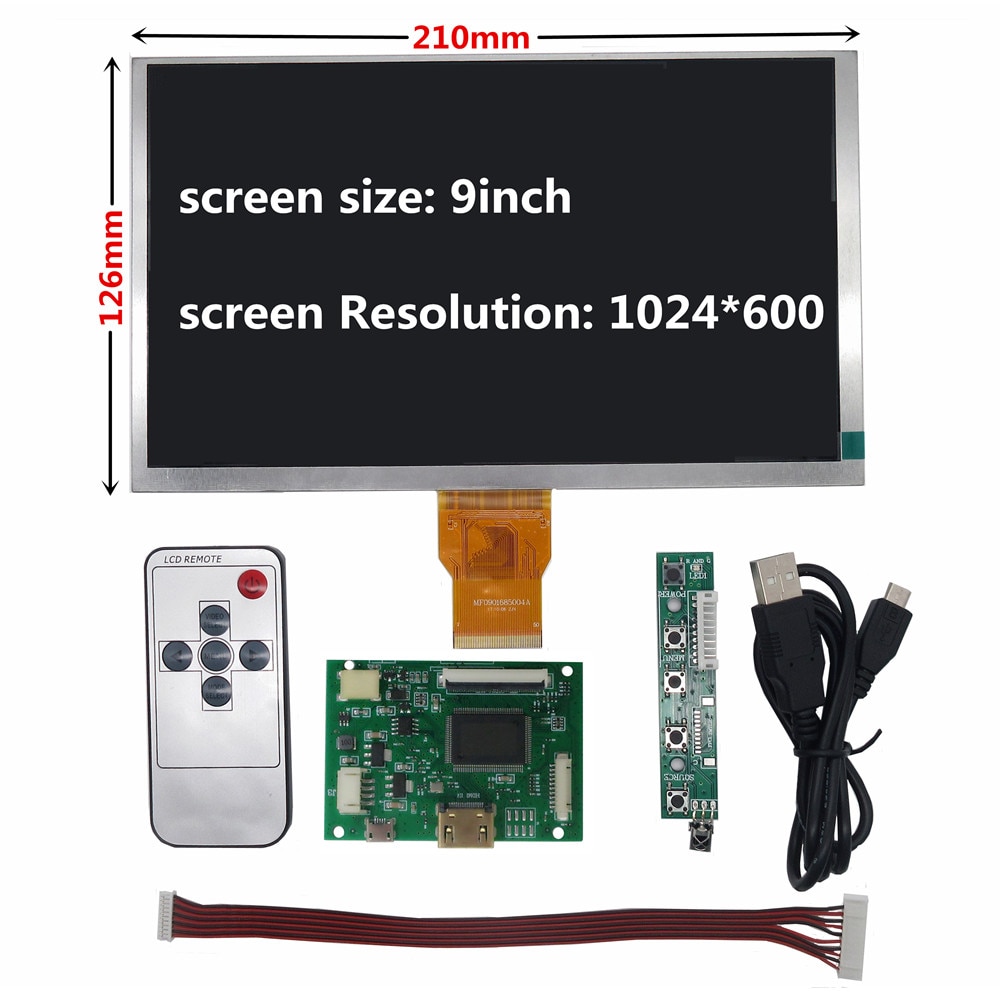

9 1024*600 Screen Display LCD TFT Monitor with Remote Driver Control Board HDMI-compatible for Lattepanda Raspberry Pi Banana Pi
When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen

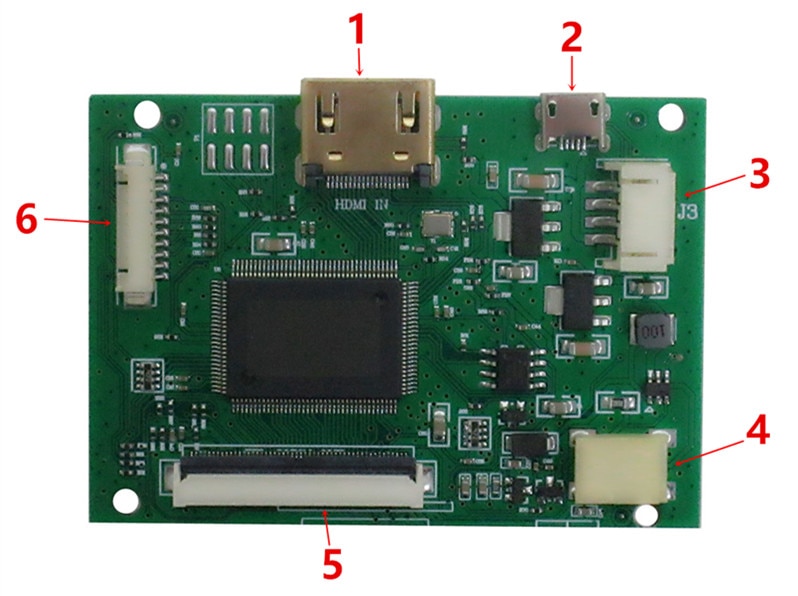

Interface introduction:
1-HDMI-Compatibl Signal Input Interface
2-Mirco USB Power Supply Interface
3-4Pin Power Extension Interface
4-LED Display Backlight Power Supply
5-50Pin TTL Screen Interface
6-Button Board Interface
Adapt to 5V 2A Power supply
Specifications

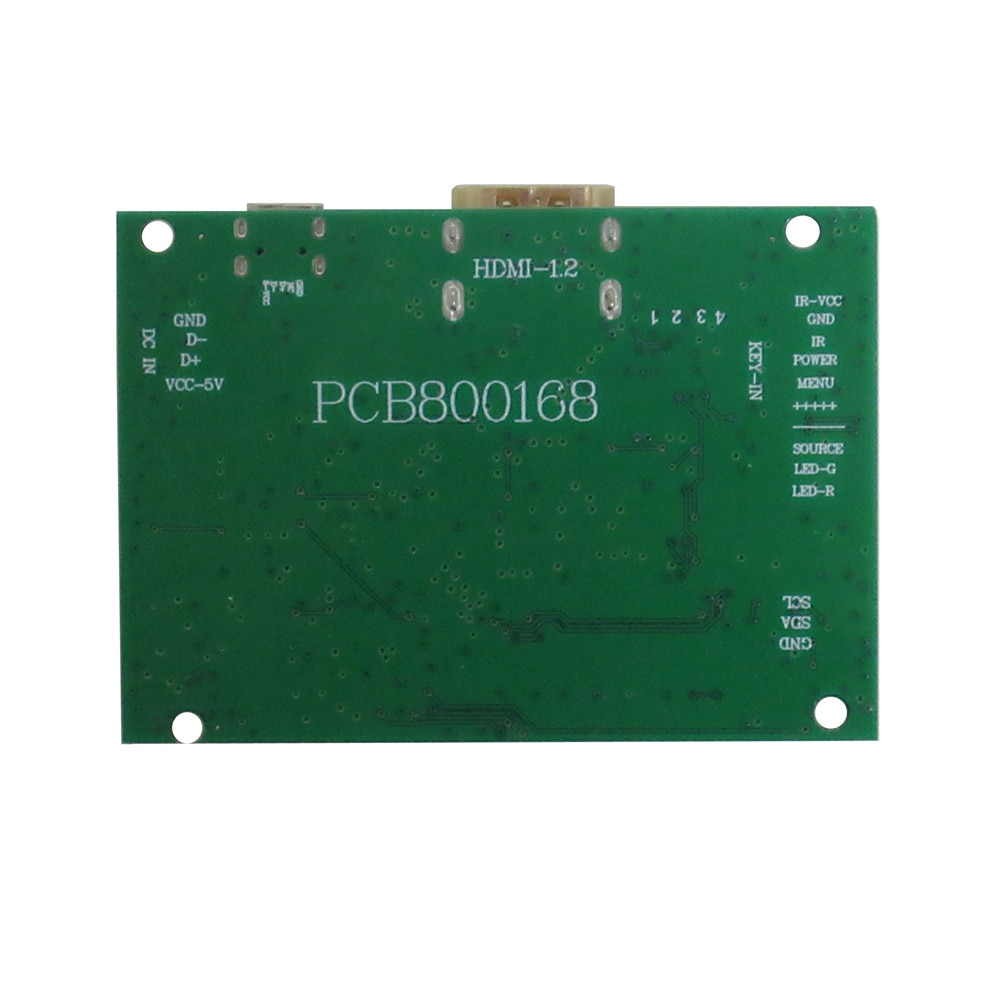

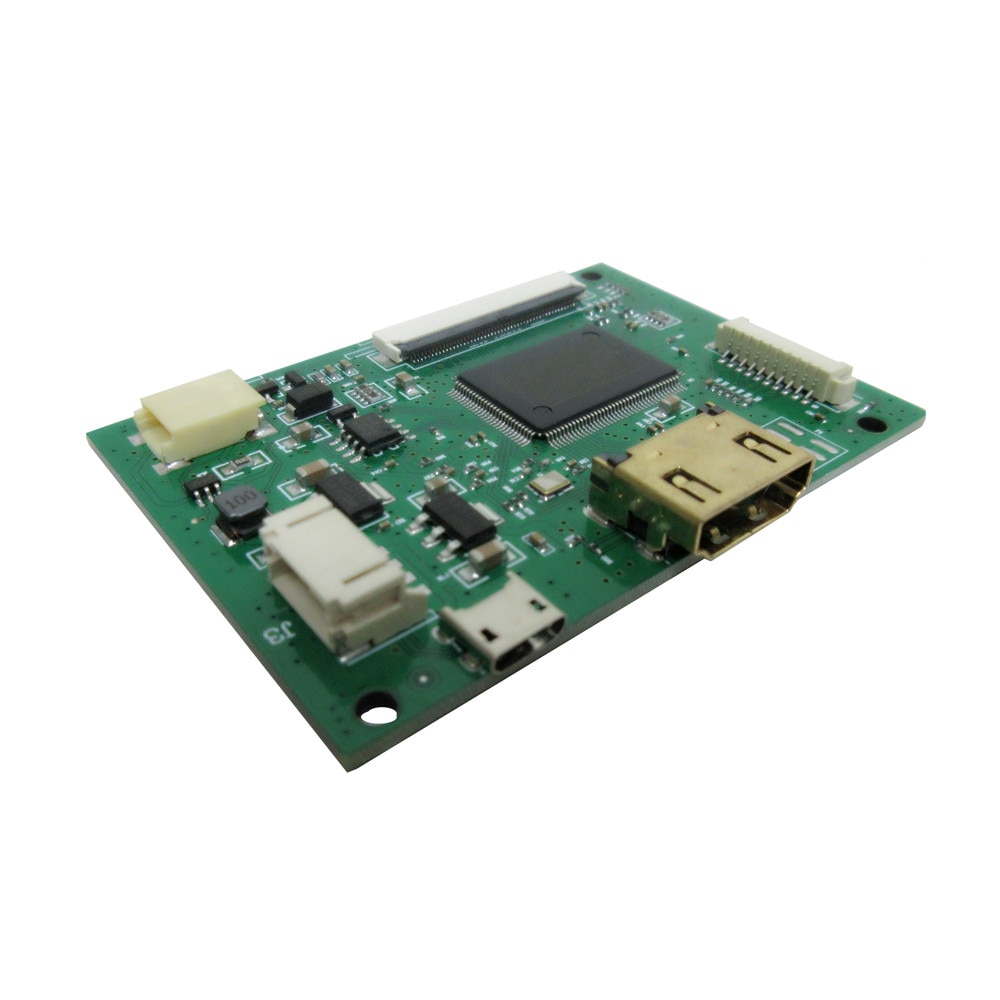

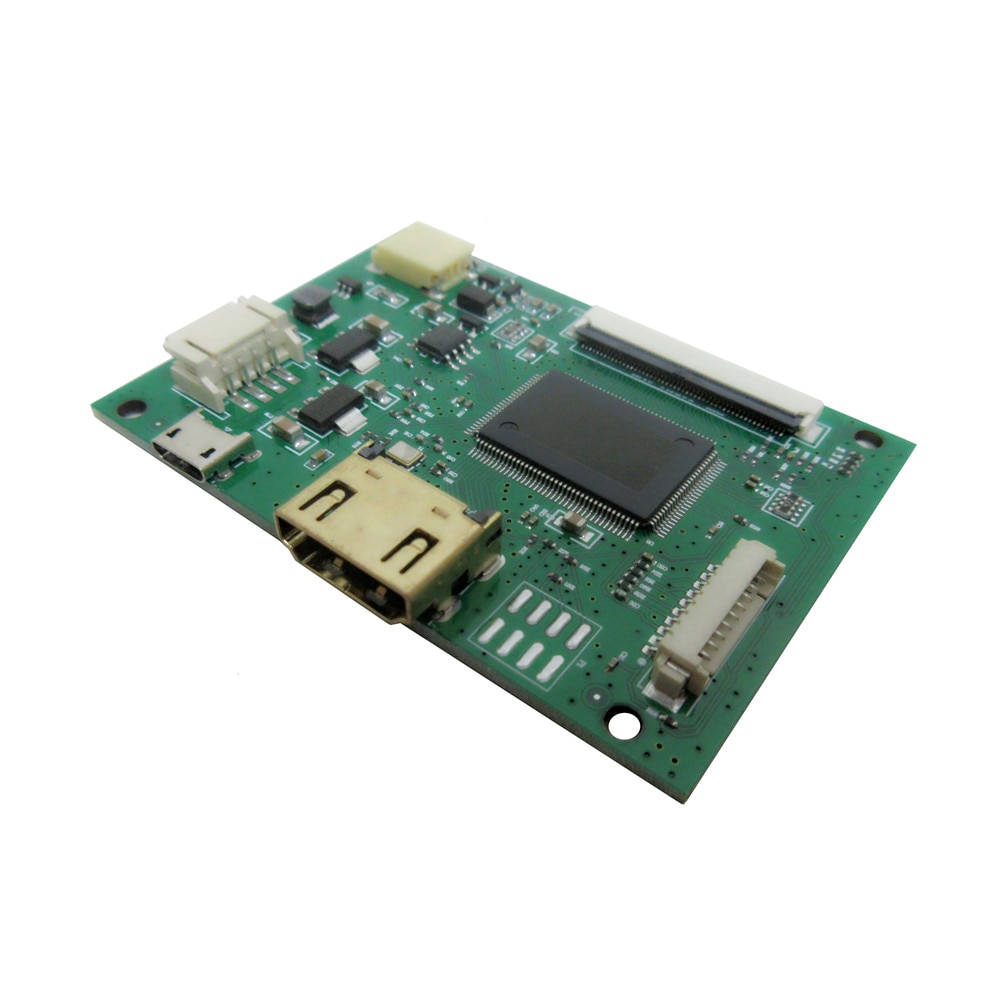

PCB-800168Driver board
1. Product description:
This driver board uses SIXTHHD-HD1 main control IC
The power supply adopts AMS1117-3.3V, AMS1117-1.8V
This driver board can
1,1 HDMI signal input, and this IC supports HDMI1.2
2,Support 5V DC voltage input, you can also use USB or mobile power supply, but the positive and negative poles cannot be reversed to avoid damage to the circuit board
3,Driver board integrated LCD screen LED backlight driver board
4,Standard button board interface, and supports dual-color LED indicator display
5,Support TTL signal output
Compatible General 50PIN 1024*600 resolution interface TTL LCD screen

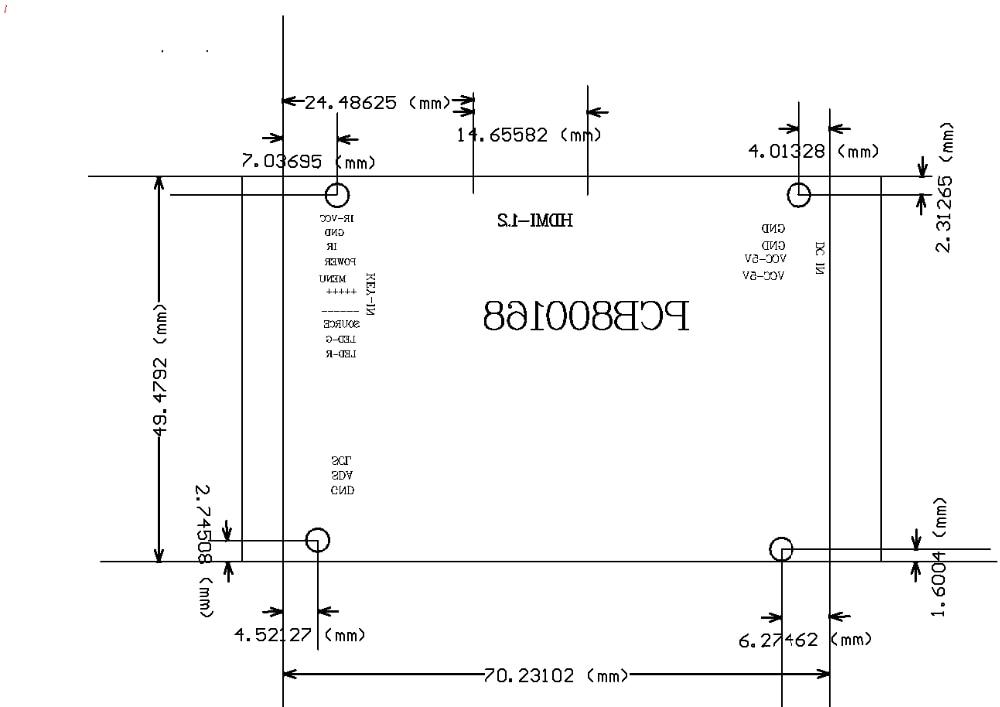

6,This drive board has four positioning holes
Interface function description
Tag | Function Description | Remarks |
HDMI | HDMI input | HDMI standard is 1.2 |
J3 | power input | |
J7 | LED backlight seat | |
CON1 | TTL-50PIN signal output | |
J6 | Buttons, remote control, LED indicator interface | |
J5 | Upgrade program interface | For factory upgrade |

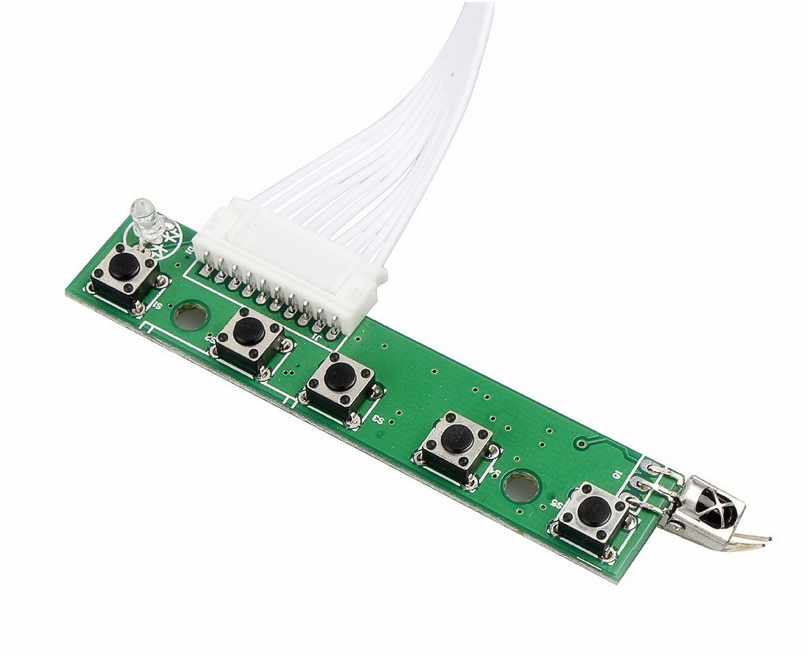

J6 key board, remote control input interface
Serial number | definition | Explanation |
1 | 5V | Remote control power supply, actually 3.3V |
2 | GND | GND |
3 | IR | Remote input |
4 | POWER | Switch function |
5 | MENU | Menu display function |
6 | + | plus |
7 | _ | Less |
8 | SOURCE | Source conversion |
9 | LED-R | LED indicator |
10 | LED-G | LED indicator |
J3-DCIN power connectorJ3-DCIN power connector
1 | +5V | Positive power input |
2 | +5V | Positive power input |
3 | GND | GND |
4 | GND | GND |
HDMI interface
1 | HDMI standard interface | Standard wire available |
J5, upgrade interface
1 | SCL | SCL Upgrade port |
2 | SDA | SDA Upgrade port |
3 | GND | GND |
4 | NC | NC |
