5V 2 * 3W Wireless Player With Power Amplifier Stereo BT Lossless Decoding Sound Card 3.5out Module MP3 Decoding Board Amplifie
ID: 73222

5V 2 * 3W Wireless Player With Power Amplifier Stereo BT Lossless Decoding Sound Card 3.5out Module MP3 Decoding Board Amplifie

4.9 (73 votes) | 138 orders
Price: US $25.97 / piece
Discount Price:
US $ 24.32 / piece

We are a professional design, development, production and sales factory. We can design, develop and produce according to your requirements; Welcome OEM

Special note:

Bundle1: Silver

Bundle2: Black

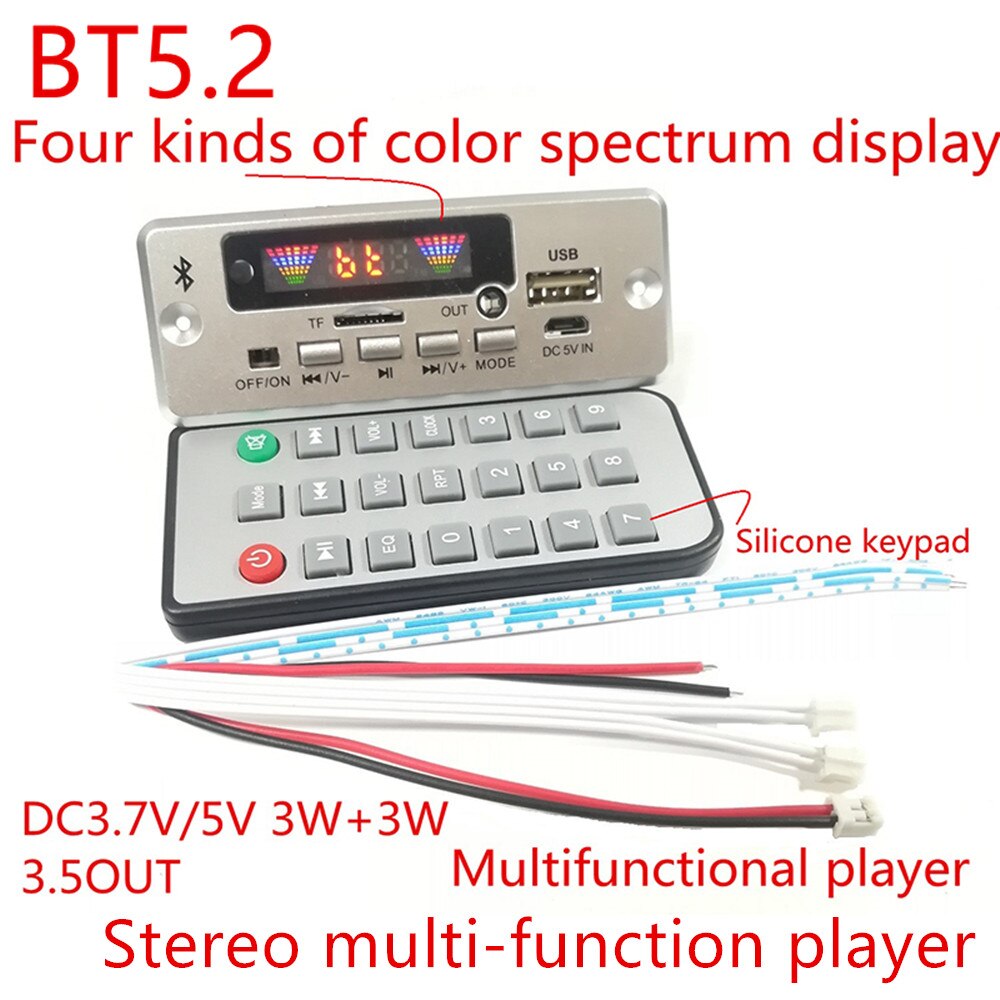

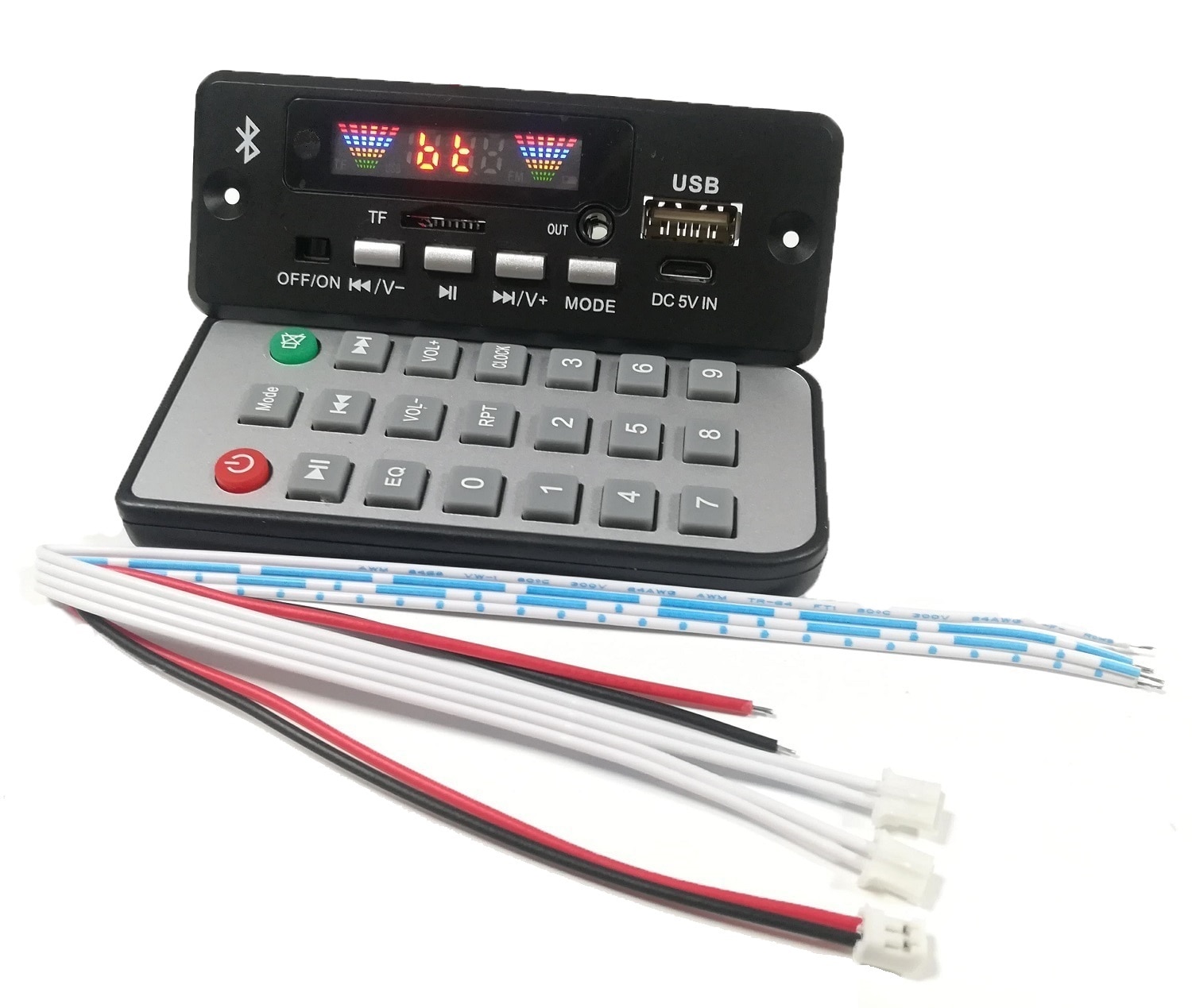

5V 2 * 3W stereo wireless with power amplifier BT player lossless decoder sound card 3.5out  module MP3  decoder board

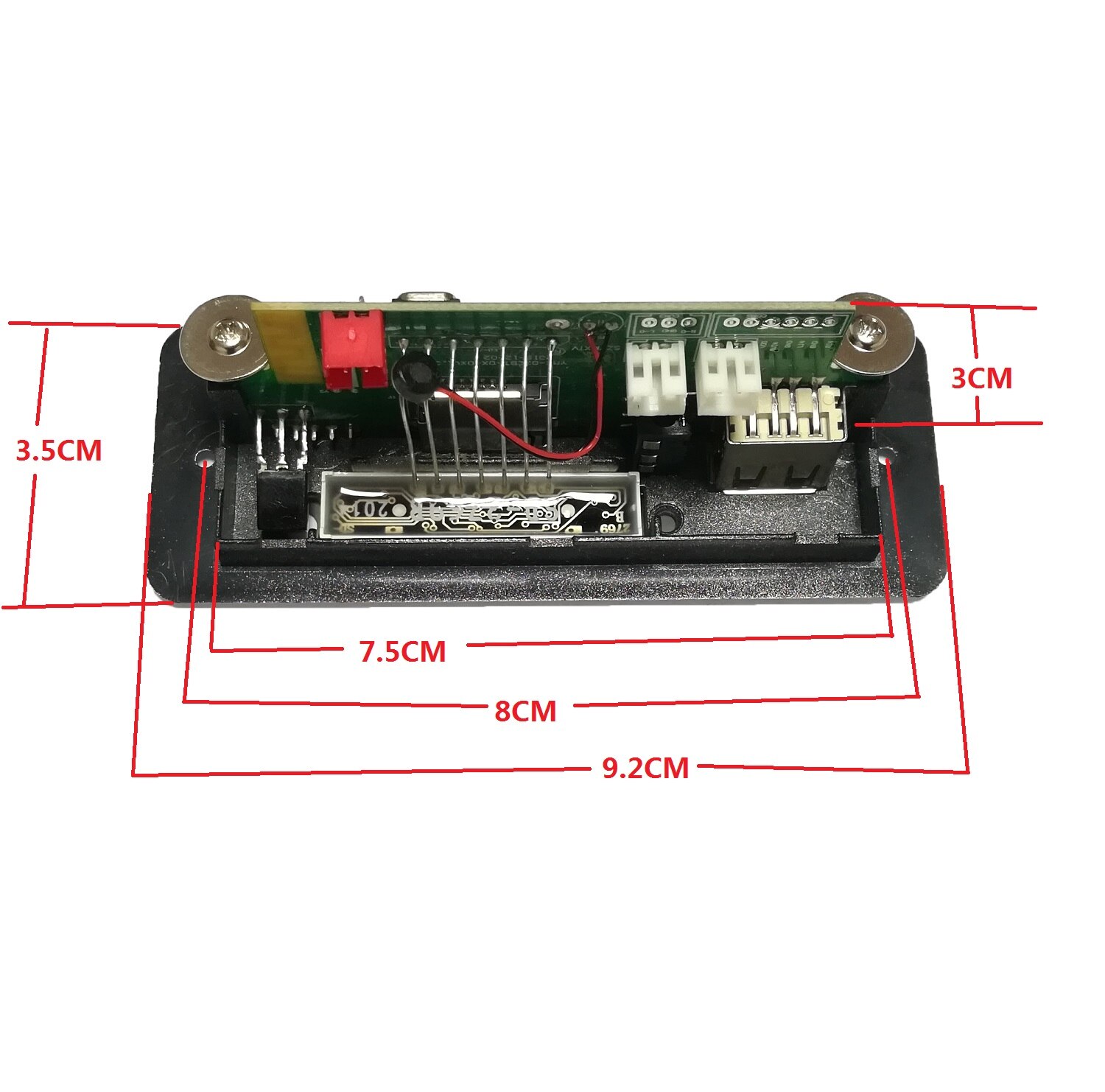

Panel size: length 92 * height 35 * depth 29mm, opening size: 75 * 27 * 29mm, screw hole center distance: 80mm, PCBA size: length 71mm * 29mm (depth) * 20MM high

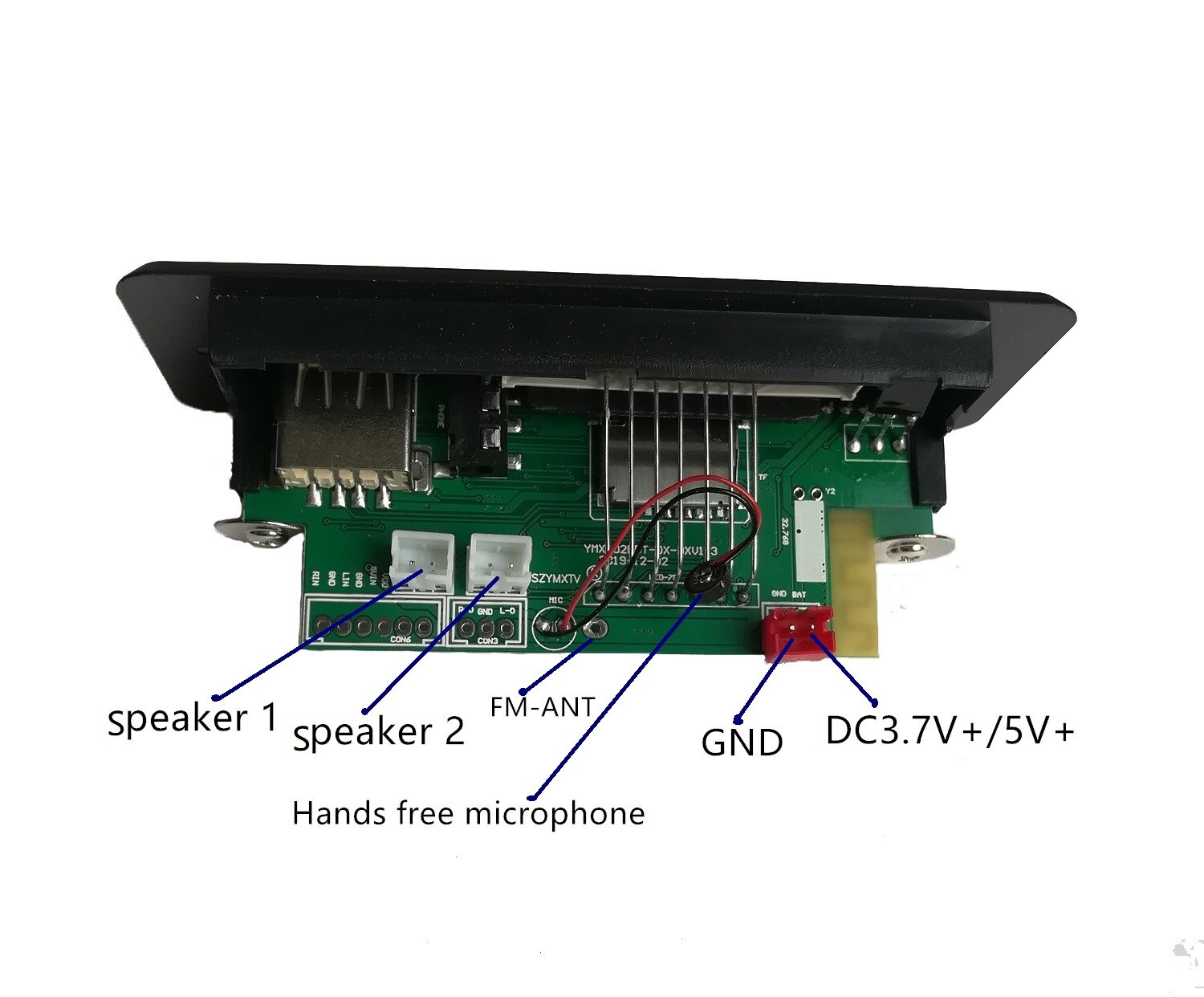

Voltage: dc3.7/5v, current: 1.5A, voltage can not be higher than 5V; with 2 * 3W power amplifier (connected to 4 Ω 3W + 3W);,
This product has charging prompt, voice prompt when low power, low power alarm, at the same time, the battery symbol on the panel will flash regularly when charging, and the battery symbol will go out when fully charged

Module features:
*Support 5.2BTstereo and hands-free call (you can answer the call hands-free, when you hear "beep beep" and the number, press pause to answer the call) Call back: in BT mode, double-click the "pause" key to call back the last call number,
*Support to select the folder to play -. DJ music / background music / children's songs can be classified into different folders on the card / U disk; folder Playing: long press "mode", F001, F002,... Will be displayed on the screen at the same time.)Loop mode: in the playing state, press the "arrow" or "RPT" symbol key or long press the "play" key: random (RAN) / single loop (one) / folder loop (fol) / full loop (all);
if (fol) under the current folder is selected, only full loop will be played in the folder.
*Support switching between 2.0 USB (fat) / SD card / BT /FM / aux.
*Support mp3  format music. MP3 songs 32-320kbps, lossless APE / FLAC / wma / WAV is 1411kbps or less,ordinary two channel (DTS format music cannot be played)
*Support 2.0 USB (fat system) / card switching, previous song, next song, volume adjustment, EQ, play / pause, stop, single repeat, mute, power off, direct selection of songs.
*It supports BT previous song, next song, volume adjustment, play / pause and mute.
*Support power-off memory function: remember the song andvolume played before power-off, and can remember the current point.

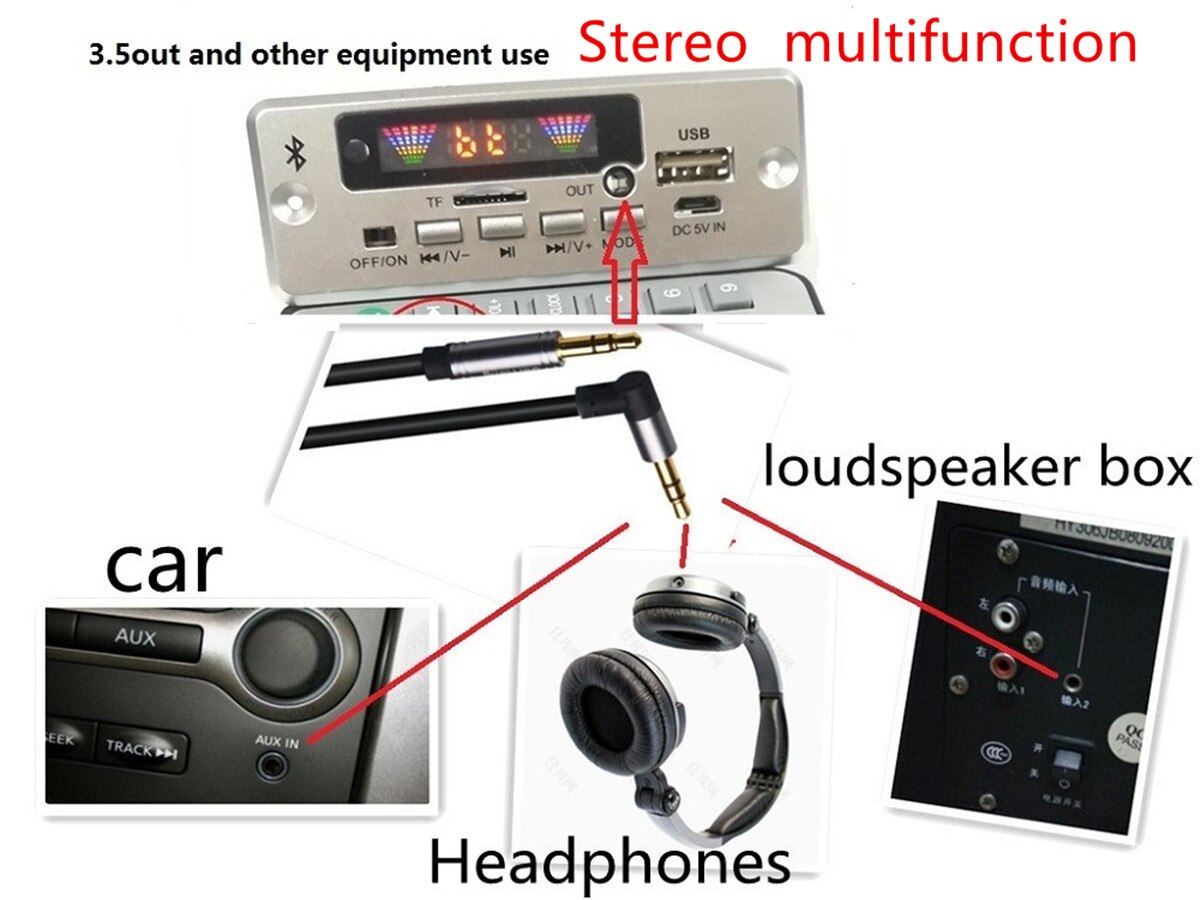

*supports both earphone and power amplifier (please insert earphone with 3 segments, not 4 segments). If the speaker doesn't sound when the headphone   is inserted, it will sound when the headphone is pulled out).
*Support electronic clock

Clock and folder usage operations
1) long press "mode" when the card and USB flash disk are playing, and "F01" and "F02" will be displayed on the screen at the same time
2)Cycle mode: press the "RPT" symbol key or long press the "pause, play" cycle mode to select; Single  song cycle (one) / folder cycle (fold) / random (RAN) / full song cycle  (all);
3)If you press (fol) in the current folder, you will only play the whole song cycle in this folder
4)Clock press "clock" to display the clock status. Operation method: short press the "clock" key to turn to the clock "00:00" status. Short press "play / pause" and the hours will flash. Short press "previous song" or "next song" to adjust the hours. Then short press "play / pause" and the scores will flash. Short press "previous song" or "next song" , the score can be adjusted, and then briefly press "clock" to save the current setting and exit (the power off clock is cleared to 0)

  • Brand Name: szymxtv
  • Compatible Devices Brand: ShanLing,HIFIMAN,Colorfly,CAYIN,QLS-HIFI,XDuoo,BEHRINGER,FiiO,Musiland,APPLE,SENNHEISER,Audio-Technica,OPPO,Iriver,SONY,Other
  • Item Type: Remote Control
  • Function: Decode,Amplification
  • Origin: Mainland China
  • Model Number: 02EBT
  • working voltage: 3.7V or 5V
  • Working current: 2A
  • Panel color: silver or black
  • FM: FM radio frequency 76-108MHz
