52Pi 7 Inch LCD 1024*600 Display Monitor Screen Kit with Drive Board (HDMI+VGA+2AV) for Raspberry Pi 4 B All Platform/PC Windows
SALE
ID: 4669

52Pi 7 Inch LCD 1024*600 Display Monitor Screen Kit with Drive Board (HDMI+VGA+2AV) for Raspberry Pi 4 B All Platform/PC Windows

0.0 (1 votes) | 1 orders
Price: US $89.71 / piece
Discount Price:
US $ 87.07 / piece
-3%
Color
Quantity



7 inch 1024*600 LCD Display Kit




[Technical Support]:

wiki.52pi.com/index.php/7-Inch-1024x600_Display_Kit_(without_Touch_Screen)_SKU:Z-0051



[Click Here To Buy]:
  •  for this 7 inch LCD Screen.

  • .

[Compatibility List]:
  • Compatibility


Kindly Notice:

NOT Compatible with TV BOX, thank you!


[Features]:
  • Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator

  • Rated power: 6-7W

  • Signal input: AV + VGA + HDMI (HDMI 1.2)

  • Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board

  • Resolution: 1024 * 600

  • Plug and Play: Support

  • OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese

  • Control: Multi-function OSD operation or potentiometer adjust the brightness and color

  • Features: Using mature program, clear display

  • Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format


[LCD Screen Parameters]:
  • Display size: 7 inch

  • Touch screen: Not support

  • Dimensions: 165 (W) × 100 (H) × 5 (D) mm

  • Viewing area: 154.08 (H) × 85.92 (V)

  • Resolution: 1024 × 3 (RGB) ×600

  • Point distance: 0.05 (W) × 0.15 (H) mm

  • Viewing angle: L70 ° R70 ° U50 ° D60

  • Panel type: TFT

  • Display color: 262K

  • Contrast ratio: 500: 1

  • Brightness: 220cd / m2

  • Interface type: Digital

  • The number of connection: 50 PIN Digital (TTL) TCON

  • Backlight: LED

  • Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

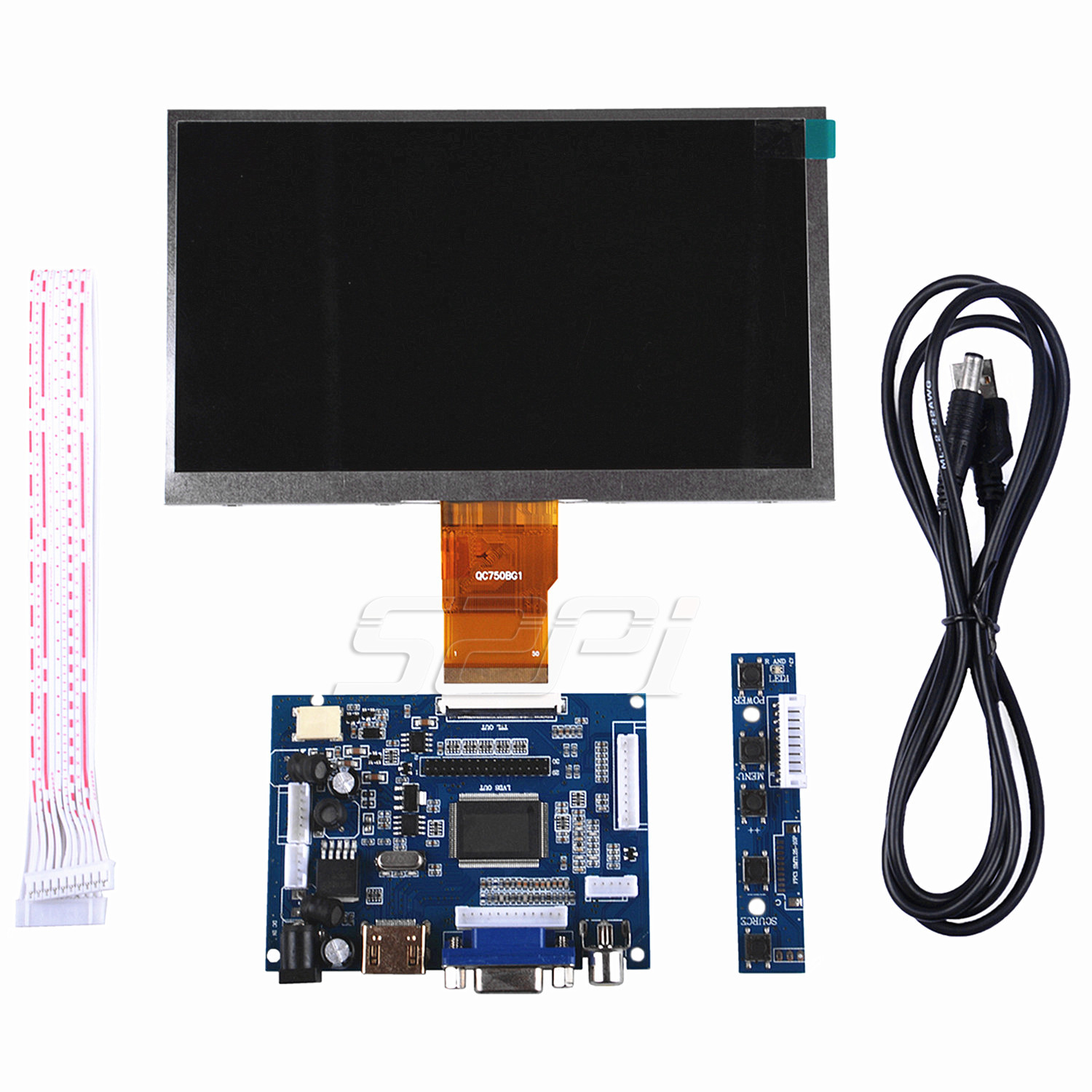

[Package Includes]:

  • 1 x 7-inch LCD screen

  • 1 x LCD Driver board

  • 1 x White cable (connected to the key board)

  • 1 x Long green key board

  • 1 x USB to DC5.5 power line


[FAQ]:

  • Question: How can I use this screen in my car ?
    • Answer: sorry, we do not recommend you put this screen in your car, it may distract your attention when you driving your car.

  • Question: Which wire cable can i use?
    • Answer: This screen's driver board can offer both VGA and HDMI cables for output.


Good News!

We have a new version "7 inch 1024*600 Capacitive Touch Screen", it has discount now! Click following picture to buy:



[Note]:

For wheezy-raspbian system, you should modify config.txt to support full screen display. Modified config.txt:


# uncomment if hdmi display is not detected and composite is being output
hdmi_force_hotplug=1

# uncomment to force a specific HDMI mode (this will force VGA)
hdmi_group=2
hdmi_mode=16

For raspbmc/xbian system, you needn't modify config.txt.

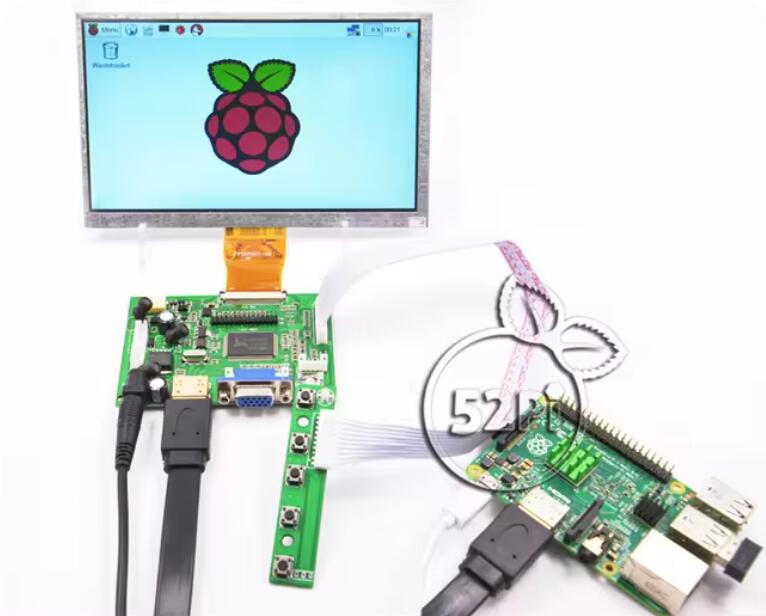

7 inch High-resolution 800*480 TFT LCD Display

[Description]:

This 7 inch High-resolution 800*480 LCD display module kit is especially designed as a monitor for Raspberry Pi 2 Model B and Raspberry Pi B+ B A+.

For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 800x480 in case it doesn't detect the resolution properly. The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.

Kindly Notice:

NOT Compatible with TV BOX, thank you!


[Features]:
Screen size:7 inch LCD

Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator
Rated power: 6-7W Signal input: 2 AV + VGA + HDMI (HDMI 1.2)Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board
Resolution: 800 * 480,
Plug and Play: Support OSD language:  Simplified Chinese,  Traditional Chinese,  English,  Japanese,  Korean, Spanish, French, German, Italian, Portuguese
Control: Multi-function OSD operation or potentiometer adjust the brightness and color
Features: Using mature program, clear display
Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format

[LCD Screen Parameters]:
Display size: 7 inch
Touch screen: Not support
Dimensions: 165 (W) × 100 (H) × 5 (D) mm
Viewing area: 154.08 (H) × 85.92 (V)
Resolution: 800 × 3 (RGB) ×480
Viewing angle: L70 ° R70 ° U50 ° D60
Panel type: TFT
Contrast ratio: 500: 1
Interface type: Digital
The number of connection: 50 PIN Digital (TTL) TCON
Backlight: LED
Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

[Package Includes]:
1 x 7-inch LCD screen
1 x LCD Driver board
1 x White cable (connected to the key board)
1 x Long green key board
1 x USB to DC5.5 power line


[Technical Support]:
  • wiki.52pi.com/index.php/7-Inch-800x480_Display_Kit(without_Touch_Screen)_SKU:Z-0111


[Size]:

[Feedback]:
  • If you are satisfied with our service and product, we expect the positive feedback and 5 stars of detailed seller Rating. We will also leave Positive Feedback (5 Stars) for very customers to help improve the customers' buyer account performance.

  • If you have any problems with our items or services, please feel free to contact us before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer service.

  • Thank you! Enjoy shopping here!







Packaging Details

  • Unit Type: piece
  • Package Weight: 0.55kg (1.21lb.)
  • Package Size: 22cm x 16cm x 5cm (8.66in x 6.30in x 1.97in)

  • Brand Name: 52Pi
  • Display Ratio: 4:3
  • Certification: NONE
  • Origin: CN(Origin)
  • Display Size: 7 inch
  • Resolution: 1024x600
  • Model Number: 7 inch LCD Panel
  • Size: 7 inch
