50-600MHz RX Walkie Talkie UV-K5 Quansheng VHFUHF 136-174MHz 400-470MHz RX TX Both DTMF VOX FM Air Band Wireless Freq Copy Radio

4.9 (63 votes)
Price:
US $ 56.07 - 70.74 / piece
Color
Plug standard
Quantity

50-600MHz RX Walkie Talkie UV-K5 Quansheng VHF UHF 136-174MHz 400-470MHz RX TX Both DTMF VOX FM Air Band Wireless Freq Copy Radio NOAA Weather Forecast

Features:

-10 Channels America NOAA weather forecast

-VHF UHF dual band Transmit and Receiver, 50-600MHz full band Receiving

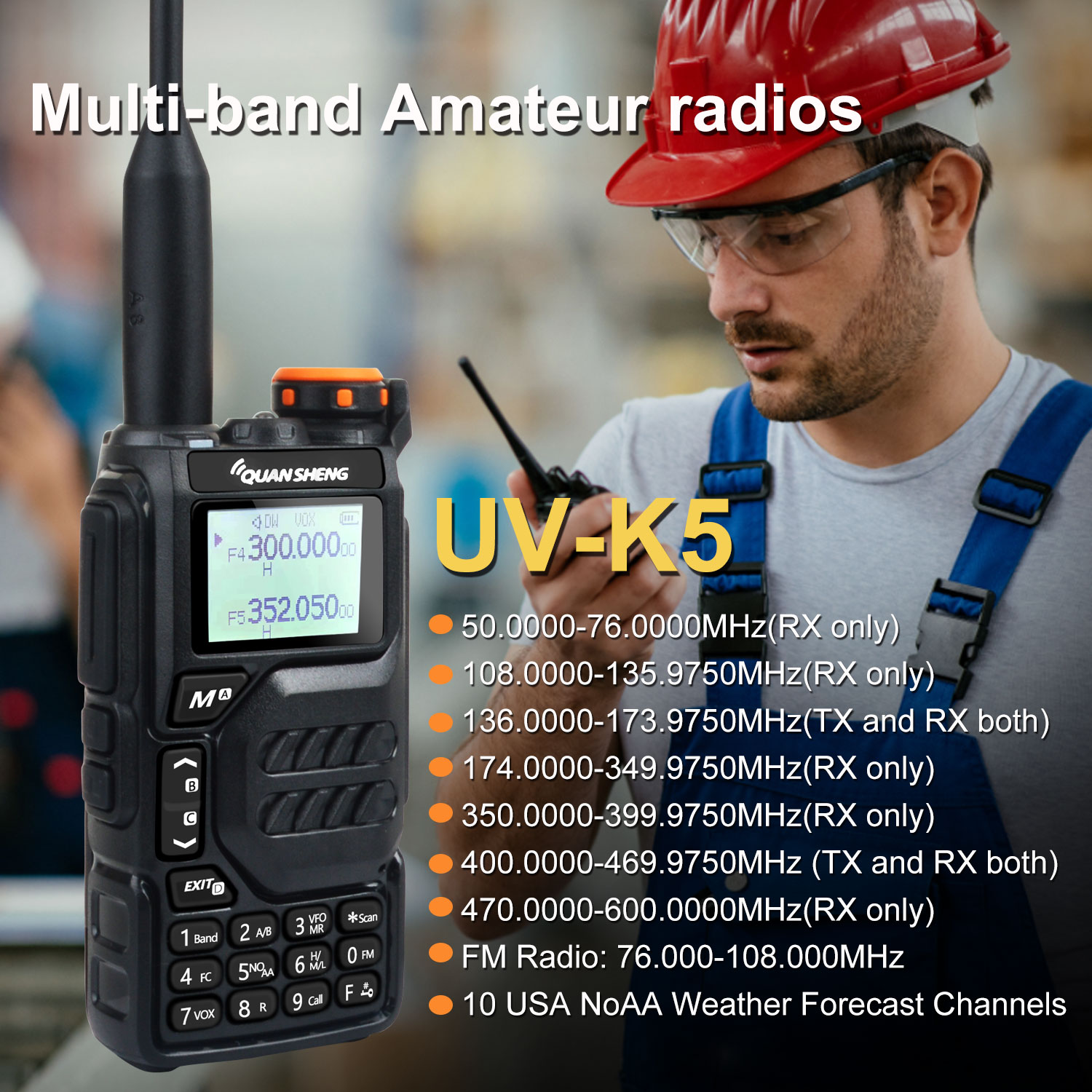

- Frequency Range:

F1:50.0000-76.0000MHz(RX only)

F2:108-.0000-135.9750MHz(RX only)

F3:136.0000-173.9750MHz(TX and RX both)

F4:174.0000-349.9750MHz(RX only)

F5:350.0000-399.9750MHz(RX only)

F6: 400.0000-469.9750MHz (TX and RX both)

F7:470.0000-600.0000MHz(RX only)

FM Radio: 76.000-108.000MHz

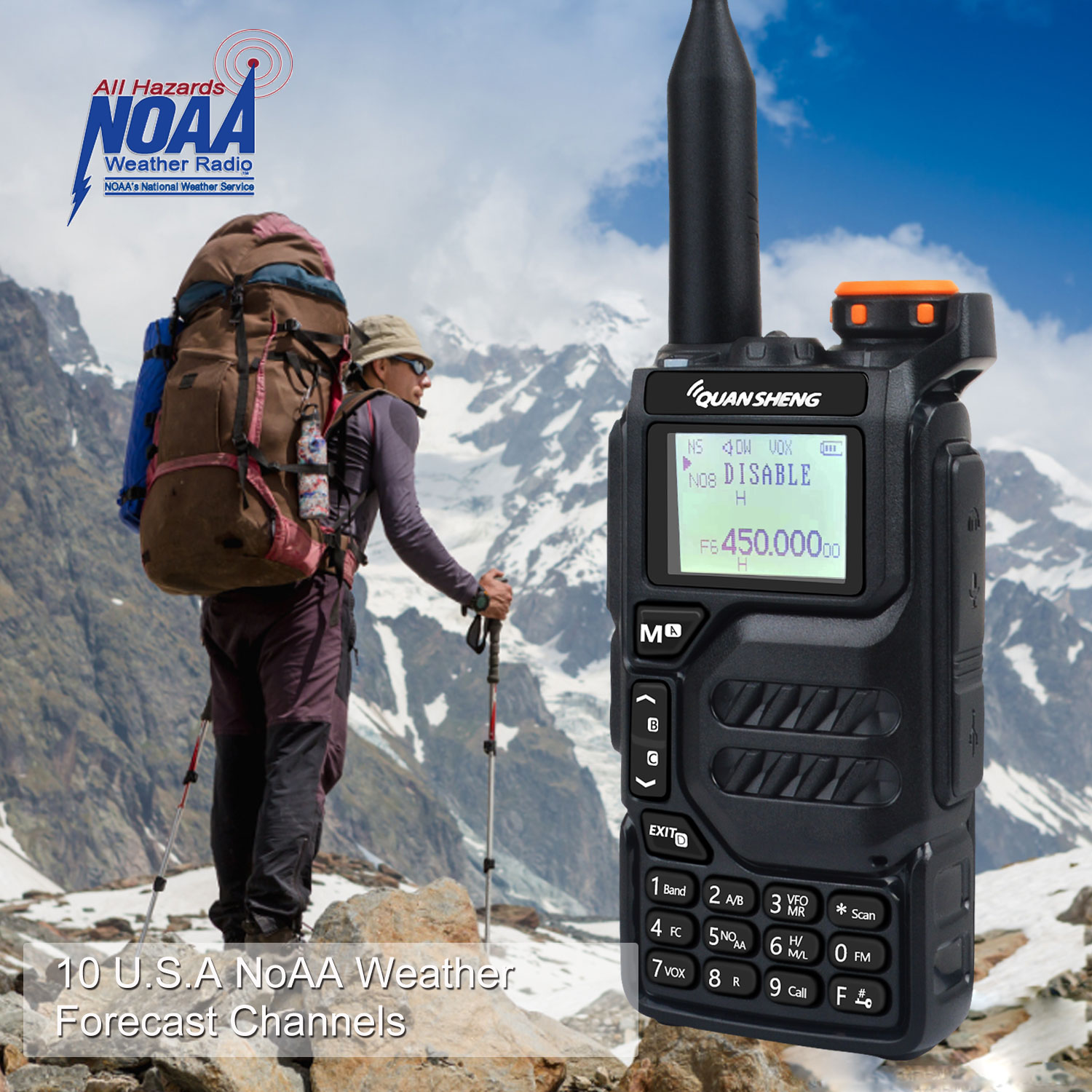

10 USA NoAA Weather Forecast Channels

-Air Band Receiving

-Cross-band Communication

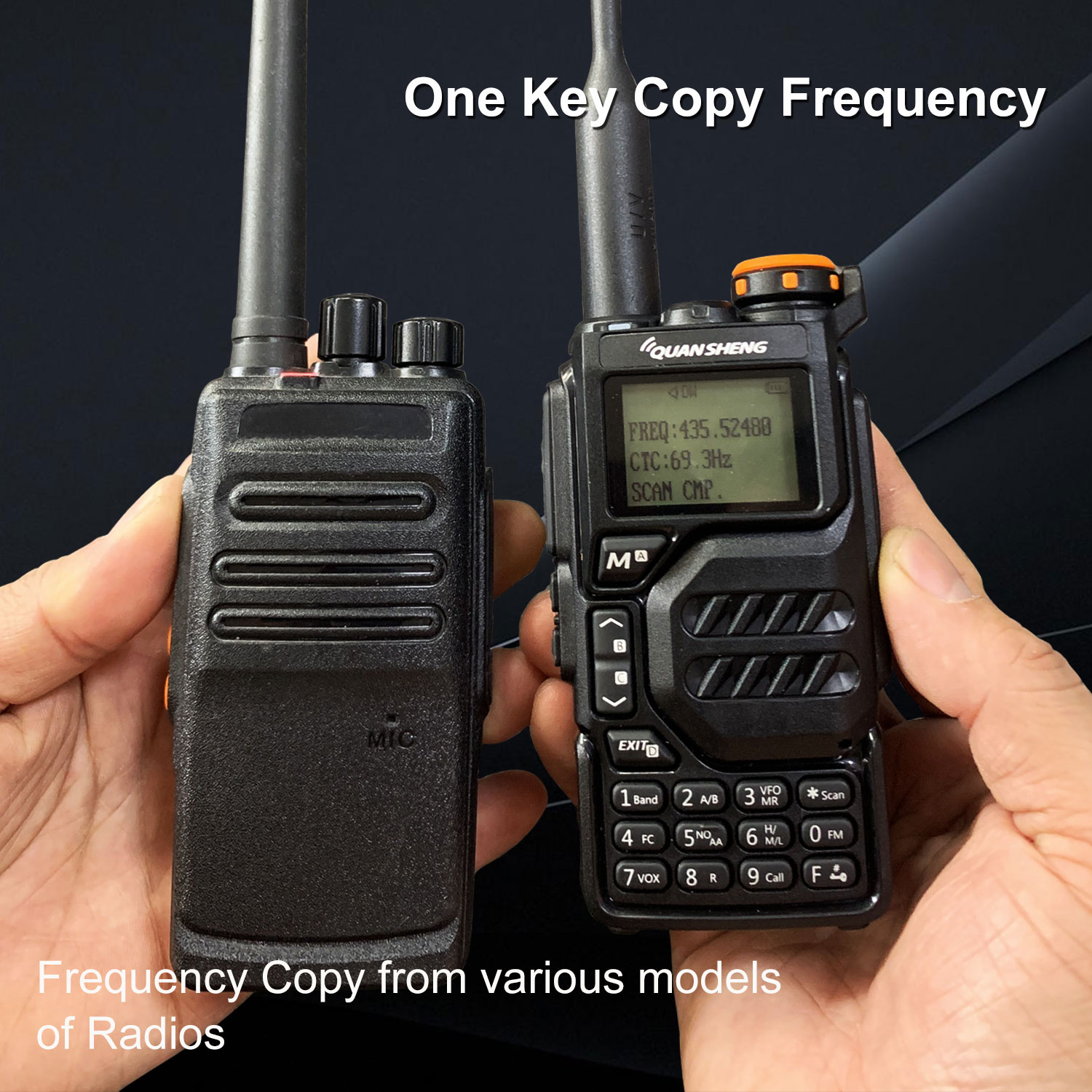

-Wireless Frequency copy from other radios

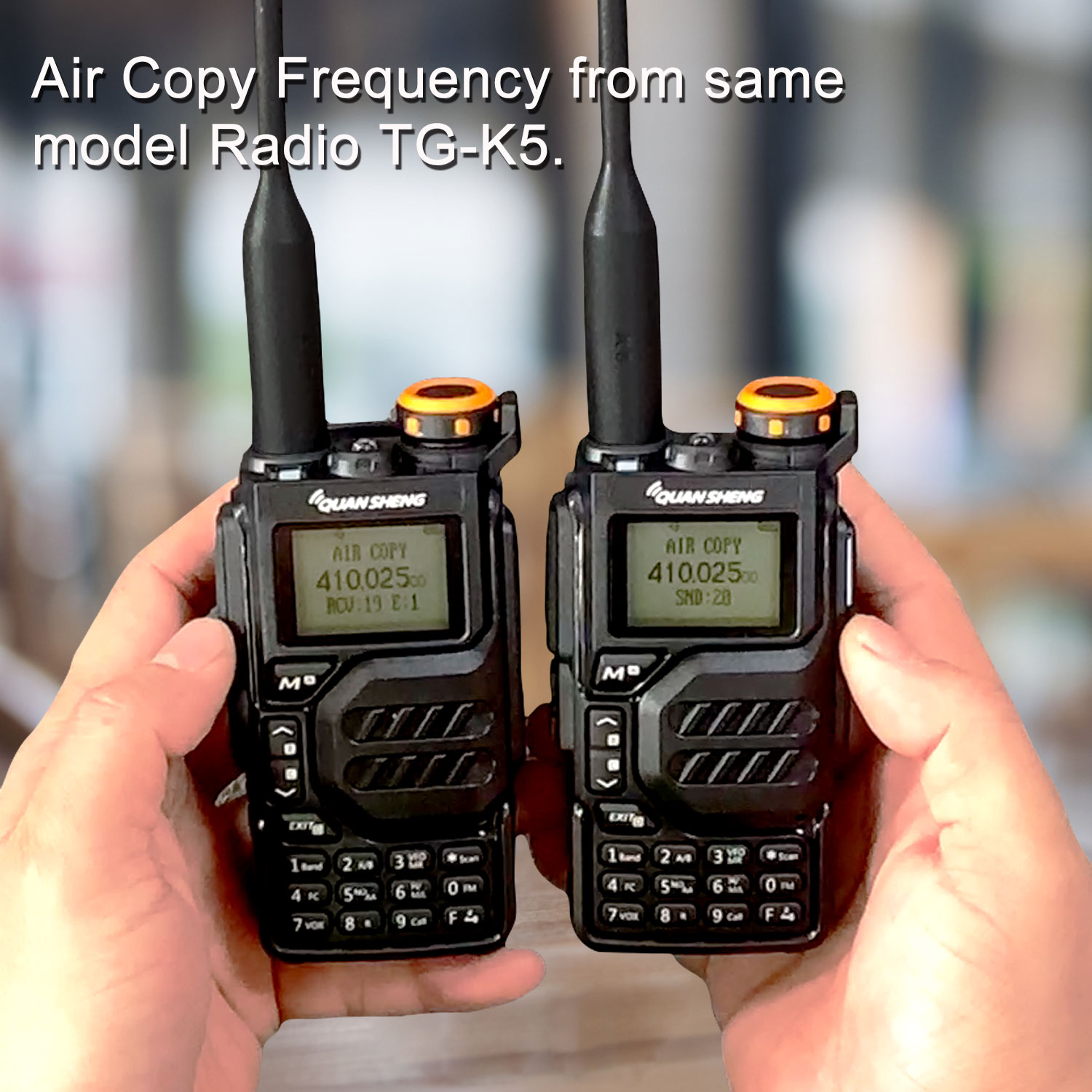

-Wireless Radio Replication from othe Quansheng TG-K5 Radios

-Auto/Manual Emergency Alert

-FM radio

-8-Group Scrambler

-Frequency/DCS/CTCSS Scan

-Digital Signal CTCC/DCS

-1600 mAh Rechargeable Li-ion Battery Pack

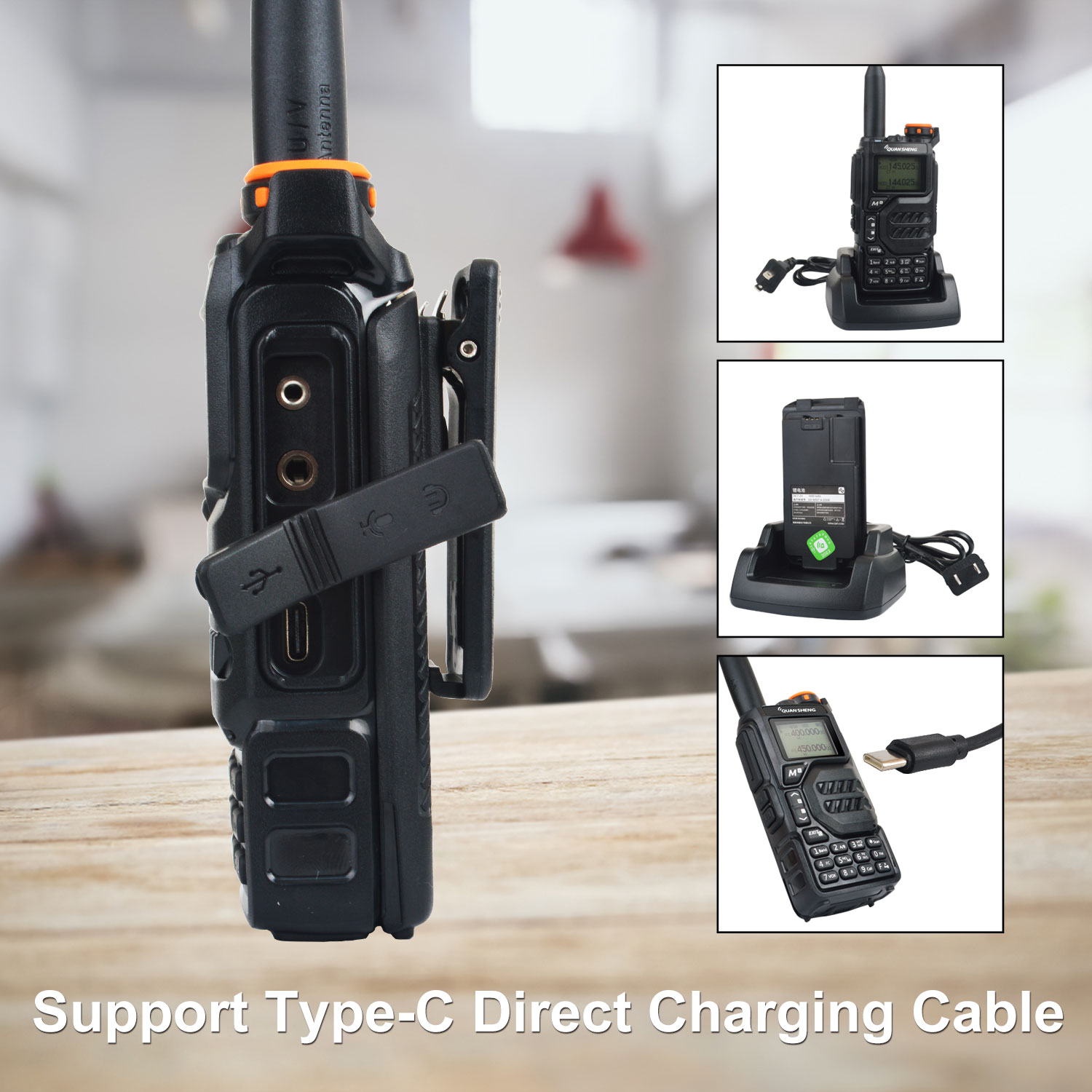

-TPYE C and Desktop Cradle Charging

-VOX (Voice operated Transmission)

-Dual BAND STANDBY

-DTMF AND 1750 Tone

-BUTTON F+ Button 3 to switch Channel mode to Frequency Mode

-200 Memory Channels

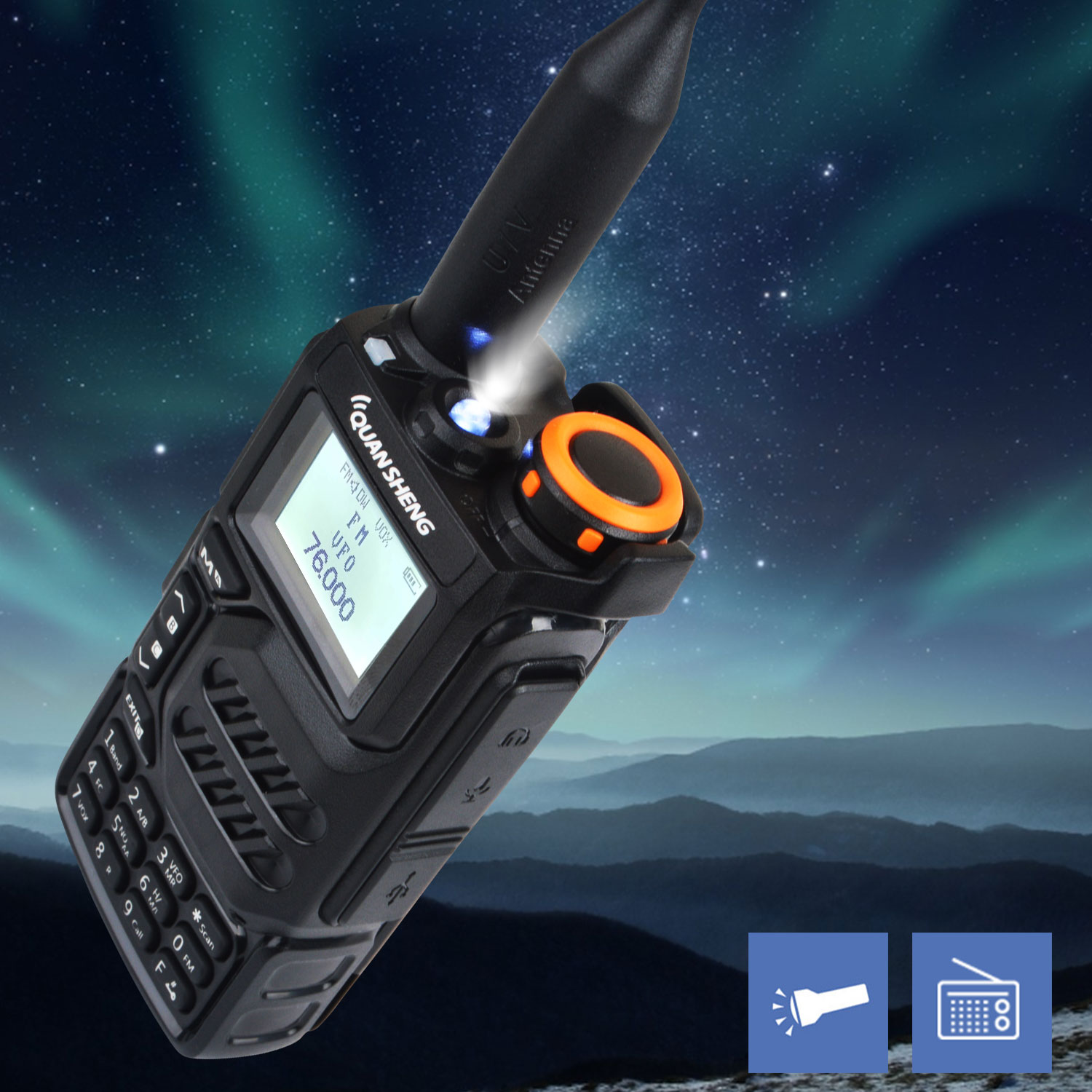

-Built-in high light Torch

Specifications:

General

Memory Channel Number:

200

Channel Number for FM Commercial Radio:

20

NOAA Memory Channel Number:

10

Frequency Stability :

±1ppm

Modulation :

FM:16KΦF3E@25KHz/11KΦF3E@12.5KHz

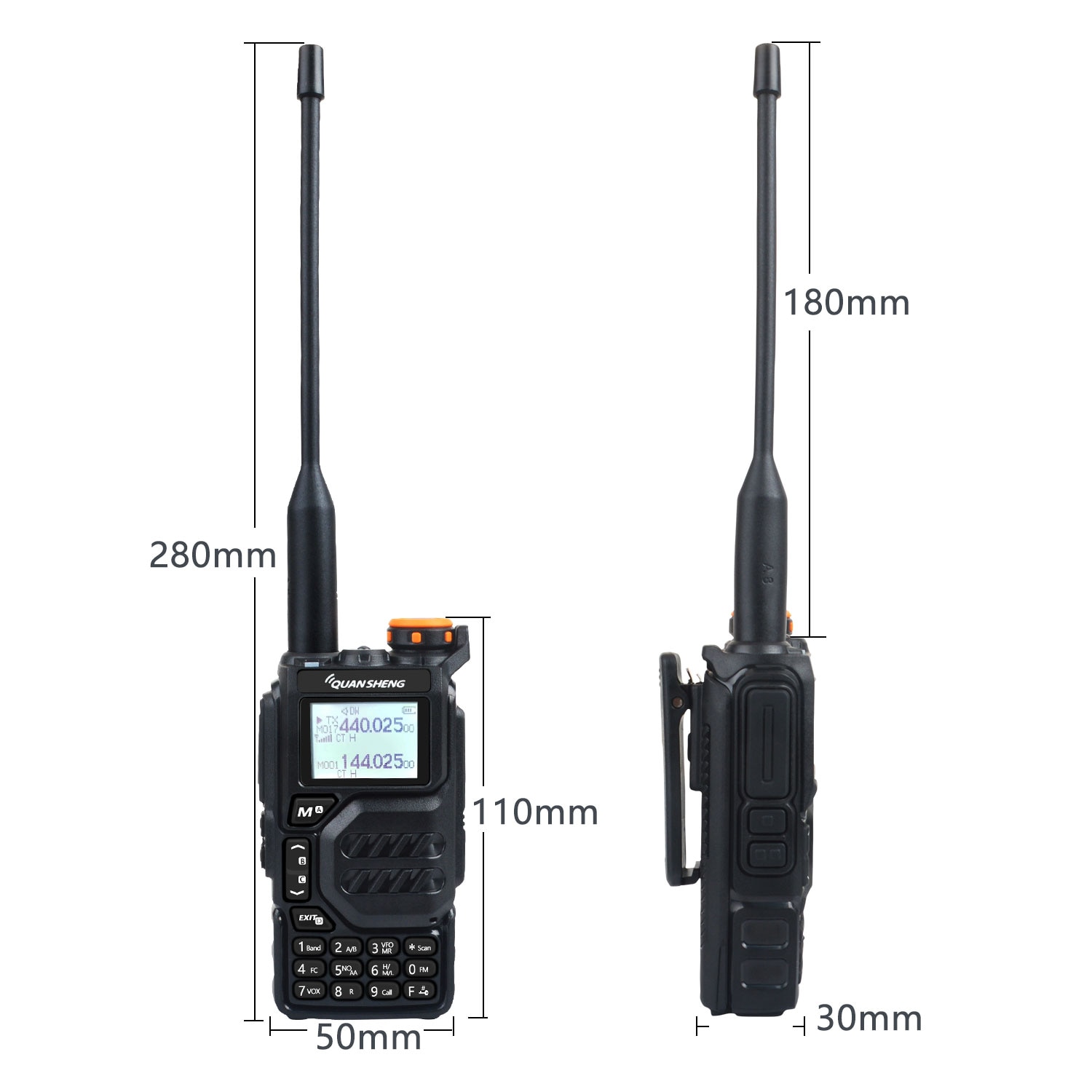

Dimension:

115mm*60mm*37.5mm

Weight:

243g

Working Temperature

-20°c~ +60°c

Antenna Impedance

50 ohm

Receiving Parts

Referenced Sensitivity

FM(12dB SINAD)

F1 (50-76MHz): -121dBm

F2(108-135.9975MHz):-121dBm

F3(136-173.997MHz):-123dBm

F4(174-349.9975MHz):-123dBm

F5(350-399.9975MHz):-123dBm

F6(400-469.9975MHz):-123dBm

F7(470-599.9975MHz):-121dBm

WFM(20dB SINAD)

WFM(76-108MHz):-110dBm

AM(10dB S/N)

F2(108-135.9975MHz):-113dBm

Audio Rated:

≥0.5W

Audio Distortion

≤10%

Transmission Parts

Frequency Range:

136-173.9975MHz

400-469.9975MHz

Output Power

5W

4W

Working Current

≤1.5A

≤1.5A

Max.Frequency Deviation

≤5KHz(25KHz),≤2.5KHz(12.5KHz)

≤5KHz(25KHz),≤2.5KHz(12.5KHz)

Modulation Distortion

≤5%

≤5%

Spurious Radiation

≤7.5uW

≤7.5uW

Adjacent Ch. power

70dB(25KHz),60dB(12.5KHz)

70dB(25KHz),60dB(12.5KHz)

Inter-modulation

40dB

40dB


Note: Specifications are subject to change without notice due to technical improvement.

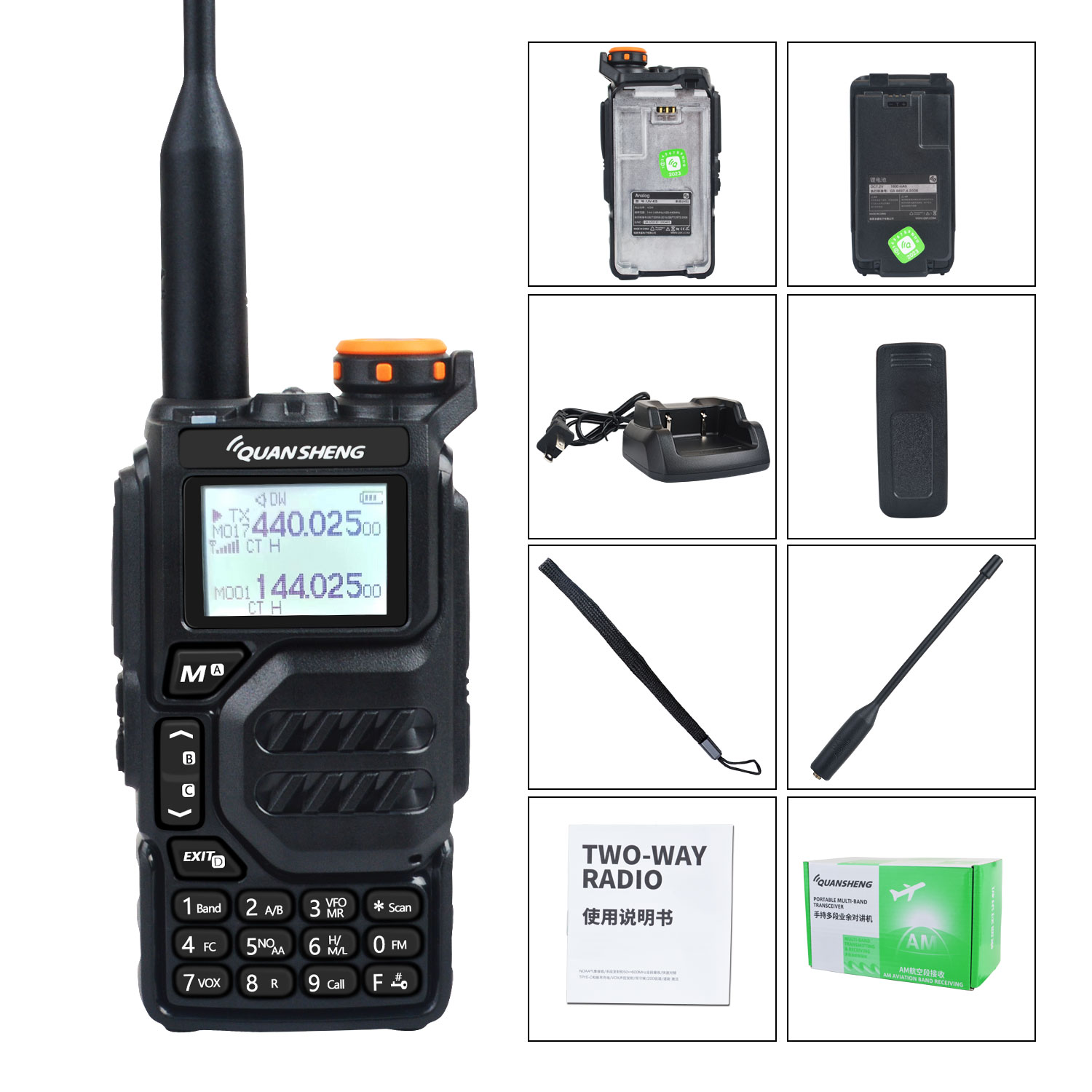

Package Contains:

1×UV-K5 Radio Body

1× 7.2V 1600mah Li-ion Battery Pack BPK5

1× SMA-Female Dual Band Antenna

1× Belt Clip

1× ENG Manual

1× Desktop Charger ( 110V ~ 240V ) with Correct Adapter for your Country

1× Handstrap

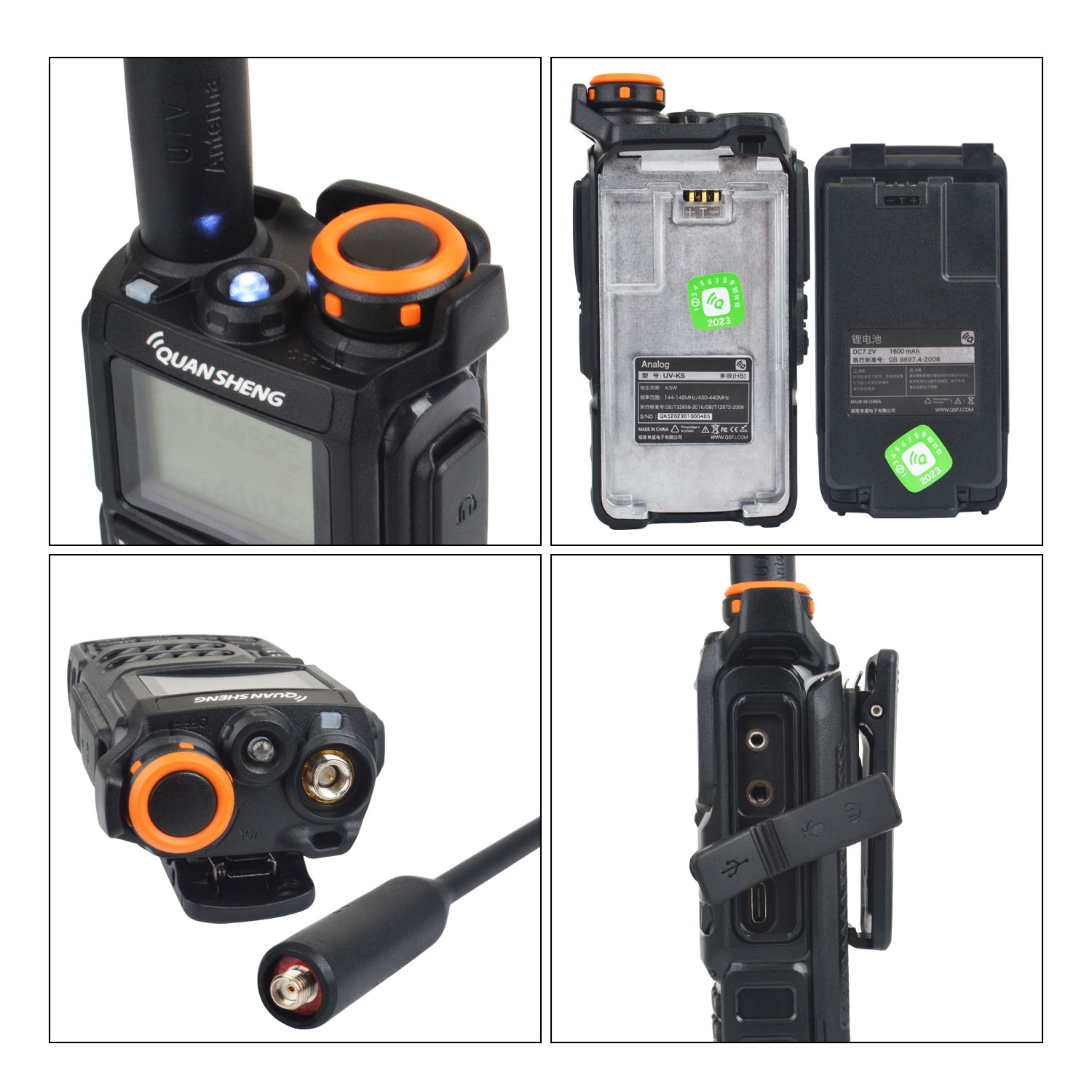

Photos:


  • Output Power(w): 3w-5w
  • Battery Capacity(mAh): 1600
  • Waterproof / Water-Resistant: No
  • Material: Plastic
  • Storage Channel: 200
  • Frequency Range: 50-600MHz Rx, VHF 136-174MHz and UHF 400-470MHz Tx
  • Dimensions: 115mm*60mm*37.5mm
  • Model Number: UV-K5
  • Walkie Talkie Type: Portable
  • Is_Display: Yes
  • Maximum Range: 1.5km-3km
  • Brand Name: quansheng
  • Origin: Mainland China
