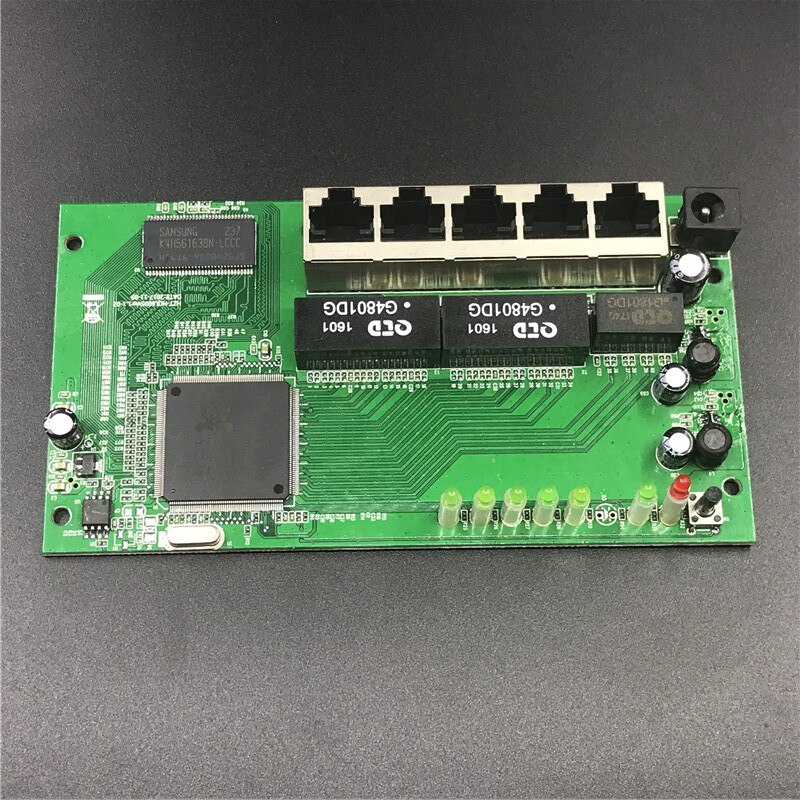

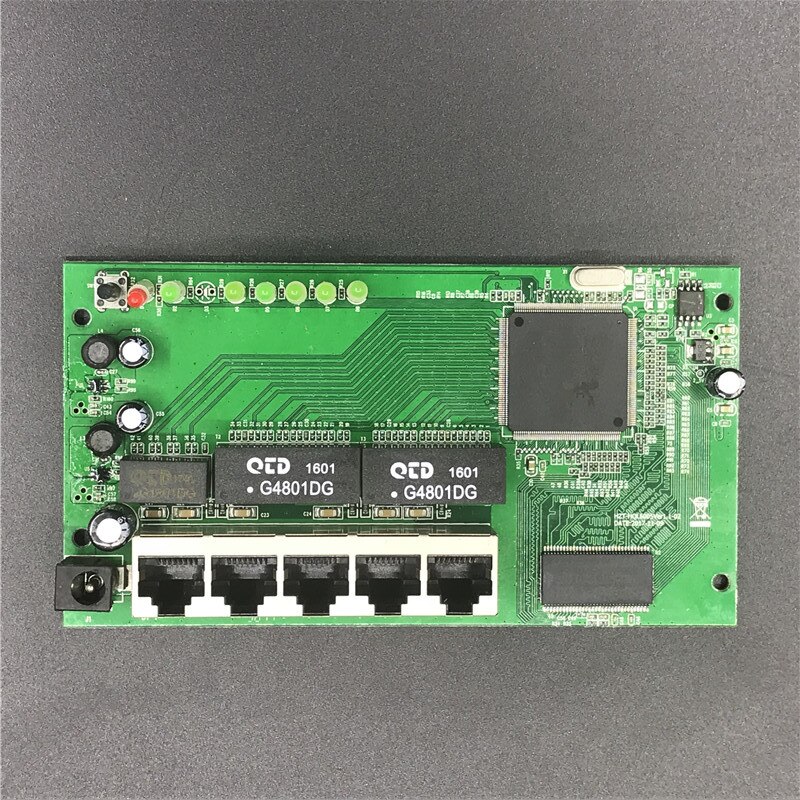

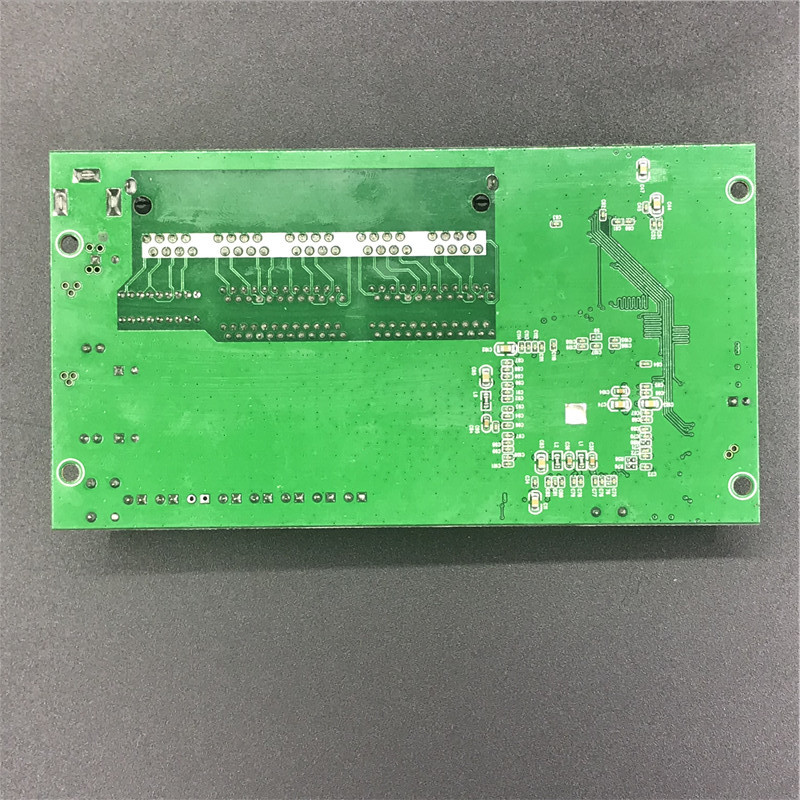

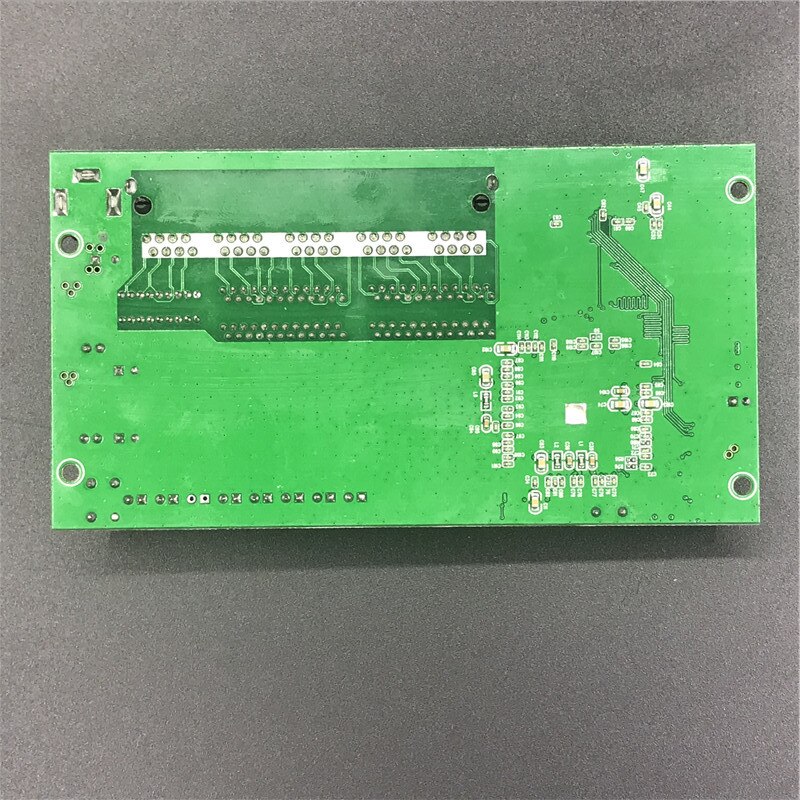

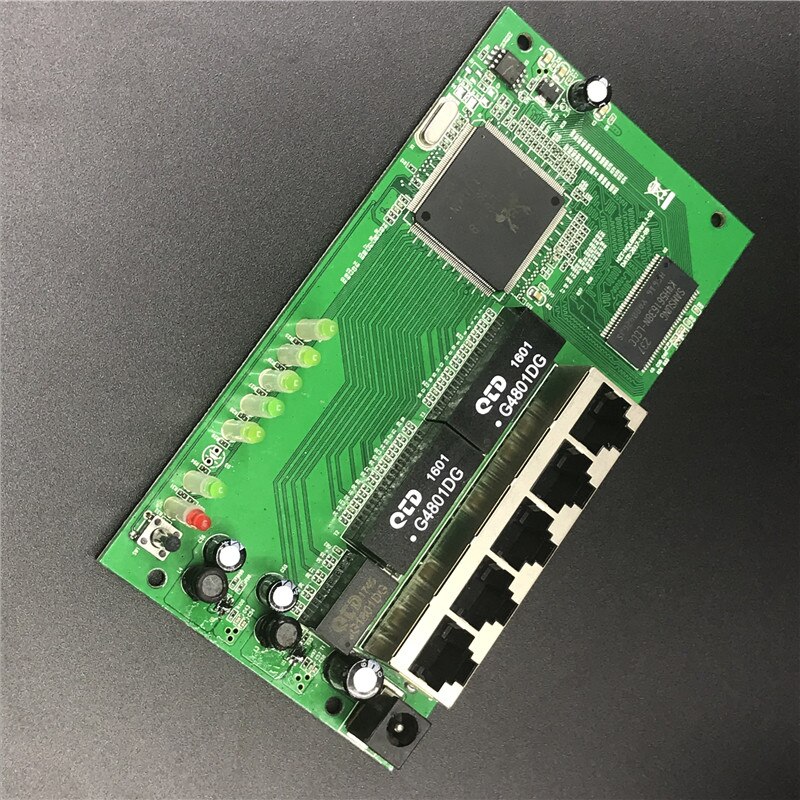

5 port Gigabit router module 10/100/1000M distribution box 5-port mini router modules OEM wired router module PCBA with RJ45
SALE
ID: 39093

5 port Gigabit router module 10/100/1000M distribution box 5-port mini router modules OEM wired router module PCBA with RJ45

0.0 (1 votes) | 1 orders
Price: US $61.40 / piece
Discount Price:
US $ 53.14 / piece
-13%
Quantity

Specifications

intelligent home terminal distribution system
1,1 wan 4 lan
2,10/100/1000m lan ports 4
3,exclusive broadband
4, 1 year warranty



5 port Gigabit router module 10/100/1000M for home multimedia distribution system

Description:

The  ANDDEAR-G-5

Multifunctional Broadband Router is specially designed for small enterprise, office and SOHO(Small Office/Home Office) to access the Internet. It features strong functions, high performance, and easy configuration router. The  ANDDEAR-G-5 provides many management functions, including system, DHCP server, virtual server ,  DMZ host, firewall, and static routing table.

The ANDDEAR-G-5 router provides flexible access control, limiting staff or children to browse selected sites. It connects to the Internet automatically or on demand and disconnects when idle to save on network costs. Quick Setup Wizard is supported and friendly help pages are provided for every step.



Features

         Complies with IEEE 802.3, IEEE 802.3u standards

         1 10/100/1000Mbps Auto-Negotiation WAN RJ45 port,

         4 10/100/1000Mbps Auto-Negotiation LAN ports,

         supporting Auto-MDI/MDIX

         Shares data and Internet access for Stations, connecting Internet through PPPoE on demand and disconnecting when idle

         Supports TCP/IP, PPPoE, DHCP, ICMP, NAT

         Built-in NAT and DHCP server

         supporting static IP address distributing

         supporting IP address filtering, Domain Name filtering

         Supports connecting/disconnecting Internet on a specified time of day

         Built-in Firewall supporting Domain Name filtering, and MAC address filtering

         Supports Virtual Server, Special Application, and DMZ host

         Supports firmware upgrade,

         Supports Remote and Web management



Application

SOHO broadband routers are widely used in smart home wire distribution box system, the SME Internet use and others.



Specifications:

Standards

 IEEE 802.3; IEEE 802.3u

Ethernet Protocol

 CSMA/CD

Ports

 WAN: 1 10/100/1000M Auto-MDI/MDIX RJ-45 Port

 LAN:4 10/100/1000M   Auto-MDI/MDIX RJ-45 Ports

Application Protocols

TCP/IP, PPPoE, DHCP, NAT

Flow Control

IEEE 802.3x for Full duplex

Backpressure for Half duplex

LEDs

Power

WAN: Link/Act

LAN: Link/Act

Power

External, 7.5V~ 1A

Operating Temp.

 0ºC ~ 70ºC

Operating Humidity

 5% ~ 90%RH, Non-Condensing

Safety & Emission

ROSH, CE,FCC

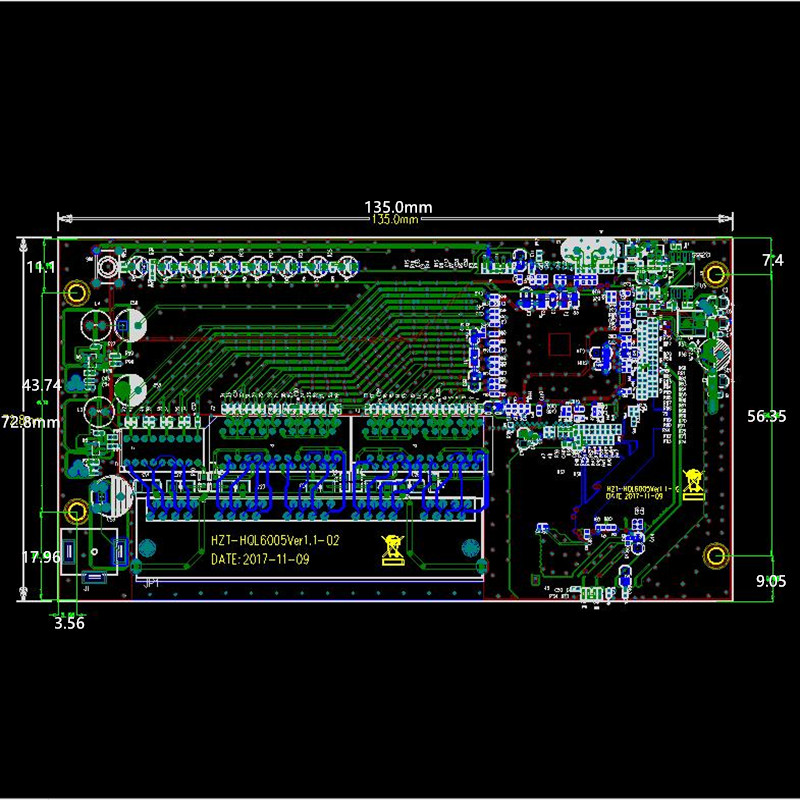

Dimension

135*72.8*18MM


  • Brand Name: ANDDEAR
  • Type: Wired
  • With Modem Function: No
  • Wired Transfer Rate: 10/100/1000Mbps
  • WAN Ports: 1 x10/100/1000Mbps
  • Number of USB Interfaces: None
  • Wi-Fi Supported Frequency: No
  • LAN Ports: 4
  • Supports WPS: Yes
  • Package: Yes
  • Function: Firewall
  • Application: Broadband
  • Supports WDS: Yes
  • Max. LAN Data Rate: 1000Mbps
  • Model Number: ANDDEAR-GPO9
  • Standards And Protocols: Wi-Fi 802.11g
  • Standards And Protocols: Wi-Fi 802.11b
  • Standards And Protocols: Wi-Fi 802.11n
  • Standards And Protocols: Wi-Fi 802.11ac
