4W 4000mW 802.11b/g/n Wifi Wireless Amplifier Router 2.4Ghz WLAN ZigBee BT Signal Booster with Antenna TDD
5.0 (5 votes)
Price:
US $61.09
/ piece
Discount Price:
US $
53.56
/ piece
-12%
This 2.4 GHz WLAN signal booster is designed for IEEE 802.11b/g/n wireless LAN applications. It adopts the direct sequence spread spectrum(DSSS) and orthogonal frequency division multiplexing(OFDM) technology of WLAN communication. The product is compatible with time-division duplexing(TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/WiFi devices, BT, ZigBee and increase the signal strength, therefore a larger WLAN coverage and more stable transmission rate.
Features:
20X the power, improving the link quality and coverage of certified WLAN devices.
2.5dB ultra-low noise.
Wide 6-16V operating input range.
Working with certified IEEE 802.11b/g/n wireless LAN devices.
Simply plug and play, no software is required.
Specifications:
Frequency range: 2.4-2.5GHz
Operating voltage: 6-16V
Receiving gain: 10dB±1
Transmission gain: 13dB±1
Input trigger power: 3dBm(min), 20dBm(max)
Max output power(P1dB): 36dBm(4W)
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC supply current: 435mA @ Pout 28dBm 9V
Noise figure: <2.5dB
TX/RX switch time delay: <1us
LED indicator: Transmitter: green, receiver: red
Operating ambient temperature: -40℃~70℃
Operating humility: Up to 95% rel. humidity
Item size: 8.2 * 5 * 2.1cm / 3.22 * 1.96 * 0.82in (L * W * H)
Item weight: 181g / 6.39oz
Package size: 21 * 12.5 * 5cm / 8.26 * 4.92 * 1.96in (L * W * H)
Package weight: 381g / 13.43oz

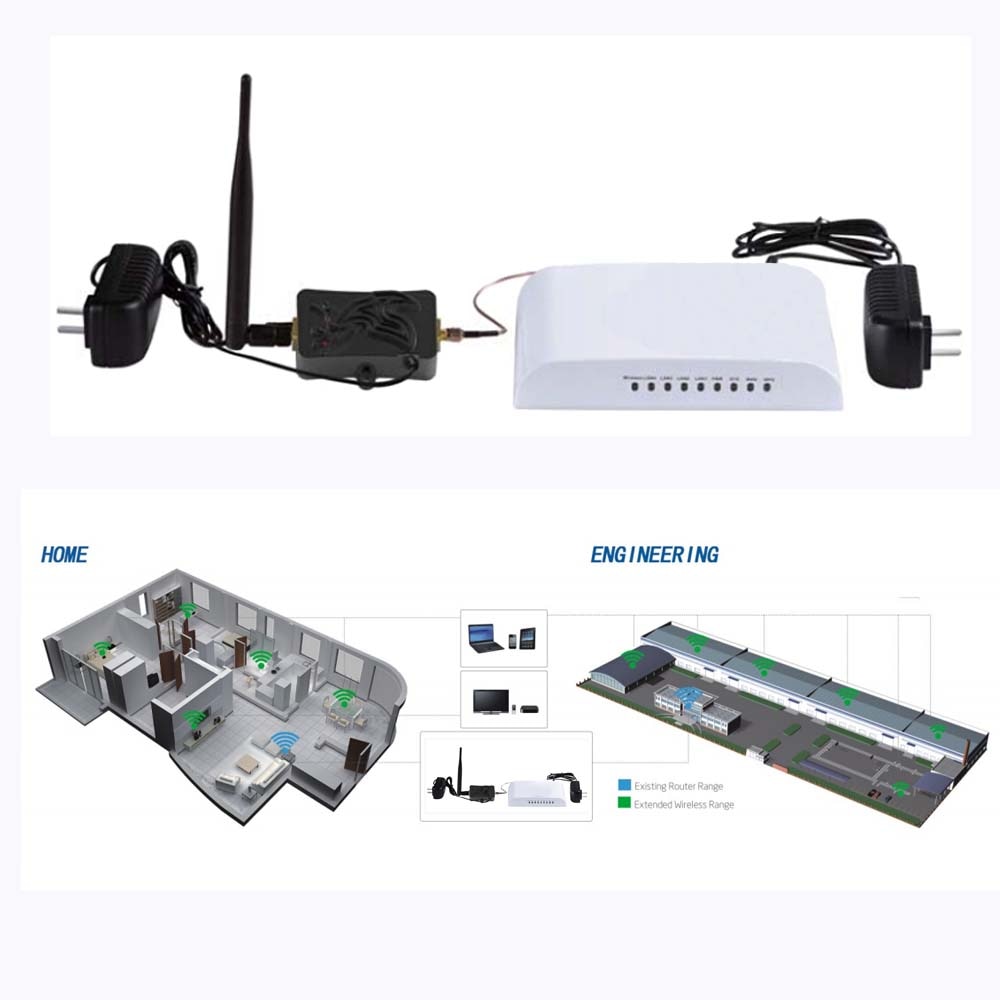

Applications:
Wireless LAN 802.11b/g/n access point clients.
Based on the 2.4GHz WLAN wireless base stations.
Based on the 2.4GHz WLAN wireless bridges.
Indoor distribution systems (multi-play) in the combiner.
Based on ZigBee, BT protocol wireless devices.
Installation Instructions:
Step1: Disconnect the power supply to AP/Router.
Step2: Detach the antenna from your certified wireless AP/Router.
Step3: Connect RG316 cable (included) to the booster and AP/Router.
Step4: Connect the antenna to the other end of the booster.
Step5: Connect the power supply to the booster first and subsequently the AP/Router.

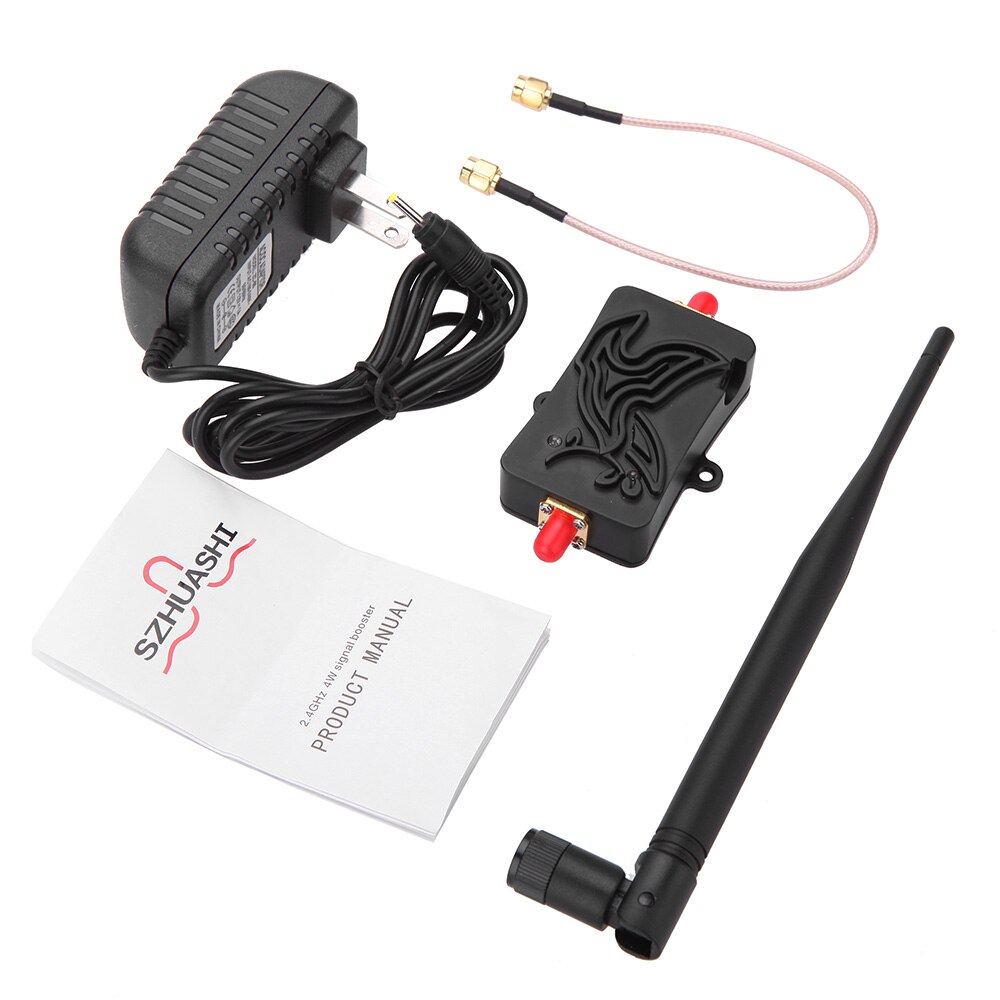

Package List:
1 * 4W signal booster
1 * Power adapter

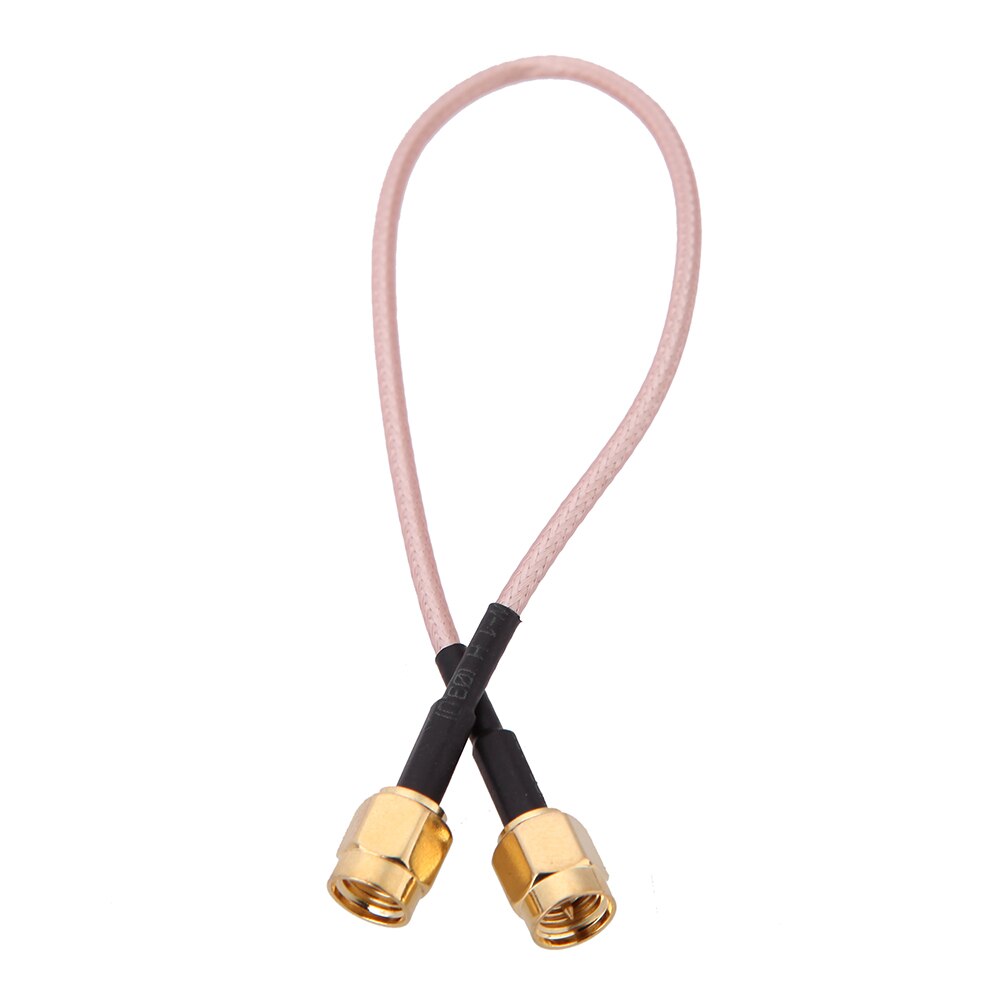

1 * 20cm RG316 cable
1 * 5dBi antenna
1 * User manual (English)
- 5G Wi-Fi Transmission Rate: None
- Wired Transfer Rate: None
- Wi-Fi Transmission Standard: 802.11b
- 2.4G Wi-Fi Transmission Rate: 300 Mbps
- Wi-Fi Supported Frequency: 2.4G
- Supports WPS: No
- Supports WDS: No
- Number of USB Interfaces: 1 x USB 2.0
- WAN Ports: Other
- LAN Ports: 1
- Function: Firewall
- Application: Soho
- Package: Yes
- Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n
- Max. LAN Data Rate: 300Mbps
- With Modem Function: No
- Type: WIRED
- Brand Name: docooler
- Origin: Mainland China
- Certification: NONE
- Code: C2082
