433Mhz RF Remote Control Circuit Universal Wireless Switch DC 5V 12V 24V 2CH rf Relay Receiver and Keyfob Transmitter for Garage
SALE
ID: 54149

433Mhz RF Remote Control Circuit Universal Wireless Switch DC 5V 12V 24V 2CH rf Relay Receiver and Keyfob Transmitter for Garage

4.9 (159 votes) | 496 orders
Price: US $11.97 - 43.62 / Set
Discount Price:
US $ 9.95 - 34.90 / Set
-17%
Ships From
Color
Quantity

Buy Now
Add to Cart






Product description
433Mhz RF Remote Control Circuit Universal Wireless Switch DC 5V 12V 24V 2CH rf Relay Receiver and Keyfob Transmitter for Garage

  Product Application Area

Products can be used in lighting, garage doors, shutter doors, remote control curtains, DC motors, motor reversing. and many more

1

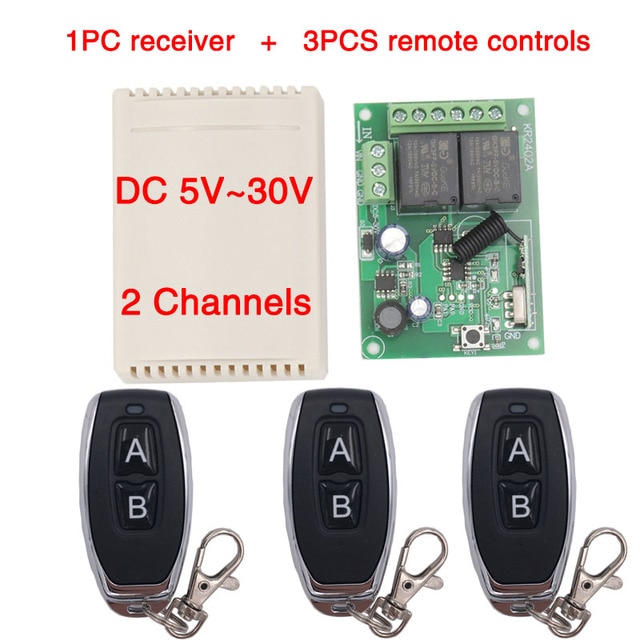

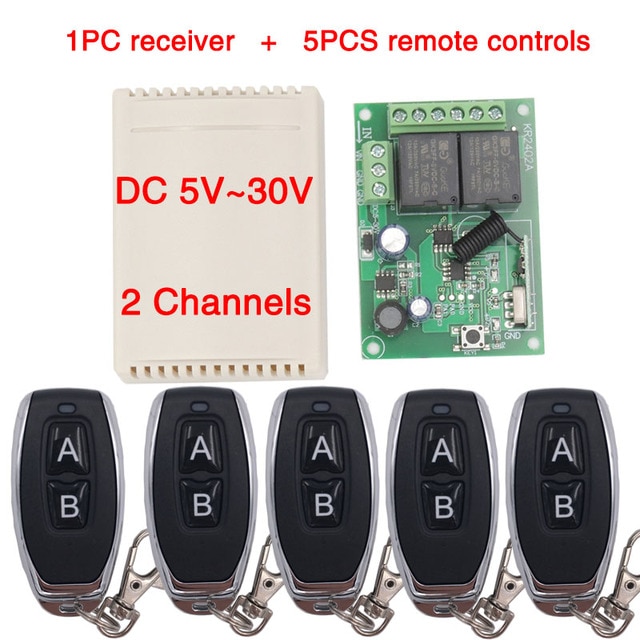

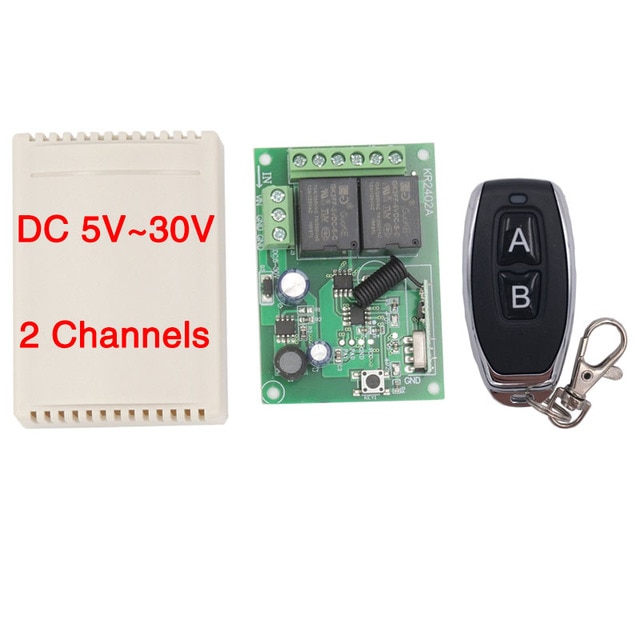

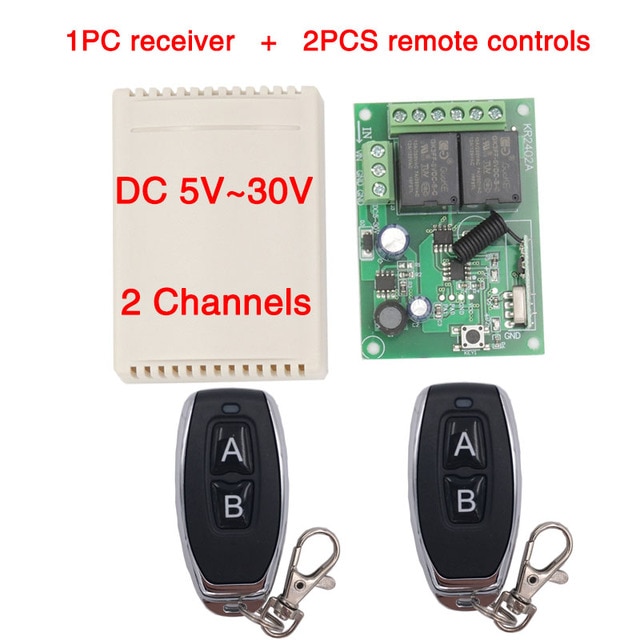

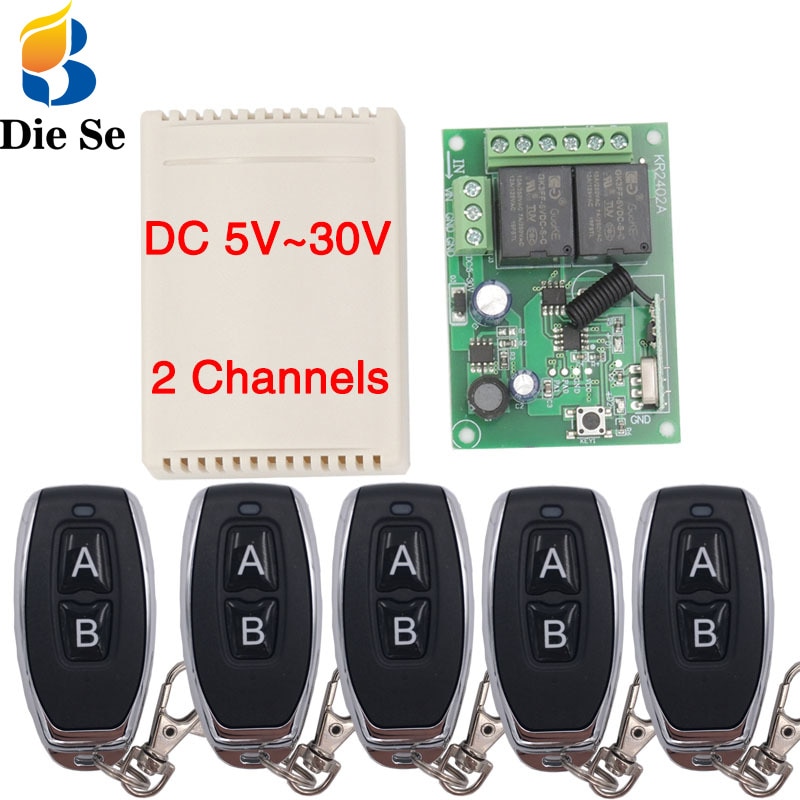

  Package include

Receiver module

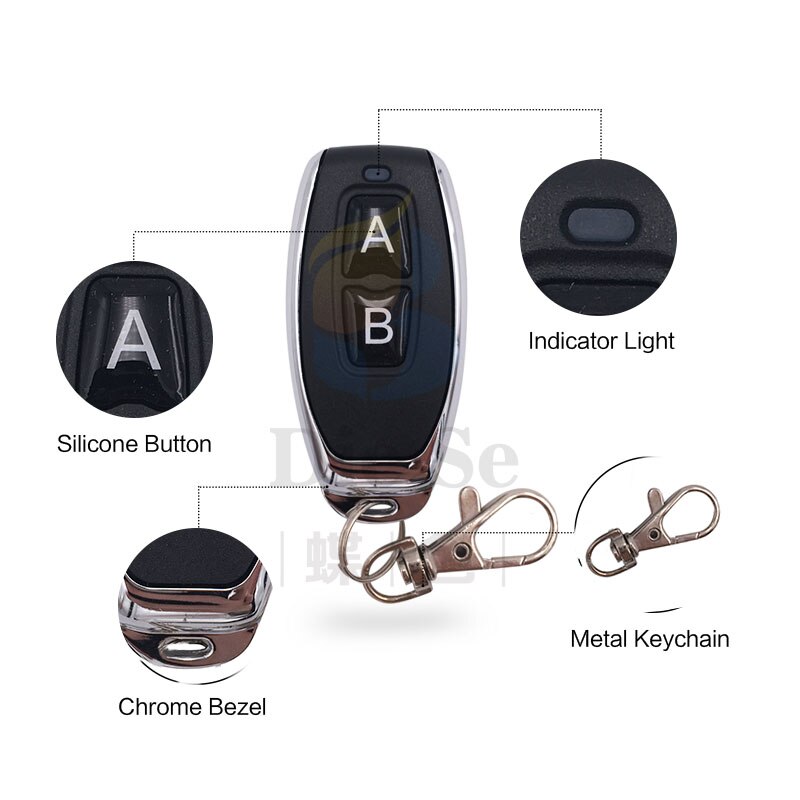

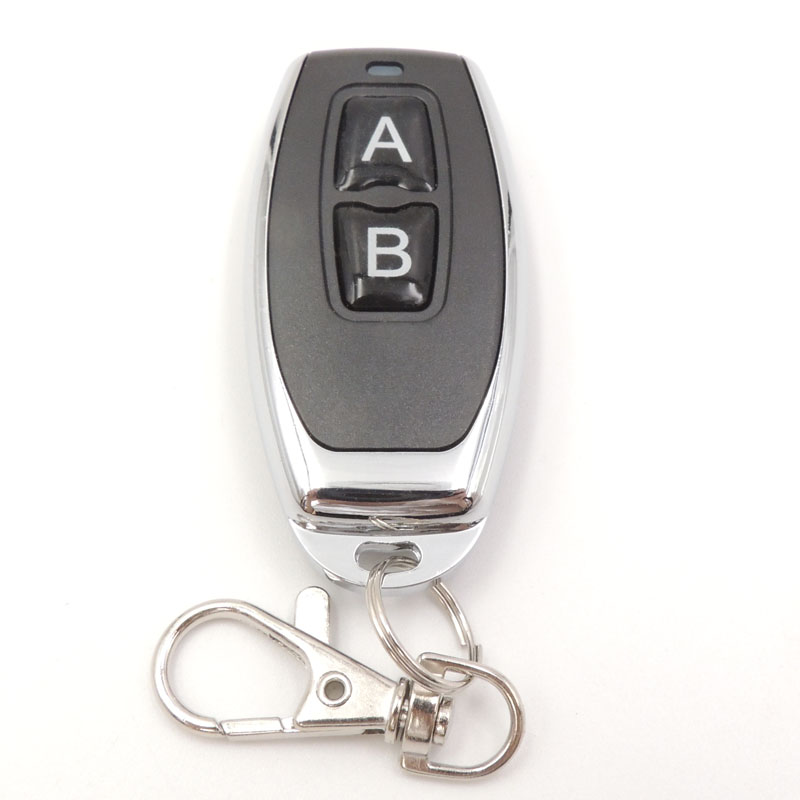

Remote Control  (include battery )

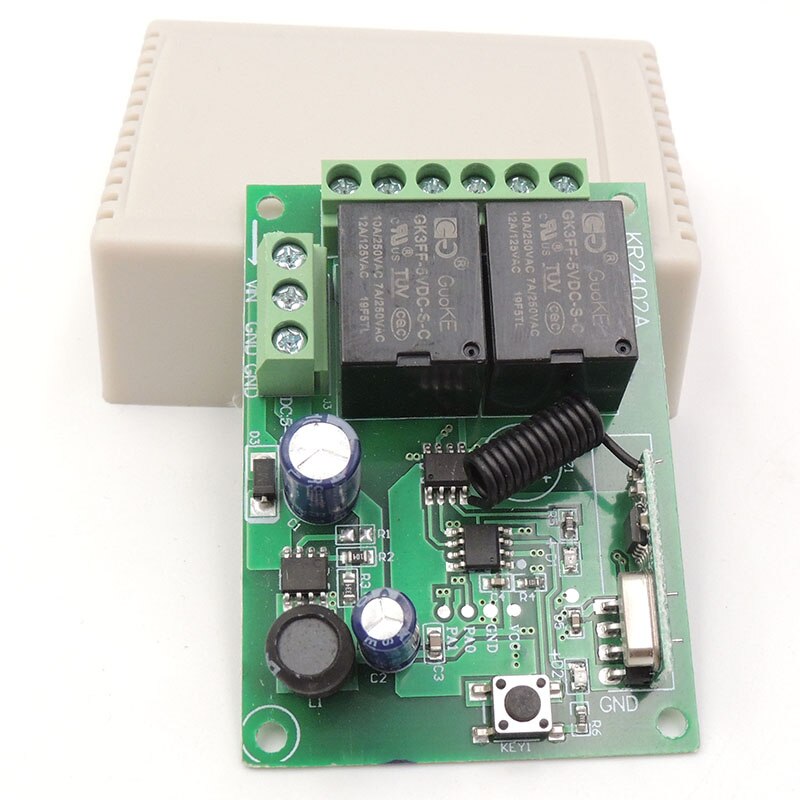

  Products  Display

1535765458(1)

Tips:

All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.


  Products  Data

  • Working Voltage  :  DC 5V~30V
  • Input vlotage  :  1~250V
  • Output vlotage  :  1~250V
  • Quiescent Current  :  <5MA
  • Max current  :  10A
  • RF frequency  :  433MHz
  • Working temperature  :  -30~+80
  • Receiving Sensitivity  :  >97dbm
  • Amount of storage remote controls  :  25 pieces
  • Support encoding  :  1527 Leaning code/2262 fixed code
  • RF Operating mode  :  ASK superheterodyne wireless reception
  • Receiving range  :  Open space is more than 50 meters
  • Remote operating mode  :  Momentary Mode /Toggle Mode /Latched Mode

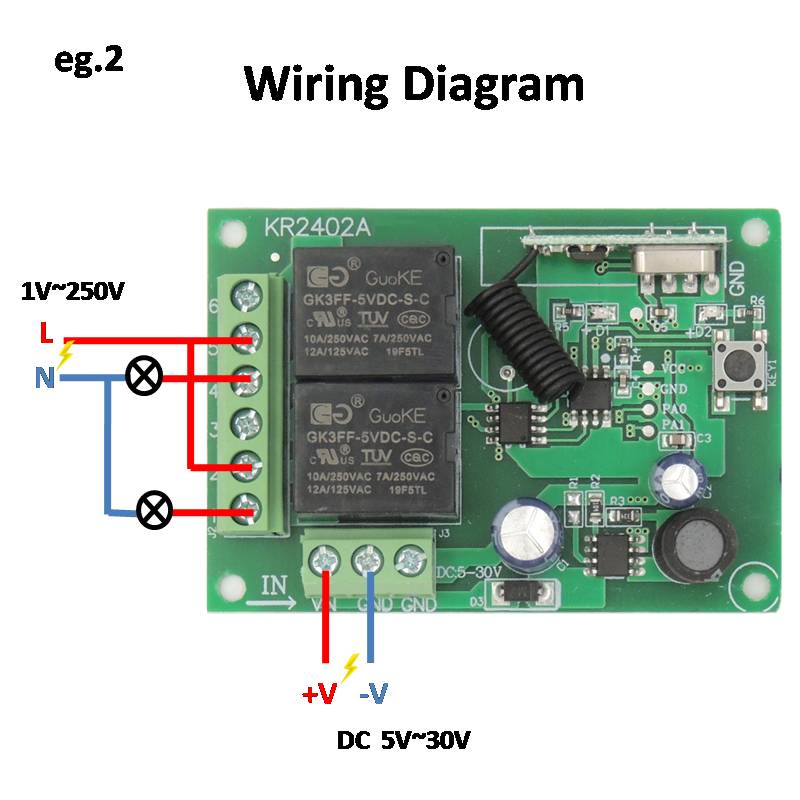

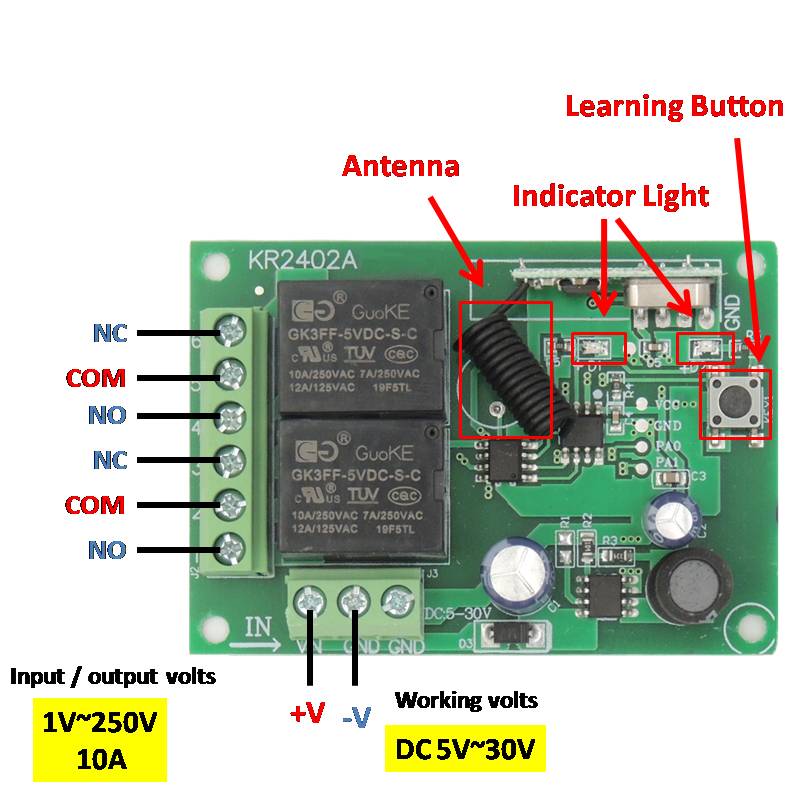

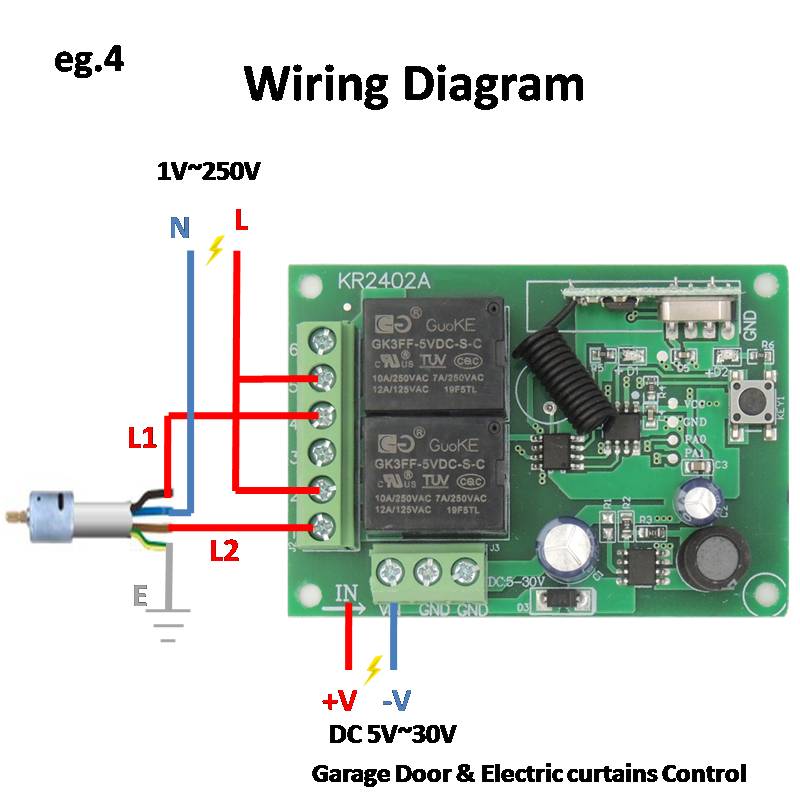

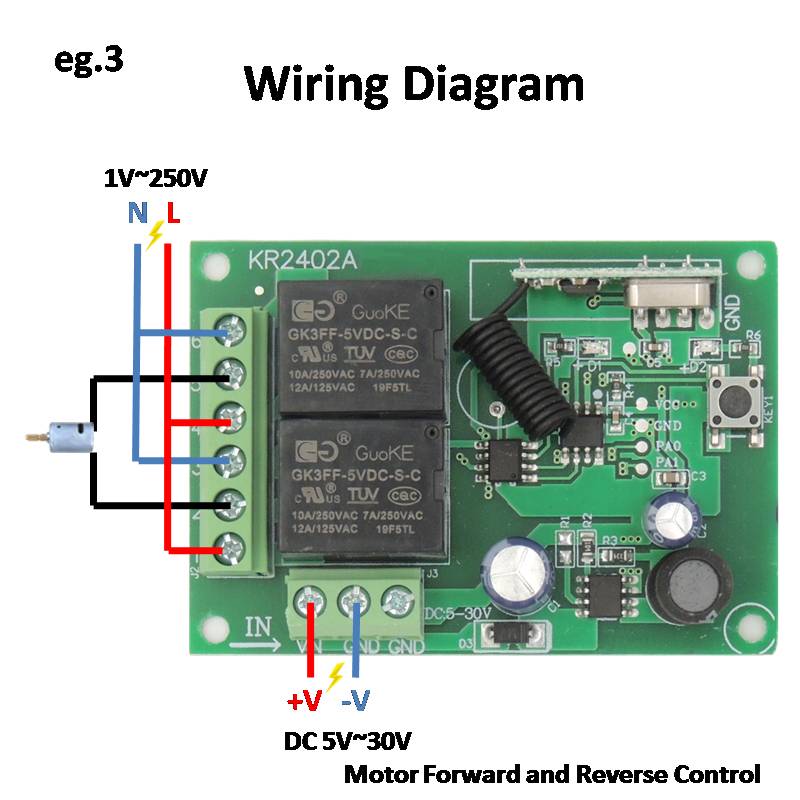

  Wiring diagram

1 NC:Normally closed Output
2 COM:Common port
3 NO:Normally open Output



  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.



  Set Up

   -  Part 1:  Delete the existing data about remote mode

     Note:   When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about  remote mode  for the first application.

Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.
After deleted the data, all the remote control cannot work any more.


   - Part 2: Set up

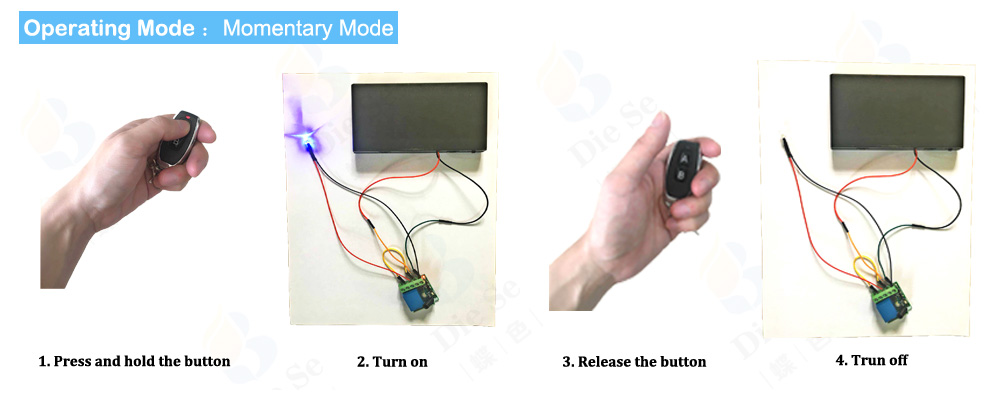

Set up : Momentary Mode

  • STEP 1
Press and release the learning button on the Receiver Switch Module board once.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

  • STEP 2
Press button "A" on the Remote Control , the LED on the receiver board will flash on then off indicating the button was learned.

  • STEP 3
Press button "B" on the Remote Control, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again, indicating system is ready for use.

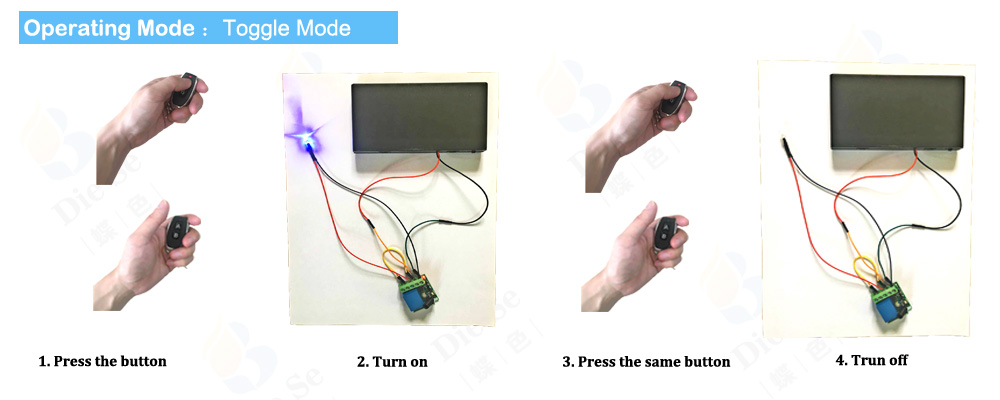

Set up :Toggle Mode

  • STEP 1
Press and release the learning button on the Receiver Switch Module board twice.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

  • STEP 2
Press button "A" on the Remote Control, the LED on the receiver board will flash on then turn off , indicating the button was learned.

  • STEP 3
Press button "B" on the Remote Control , watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

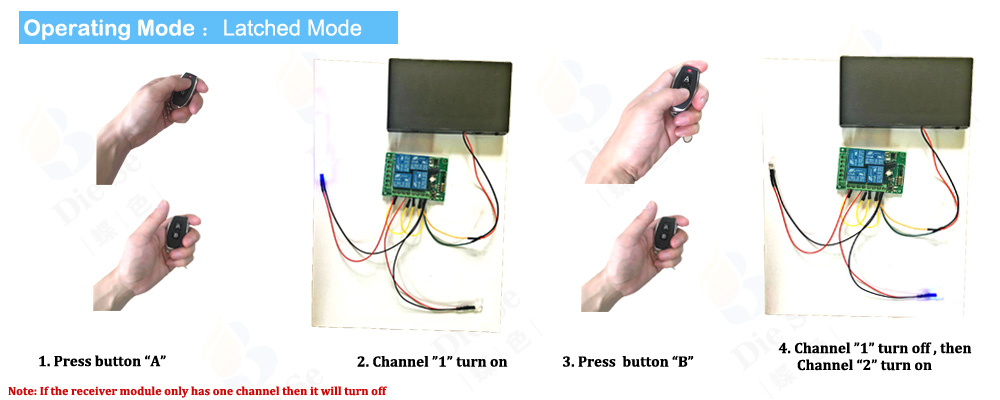

Set up : Latched Mode
  • STEP 1
Press the learning button on the Receiver board 3 times.

  • STEP 2
Press button "A" on the Remote Control,

  • STEP 3
Press button "B" on the Remote Control
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.



On this products details page, there is a demonstration video available.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*








  • Support APP: No
  • Frequency: 433 MHz
  • Channel: 2
  • Package: Yes
  • Model Number: KR2402 RF Relay Receiver Door Control System security
  • Wireless Communication: RF
  • Use: Universal,Lighting,Electric Door,Automated curtains,Switch
  • Brand Name: Diese
  • Origin: Mainland China
  • Certification: CE,RoHS
  • Working voltage: DC 5V~30V
  • Input Voltage: 1~250V
  • Output Voltage: 1~250V
  • Quiescent Current: 5mA
  • Max current: 10A
  • RF frequency: 433MHz
  • Working temperature: -30~+80
  • Receiving Sensitivity: 97dbm
  • Amount of storage remote controls: 25 pieces
  • Support encoding: 1527 Leaning code/ 2262 fixed code
  • RF Operating mode: ASK superheterodyne wireless reception
  • Receiving range: Open space is more than 50 meters
  • Remote operating mode: Momentary/ Toggle/ Latched Mode
  • Application scenario: House, Farm, Factory, Office, Supermarket and so on
  • Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor
  • Pin: NO COM NC
