tp-link ubiquiti wifi access point cpe top cpe router wireless outdoor ap cpe210 Upgrade alternative products TL-CPE500 1 piece
117.99 96.50 $
SALE
ID: 74663
300Mbps Indoor Ceiling Wireless WiFi Access Point AP Support wireless controler, enterpriser wireless management
0.0 ( votes)
Price:
US $78.10
/ piece
Discount Price:
US $
70.29
/ piece
-10%
Sorry! This item is out of stock
Product Overview
IP-COM 11n series AP(W40AP ) are enterprise-grade, high performance 11n Wi-Fi access points. Through the 802.11n Wi-Fi technology and enhanced transmit power and receive sensitivity, it can increase the scope of coverage, improve access density and operation stability.
Key Features
- Support 2.4Ghz 2x2 802.11n/g/b.
- Up to 300 Mbps data rate.
- Support wireless controler, enterpriser wireless management.
Product Features
High performance
300Mbps wireless transfer rate, which is approximately 6 times faster than 802.11g, is ideal for scenarios like office, conference room, libraryetc.
Advanced Wi-Fi security
IP-COM AP support almost all the latest encryption and authentication mechanisms(such as WEP,WPA-PSK,802.1X,WEB Portal,Social login),make it simple for administrator to manage enterprise security and guest access.
Low-profile industrial design
With it sleek, low profile design and controllable LEDs, blends into hotel, office environments.
Lower cost of implementation
Supporting PoE standard , AP can integrates into your existing 802.3af or 802.3at power and network infrastructure.
Automatic RF optimization
Advanced RF optimization with automatic channel, power level selection, to reduce interference. AP can recognize various channels being used and automatically switch to the best available channel to provide best experience for the users.
Dual Fat/Fit mode
When the network start small, user can acquire the AP and set it to Fat mode. As the user grows and more devices are installed, it's recommended to add a IP-COM AC to simplify network management and centrally manage all AP. It can significantly reduces deployment and management effort by automating device provisioning, firmware upgrades and policy enforcement.
Product Specifications
| Product Model | W40AP-11N | |||
| Mounting | Ceiling and Wall Mount | |||
| Dimensions | 184*184*38 | |||
| Hardware Specifications | ||||
| Frequency Range | 2.4GHz | |||
| Wi-Fi Standards | 802.11b/g/n | |||
| PHY Data Rates | 300Mbps | |||
| Ethernet Ports | 1*10/100/1000Mbps PoE/LAN port | |||
| DC Power Interface | 1 DC Power Interface | |||
| Button | 1*Reset | |||
| Antennas | 2x Integrated 2.4GHz Omni-directional, 4dBi gain | |||
| Maximum Power Consumption | 8W | |||
| LED indicator | SYS | |||
| Power Supply | 802.3af & 12V1A DC | |||
| Software Specifications | ||||
| Operating mode | AP,WDS,Client+AP | |||
| Compliant Standards | IEEE 802.11n/g/b | |||
| Wireless Features | 2 SSID | |||
| WiFi Radio | Enable or Disable | |||
| BSSIDs | 4 | |||
| SSID Hiding | Enable or Disable | |||
| User Isolation | Support | |||
| Clients Limit | Connected user number limitation for every SSID | |||
| VLANs | 802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment | |||
| RSSI Threshold | Support | |||
| WMM Capable | Support | |||
| Power Save (APSD) | Support | |||
| Spectrum Analysis | Support | |||
| Automatic channel control | Support | |||
| Adjustable Power | Adjustable step by 1dbm | |||
| Access Control | Connect limitation based on mac address | |||
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 | |||
| DHCP Server | Support | |||
| VPN Pass-Through | PPTP,L2TP | |||
| Schedule Reboot | Support | |||
| Page Timeout | Support | |||
| Network Diagnoses | Ping | |||
| Time&Date Setting | Support | |||
| WiFi Client Association Status | Support | |||
| System Monitoring | Status Statistic and Event Log | |||
| Backup Conguration | Support | |||
| Restore Conguration | Support | |||
| Reset Device | Support from Web UI or AP Controller | |||
| Username Management | Support from Web UI or AP Controller | |||
| Reboot Device | Support from Web UI or AP Controller | |||
| Firmware Upgrade | Support from Web UI or AP Controller | |||
| Centralized Management | Managed by AC1000, AC2000, AC3000 | |||
| Working Environment | ||||
| Operating Temperature | -10℃ ~ 45℃ | |||
| Storage Temperature | -30℃ ~ 70℃ | |||
| Operating Humidity | 10%~90% non-condensing | |||
| Storage Humidity | 10%~90% non-condensing | |||
| Default IP | 192.168.0.254 | |||
| Default Login Username | admin | |||
| Default Login Password | admin | |||
| Certifications | CE/RoHS | |||

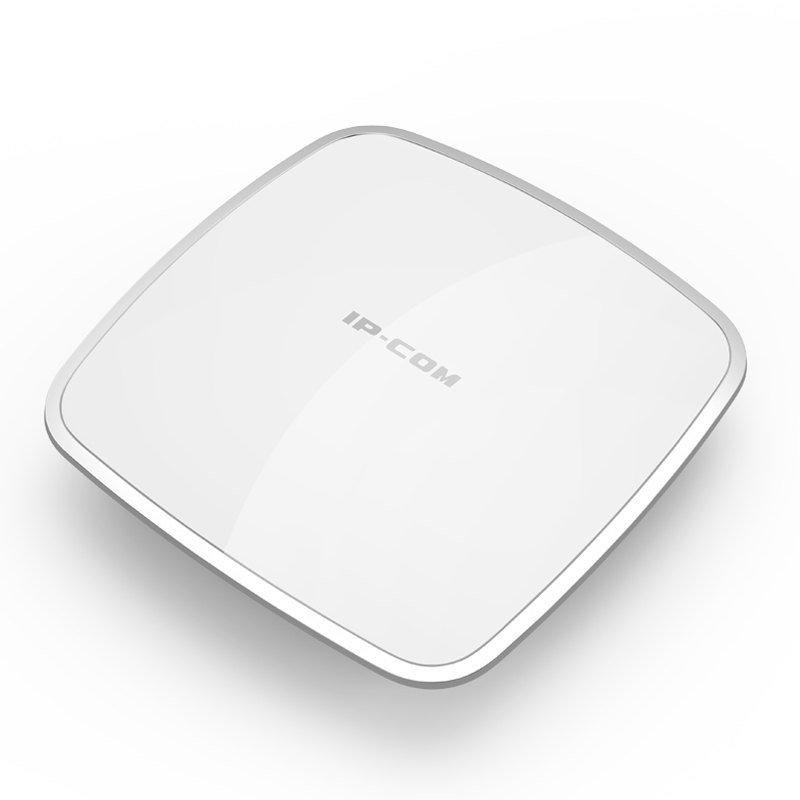

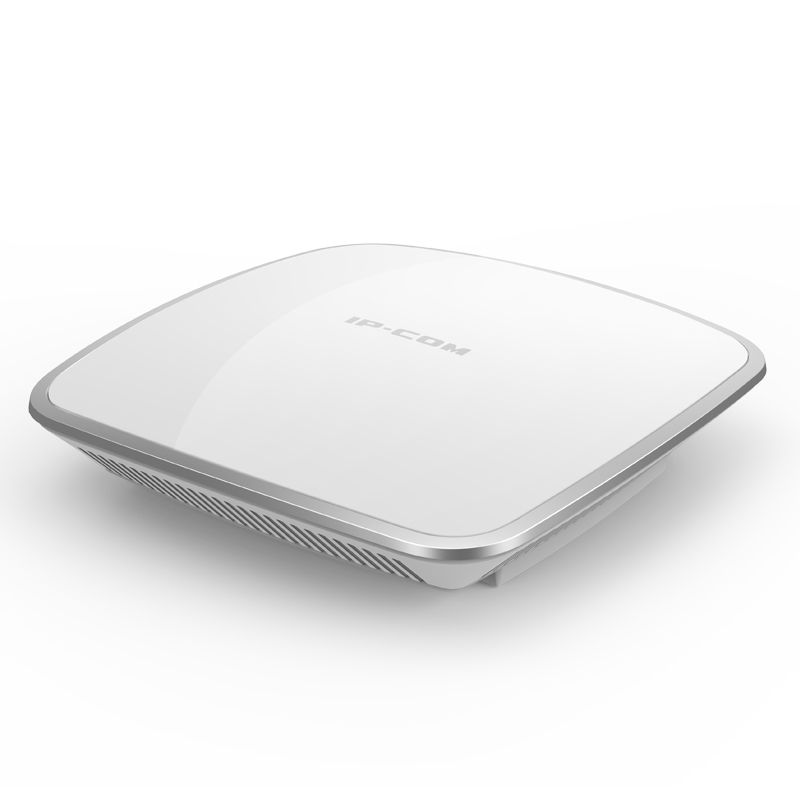

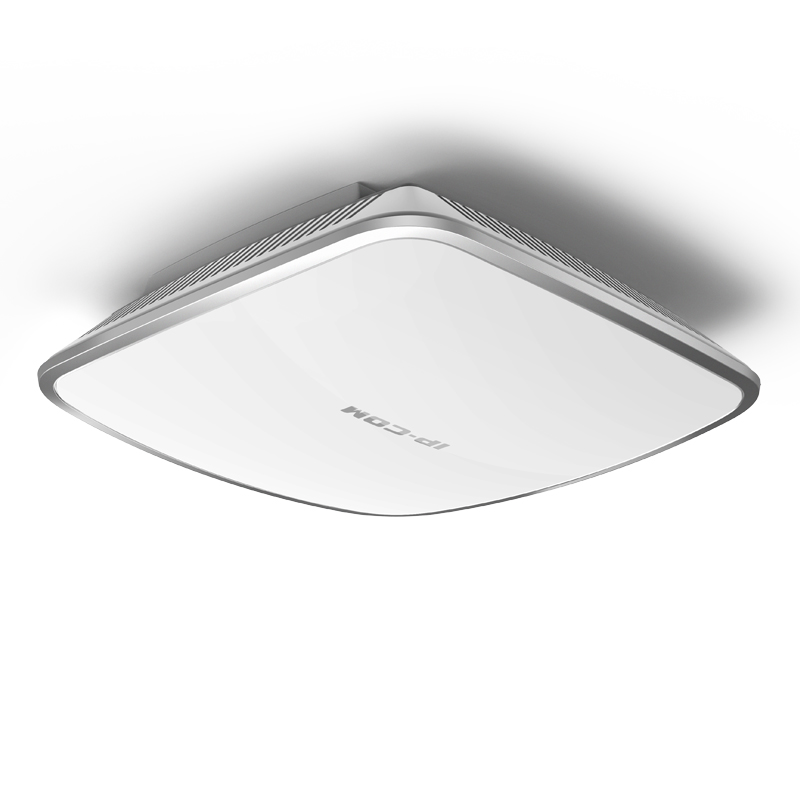

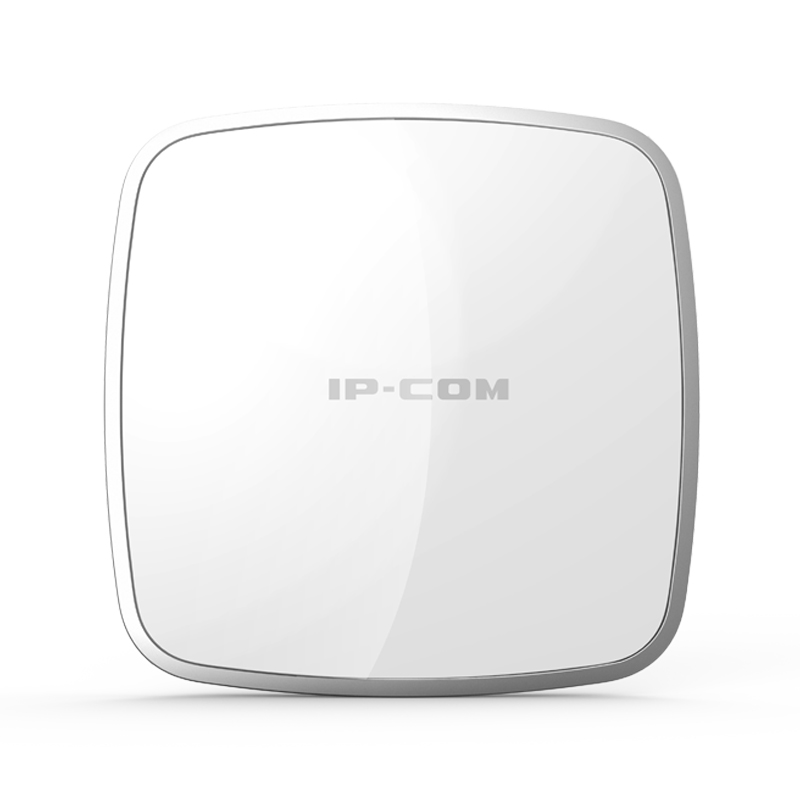

Product Show
- Brand Name: Fanakm
- Model Number: W40AP-11N
- Package: Yes
- Wireless Protocol: 802.11a/b/g
- Dimensions: 184*184*34.5mm
- Frequency: 2.4G
- Max Wireless Rate: 300Mbps
- Ethernet Ports: 1*10/100/1000Mbps PoE/LAN port
- DC Power Interface: 1 DC Power Interface
- Power Supply: 802.3af & 12V1A DC
- Max Power Consumption: 8W
- Antennas: 2x Integrated 2.4GHz Omni-directional, 4dBi gain
