Synology DS1520+ NAS 5 bays Network Cloud Storage Server Diskless
2,688.52 1,830.94 $
SALE
ID: 16876
Quantity

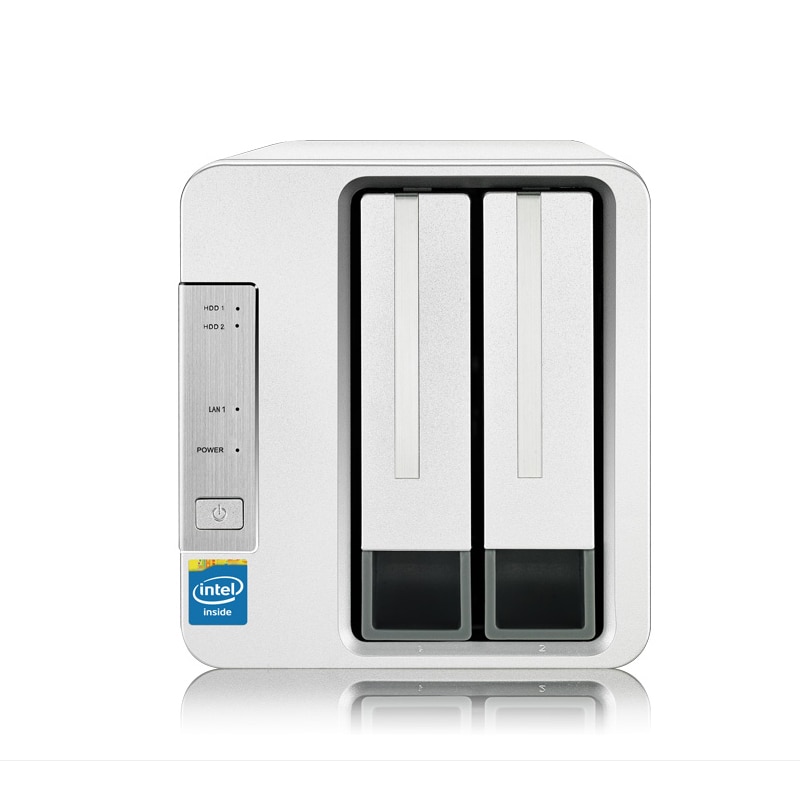

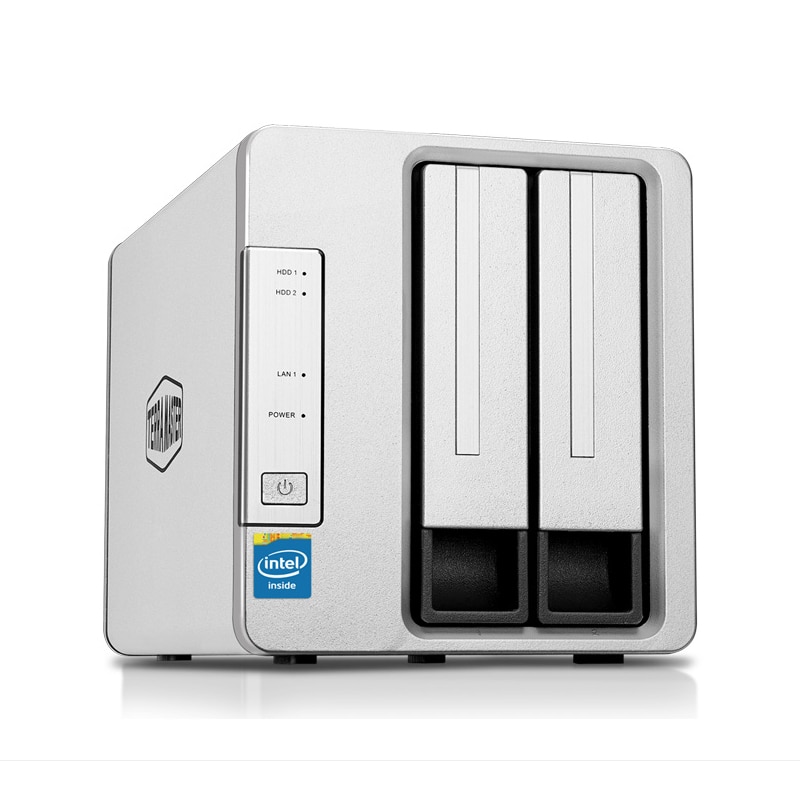

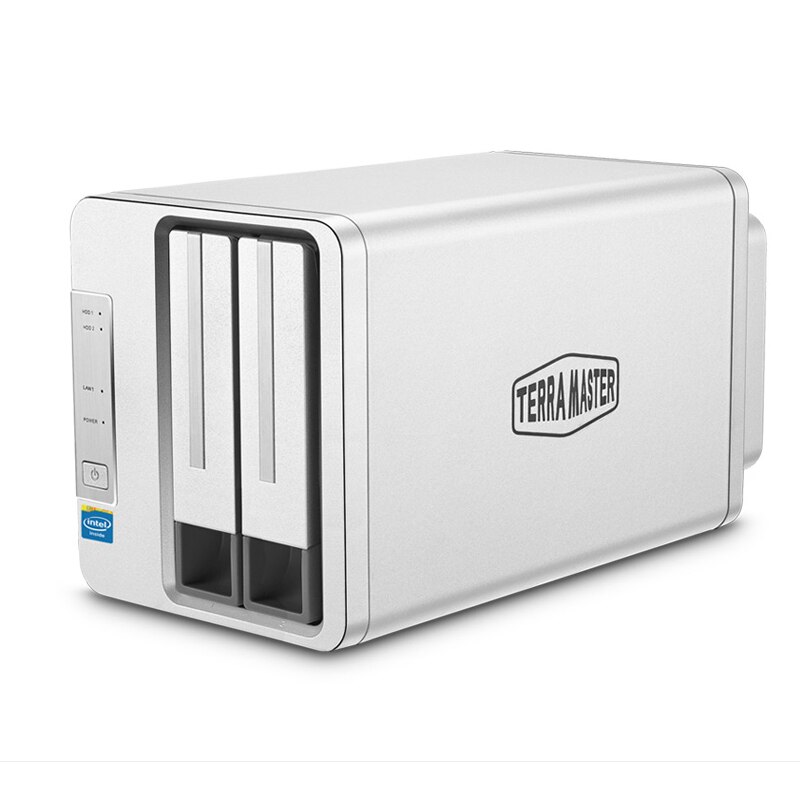

2bay HDD NAS personal cloud storage 64bit system 2Gb memory 2*RJ-45 G-Ethernet 2*usb3.0 Rsync Ftp server Raid mould QB download
0.0 (1 votes) | 1 orders
Price:
US $699.98
/ piece
Discount Price:
US $
671.98
/ piece
-4%
New 2bay HDD NAS personal cloud storage 64bit system 2Gb memory 2*RJ-45 G-Ethernet 2*usb3.0 Rsync Ftp server Raid function with Raid0,1,BOD,single function （The price does not include HDD）
Please note: this NAS does not include hard drive
Processor | |
Processor model | Intel® Celeron® J3355 |
Processor architecture | 64-bit |
Processor frequency | Dual Core, 2.0GHz (Maximum Turo: 2.5GHz) |
Memory | |
System memory | 2GB |
Pre-installed memory module | 2GB (1 x 2GB) |
Total memory slot number | 1 |
Maximum supported memory | 10 GB (2GB + 8 GB) |
Storage Device | |
Diskette slot number | 2 |
Compatible disk types | 3.5" SATA HDD |
2.5" SATA HDD | |
2.5" SATA SSD | |
Maximum internal storage capacity | 28TB (14 TB drive x 2) (Capacity will vary along with the RAID type) |
Disk hot plugs | √ |

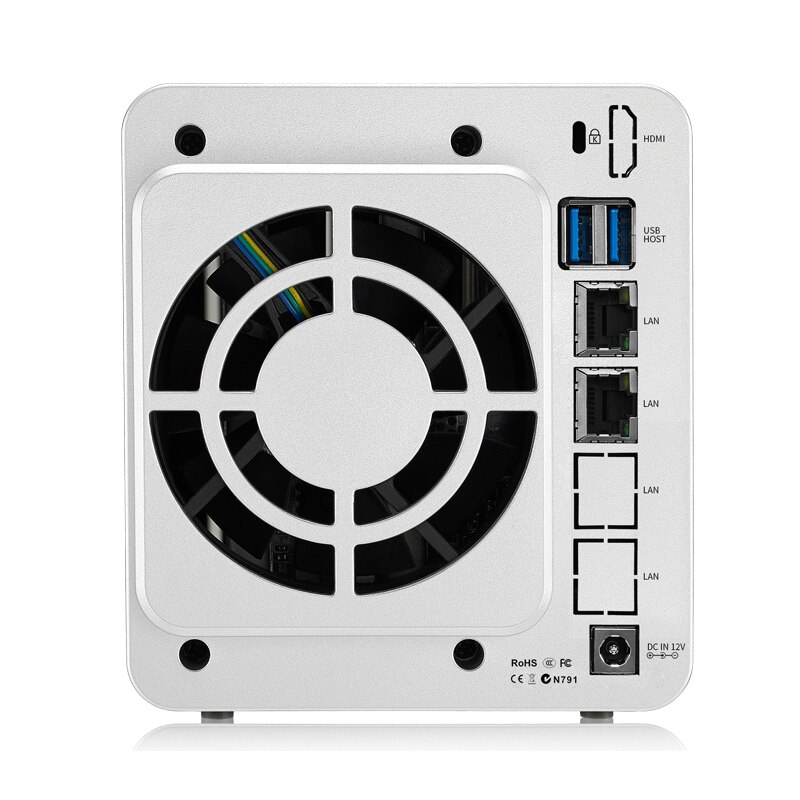

External Ports | |
RJ-45 1GbE network jack | 2 |
USB 3.0 port | 2 |
File System | |
Internal disk | EXT4,BTRFS |
External disk | EXT3, EXT4, NTFS, FAT32, HFS+ |
Appearance | |
Size (H*W*D) | 227(H) x 119(W) x 133(D) mm |
Weight | Net Weight: 1.46Kg Gross Weight: 2.57Kg |
Others | |
System fan | 80 mm x 80 mm x25mm 1 pcs |
Fan mode | Smart, Fastest, Low temperature, Mute |
Automatic recovery of power | √ |
Noise level | 18.6dB(A) |
Timing On/Off | √ |
√ | |
Power supply / transformer | 40W |
AC input voltage | 100V - 240V AC |
Current frequency | 50/60 Hz, single frequency |
Power consumption | 25.6W |
2.0W (hard drive dormancy) | |
Environment Temperature | |
Working temperature | 5°C ~ 40°C (40°F ~ 104°F) |
Storage temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
Relative temperature | 5% ~ 95% RH |
Storage Management | |
Maximum storage space | 256 |
Maximum iSCSI Target | 32 |
Maximum iSCSI LUN | 256 |
Supported RAID types | Single,JBOD,RAID 0,RAID 1 |
Large capacity hard disk for expanding storage space | RAID 1 |
File Sharing | |
Maximum local user's account number | 2048 |
Maximum local group number | 256 |
Maximum shared folders number | 256 |
Maximum shared folders syncing tasks | 4 |
Maximum concurrent CIFS/AFP/FTP sessions | 500 |
Windows ACL integration | √ |
NFS Kerberos authentication | √ |
Applications | √ |
Mail server, web server | √ |
Rsync remote server | √ |
FTP server, MySQL server | √ |
Cloud Station Server | √ |
Download Station | √ |
Media Server | √ |
DLNA Compliance | √ |
TNAS Supported OS | Windows. Mac. Linux |
TNAS OS Supported web browsers | Chrome48; Firefox30,IE 9,Safari(mac):4.5 |

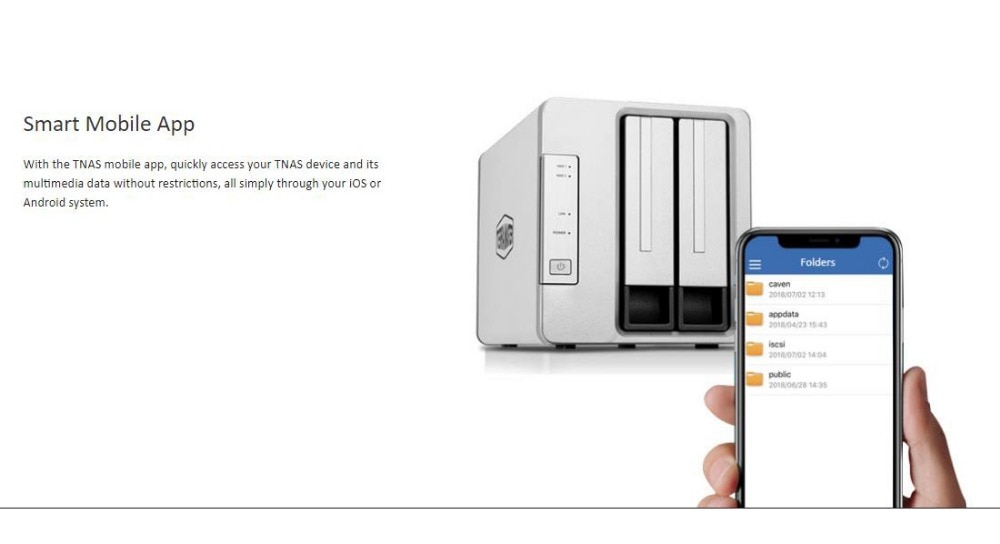

TNAS Supported mobile devices | iOS8.2, Android4.4 |
language | English, Chineses, Japanese, German, French, Spanish, Italian, Korean |
Warranty | 2 years |
Environment | Meet RoHS standard |
Package contents: | Host (x1) |
Accessories package (x1) | |
Power adapter (x1) | |
Power line (x1) | |
RJ-45 network cable (x1) | |
Quick Guide (x1) |

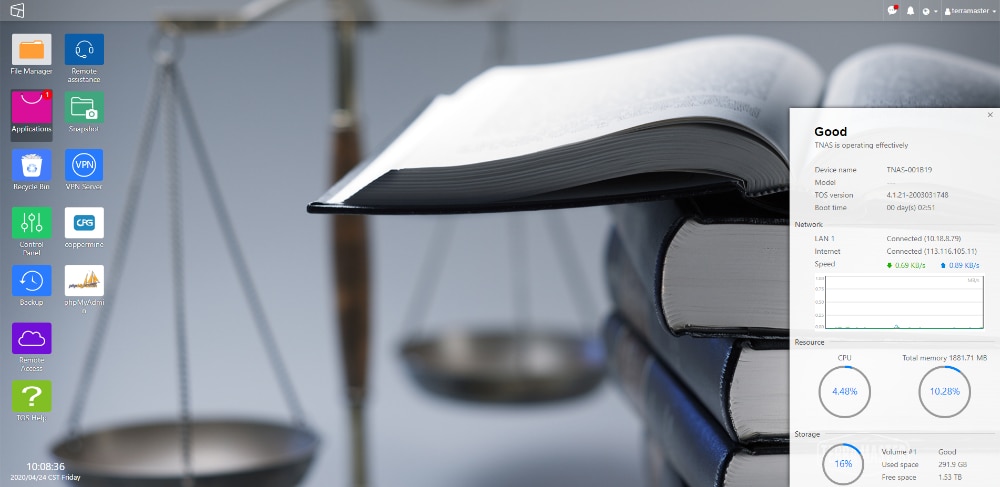

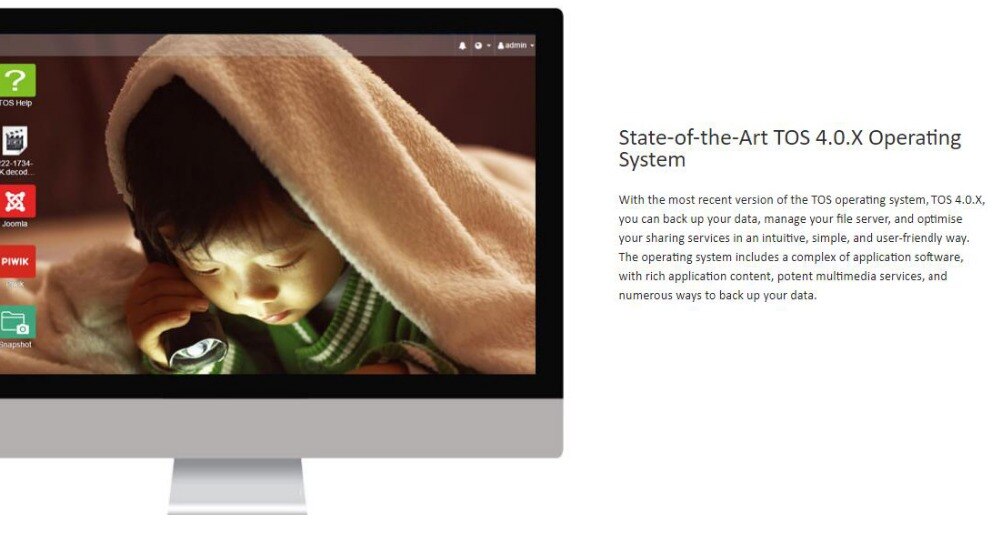

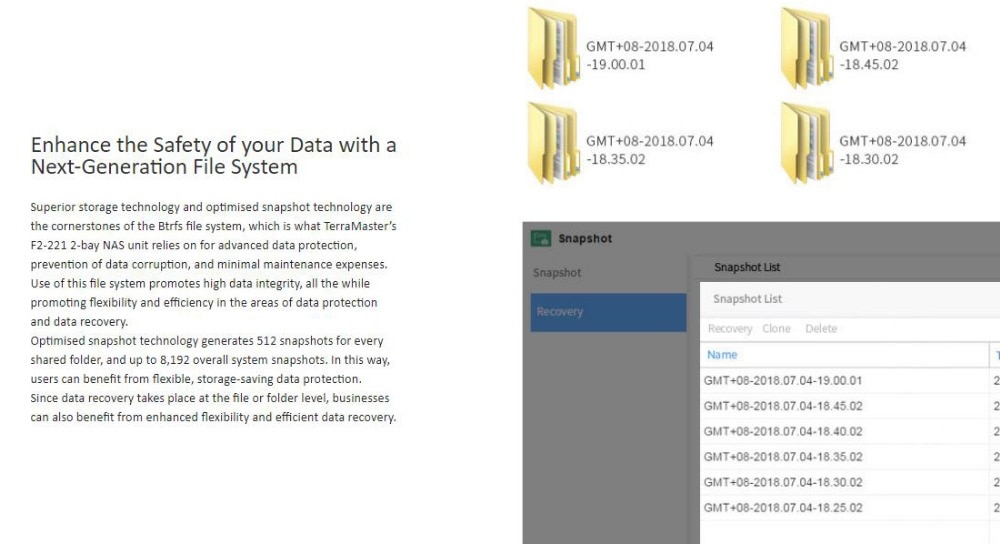

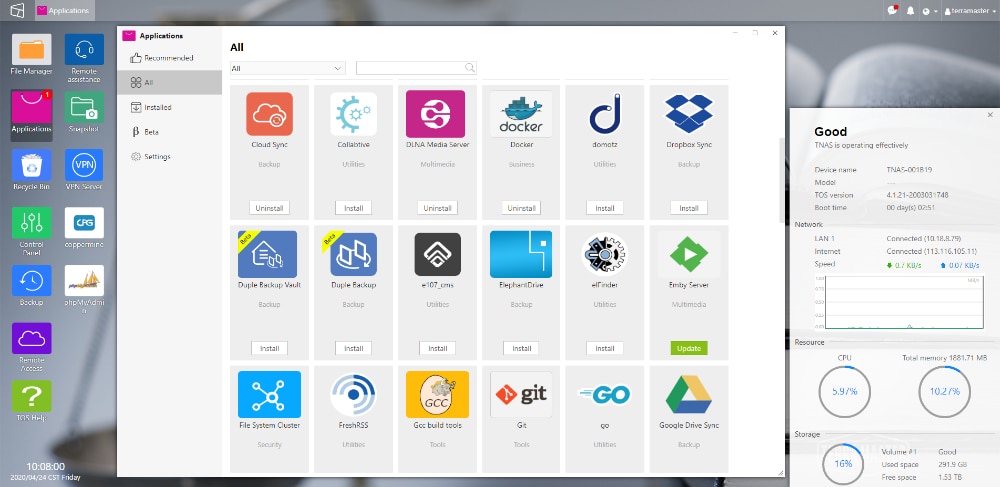

Some screenshots when access the system from outside by computer.
- Memory Size: 2GB
- Supply Voltage: 100-240VAC
- Transmission Speed: 200MB/Sec
- Package: Yes
- Model Number: F2-221
- Interface Type: USB,Port RJ-45
- Capacity: Diskless System
- Brand Name: TERRAMASTER
- Certification: CE
- Origin: Mainland China
