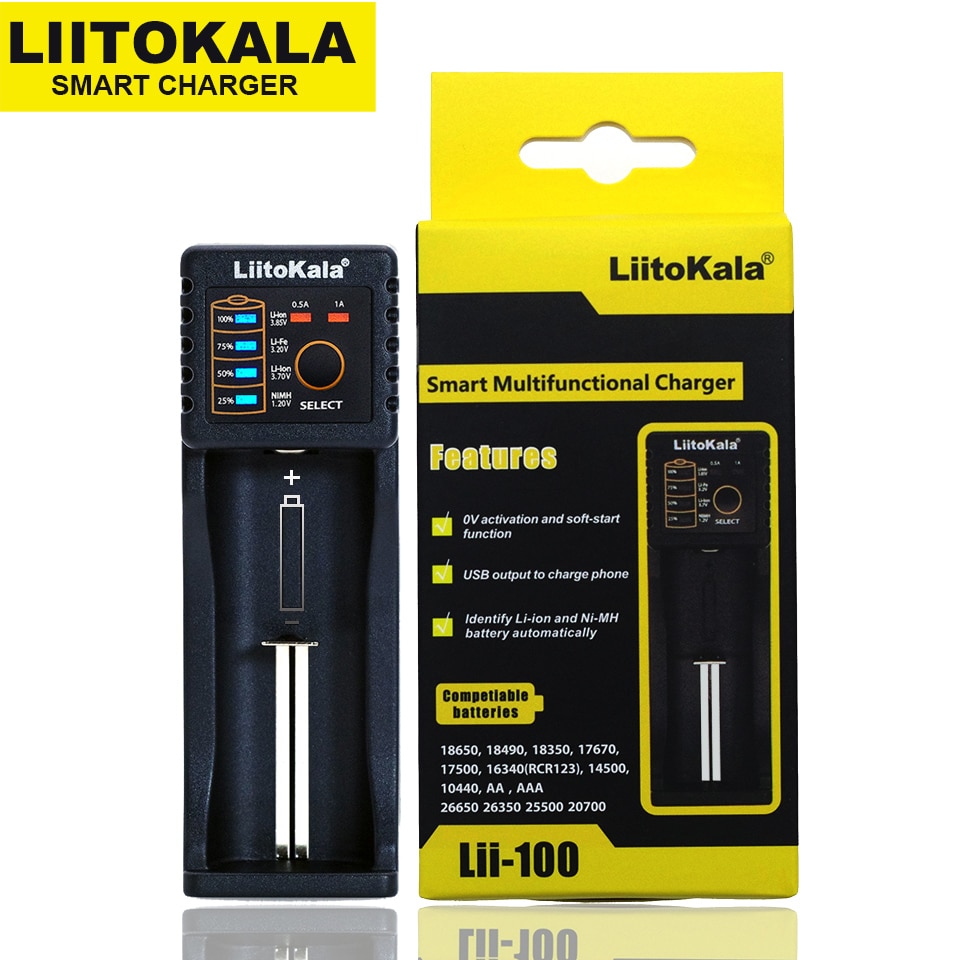

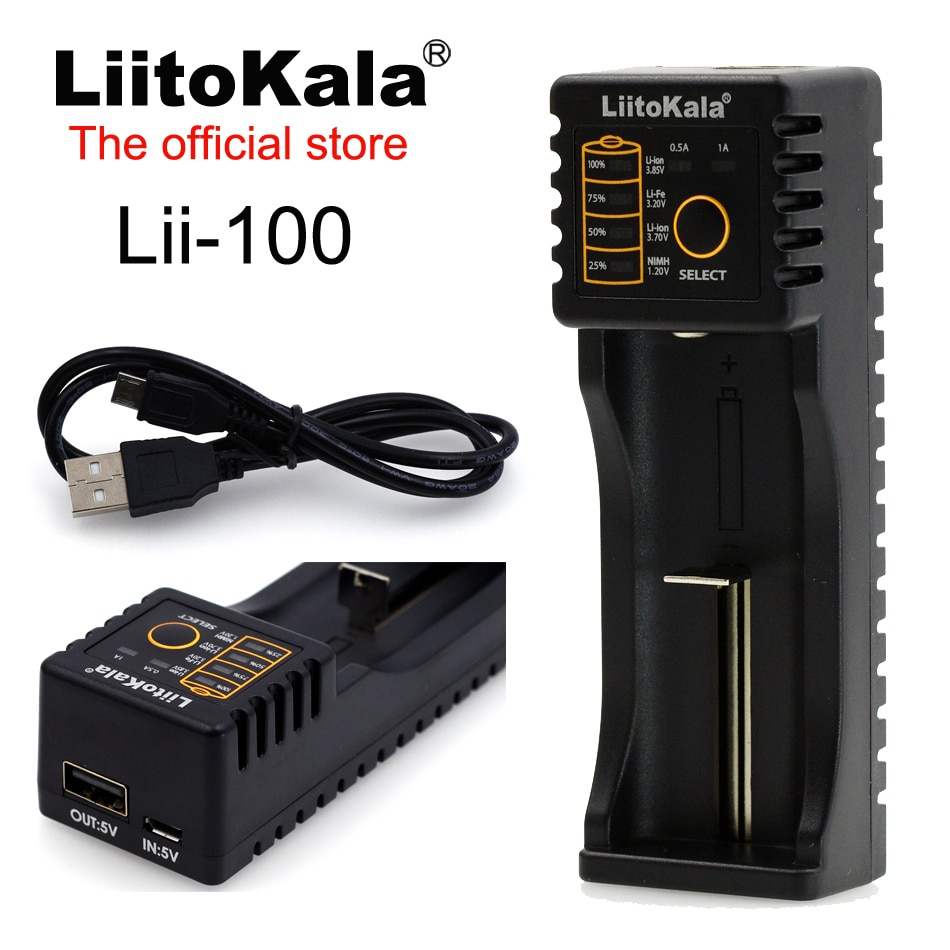

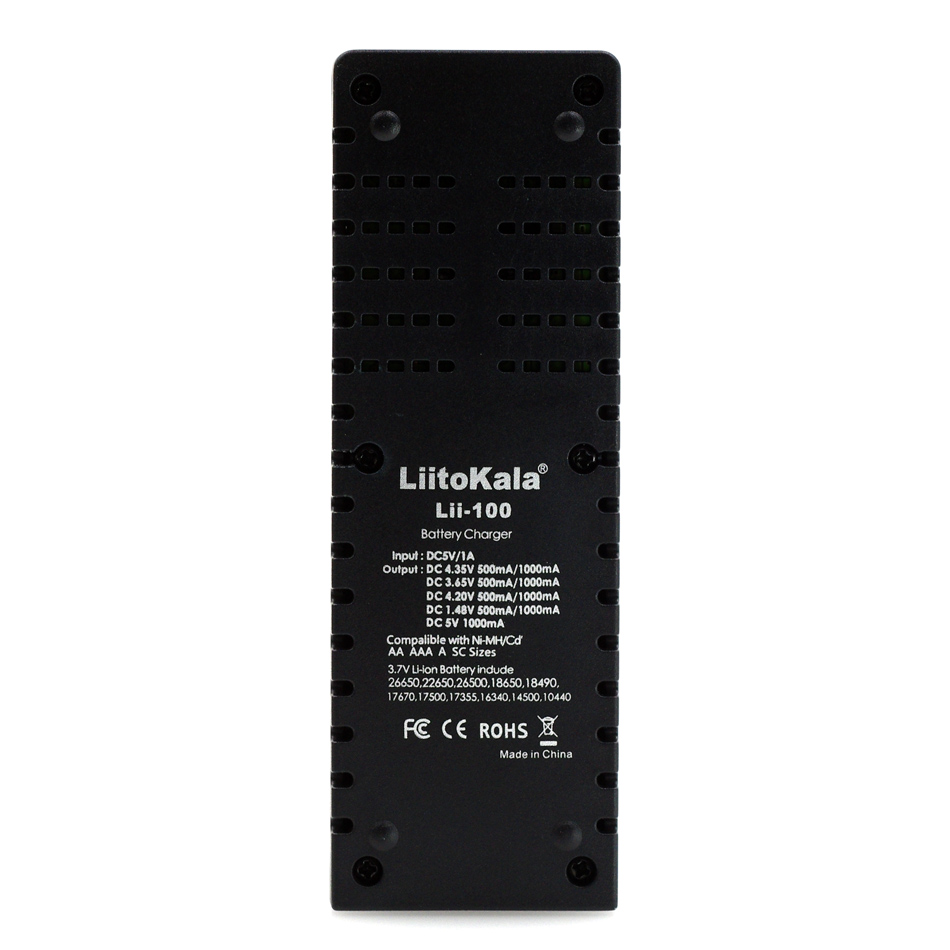

Shipping list: Liitokala lii-100 charger 1PCS
LiitokalaUSB cable 1PCS

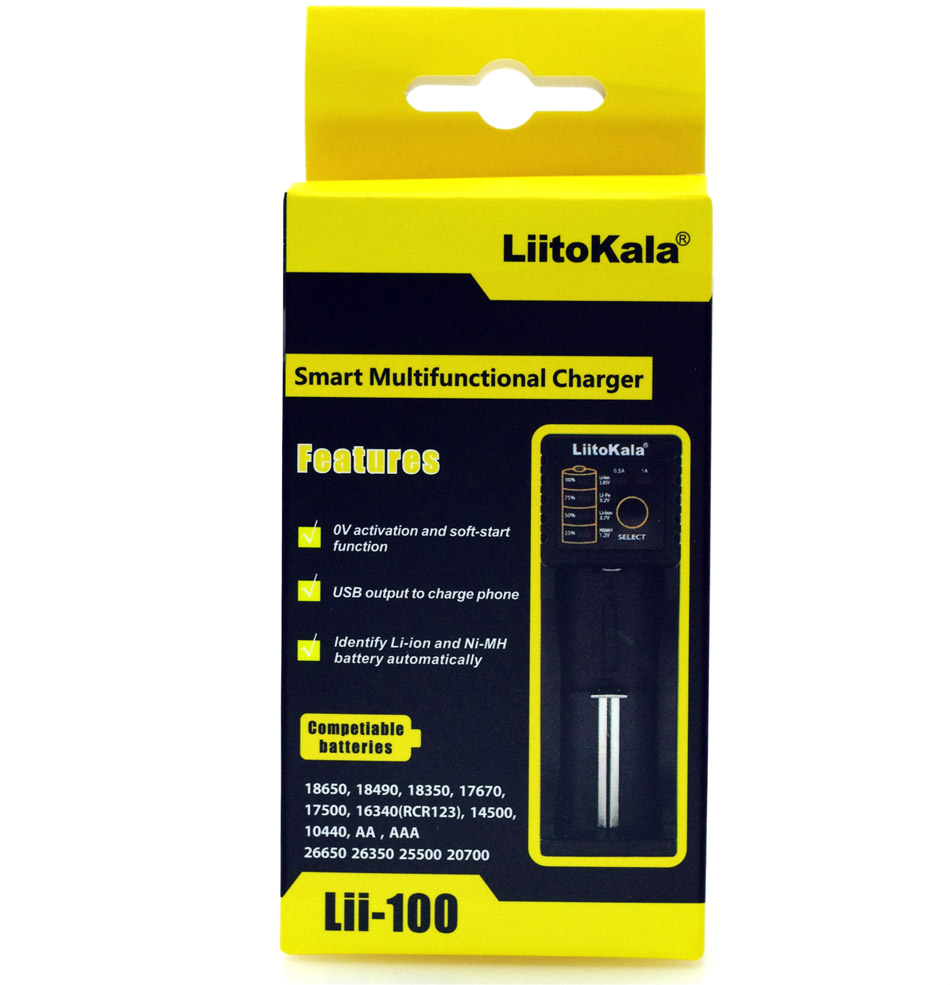

Liitokala packing bag 1PCS
Liitokala lii-100 Manual 1PCS

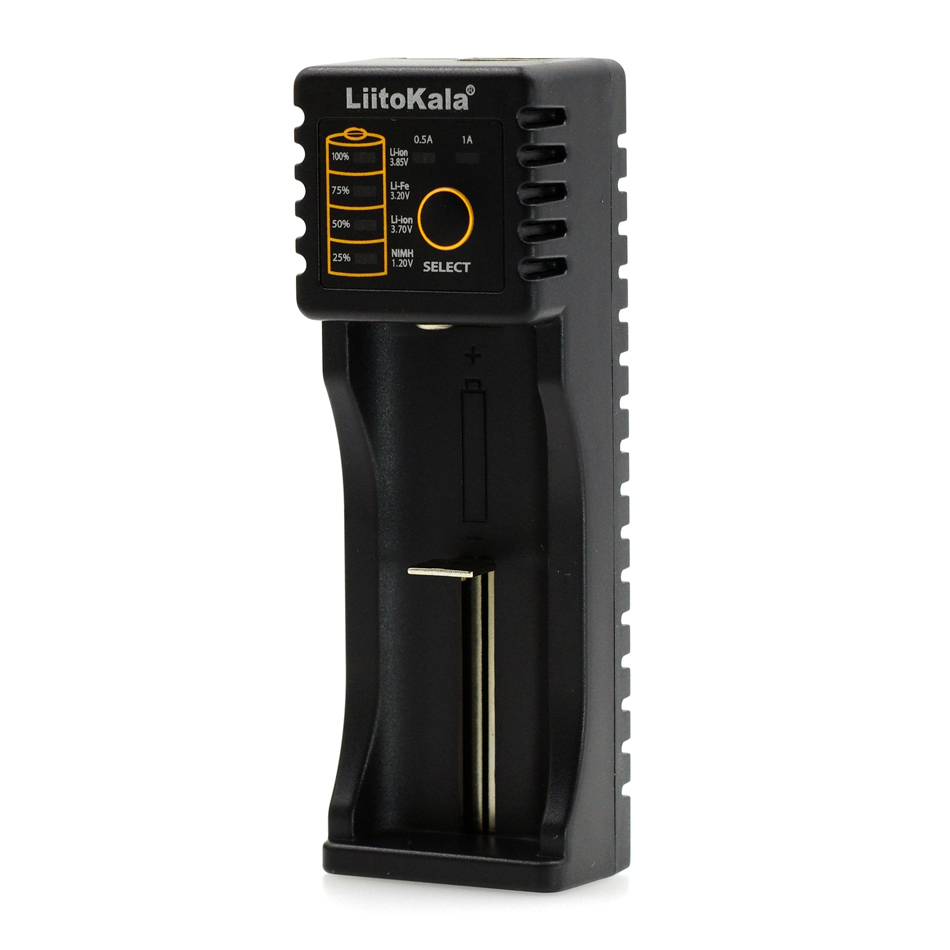

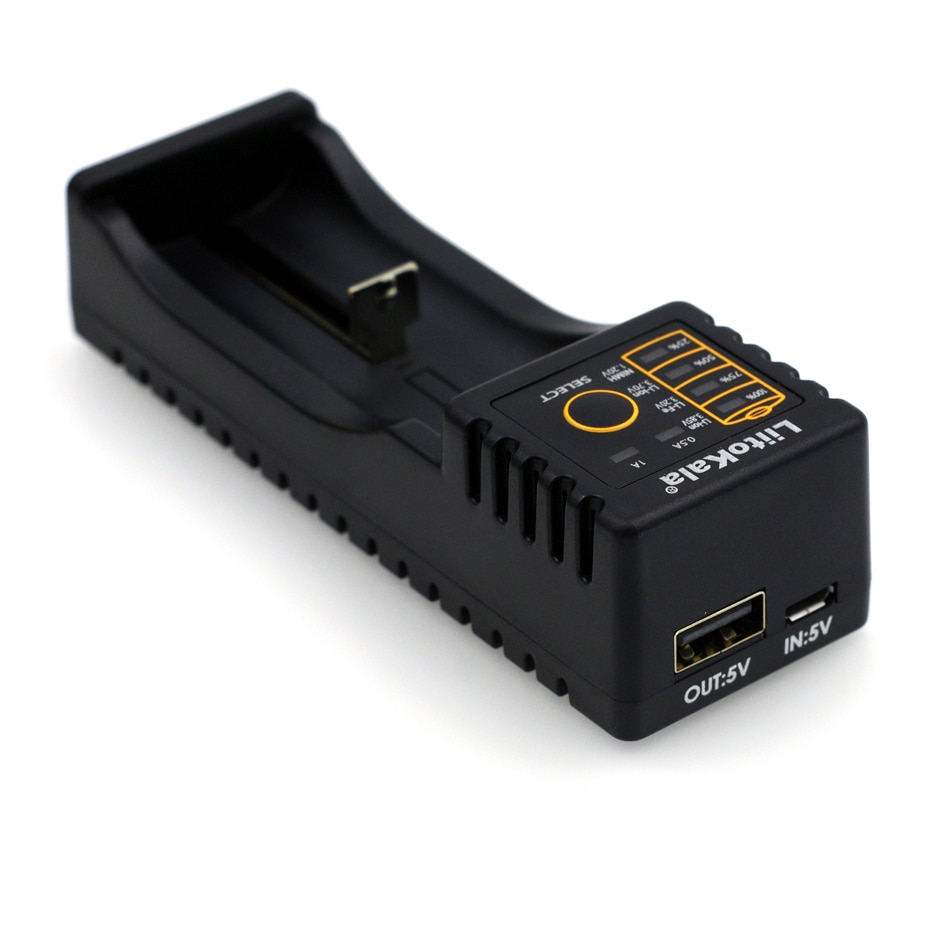

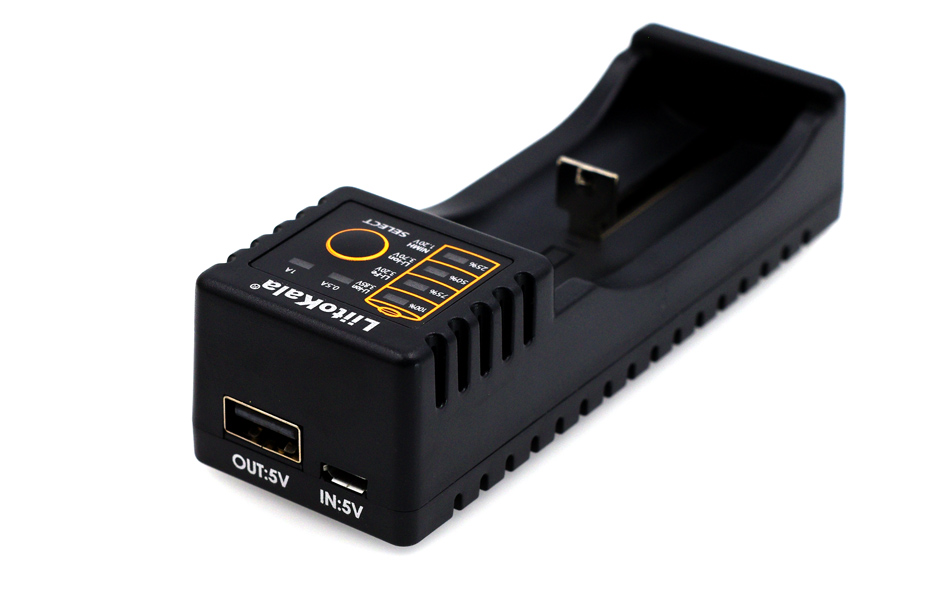

Lii-100 Charger Product description:
Firstly, the charger requirements and functions:
1. Using micro USB DC 5V input, a single loading slot and microcomputers management system Independent 2. Available two types of charging current selection (500mA / 1000mA)
3. LED displays the charge status 25% 50% 75% 100% and NiMH battery 1.2V Li-FE 3.0 V Li-ion 3.7V Li-ion 3.85 V.
4. It can automatically identify the lithium battery (Li-ion) and nickel-metal hydride batteries (Ni-MH) battery, Selection iron phosphate treatment manual (Liepo4) batteries and Li-Ion 3.85 V battery 5. There are 0 V activation voltage, 1.6-2.2 V does not charge (but donations will be activated current standard charge flow). 6. Do not overload and over discharge, short circuit, intelligent recognition detection Bad battery and reverse battery protection. (Note: short circuit, bad battery, battery reversal, charger does not work, LED is not lit)
7. Load mode, constant current constant voltage 8. Using a DC input power to the charger for V-1A work (Micro connector) 9. A paragraph: with standard 5 V / 1000 ma USB output automatic identification,
B paragraph: No USB output function
Secondly, a description of keys, LEDs and function
1. Press: under power, any time hold the Select button for 2 seconds each 500mA converter 1000mA load current;
Battery-charging touch Select button to change the type of rechargeable battery, the battery needs to be charged when the selected type (eg 3 V 3.85 V) 5/2 to enter the state of charge.
2. LED: charger plugged in the 5 v power supply, charger, all LED full brightness instantly, Without a battery in the charging slot, 500mA (LED) indicator light, other lights go out.
Upon detection of a battery, four LED lights flashing, then you can tap the button to select the desired type of rechargeable batteries, if you do not choose, recognizing five seconds after entering the standard battery charging, charging indicator according to the corresponding power ratio flashes. Tap the button to consult the standard charge (no charge indicator) Five seconds after the return to the charging status. When not energized, insert the battery can be seen (5/2 and then turns off, you need to see the press again)
USB output: when detected USB output, power indicator lights go off after 10 seconds, the button can see energy.

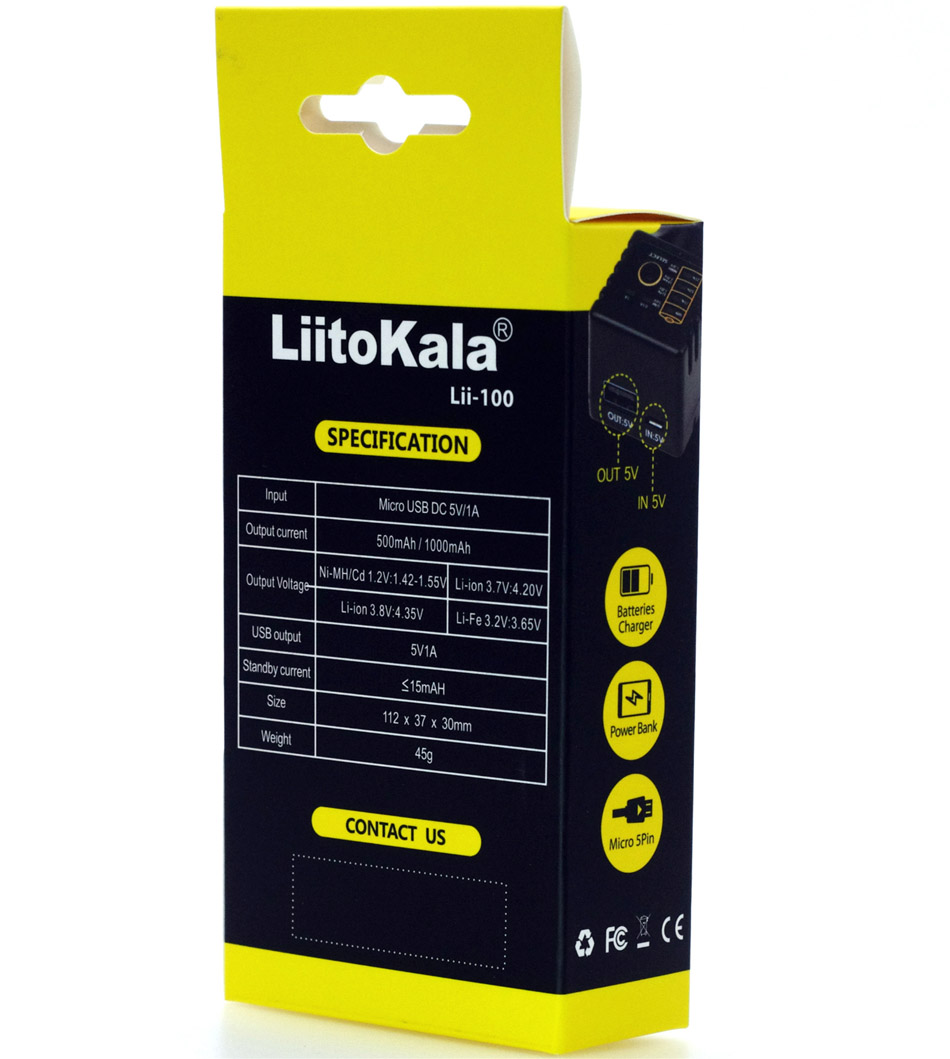

Thirdly, the electric technical parameters:
1, input power: USB Micro DC 5 v / 1a
2, the output voltage: 4.2 V ± 1% / 5V
3, the output current: 500mA / 1000mA
4, the constant voltage charging, current off: <100 one F;
5, the source of standby current external power: <15.0mA;

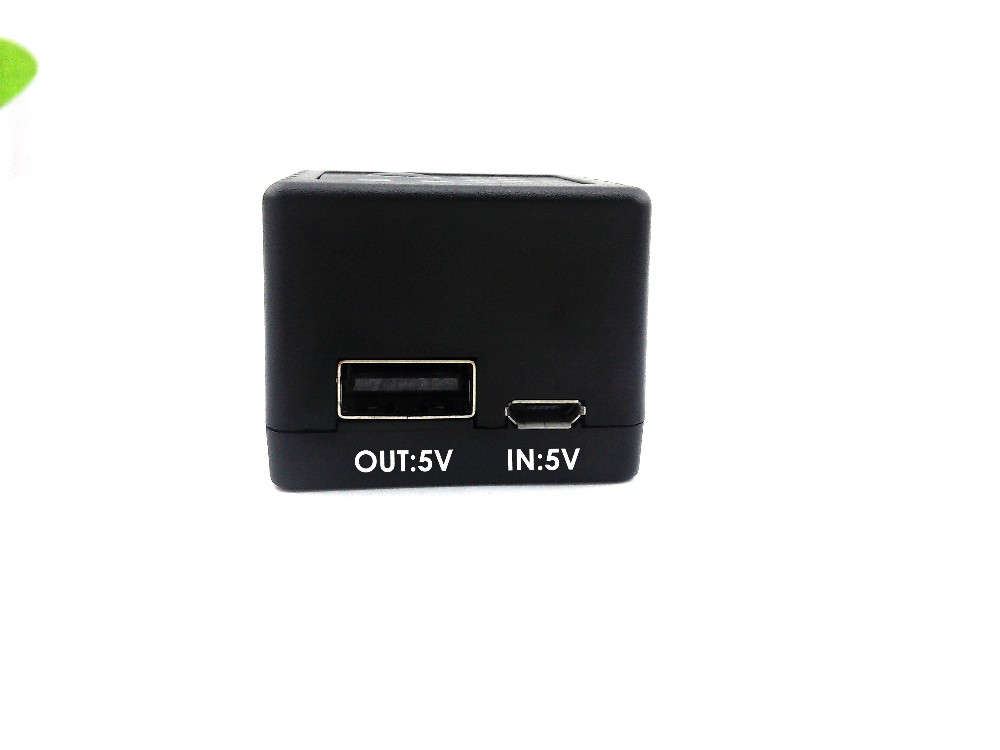

Four USB output function:
1, USB port output load voltage: 4.90 to 5.30 v;
2, the output current: 1000mA
3 without current load: <1ma;
4, 1000 m load current, the gate of the output voltage: 4.75 to 5.25 V;
5, stop voltage protection Output: 3.0 ± 0.1 v;
V. compatible battery:
Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
Charger dimensions: 113 mm × 38 mm × 32 mm (length / width / height)
Weight: ** g (without battery, power cord)

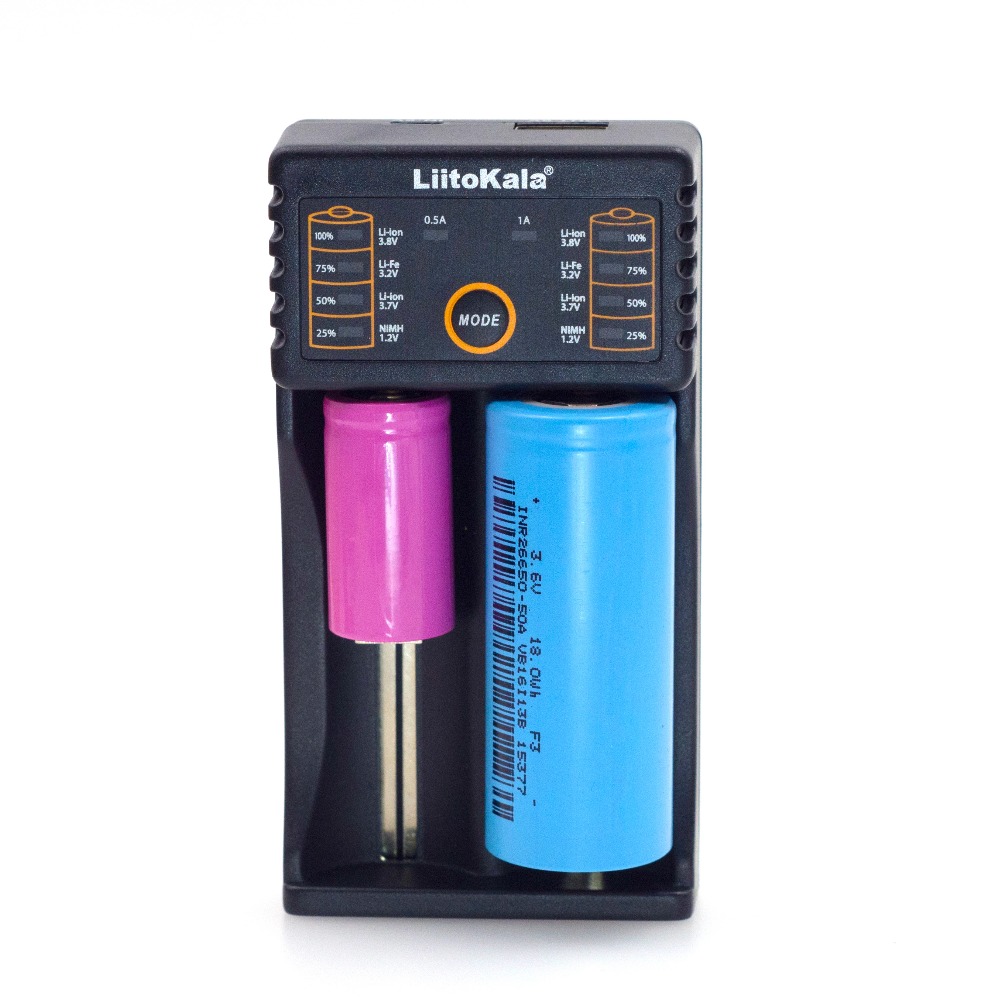

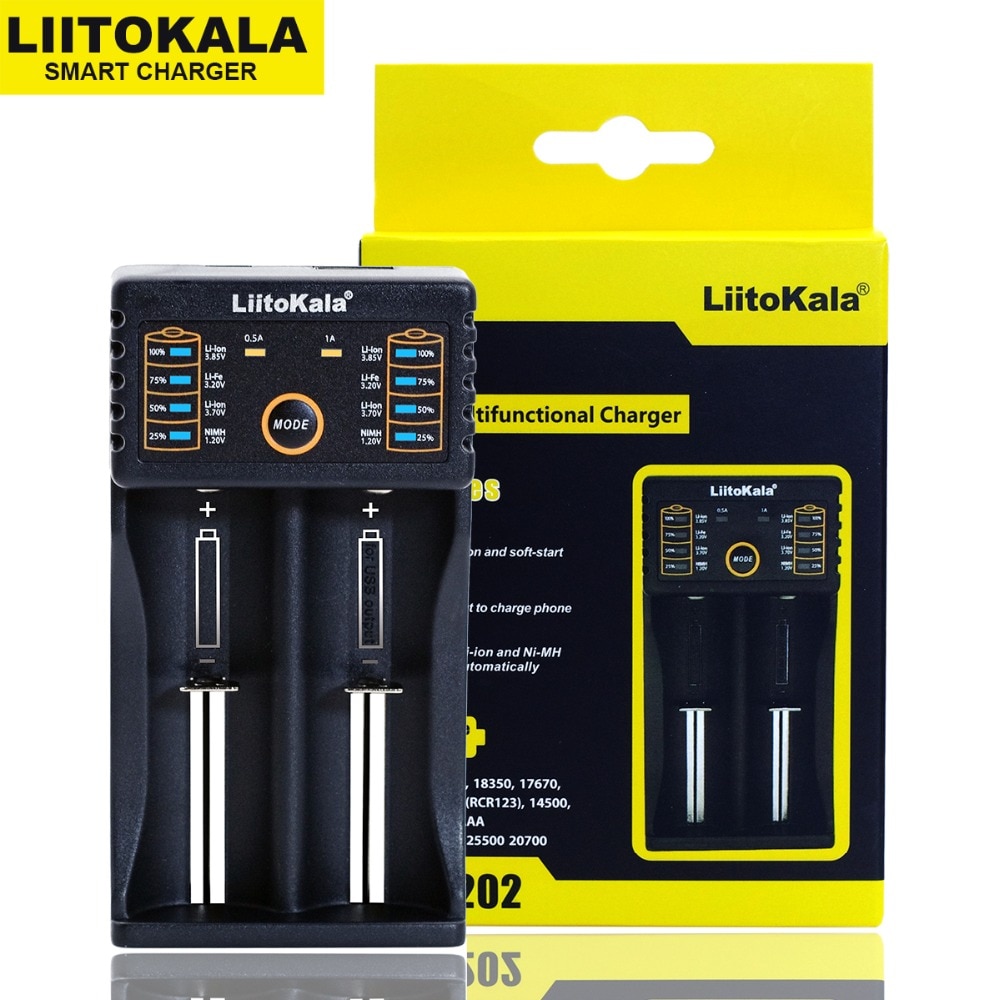

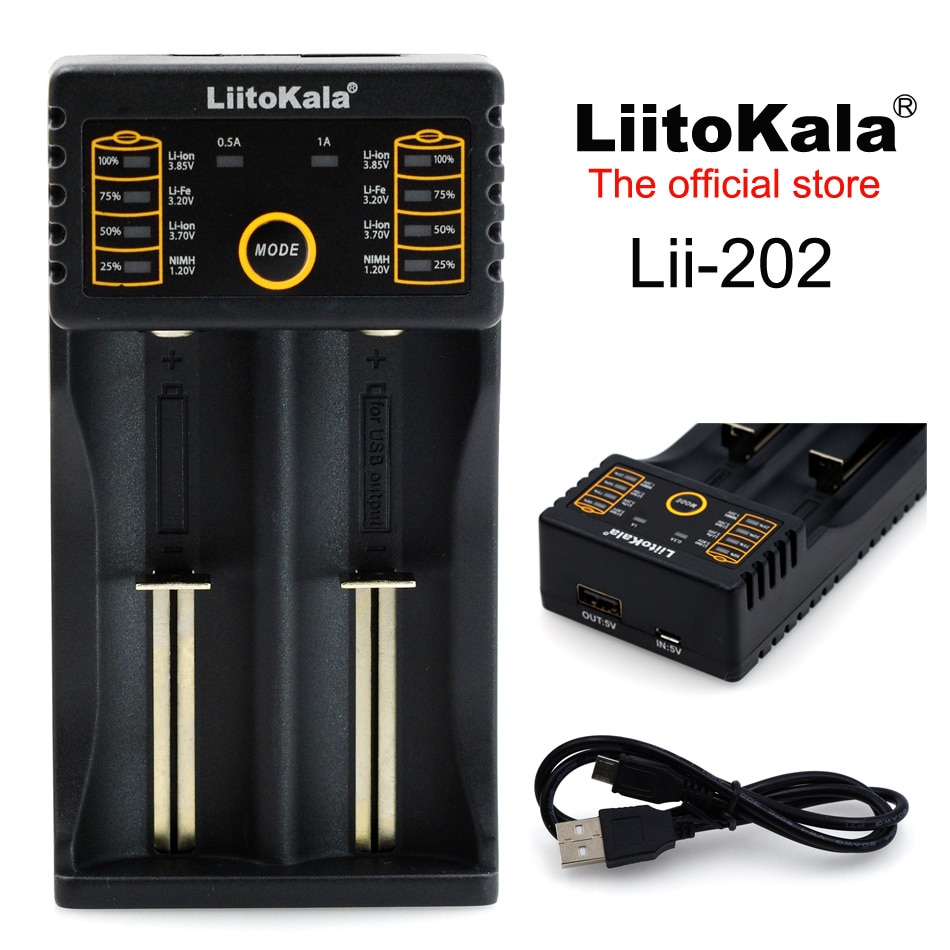

Shipping list: Liitokala lii-202 charger 1PCS
LiitokalaUSB cable 1PCS

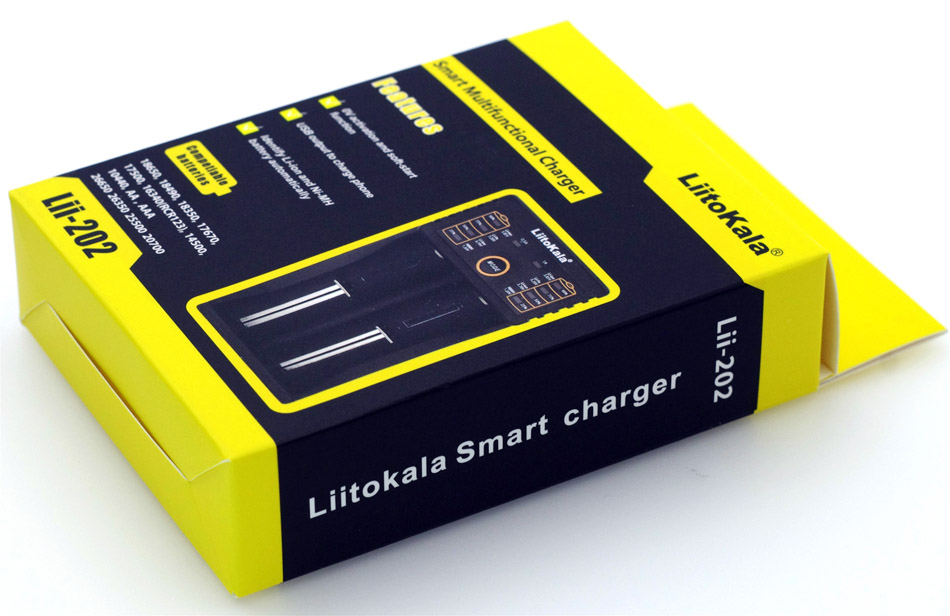

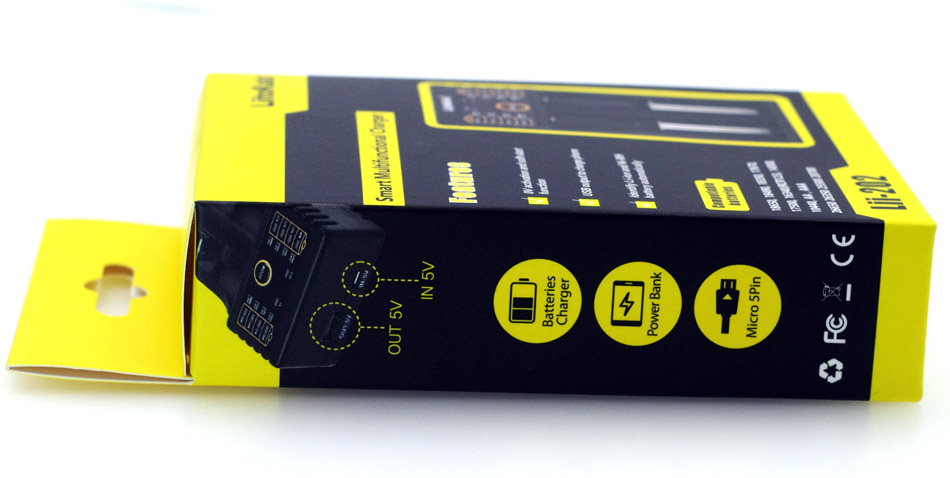

Liitokala packing bag 1PCS
Liitokala lii-202 Manual 1PCS
this charge is only for charging the cylindrical lithium-ion (3.7, 3.8), Ni-Mh / Ni-Cd, LiFePO4 (Li-Ion) batteries.
Please read these instructions before use; pay attention to the recommended charging current, never choose the wrong charging current
when the charge with 5V USB AC adapter, 2A-current AC adapter recommended
Charger ma hot during operation for a long time, handle with care!
please cut off the electricity and remove the battery from the charger when charging is complete.
indoor condition only !!
data mapping Charger for reference only; please refer to professional instrumentation, if you need accurate data
2. Features and Specifications:
Micro USB DC 5V input, two independent slots and charging channels with built-in micro-computer control system to ensure high efficiency
Two charging current parameters (0.5A / 1.0A)
Four LED indicators show the charging status (25%, 50%, 75%, 100%), and also shows the battery type, if inserted into the battery (1.2 V Ni-Mh, 3.2 in Li-Fe, 3.7 in Li-Ion, 3.85 in li-ion)
automatically identify Li-Ion and Ni-Mh; But, you need to adjust the charging mode for LiFePO4 and 3.85 in the lithium-ion battery
it can actively 0 V battery, but the device does not charge a 1.65 V ~ 1.85 V batteries types.
built with excessive charging protection, over-discharge protection and protection of polar reverse. besides, it can detect a broken battery.
Charing mode: instantaneous current and voltage.
PERMANENT charging current: Operating voltage in the 5V-2A (Micro-connector)
Standard automatic 5 V / 1000 mAh USB output port

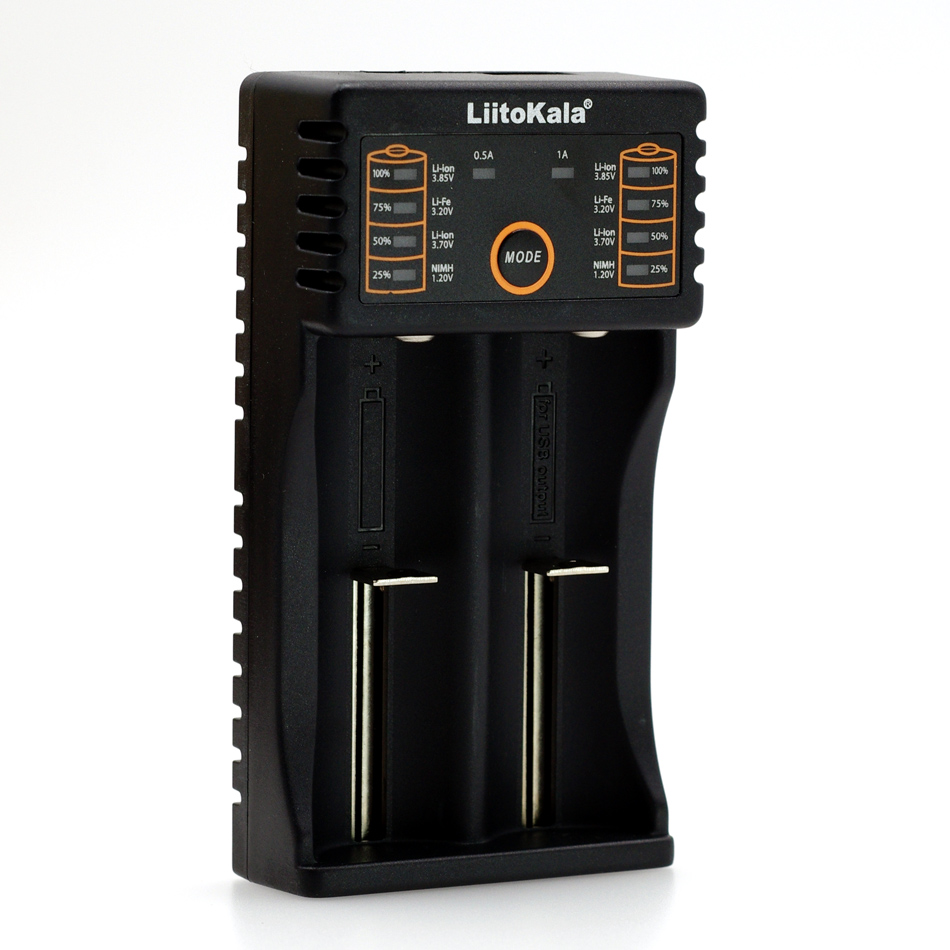

3. Select the button, LED and function.
click to select the type of battery when inserting the battery. it will begin to charge the battery after fixing the battery type (please noted that it will automatically identify Li-Ion and Ni-Mh, no need to choose manually)
press and hold for 2 seconds, when after connecting to power, it can be switched between charging current of 0.5A and 1.0A;
connect the charger to power, all LED indicators will be on when the battery is inserted after 5 seconds, the LED will be turned off except for the indicator 0.5A current
when the battery is inserted into the device, 4 LEDs will be turned on and 3.7 V LED indictors blink, then please press the MODE button to set the correct type of battery. it will begin to charge the battery after 5 seconds, and the LED indictors show the charging status.
Press the MODE button to show the type of battery (5 seconds) during charging and return to show the charging status
it can show the remaining battery power, if you put the battery in the charger (with no connection to the power charging)
USB output indicator: When the USB output is detected, the volume of the battery indicators will be on for 10 seconds and then off, press the button to show the battery volume speed.

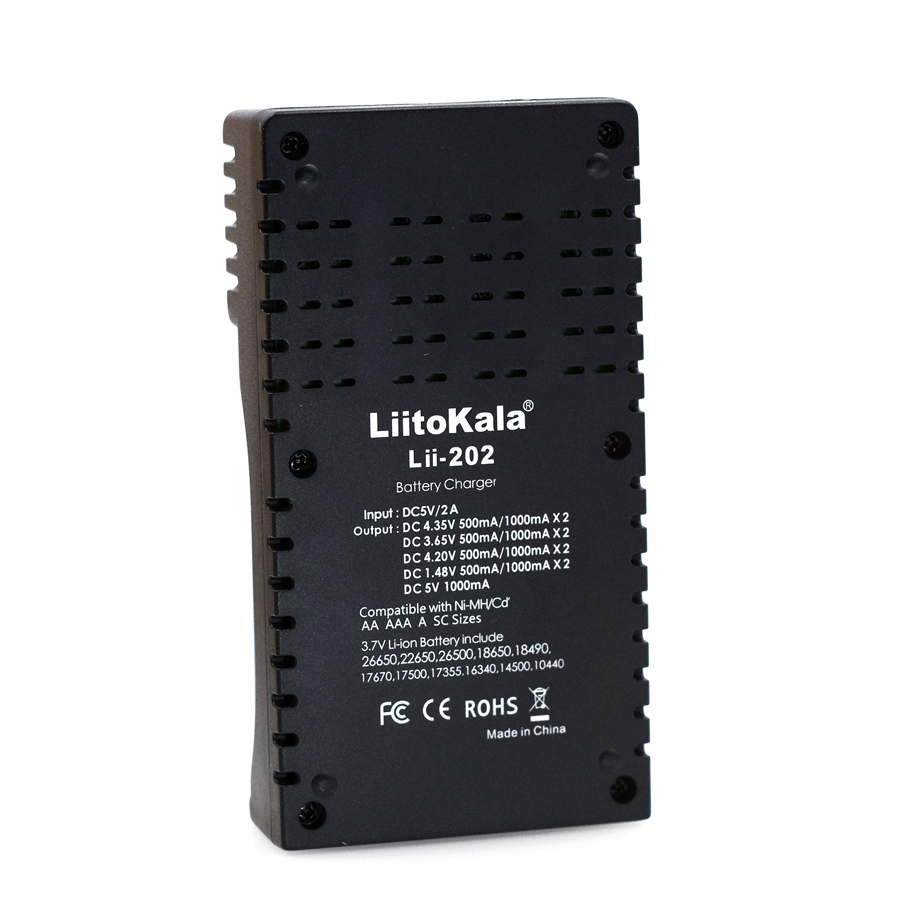

Input: Micro USB DC 5V / 2A
Output: 1.4, 4.2V ± 05, 3.65 ± 05, 4.35 ± 05
Output Current: 500/1000 mAh
constant voltage charging cut-off current: <100 mAh
Standby Current: <15 mAh

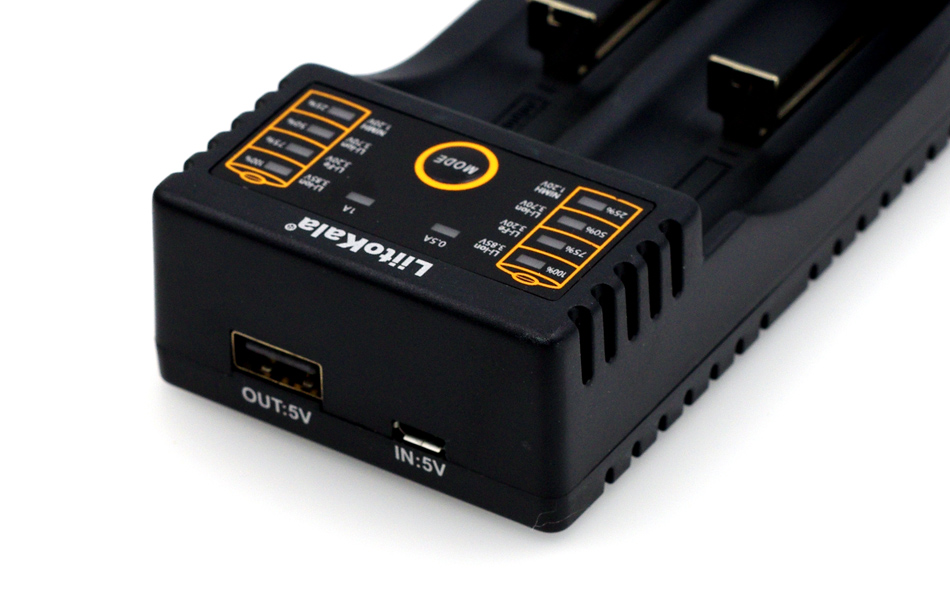

5. USB output function
USB output load voltage: 4.90 V-5.30
Output Current: 1000 mAh (1A)
Idle Current: <1 mAh
the output voltage of 4.75 V-5.25 V, when the current 1000 mAh
output over-voltage protection: 3.0 ± 1
li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
112 mm × 60 mm × 30 mm / 86 g + 15 g USB cable
