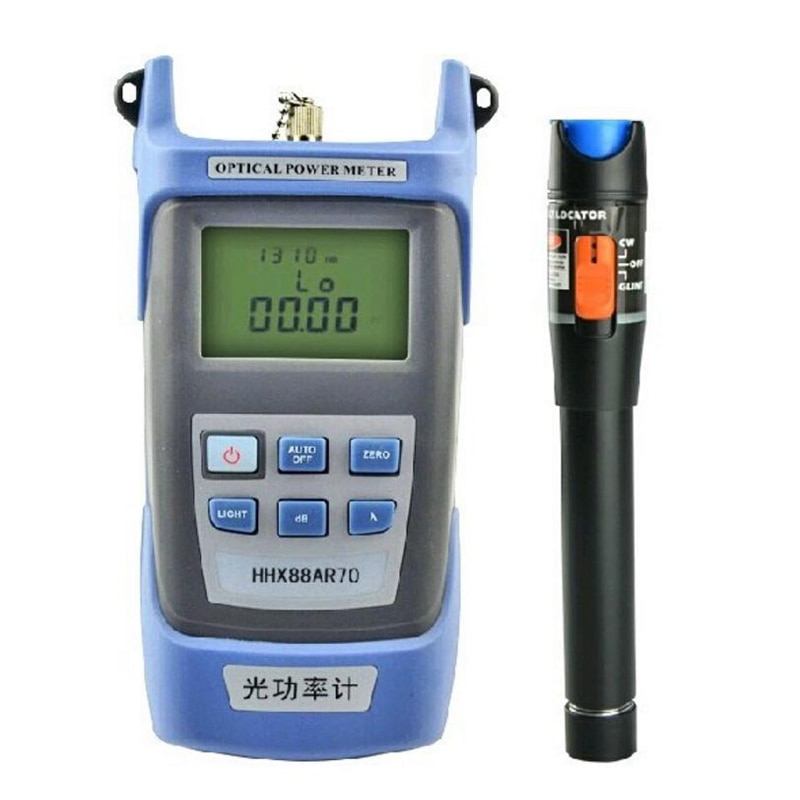

2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and 10MW Visual Fault Locator Use Ftth Fiber optic test pen
ID: 50639

2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and 10MW Visual Fault Locator Use Ftth Fiber optic test pen

4.5 (13 votes) | 26 orders
Price:
US $ 45.60 / piece
Quantity



2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and 10Mw Visual Fault Locator Use Ftth

I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much

Product Attributes

high quality of Optical Fiber Checker. It contains the most advanced laser technology
and microelectronics technology, and can be measured with various fiber optic adapter with 2.5mm
common Interface. It is very convenient for them to check the single-mode and multimode fiber.

Major Features:
LD light source
CW & MOD work mode
FC, SC, ST universal connector
Stable output frequency
Long distance detect
Strong & durable casing
Pen type design, portable, and easy to use


Model

A

B

Measurement range

-70~+10

-50~+26

Type of probe

InGaAs

Range of wave length

800~1700

Uncertainty

plusmn5%

Standard wave length (nm)

850,980,1300,1310,1490,1550

Resolution

Linear indication: 0.1% Logarithmic indication: 0.01dBm

Working temperature (degC)

-10~+60

Storage temperature (degC)

-25~+70

Auto power-off time (min)

10

Continuous working hours

At least 48 hours

Dimensions (mm)

190times100times48

Power supply

Rechargeable lithium battery

Weight(g)

310



Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR

2.5mm universal connector

Operates either in CW or Pulsed

Constant output power

Lower Battery warning

Long battery life(up to 60 hours)



Specifications:



Central wavelength

650nmplusmn10nm

Emitter type

FP-LD

Output power

Optional choice for 5mw, 10mw,20mw,30mw,40mw,50mw

Optical connector

2.5mm universal connector, or 1.25mm connectors,

Operating model

Both CW and Pulse available

Pulse frequency

3Hz to 9Hz

Power supply

2AA alkaline batteries

Operating temperature

-20degC to 60degC

Storage temperature

-40degC to 85degC

Dimension

-FL-002 Phi23 X 190

Weight

110g (without battery)



12345678


1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.

2. If you can't checkout time immediately after auction close, please wait for a few minutes and retry.

3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.



payment-logo



1.WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference only. 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. 6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! 7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery. 8.DeliveryTime:

If your cargo weighs up to 20KG or above, or you need larger quantity, please contact us or email to us, we will provide you new packing specifications, then try our best to save some transport costs for you, and so that the product price can be of some benefit to you!

We are a large manufacturing enterprise groups in China, we sell through Cntronic, there is only purpose ,it is to better promote our products,all our company products are shipped direct from the factory, please contact us , hope to establish long-term friendly and mutual cooperation relations between each other !

We provide 6-12 months warranty. If the item is defective, please notify us within 3 days of delivery. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods. Items returned after 15 days of delivery are only eligible for repair. The buyer is responsible for all shipping cost. When buying, it means the buyer have given tacit consent to the policy. If further details, please feel free to contact us, we will work with you to reach win-win.

We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. It is impossible to address issues if we do not know about them!




  • Brand Name: ZHWCOMM
  • Connector Type: Hybrid
  • Fiber Type: Single Mode
  • Model Number: FTTP Fiber optic tool kit
  • Model Number: FTTP Fiber optic tool kit
  • Quantity: 2PCS
  • Optical Connector Type: FC/2.5mm universa
  • Place of origin: China
  • Power meter wavelength: 800-1700nm
  • Wavelength: 650+10nm
  • Visual Fault Locator: 10MW
  • Optical connector: interchangeable FC SC/ST with built-in universal 2.5mm adaptor
