2.4GHz Industrial Wireless Transceiver AS14-TTL High Stability Module nRF24L01P
0.0 (1 votes) | 9 orders
Price:
US $
14.00
/ piece

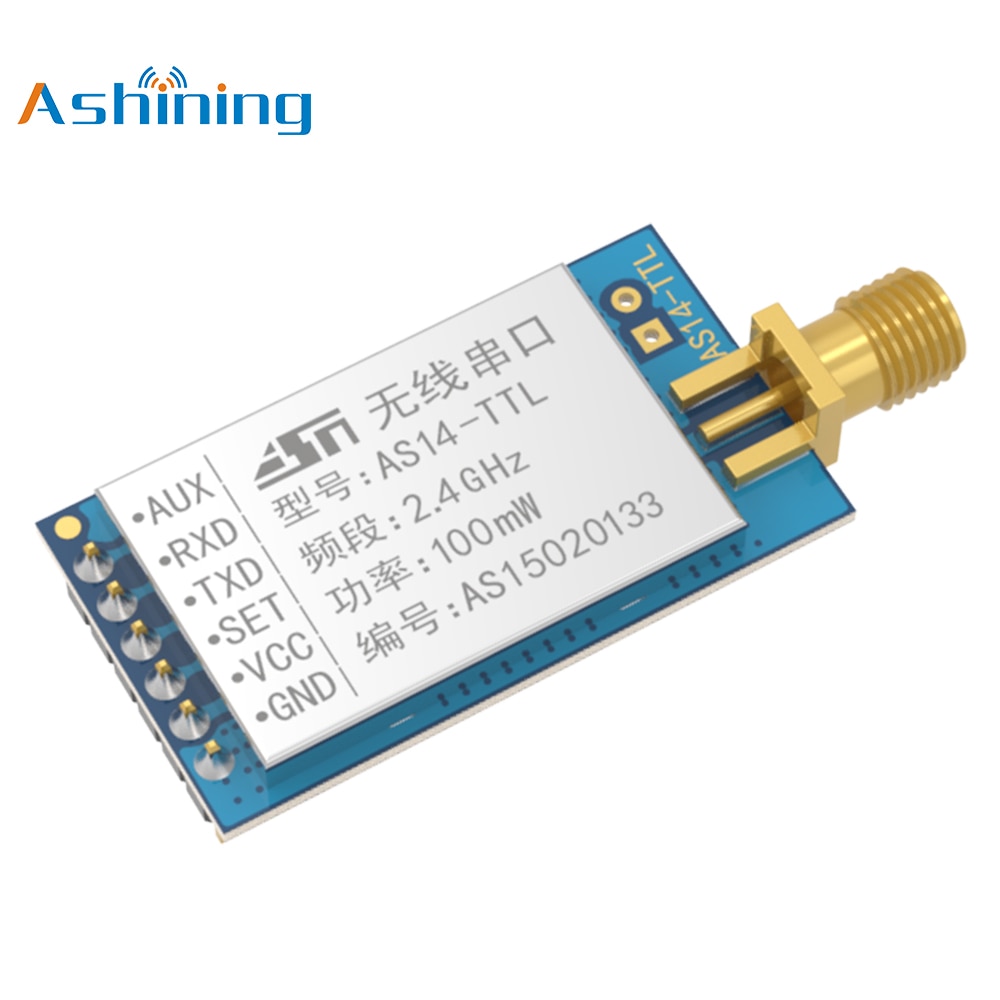

AS14-TTL is an industrial wireless data transceiver with high stability, operates at 2.405-2.525GHz. The module is designed and developed using imported RF chip nRF24l01P. The module features small size, high sensitivity, long transmission distance, high communication speed, etc., and the function of automatically completing communication protocol conversion and data transceiving control can be realized internally. The module has two working modes and can be freely switched during operation.
Electric Parameter
| No. | Parameter Name | Parameter values details |
|---|---|---|
| 1 | Module Size | 20 * 36mm (not including antenna or SMA junction) |
| 2 | Source of the devices | All imported components from Japan, USA, Germany |
| 3 | Production craft | lead-free, electrostatic bag packaging |
| 4 | Interface mode | 1 * 6 * 2.54 mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating frequency | 2.405 - 2.525GHz, 0.1MHz step by step, factory default: 2.4GHz |
| 6 | Supply Voltage | 2.0V-5.5VDC, meet a variety of system requirements. ( if the voltage is smaller than 3.6V, the transmission power will decline, which has little impact on the receiving performance) |
| 7 | Communication level | Maximum 3.6V, The difference between the recommended and supply voltage is less than 0.7V to reduce power consumption |
| 8 | Measured distance (3.0VDC) | About 2100m test conditions: sunny, open, the maximum power, Antenna gains 5dBi, higher than 2m, 250 K air rate |
| 9 | Transmission power | Maximum 20dBm, about 100mW |
| 10 | Air rate |
3 levels adjustable (250kbps, 1Mbps, 2Mbps) |
| 12 | Transmitting current | 114mA@100mW (voltage 5V) |
| 13 | Receiving current | 121mA |
| 14 | Communication Interface | UART serial port, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates |
| 15 | Driving means | UART serial port can be set to push-pull / pull-up, open-drain |
| 16 | Transmitting length | External input data is up to 256 bytes per packet, and internal automatic subcontracting is 32 bytes |
| 17 | Receiving length | External input data is up to 256 bytes per packet, and internal automatic subcontracting is 32 bytes |
| 18 | Module address | 65536 configurable addresses (easy to network, support for broadcast and fixed transmission) |
| 19 | RSSI support | Built-in intelligent processing |
| 20 | Receiving sensitivity | -124dbm @ 250Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) |
| 21 | Antenna type | SMA antenna |
| 22 | Operation temperature | -40℃ to +85℃ |
| 23 | Operation humidity | 10%-90% relative humidity, no condensation |
| 24 | Storage temperature | -40℃ to +125℃ |
Features
Company Information
Chengdu Ashining Technology Co., Ltd. is a high-tech company focusing on wireless communication and applications, setting research and development, production, sales, and service as one, and professionally researches develop and produces 2.4G, 433M, 470M, 915M, 169M ... band wireless communication products. Ashining particularly emphasizes technological innovation and product quality and has received a number of patents and products certification. To save customers' valuable development time and make products more stable, our FAE team fully support for each customer by providing services of high quality. Chengdu Ashining technology company has a complete and scientific quality Control system, regards quality, belief, innovation, beyond as our developing concept, and wins the recognition of the industry by honesty, quality, service, and strength.
Application
Our products have been widely used in consuming electronics, industrial control, medical, security alarm, outdoor collection, intelligent home, highways, property management, water electricity gas meter reading, power monitoring and other applications.

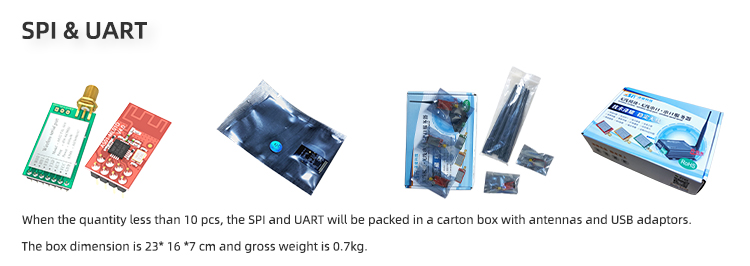

Package
To ensure the goods are safe when shipping, we normally pack them with antistatic bags, antistatic sponge and corrugated carton.
For sample orders, we use express, while for batch orders, express, air shipping and sea shipping is available for your choice.
- Item Type: Wireless module
- Model Number: AS14-TTL
- Brand Name: Ashining
- Origin: Mainland China
- Port: UART
- Frequency: 2.405~2.525GHz
- Power supply: 2.0V-5.5VDC
- Power: 20dBm (100mW)
- Distance: 2.1km
- Transmission Rate: 250kbps~2Mbps
- Antenna: 50 Ohm
- Chip: nRF24L01P
