2*25W Amplifier Car Radio Player MP3 Module Bluetooth Wireless Audio USB TF FM WMA MP3 Player Decoder Board Support with Remote
SALE
ID: 60738

2*25W Amplifier Car Radio Player MP3 Module Bluetooth Wireless Audio USB TF FM WMA MP3 Player Decoder Board Support with Remote

4.8 (20 votes) | 54 orders
Price: US $16.81 - 20.28 / piece
Discount Price:
US $ 13.12 - 15.00 / piece
-22%
Color
Quantity

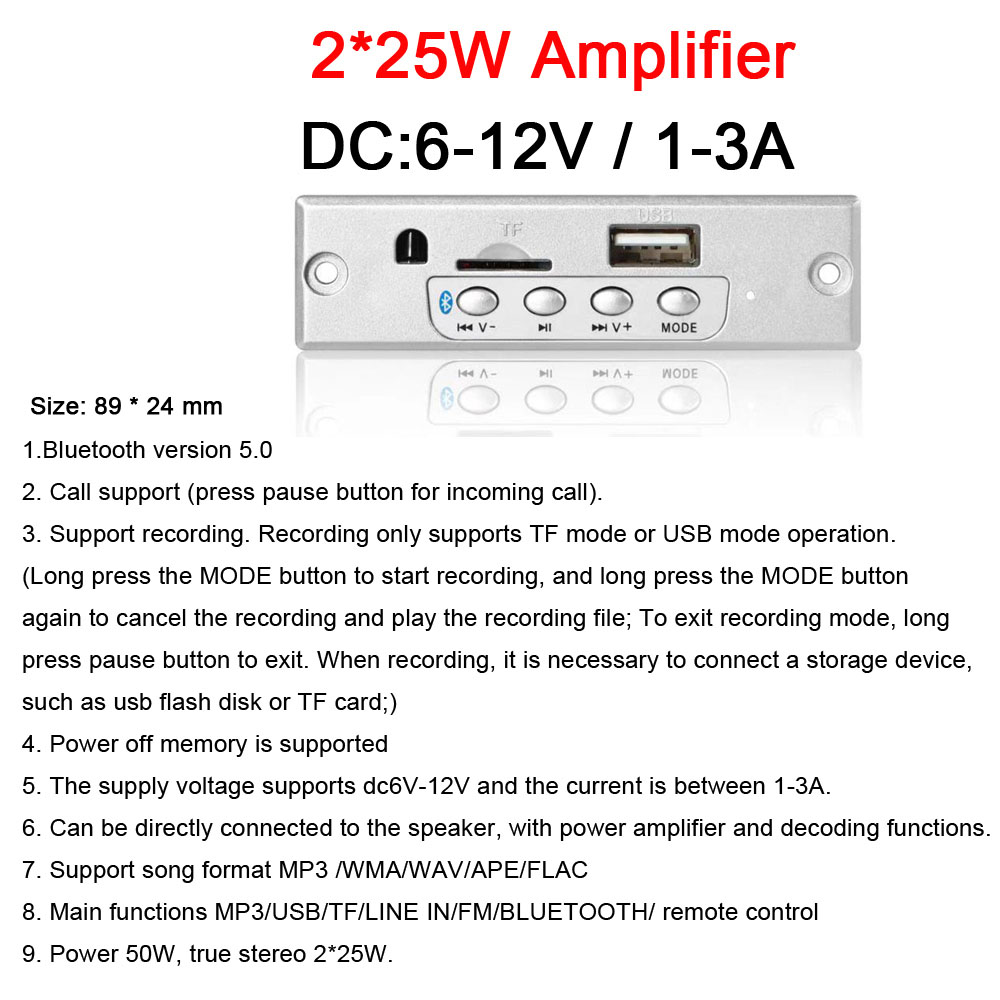

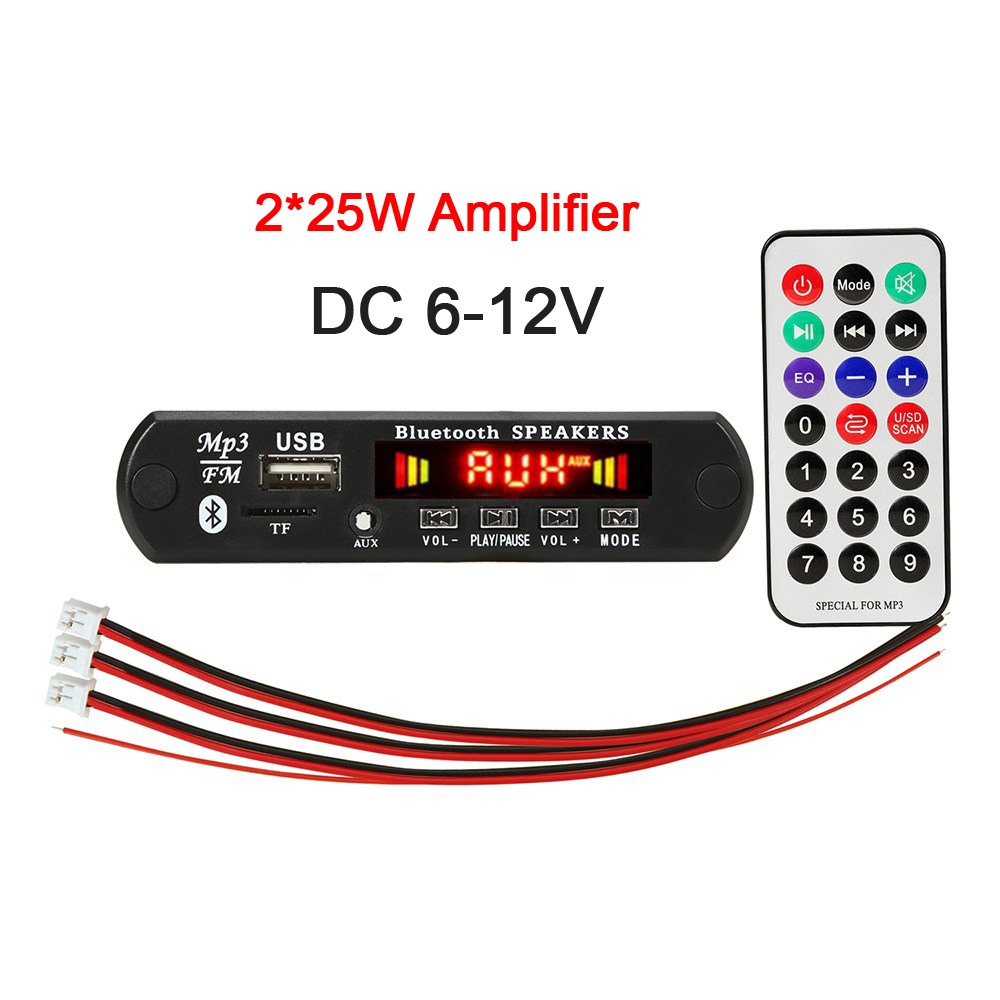

Design 1: 2 *25W    DC6v-12v

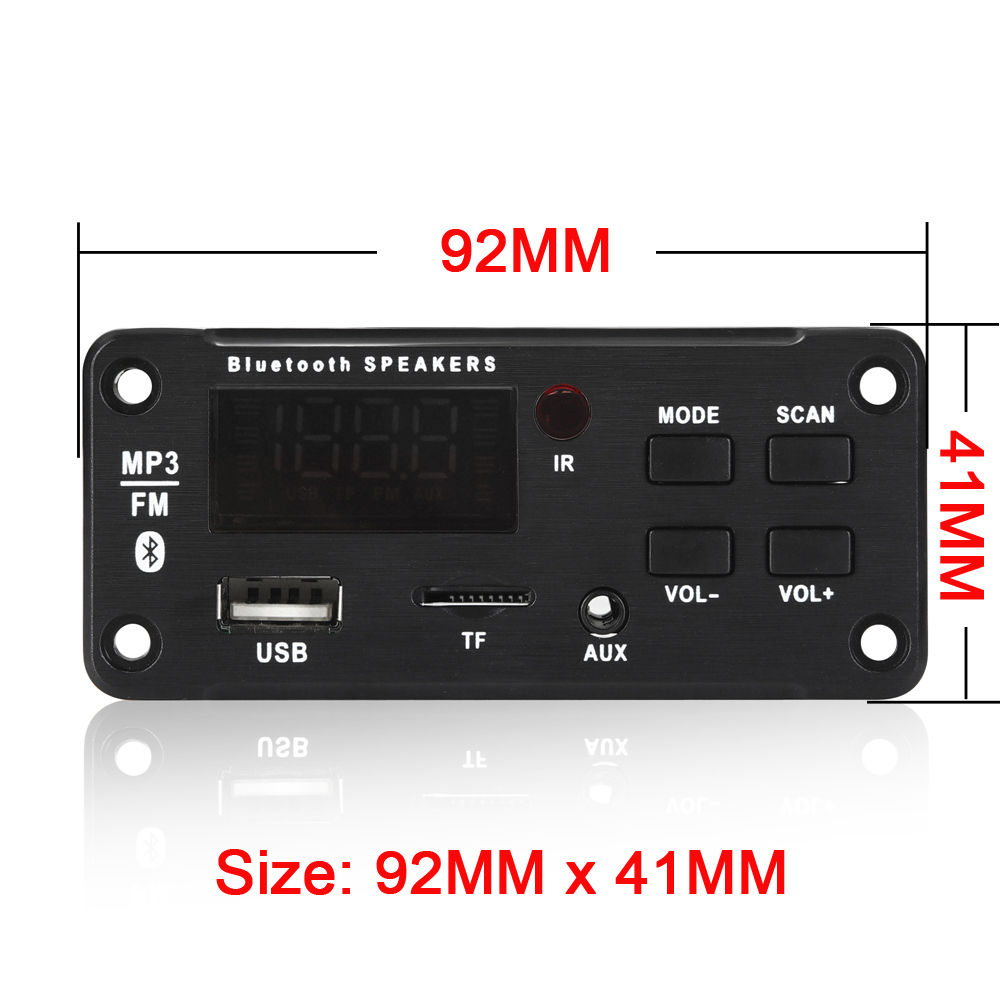

Key Description:
USB: Connect U disk (maximum support 32GB)
LED: Digital color screen display, red infrared receiver module
TF: Connect TF memory card (maximum support 32GB)
AUX: Audio input interface
VOL-: Short press is to select the previous song; long press is to decrease the volume
PLAY/PAUSE: Short press is to switch between pause and play; long press is to automatically search for radio FM
VOL: Short press is to select the next song; long press is to increase the volume
MODE: USB/TF/FM/AUX/BLUETOOTH sound switch

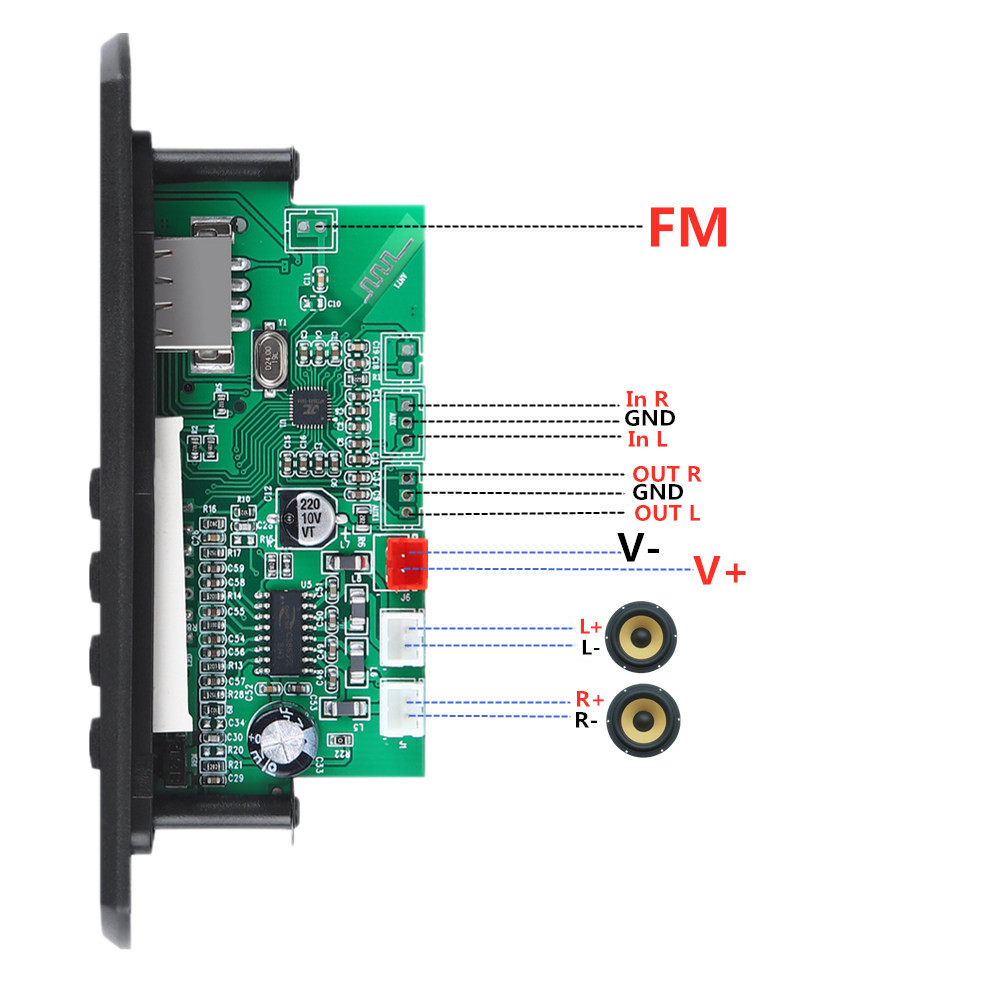

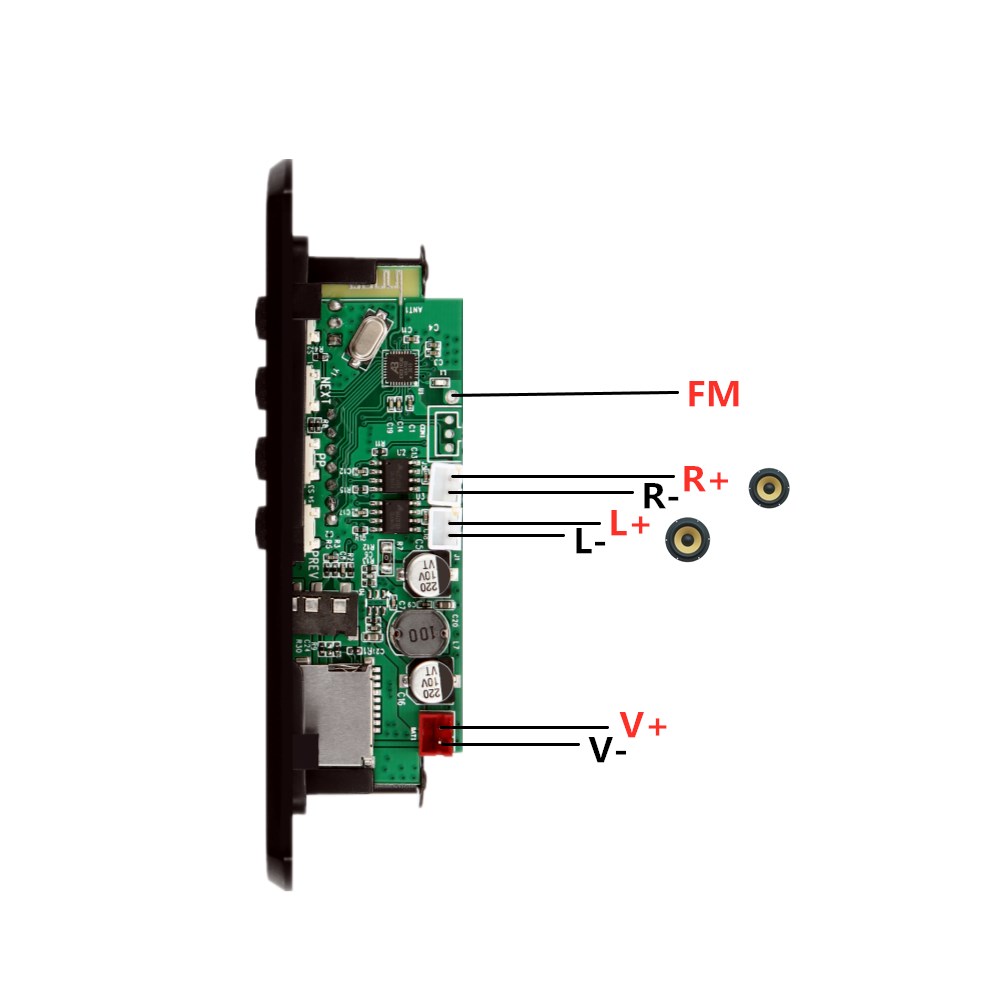

Interface Description:
Audio input RFM antenna solder joint
Audio input L GND
Left channel positive L
Left channel negative L-
Right channel positive R
Right channel negative R-
Audio output L GND Audio output R

Special function description:
1. Support folder playback
2. Support call
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; when recording, it is more necessary to connect a storage device, such as a U disk or TF card;)
4. Support power off memory (support the last mode and volume memory. (The last setting before power off will be played after power on)
5. Color screen display
6. The power supply voltage supports between DC6v-18v , and the current is between 1-3A.
7. Can be directly connected to speakers, with power amplifier and decoding functions.
8. Support song format MP3 /WMA / WAV / APE / FLAC
9. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/
10. The Bluetooth version is 5.0
11. Chip model Zhongke Lanxun 5536A
12. Power 50W, true stereo dual channel. (2*25W)

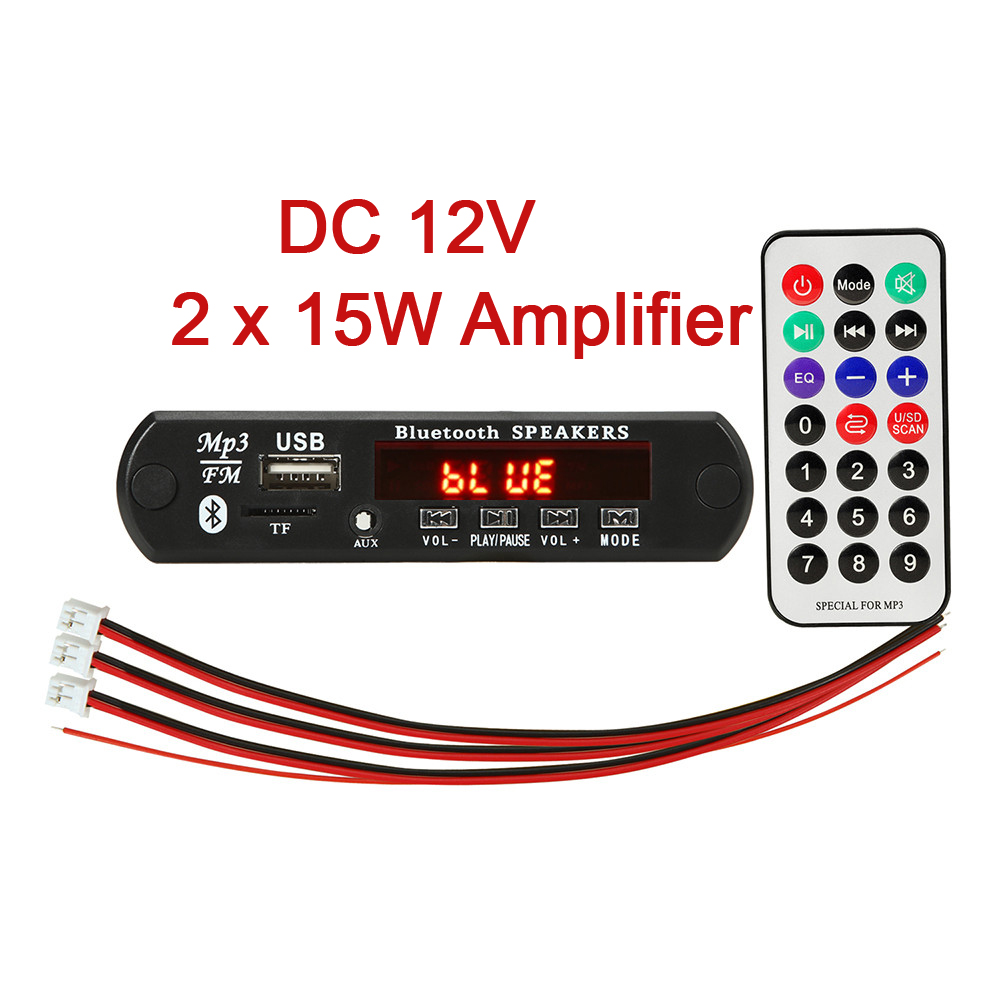

Design 2: 2*15W  12V
Feature :
Bluetooth version: Bluetooth 5.0
Power: 2 * 15W, two 15W speakers can be connected at the same time
Music format: MP3 / WMA / WAV / APE / FLAC lossless format
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 12V

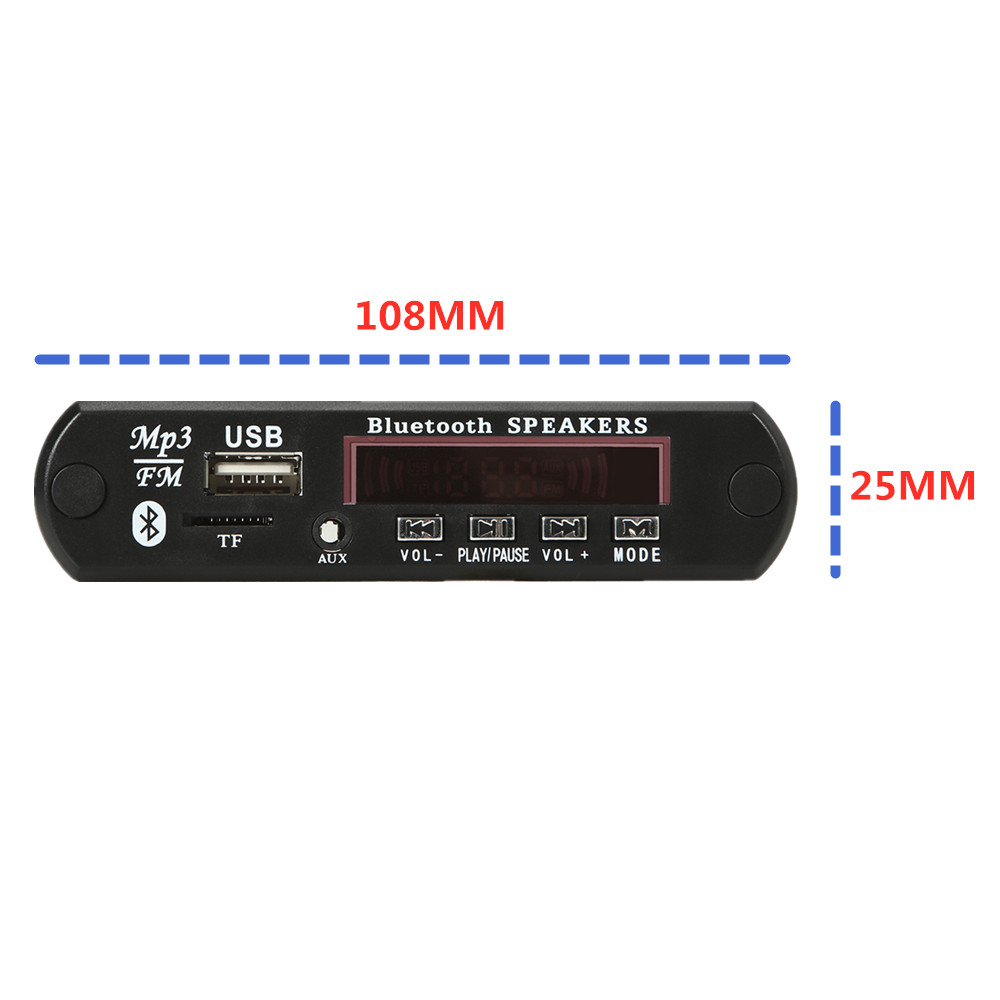

About the structure: Panel size: 107 * 25 MM, the corners of the panel and the positions of the screw holes, then the cover cover surface, the depth of the board is 36 MM

Pacakge :
1 x Mp3 player
1 x Remote control

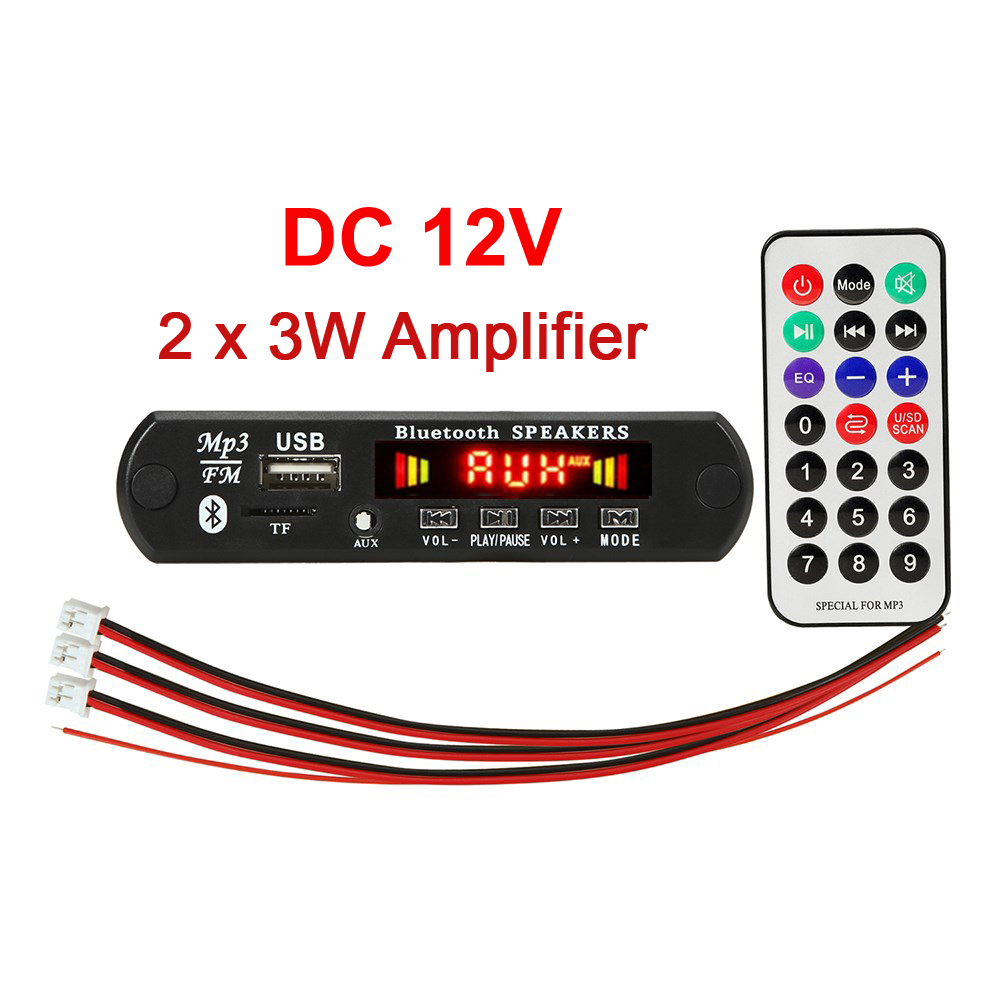

Design3: 2 * 3 W 5-12V
Bluetooth version is version 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
Power: 2*(3-5)W, connect 2 (3-5)W speakers
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote remote control/DC: 3.7V-5V-12V











  • Brand Name: AMAZFEEL
  • Origin: CN(Origin)
  • External Memory: No
  • Audio Format Support: FLAC
  • Audio Format Support: APE
  • Audio Format Support: mp3
  • Audio Format Support: WAV
  • Audio Format Support: WMA
  • Certification: CE
  • Certification: NONE
  • Balanced Out: No
  • Dimensions (WxHxD): 108*25mm
  • Have Speakers or not: Yes
  • Battery Specification: External Power
  • Function: FM Radio
  • Function: bluetooth
  • Bluetooth: Yes
  • Battery Life: > 20 hours
  • Model Number: 005
  • WIFI: No
  • Style: Car MP3
  • Operation Mode: Touch Tone
  • Body Material: Plastic
  • Package: No
  • Supports FM: Yes
  • Supports Recording Function: No
  • Signal Noise Ratio: ≥89dB
  • Screen: Yes
  • Storage Type: Hard disk
  • Supports EBook Reading: No
  • DSP: Car Audio USB TF FM Radio Module
  • Model Number: MP3 WMA Decoder Board
  • DAC: Bluetooth 12V MP3 WMA Decoder Board
  • Panel size: 108 * 25 MM
  • 2*15 Amplifier: 2*25W Amplifier
  • Feature 1: mp3 player bluetooth
  • Feature 2: mp3 bluetooth
  • Feature 3: mp3 player
  • Feature 4: Mp3 module
  • Feature 5: Bluetooth module
  • Feature 6: Car radio
  • Feature 7: mp3 module with amplifier
  • Feature 8: Bluetooth MP3 board
