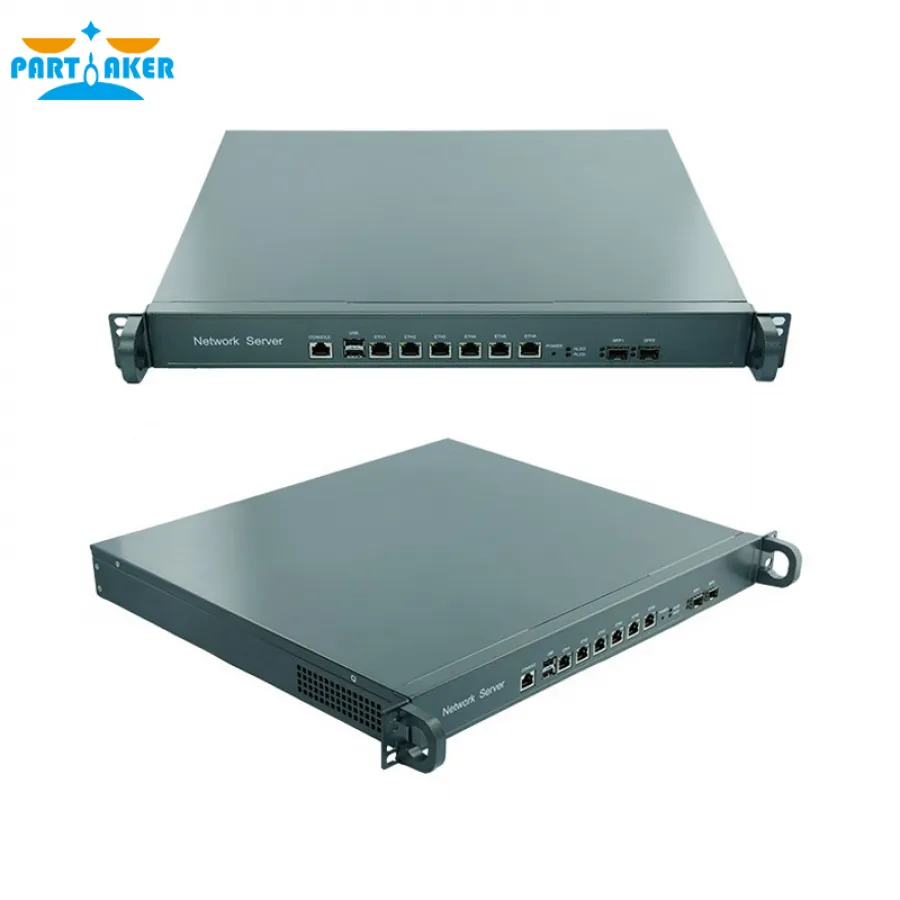

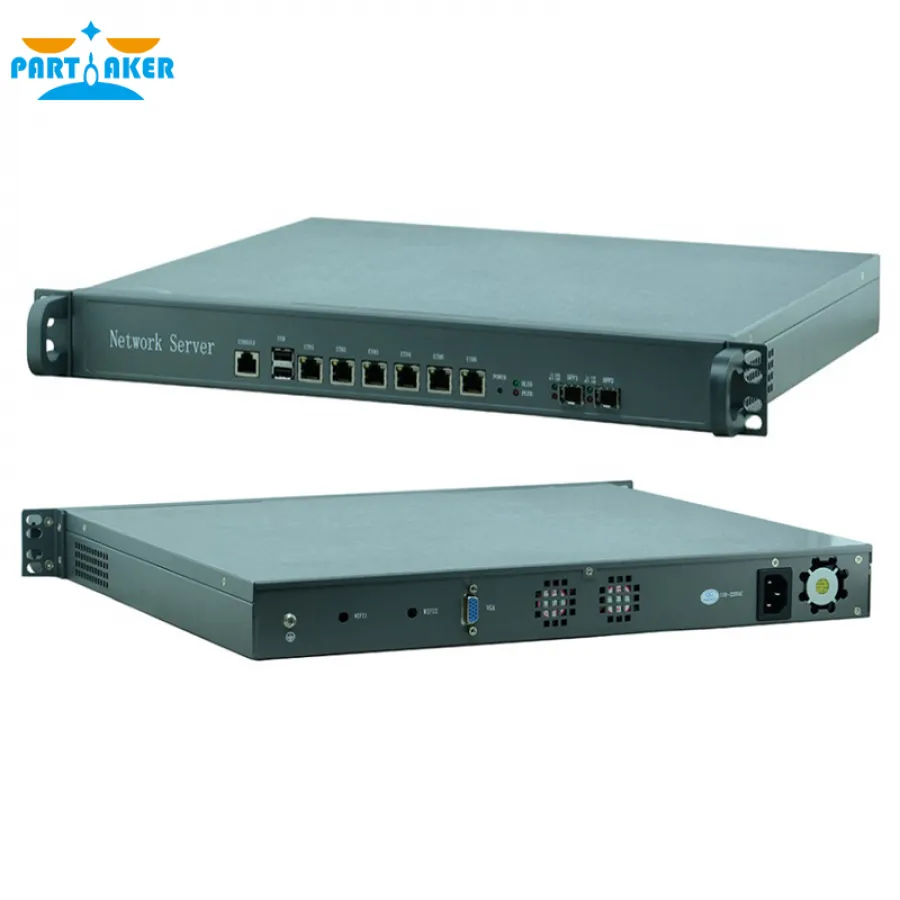

1U 6 Gigabit ethernet port ATX Power support Intel LGA1155 i5 3470 processor network router Firewall computer
1,855.04 1,546.88 $
ID: 130224
Quantity
1U 6 Gigabit ethernet port ATX Power support Intel LGA1155 i5 3470 processor network router Firewall computer
0.0 ( votes)
Price:
US $1855.04
Discount Price:
US $
1546.88
-17%
Turbine copper fan heat sink structure
AIl alloy chassis, compact structure, flexible installation
Support Intel LGA1155 series processor
1xVGA,2xUSB2.0,1xCOM
Intel 82583Vchipset, support 6xGbit Ethernet ports
Dimensions : 430mm*380mm*46mm
The default version without 2 optical ports.

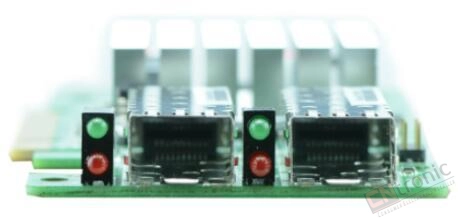

2* Intel 82580DB 1000Mbps optical ports for optional, if need,
4GB RAM 128GB SSD Inculded
Tips: We sell the hardware only (The price is for hardware only), any software is not what we sell, just for better technical exchange, and we can help to install,which not make any commercial application.
If the software generated any problems, we do not assume any responsibility
Hardware support PFS, ROS and other systems etc
Chassis | Color | Light silver black |
Dimensions | 430mm*380mm*46mm (L*W*H) | |
Structure | Al alloy Fan cooling structure | |
Material | Galvanized steel sheet | |
Motherboard | Model No. | H67SL |
Processor | Support LGA1155 Intel® Core™ i3/i5/i7 CPU | |
Graphics | Intel®HD Graphics | |
Memory | 1*DDR3/1.5V/2GB memory | |
Storage | 2.5’HDD | N/A |
CF | N/A | |
SSD | 8G | |
System Feature | Ethernet | Intel 82583V, 1000/100/10Mbps,6x LAN |
Intel 82580DB 1000Mbps, 2xSFP | ||
USB | 2* USB2.0 | |
Serial Port | 1* COM | |
Display | 1* VGA | |
Audio | N/A | |
Expansion Interface | 2* MINIPCIE(1 is MSATA,1 is for WIFI ) | |
Indicator | Power Indicator Light,HDD Indicator Light | |
System Control | System Switch and AC power connector | |
Wireless | N/A | |
Power | Power | 220W |
Installation | 1U Rackmount | |
Operating T | -10°C~60°C | |
Storage T | -20°C~70°C | |
Relative humidity | 5%-95%, no condensing | |
Vibration | 0.5g rms/5-500HZ/random/operating |
About Power Cord:
We will ship the type of power cord, based on your area.
Packaging Details
- Unit Type:
- Package Weight: 8.000
- Package Size: 1x1x1
- Brand Name: Partaker
- Origin: Mainland China
- Hign-concerned Chemical: None
- Type: Wired
- Package: Yes
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Simultaneous Sessions: Not tested

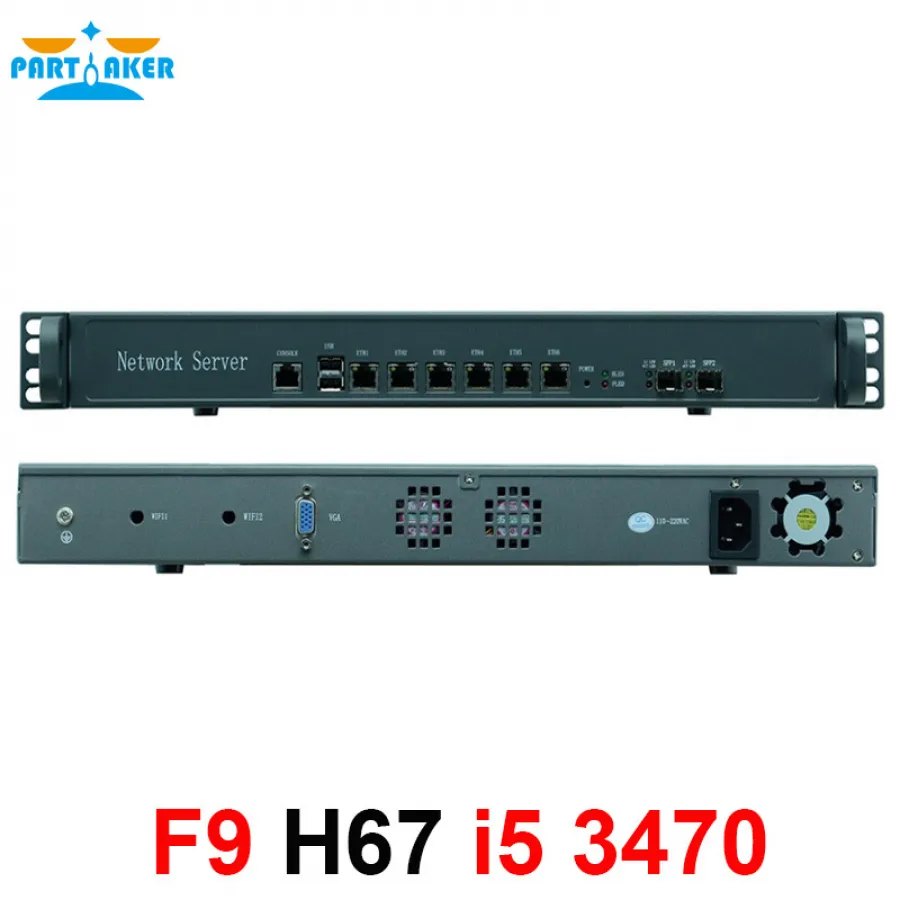

- Model Number: F9
- Throughput: Not tested
- OS: Linux/Win XP/Win7/Win8/Win10/pfSense
- Memory: 2G/4G/8G
- Storage: 32G/64G/128G/256G/512G
- LAN: 6* intel 1000M Lan
- SFP Ports: 2 Gigabit SFP
- CPU: Core I3 I5 I7 Optional
- Type: Wired & Wireless
- Size: 30mm*380mm*46mm(L*W*H)
- Keywords: hardware firewall pfSense
- Color: Silver black
