1pc 433MHz LoRa SX1278 RS485 RS232 rf DTU Transceiver E32-DTU-433L20 Wireless uhf Module 433M rf Transmitter and Receiver
4.9 (15 votes) | 65 orders
Price:
US $41.80
/ piece
Discount Price:
US $
35.53
/ piece
-15%

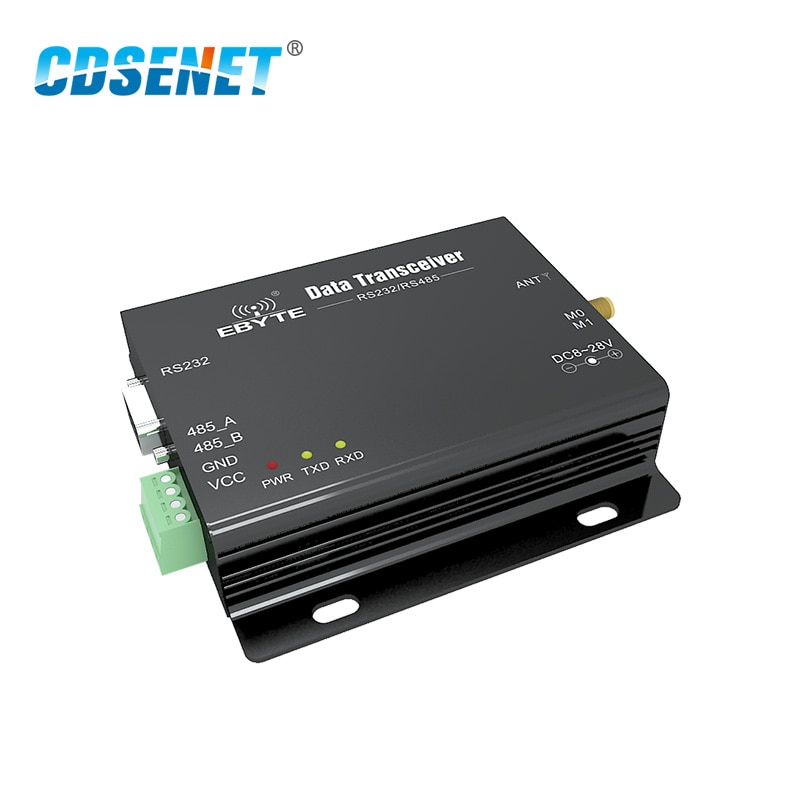

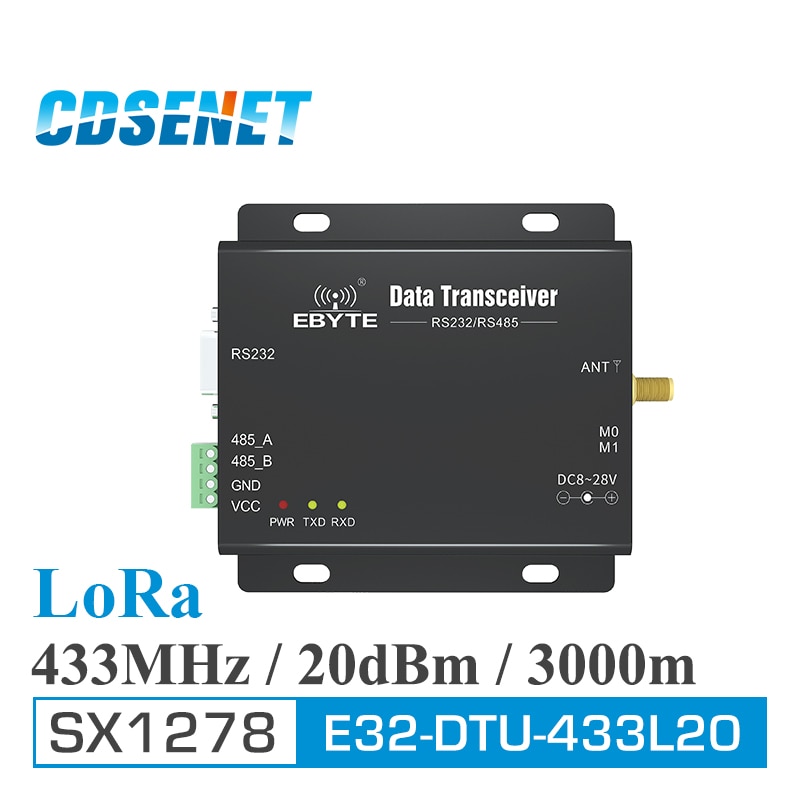

1pc 433MHz LoRa SX1278 RS485 RS232 rf DTU Transceiver E32-DTU-433L20 Wireless uhf Module 433M rf Transmitter and Receiver
Download Files:
XCOM:
https://www.cdebyte.com/Uploadfiles/Files/2022-5-24/20225241321527612.rar
Configuration Tools:
https://www.cdebyte.com/Uploadfiles/Files/2022-7-20/20227201543101471.rar
User Manual:
https://www.cdebyte.com/pdf-down.aspx?id=1401
Electrical Parameter:
No. | Item | Parameter details | Description |
1 | Size | 82 * 62 *25mm | Without antenna |
2 | Weight | 133g | Without antenna |
3 | Frequency band | Default: 433MHz | 410~441MHz channel:32, 433±5MHz (recommended ) |
4 | Housing | Aluminum alloy | Black |

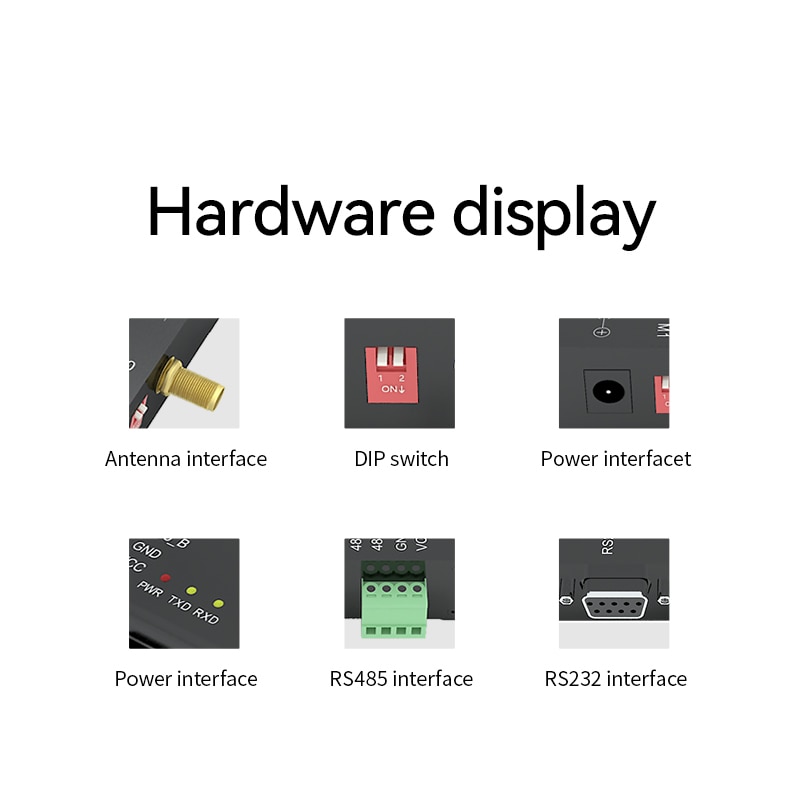

5 | Connector | RS485:1 * 4 * 3.81mm RS232:DB9 | Screwing Standard DB9, hole |
6 | Supply voltage | 8 ~ 28V DC | Note: the voltage higher than 28V is forbidden |
7 | Communication level | RS232/RS485 | Available for RS232 and RS485 |
8 | Operation range | 3000m | Test condition: clear and open area & 20dBm, antenna gain: 5dBi,height:> 2m,air data rate: 2.4kbps |
9 | Transmitting power | Maximum 20dBm | About 100mW, can be configured to 20, 17, 14, 10dBm |
10 | Receiving sensitivity | -130dBm/2.4kbps | Sensitivity has nothing to do with baud rate and timing |
11 | Air data rate | 2.4kbps | Can be configured to 0.3, 1.2, 2.4, 4.8, 9.6, 19.2kbps |
12 | Standby current | 14mA | Mode 3(power supply: 12V) |
13 | Transmitting current | 126mA/20dBm | ≥300mA (recommended) |
14 | Receiving current | 28mA | 12V |
15 | Communication interface | RS232/RS485 | 8N1, 8E1, 8O1 Eight kinds of UART baud Rate, from 1200 to 115200 bps (default: 9600) |
16 | Driving mode | RS232/RS485 | Can be configured to push-pull/high pull, open-drain |
17 | Transmitting length | 512 bytes buffer | 58 bytes per package |
18 | Receiving length | 512 bytes buffer | 58 bytes per package |

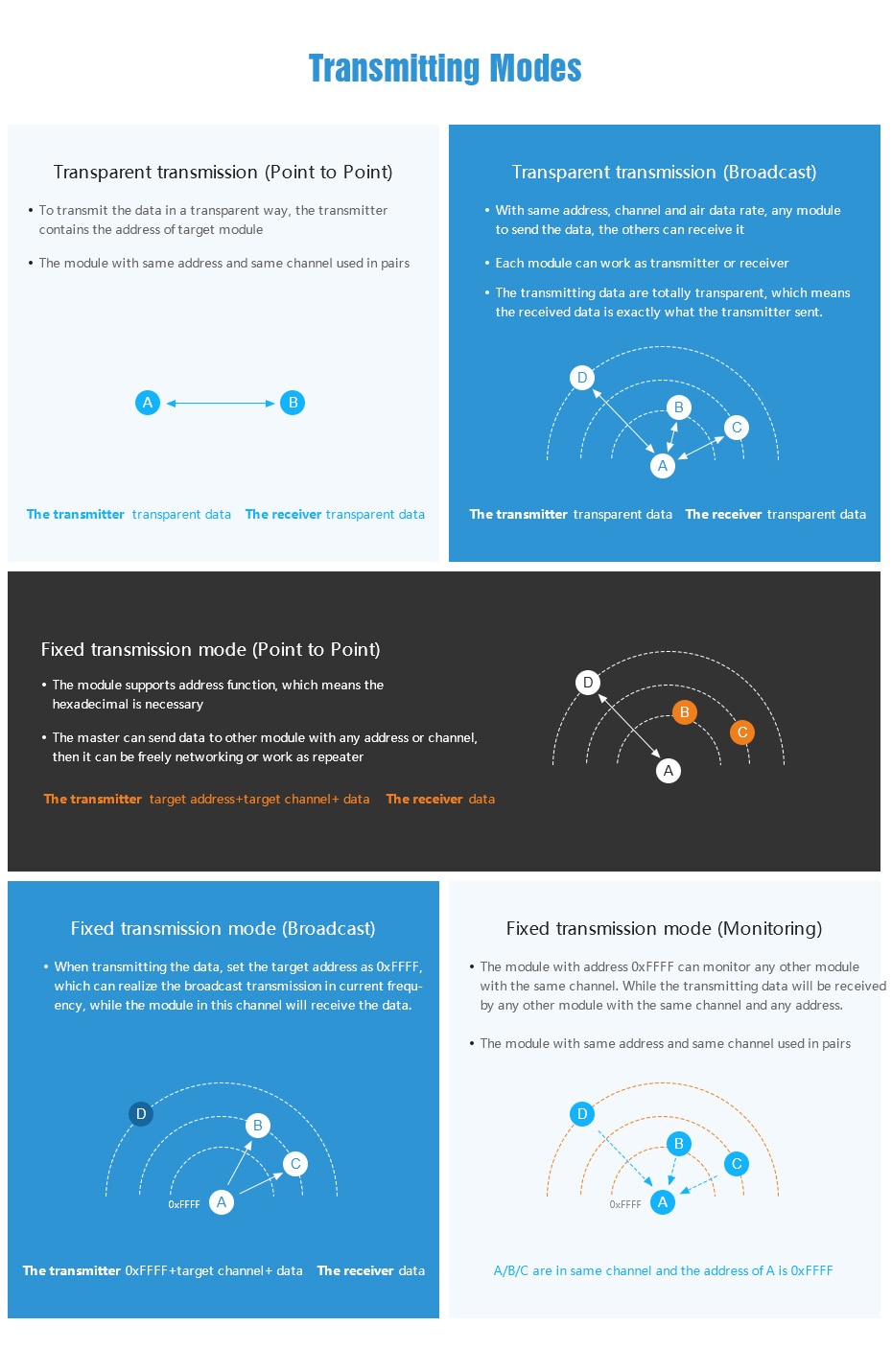

19 | Address | 65536 configurable addresses | Easy for network, broadcast and fixed transmission |
20 | RSSI support | Built-in intelligent processing | - |
21 | Antenna type | SMA-K | External thread hole |
22 | Operating temperature | -40 ~ +85℃ | Industrial grade |
23 | Operating humidity | 10% ~ 90% | Relative humidity, no condensation |
24 | Storage temperature | -40 ~ +125℃ | Industrial grade |
- Type: Other
- Model Number: E32-DTU(433L20)
- Port Number: 2
- Working Frequency: 433MHz
- Brand Name: CDSENET
- Origin: Mainland China
- Certification: NONE
- Working Frenquency: 433 MHz
- Interface: RS232 & RS485
- Model Number: E32-DTU-433L20
- Condition: New
- Application: computer other
- Type: Wireless data transmission
- Is_customized: Yes
- Place of Origin: CN
