17 19 21Inch Embedded IPC Resistive Touch Mini Tablet PC Intel J1800/J1900/i3/i5/i7 Industrial All-in-One computer for win10 Pro
5.0 (1 votes) | 2 orders
Price:
US $1123.54 - 1838.84
/ piece
Discount Price:
US $
932.54 -
1526.24
/ piece
-17%
Sorry! This item is out of stock
Industrial with resistive touch all-in-one PC computer

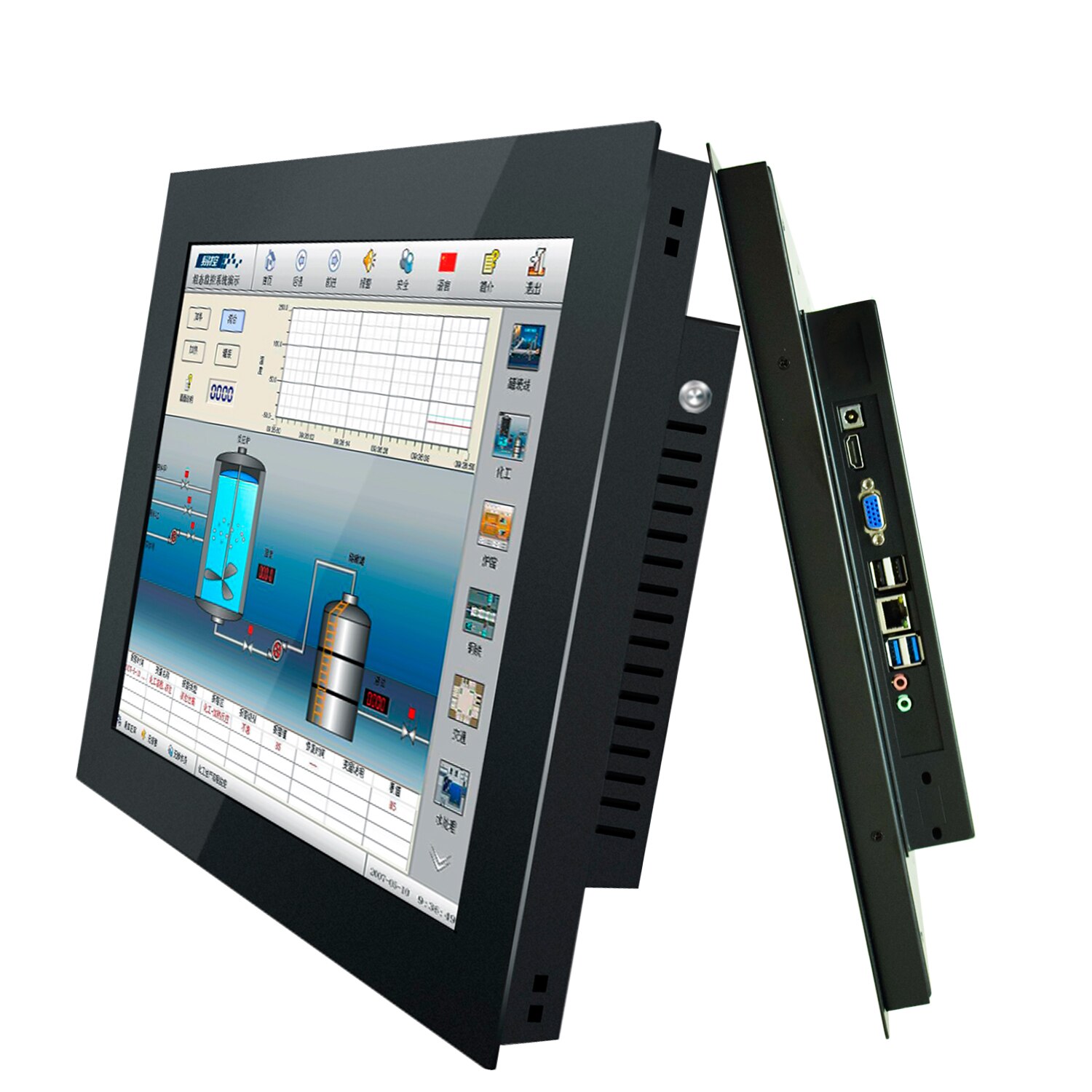

Interface display

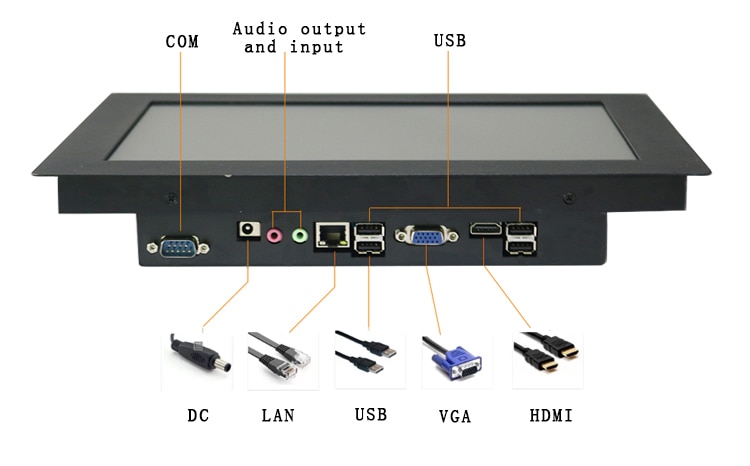

Interface: DC, VGA, HDMI, COM, USB*4, LAN, audio（Optional: network card * 2 com * 6 WiFi HDMI input

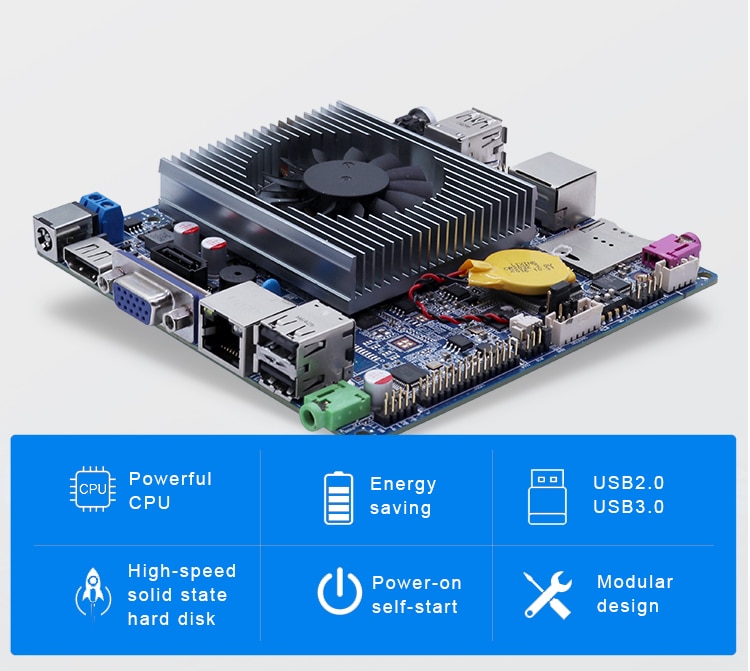

Industrial motherboard performance is more stable
Industrial control-level dedicated motherboard, more stable component performance, low-power chipset to save energy, strong resistance, and stable operation in various complex and harsh environments
Parameters
Memory : Optional 2GB / 4GB / 8GB RAM system memory
Storage : Optional 32GB/64GB/128GB /256GB /512GB SSD
Graphics : IntelHD graphics card
If you have any questions or need any motherboard, RAM, SSD please contact customer service
System Parameter：
Please contact us if you need the following or other CPUs, thank you.
1. Celeron processor J1800 (dual-core, 1MB cache up to 2.41 ≤ 2.58 GHz, TDP power consumption: 10w)
2. Celeron processor J1900 (quad-core, 2MB cache, up to 2.00 ≤ 2.41 GHz, TDP power consumption: 10w)
3. Intel Core i3-3217U (dual core, 3MB cache, 1.80 GHz, TDP power consumption: 17w)
4. Intel Core i5-3337U (dual core, 3MB cache, 1.80 GHz, TDP power consumption: 17w)
5. Intel Core i7-3537U (dual core, 4MB cache, 2.00 GHz, TDP power consumption: 17w)
6. Intel Core i3-3110M (dual core, 3MB cache, 2.4GHz, TDP power consumption: 35w)
7. Intel Core i5-3210M (dual core, 3MB cache, 2.5-3.1 GHz, TDP power consumption: 35w)
8. Intel Core i7-3540M (dual core, 4MB cache, 3.00-3.70 GHz, TDP power consumption: 35w)
9. Intel Core i3-4120U (dual core, 3MB cache, 2.0 GHz, TDP power consumption: 15w)
10. Intel Core i5-4300U (dual core, 3MB cache, 1.9 GHz, TDP power consumption: 15w)
11. Intel Core i7-4500U (dual core, 4MB cache, 1.8 GHz, TDP power consumption: 15w)
12. Intel Core i3-5010U (dual core, 3MB cache, 2.1 GHz, TDP power consumption: 15w)
13. Intel Core i5-5200U (dual core, 3MB cache, 2.2-2.7 GHz, TDP power consumption: 15w)
14. Intel Core i7-5500U (dual core, 4MB cache, 2.4-3.0 GHz, TDP power consumption: 15w)
15. Intel Core i3-6100U (dual core, 3MB cache, 2.3 GHz, TDP power consumption: 15w)
16. Intel Core i5-6200U (dual core, 3MB cache, 2.3-2.8 GHz, TDP power consumption: 15w)
17. Intel Core i7-6500U (dual core, 4MB cache, 2.5-3.1 GHz, TDP power consumption: 15w)
18. Intel Core i3-7100U (dual core, 3MB cache, 2.4 GHz, TDP power consumption: 15w
19. Intel Core i5-7200U (dual core, 3MB cache, 2.5-3.1 GHz, TDP power consumption: 15w)
20. Intel Core i7-7600U (dual core, 4MB cache, 2.8-3.9 GHz, TDP power consumption: 15w)
21. Intel Core i3-8130U (dual core, 4MB cache, 2.2-3.4 GHz, TDP power consumption: 15w)
22. Intel Core i5-8265U (quad-core, 6MB cache, 1.6-3.9 GHz, TDP power consumption: 15w)
23. Intel Core i7-8565U (quad-core, 8MB cache, 1.8-4.6 GHz, TDP power consumption: 15w)
Backplane I/O interface: 4*USB2.0 interface, 1*HDMI interface, 1*VGAinterface,
1*RJ-45 Gigabit network interface, 1*Line out (green), 1*Mic (red), 1 *DC 12V power
interface
Operating system: Windows 7, Windows 10, Linux
Motherboard size: 170mm*170mm

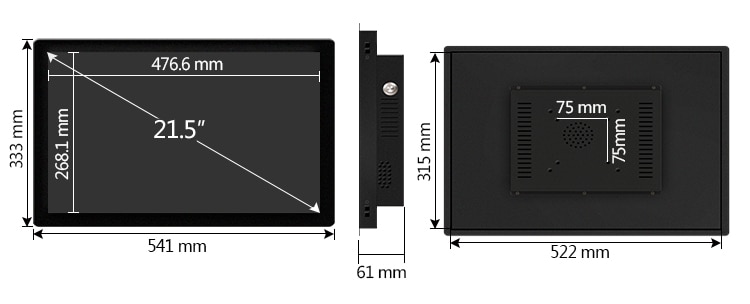

Product Size

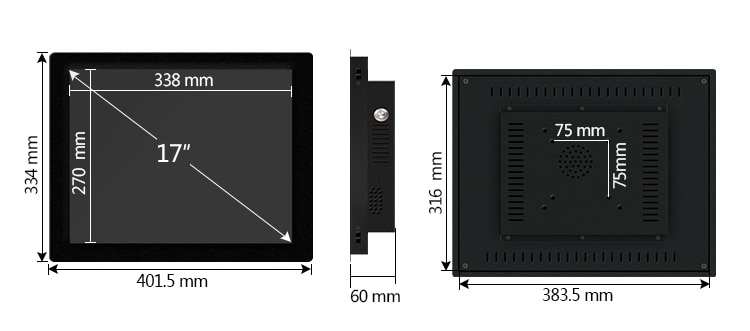

Size:17 inch Resolution:1280*1024 ppi

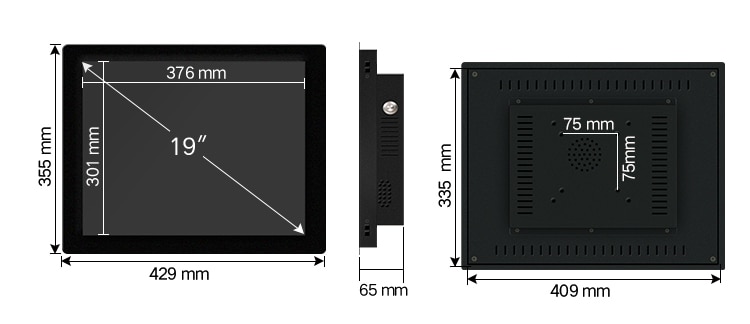

Size:19 inch Resolution:1280*1024 ppi
Size:21.5 inch Resolution:1920*1080 ppi

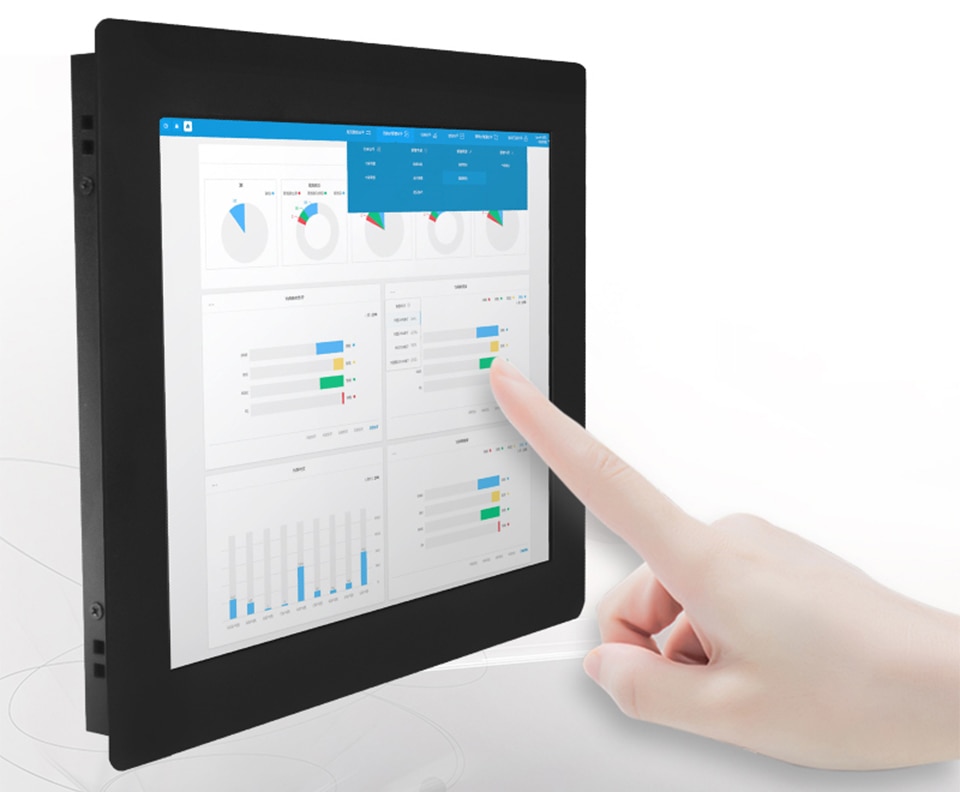

Resistive touch screen, precise touch and sensitive response
High resolution, sensitive surface, smooth and matte surface processing, high stability, mature technology, strong anti-interference, high accuracy and stability of correction, never drifting, touch, no dead corners, long contact life, and can withstand more than 35 million times Safe touch response, rapid touch, no drift
7*24 hours / stable operation
It has 7*24 hours of stable operation ability, energy saving and low consumption, supports power-on boot, suitable for unstable environment but needs to keep booting

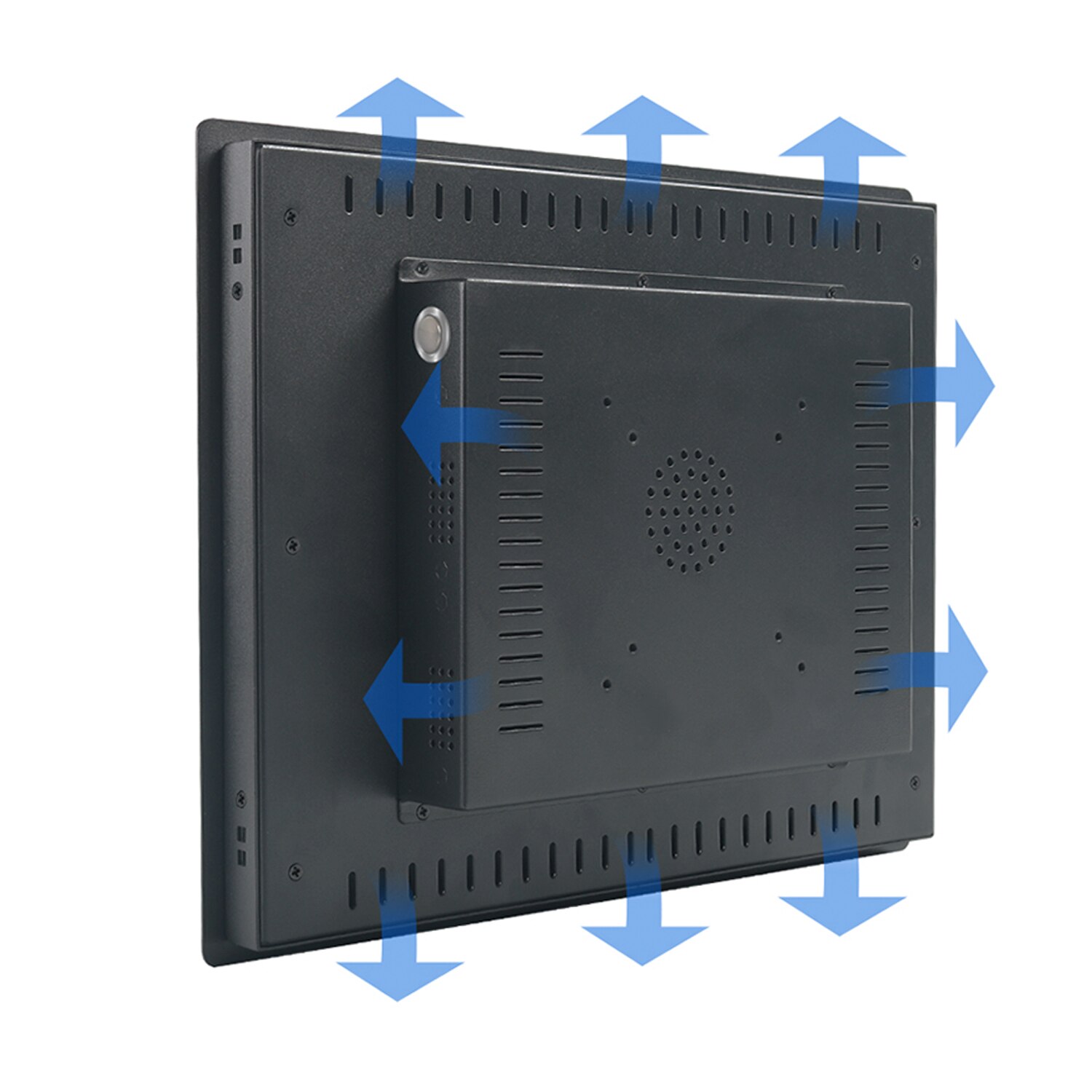

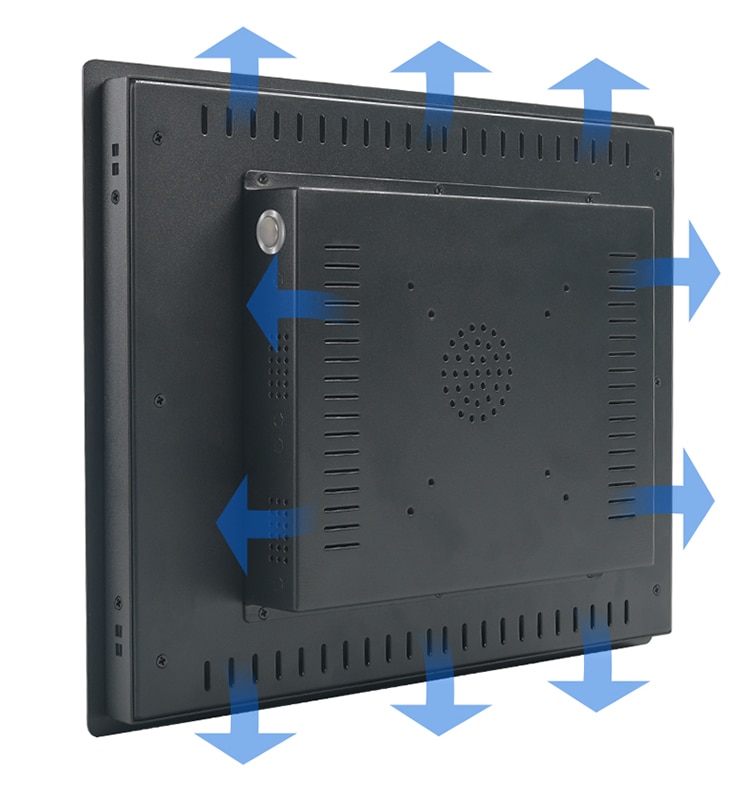

Industrial-grade sheet metal heat dissipation design
High-standard process metal cold-rolled plate body design Multi-row heat dissipation design brings better industrial use experience Fast and quiet heat dissipation

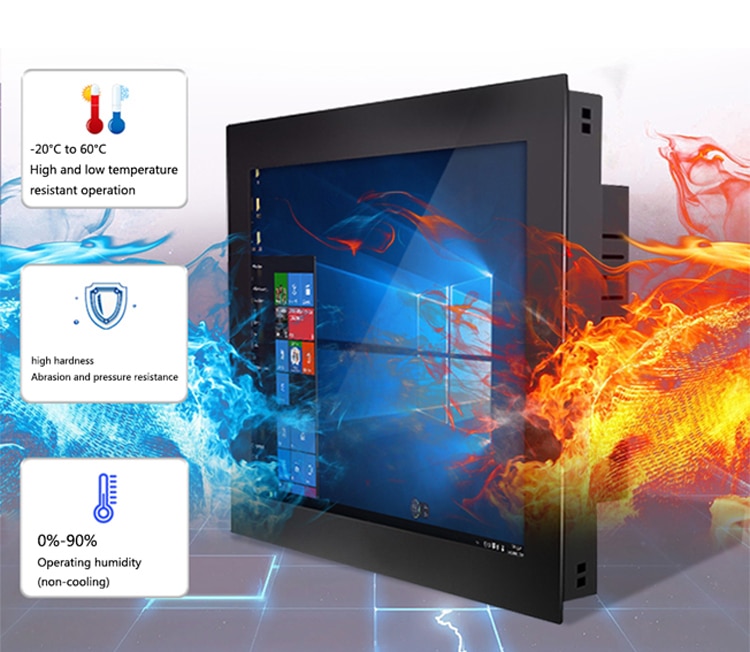

High and low temperature resistant design
The front frame is processed by high-precision CNC, and the steel body is forged by cold-rolling technology, which greatly increases the rigidity and compression resistance of the whole machine. It has been tested by a strict temperature control box and runs stably in harsh environments with large temperature differences. It has passed controllable high temperature testing. The product adapts to temperature between -20℃~60℃, even in harsh environments, there is no fear

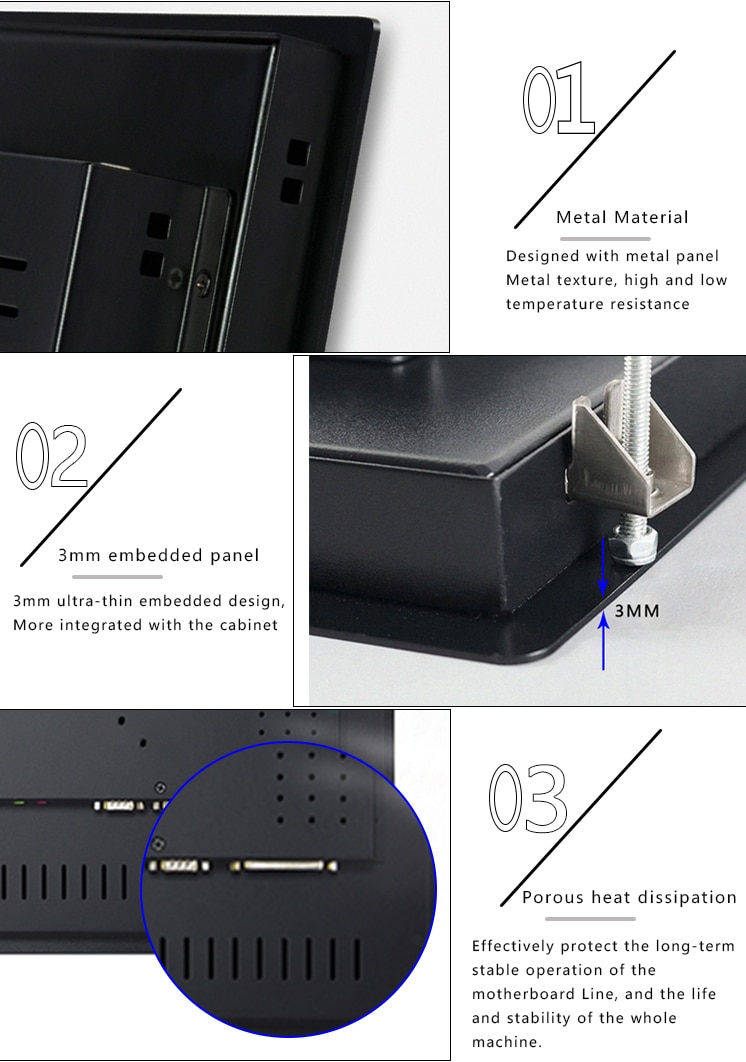

detailed description
Details decide the quality
Real shot display map
Installation method
Easy to install, one-key boot

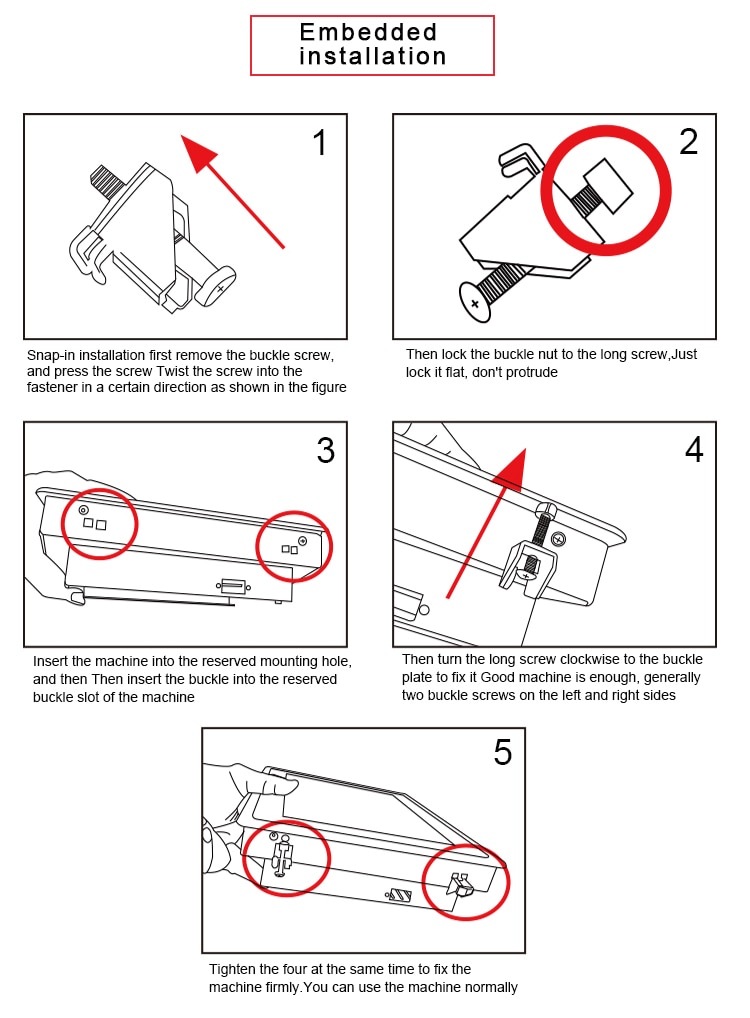

1. Embedded installation

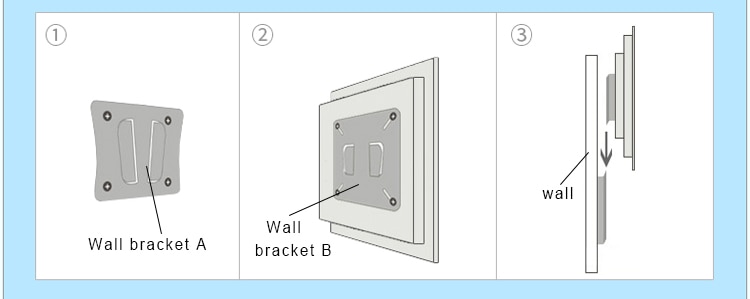

2. Wall-mounted installation
① Fix the wall bracket A on the wall with expansion screws.
②The wall bracket B is installed on the back of the all-in-one with screws.
③ Insert the back bracket of the all-in-one into the wall bracket to complete the installation.
Frequently Asked Questions
Q: Regarding price increases in EU countries or regions.
A: After the EU tax reform, the price on the link will automatically calculate the tax, but in fact, this part (tax) will be subtracted when paying.
So we did not increase the price, you can rest assured to place an order.
Q: Will the package incur customs clearance fees?
A: Yes, the payment price of all orders does not include customs fees, and customs clearance fees must be borne by yourself. Due to the requirements of customs policies in various regions, all importers have the obligation and responsibility to declare, assist in customs clearance and pay customs fees. If you have any objections to this, please contact us, thank you.
Q: Is the machine waterproof?
A: No, please contact customer service for machines that need waterproofing
Q: What is the standard installation method?
A: Embedded, wall-mounted
Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand
Q: Why do I need to activate after reinstalling the system or upgrading?
A: Our default system is a cracked version, and does not support upgrading or reinstalling the system. If you need a genuine system, please contact us to buy it or buy it yourself.
- Brand Name: Slubee
- Port: HDMI VGA RJ-45 COM USB
- Hard Drive Capacity: 64GB
- Memory Capacity: 4GB
- Certification: CE
- Weight: 8
- Memory Capacity: /
- Model Number: KK1800J14
- Origin: Mainland China
- Processor Model Number: Intel Core i3-3217U
- Graphics Card Chipset: HD Graphics
- Type: All-In-One
- Operating System: Windows 10
- Graphics Card Type: Integrated Card
- RAM Type: DDR3
- Display resolution: 1280*1024
