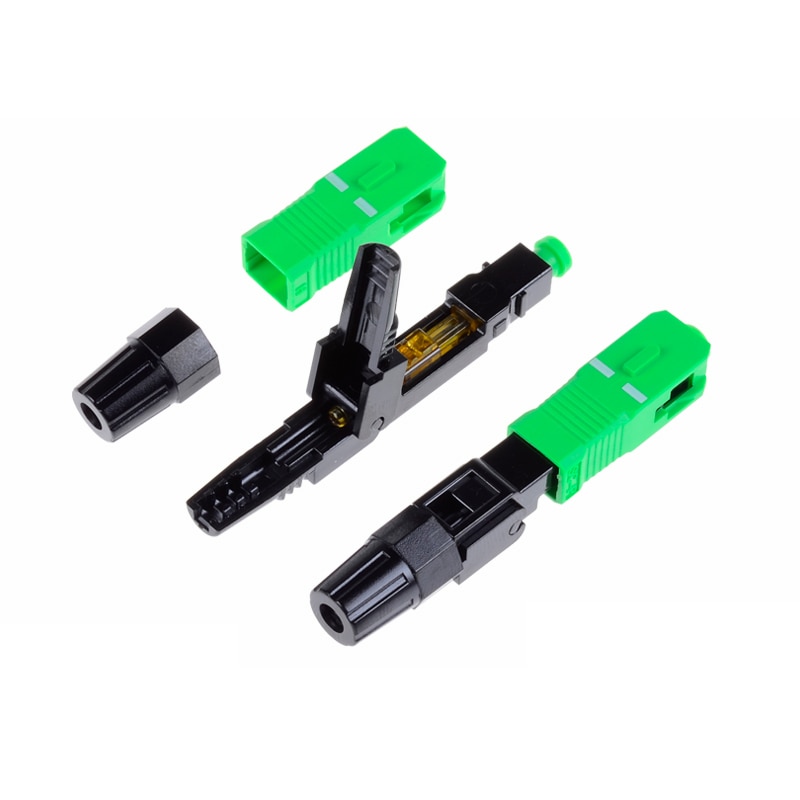

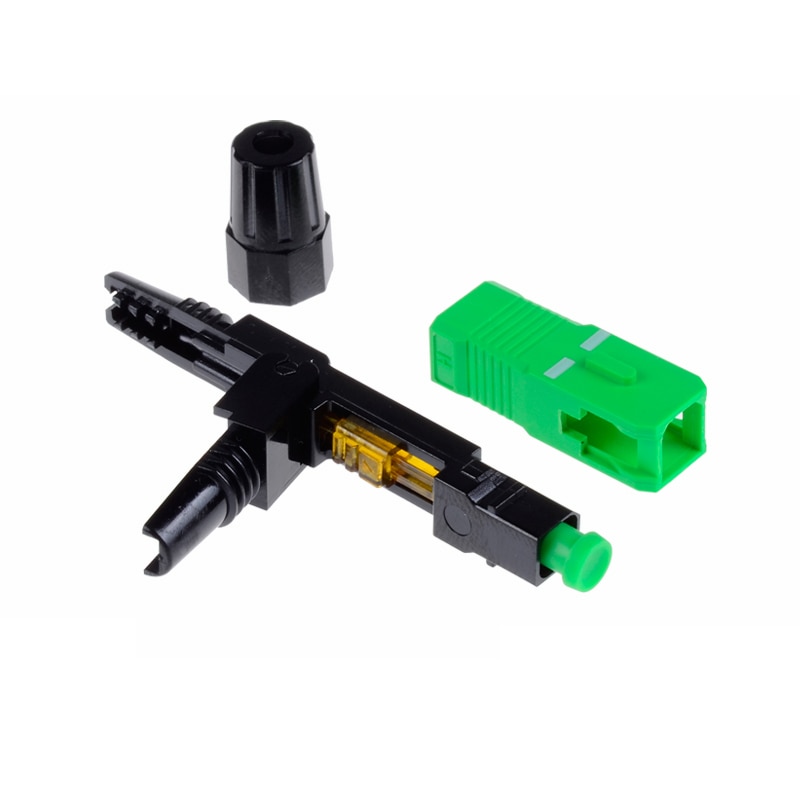

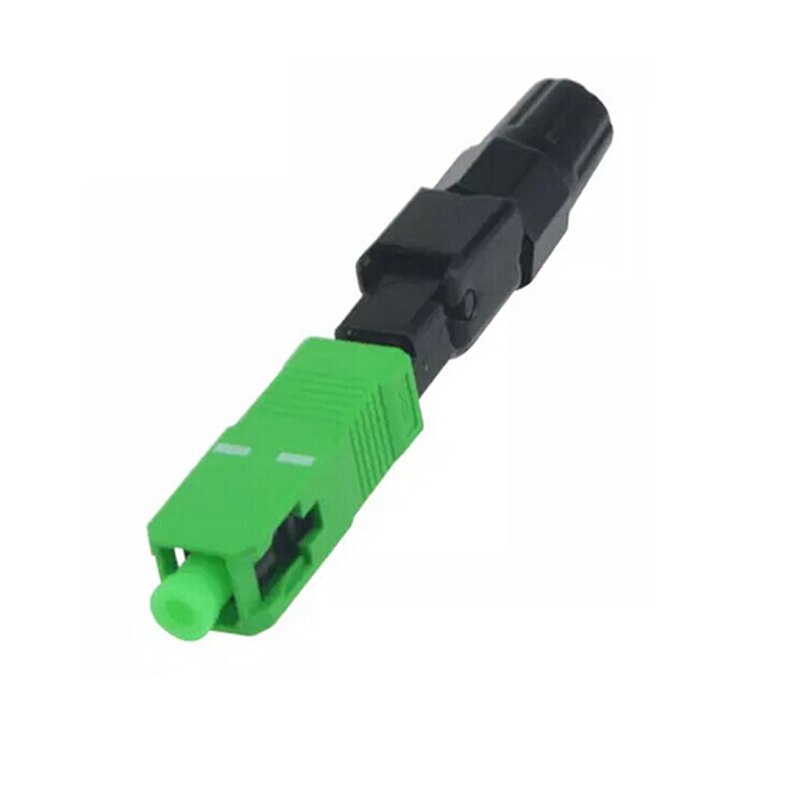

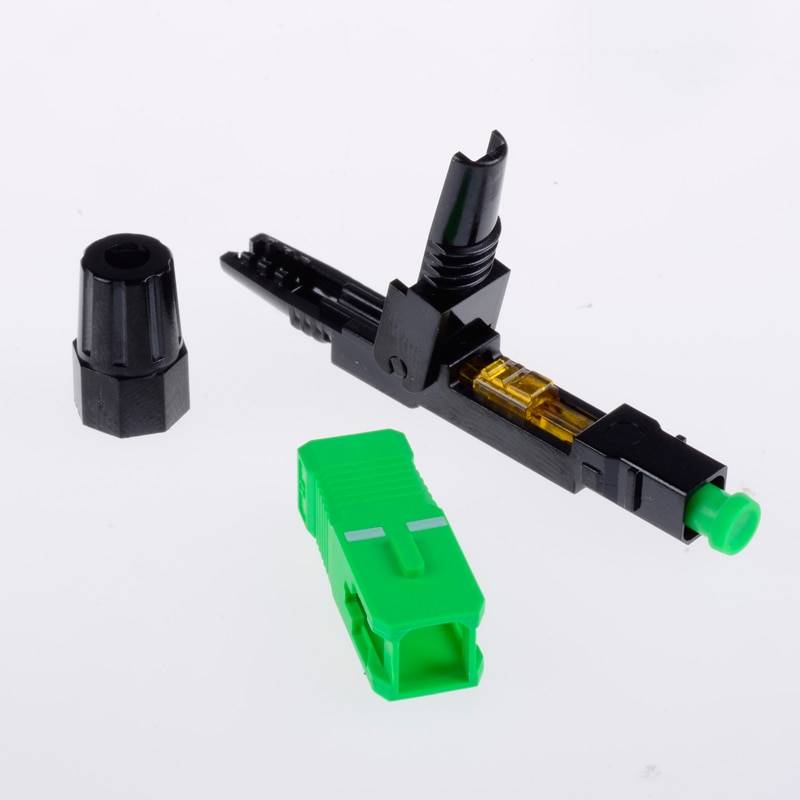

100PCS/box FTTH SC APC single-mode fiber optic SC APC quick connector SC APC FTTH Fiber Optic Fast Connector Free shipping
75.60 56.70 $
SALE
ID: 19967
Quantity
100PCS/box FTTH SC APC single-mode fiber optic SC APC quick connector SC APC FTTH Fiber Optic Fast Connector Free shipping
5.0 (15 votes) | 50 orders
Price:
US $75.60
/ piece
Discount Price:
US $
56.70
/ piece
-25%
100PCS/box FTTH SC APC single-mode fiber optic SC APC quick connector SC APC FTTH Fiber Optic Fast Connector Free shipping
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much
Product Attributes
Supply pre-embedded FTTH SC/APC fiber optic quick connector
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
ITEM | Technical Parameters |
Applicable for | Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ≤ 0. |
1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2. If you can't checkout time immediately after auction close, please wait for a few minutes and retry.
3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.
1.WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference only. 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. 6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! 7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery. 8.DeliveryTime:
If your cargo weighs up to 20KG or above, or you need larger quantity, please contact us or email to us, we will provide you new packing specifications, then try our best to save some transport costs for you, and so that the product price can be of some benefit to you!
We are a large manufacturing enterprise groups in China, we sell through Cntronic, there is only purpose ,it is to better promote our products,all our company products are shipped direct from the factory, please contact us , hope to establish long-term friendly and mutual cooperation relations between each other !
We provide 6-12 months warranty. If the item is defective, please notify us within 3 days of delivery. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods. Items returned after 15 days of delivery are only eligible for repair. The buyer is responsible for all shipping cost. When buying, it means the buyer have given tacit consent to the policy. If further details, please feel free to contact us, we will work with you to reach win-win.
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. It is impossible to address issues if we do not know about them!
- Connector Type: SC/APC
- Model Number: SC APC
- Brand Name: ZHWCOMM
- Certification: CE,FCC
- Origin: Mainland China
- Model Number: FTTH Fiber Optic Fast Connector
- Quantity: 100PCS
- Storage Temperature:: 25 ~+85
- Place of origin: China
- Repeatability:: <0.5dB
- Diameter:: 0.9mm, 2.0mm, 3.0mm, Others
- Mode:: single mode, multimode
- Durability:: 500 Times
