10" 12" 15 Inch Industrial Computer All In One PC Mini Tablet Panel With Resistive Touch Screen Intel Core i3 for Win 10 PRO
4.8 (5 votes)
Price:
US $620.00 - 2000.00
/ piece
Discount Price:
US $
501.74 -
1660.00
/ piece
-19%
Industrial PC Resistive touch computer 10.4 inch(1024*768)/12.1 inch(1024*768)/15 inch(1024*768)
"Only monitor": Indicates that what you have purchased is just a monitor with a VGA+HDMI interface and a resistance touch screen.
industrial computer parameters
Brand：Balahome
Aterial：Metal
Memory: optional No RAM /2GB/4GB/8GB DDR3 System Memory
Storage:optional No SDD /32GB/64GB/120GB /240GB SDD
System: WIN10 pro
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 5-7Kgs
System Parameter：
Intel Core i3-3217U（Dual core, 3MB cache, 1.80 GHz，TDP power consumption：17w）
Storage space：No SDD/32G/64G / 128G / 256G Optional）
internal storage：Optional No RAM/4GB/8GB DDR3 System memory
Parameters of LCD Touch screen：
Brightness：250cd/m2
Contrast Ratio：1000:1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 12V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance：75*75mm
Delivery Time
Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days
★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!

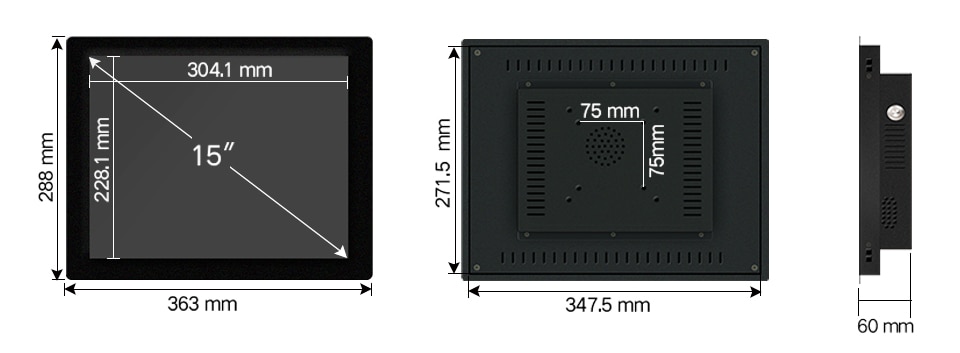

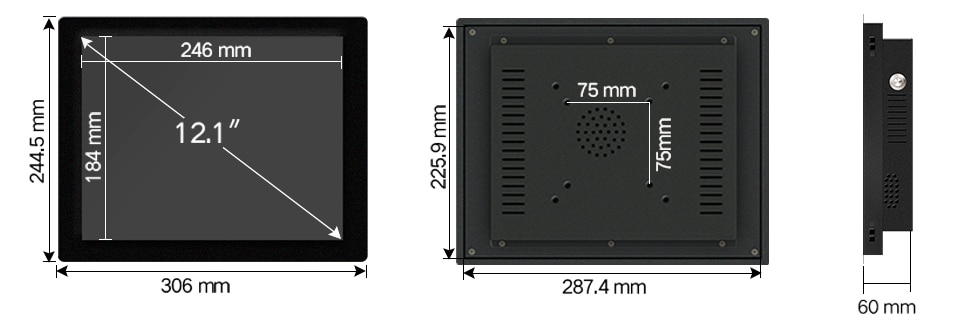

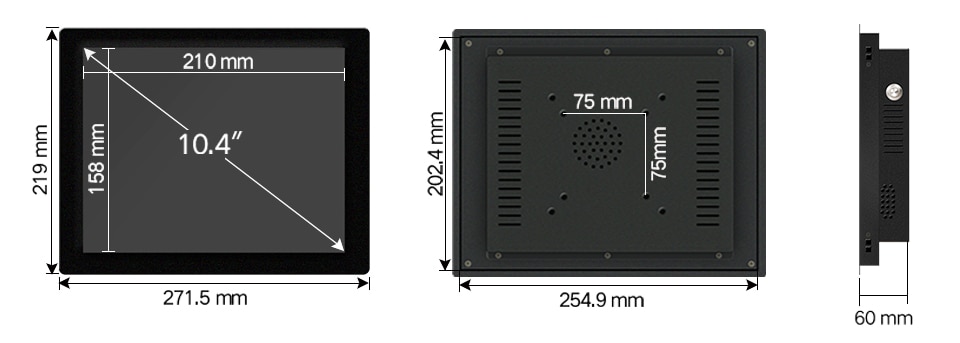

Size
Resolution: 10.4 inch(1024*768)/12.1 inch(1024*768)/15 inch(1024*768)
Unit of measure: mm

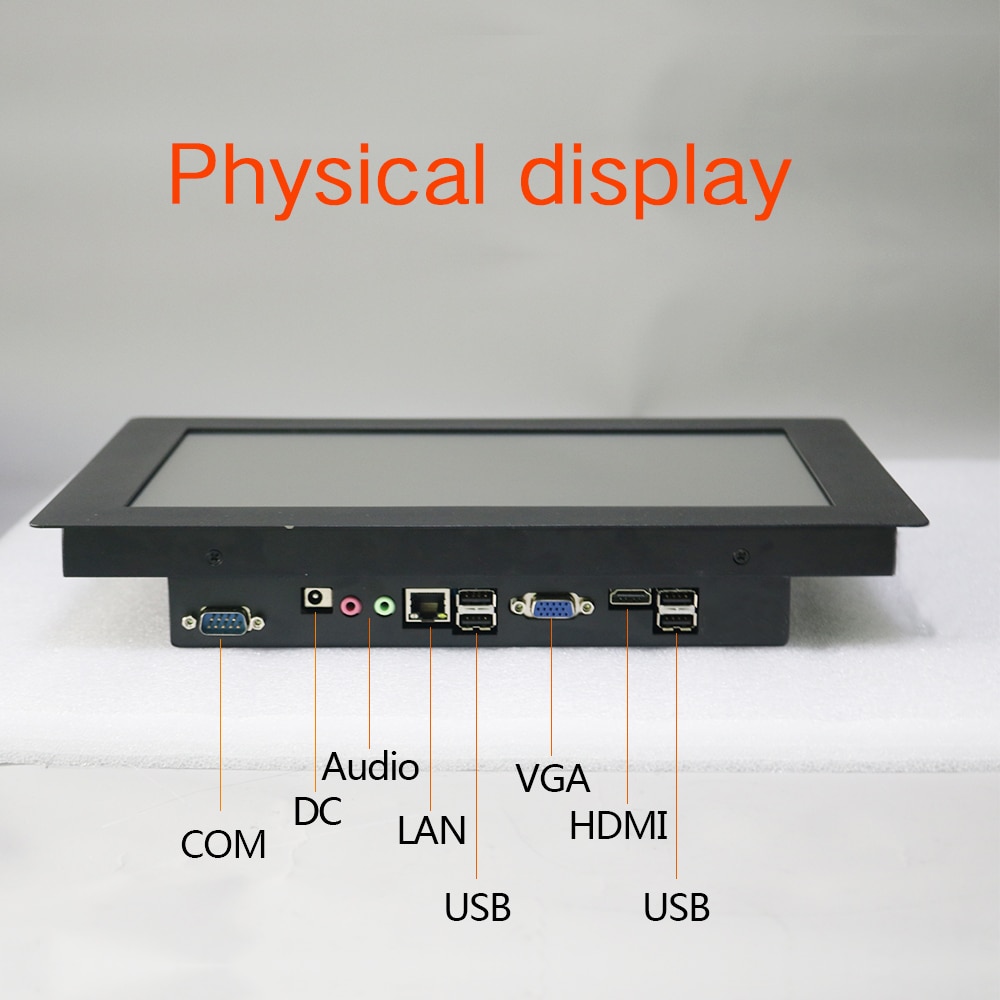

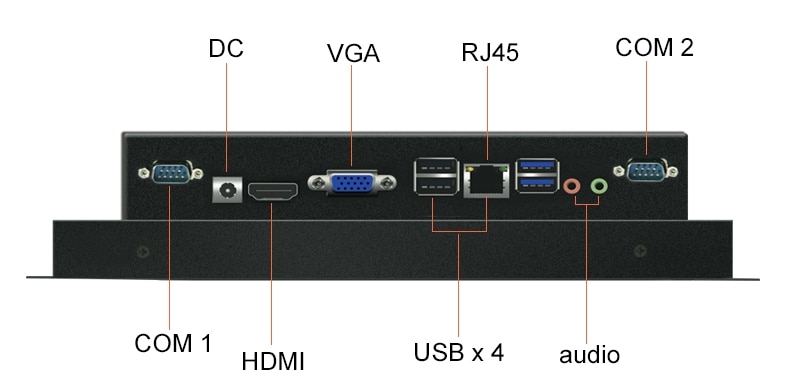

Product interface (support customization)
1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

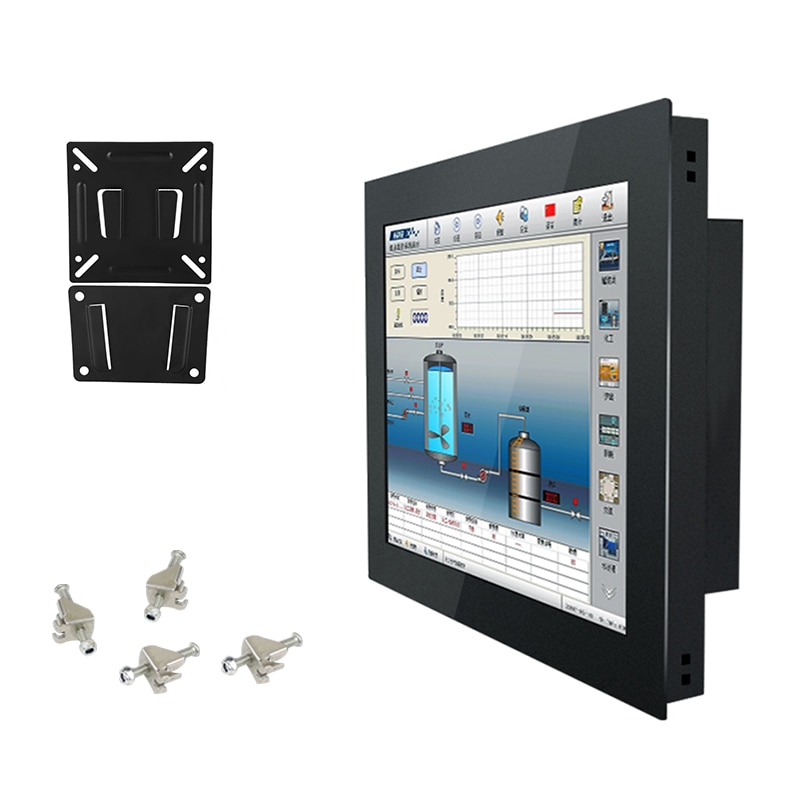

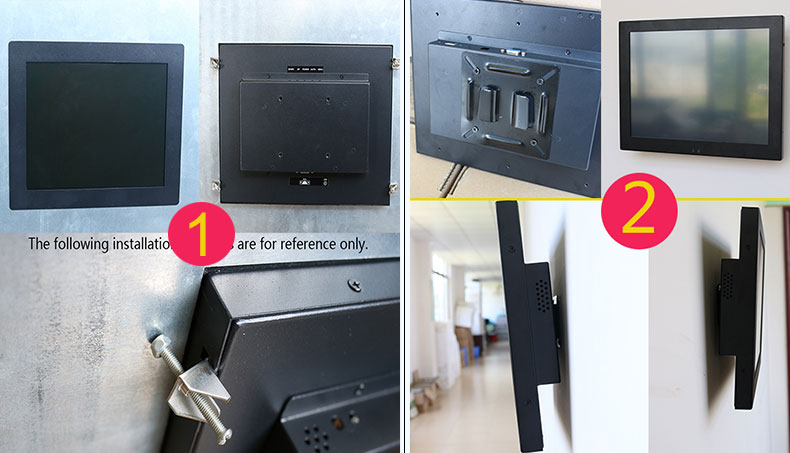

Installation Mode
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.

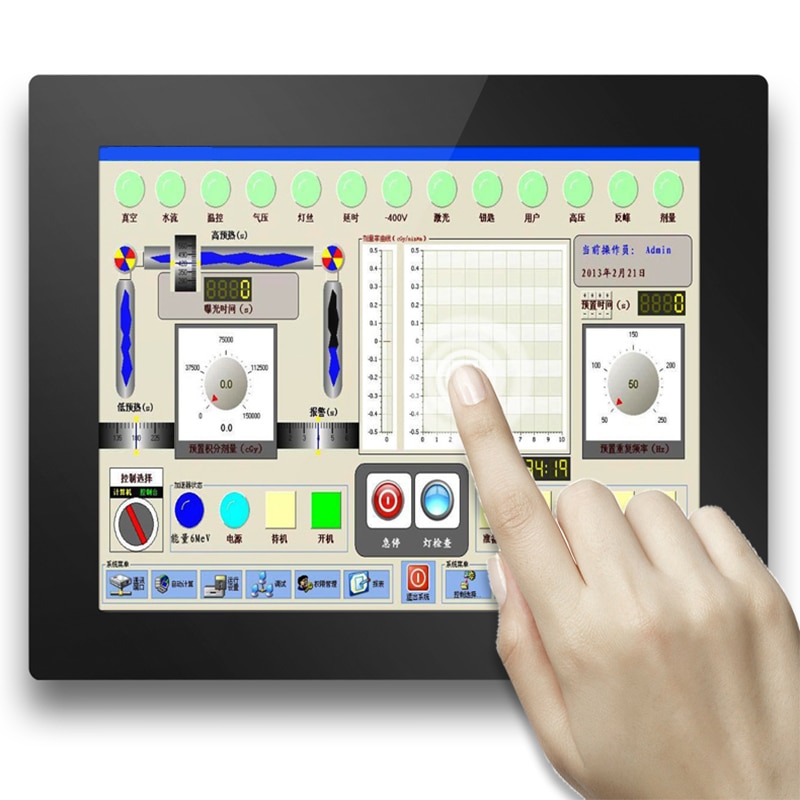

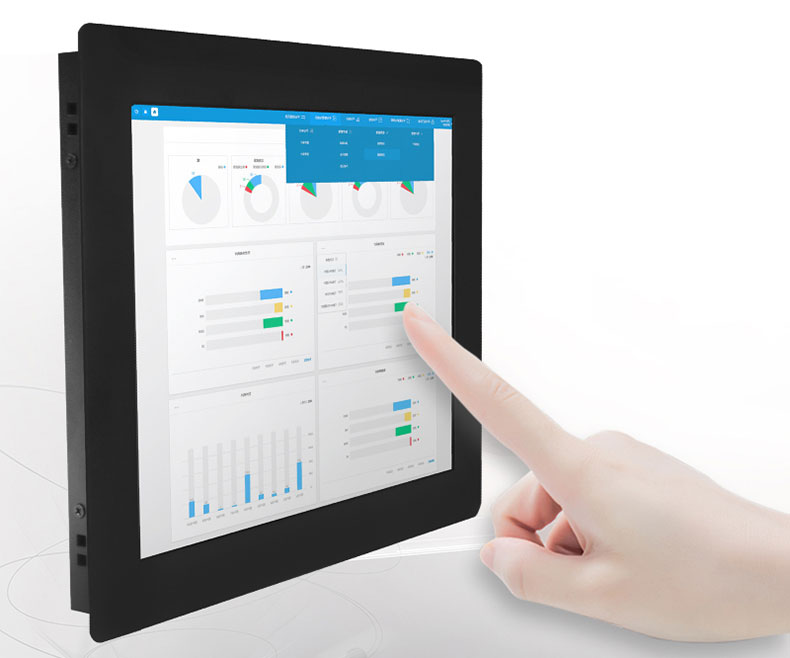

Sensitive Touch Rapid Response
Resistive touch times > 35 million times, backlight life 50000h
Industrial-grade custom motherboard
A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.

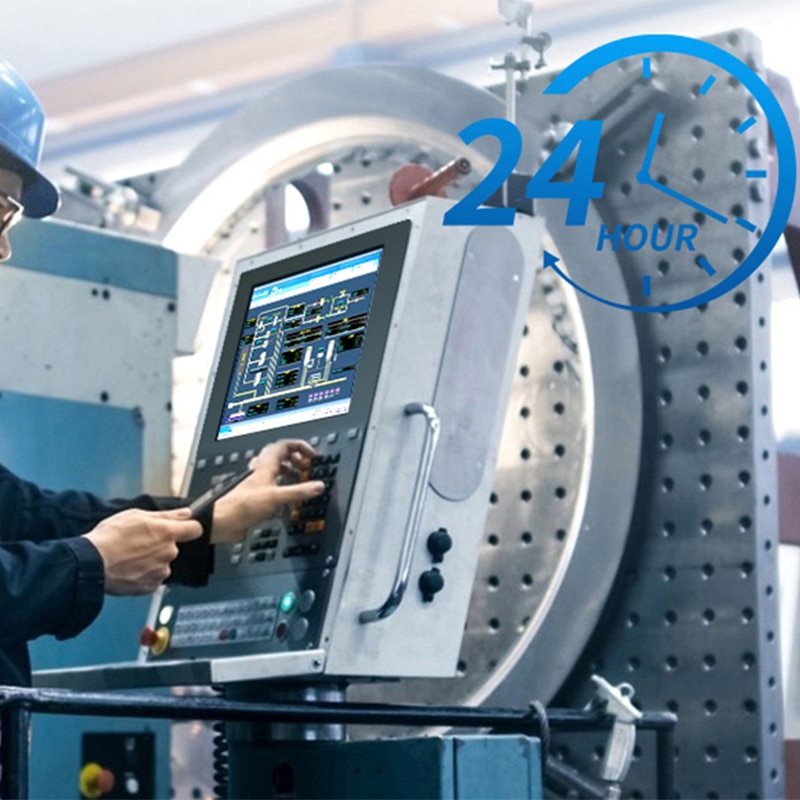

The machine runs stably
24/7 stable operation

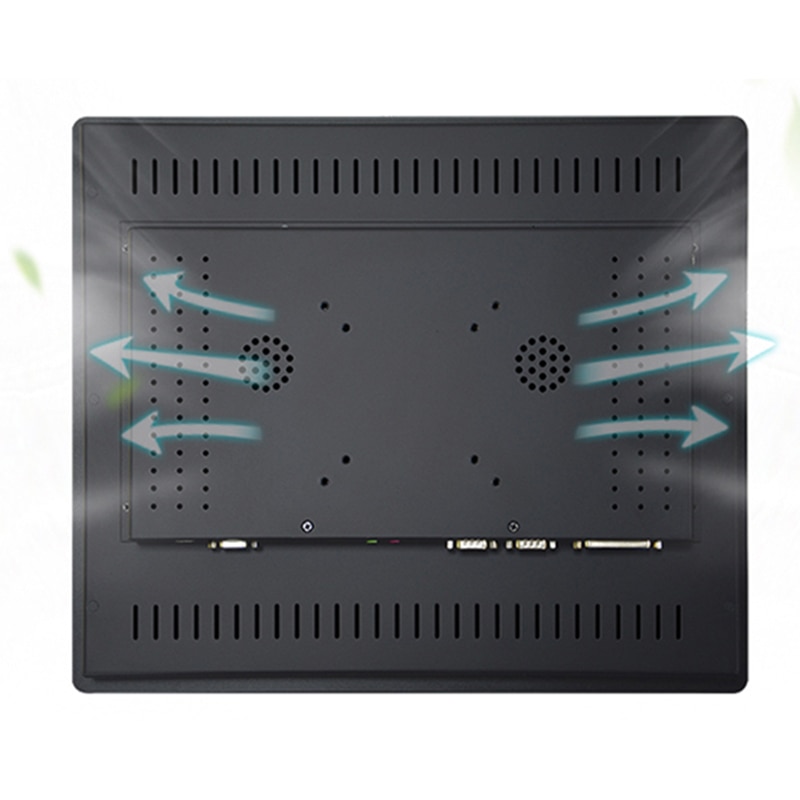

Efficient work for a long time, fast cooling
Metal case, resist to high and low temperature environment
Industrial cold-rolled sheet metal shell, cold and high temperature resistance, as low as -20 ℃ ~ 60 ℃.
Can effectively adapt to stable work in harsh environments
About customization
Please contact customer service to state your needs.
Support logo, shell, color, function, interface and other customization, please contact us for the best price
Product application field display
Products are widely used in industrial control CNC industry, medical industry, factory production workshop,
Bank automatic ticket vending machines, supermarket advertising, video surveillance, etc.
packaging & shipping
1). Usually,we ship within 3-5 working days after payment receive,Items purchased after 12:00pm on Friday, on holiday,or over the weekend will be shipped within the next business day.
2). We many shipping options as possible,including DHL,UPS,EMS,Fedex and
TNT,ect.
About feedback
1). Welcome to our store and thanks for you are interested in our products,we have already left positive feedback of you, and sincerely hope you can do the same for us after receiving the products,
2).If you are not happy with our products or services, please contact us before
leaving a neutral or feedback,We will try our utmost to resolve the issue to our mutual satisfaction.
3).It would be much appreciated if you can award us with “Five Stars” for Detailed Seller Ratings.On the other hand, if you feel that we do not achieve that level of performance,please feel free to contact us as well.
- Max Boost Speed: 2.41Ghz
- Weight: 5
- Mouse & Keyboard: No
- Processor Core: Quad Core
- RAM Type: DDR3
- Power: 30W
- Operating System: Windows 10
- Memory Capacity: /
- HDD Rotation Speed: SSD
- Chipset Type: i3
- Graphics Card Chipset: HD Graphics
- Drive Type: No CD ROM
- Graphics Card Type: Integrated Card
- Display Type: Touch Screen
- Model Number: Bala10-17KKytj
- Port: HDMI VGA RJ-45 COM USB
- Processor Model Number: Intel Core i3-3217U
- Type: All-In-One
- Memory Capacity: 2GB
- Hard Drive Capacity: 32Gb
- Brand Name: Balahome
- Origin: Mainland China
- Certification: CE
