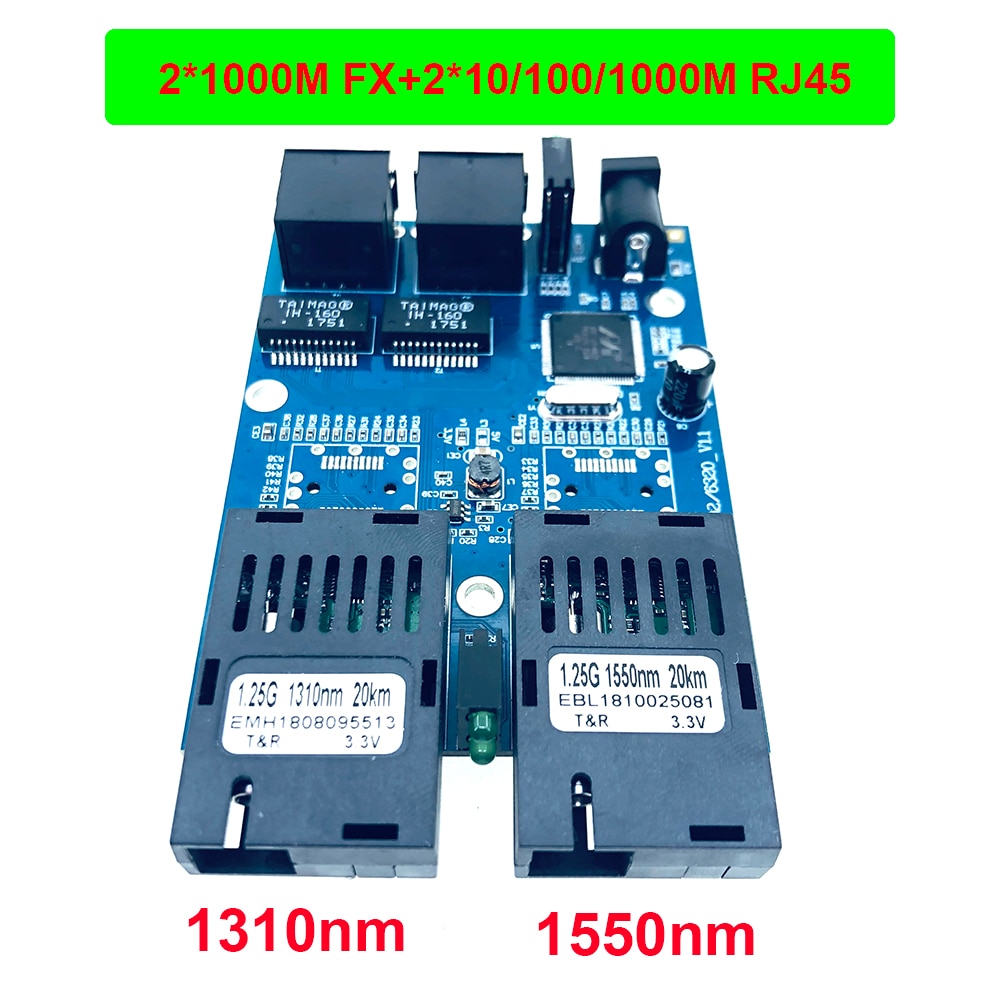

10/100/1000M Gigabit Ethernet switch Ethernet Fiber Optical Media Converter Single Mode 2 RJ45 UTP and 2 SC fiber Port Board PCB
SALE
ID: 33948

10/100/1000M Gigabit Ethernet switch Ethernet Fiber Optical Media Converter Single Mode 2 RJ45 UTP and 2 SC fiber Port Board PCB

4.8 (20 votes) | 54 orders
Price: US $53.52 - 68.71 / piece
Discount Price:
US $ 30.80 - 39.92 / piece
-42%
Color
Quantity

please note:

1. Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side, 2pcs 1550nm B Side or 2pcs 1310nm A side can be provided as request.

2. This board comes without power adapter ,if need the dapter can buy extra in my store ,just need pay cost price ,please contact with us if you need !



Gigabit Ethernet Switch 2G2E Series Fiber Switch

The Gigabit 2G2E is an Ethernet Fiber Switch which is specially designed for network monitoring. It

has 2*10/100/1000Mbps Ethernet ports and 2*1.25Gbps fiber ports. It adopts Marvell chips to ensure

low power consumption and high stability. It extends the transmission distance of a network from

100m to 120km via copper cables. It can extend the transmission distance; there are also many other

advantages such as isolation protection, good data security, working stability and easy maintenance.

Main Features:

1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX

2.2*1.25Gbps full-duplex fiber ports and 2*10/100/1000M Ethernet ports with auto-negotiation function

3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

4.Each port has the complete LED Indicator light

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

6.Support IEEE802.1d Spanning Tree

7.Support high performance QoS function on each port

8.Support 5-12V voltage input

9.Support IEEE 802.3x flow control and back pressure control

10.Require no configuration and will instantly operate as soon as you power it up

11.Low power consumption chip with heat sink built in to ensure longtime efficient operation



Specifications

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree


Ethernet Port

Connector: RJ45

Data Rate: 10/100M

Distance: 100m



UTP Type: UTP-5E or higher level

Fiber Port

  Connector: SC/FC/ST/SFP slot

  Data Rate: 1.25Gbps

  Optical Wavelength: 850nm/1310nm/1490nm/1550nm

  Distance: 550m~120km

Performance

Processing Type: Store and Forward

MAC Table Size: 8K

Buffer Space: 1Mbit

Jumbo Packet: 1518 bytes

Back bandwidth: 5.6G

Time Delay: <150μs

Power

Power type: external power supply

Input Voltage: AC100V~240V 50/60Hz

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 2.2W~3.5W

Transmissin Distance

  Twisted Pair: 100m (CAT5e, CAT6 cables)

  Muti-mode: 2km

        Single-mode: 20/40/60/80/100km

MTBF

        100, 000 hours

Warranty

        1 year

Environment

Storage Temperature: -40~70℃

Operating Temperature: -10~55℃

Relative Humidity: 5-90% ( no condensation)

Mechanical Structures

Dimension: 85mm*65mm

Weight: 0.15

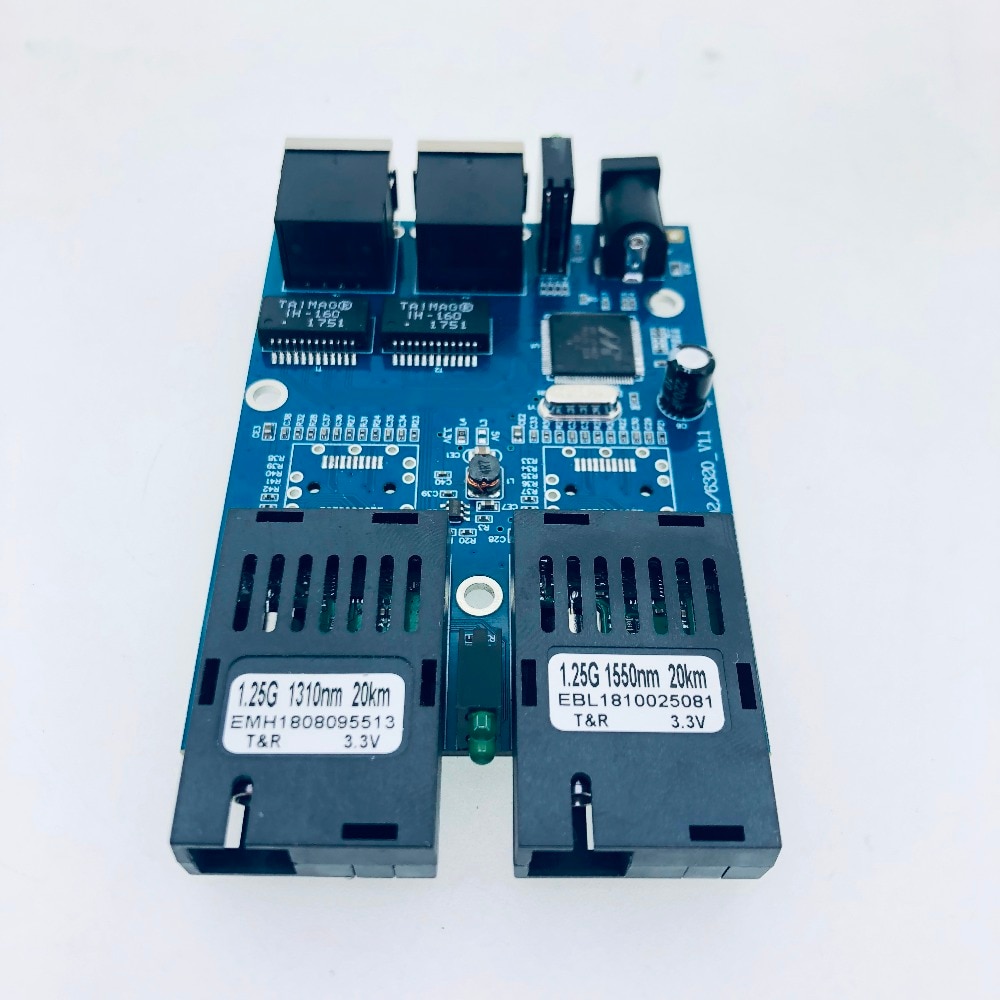

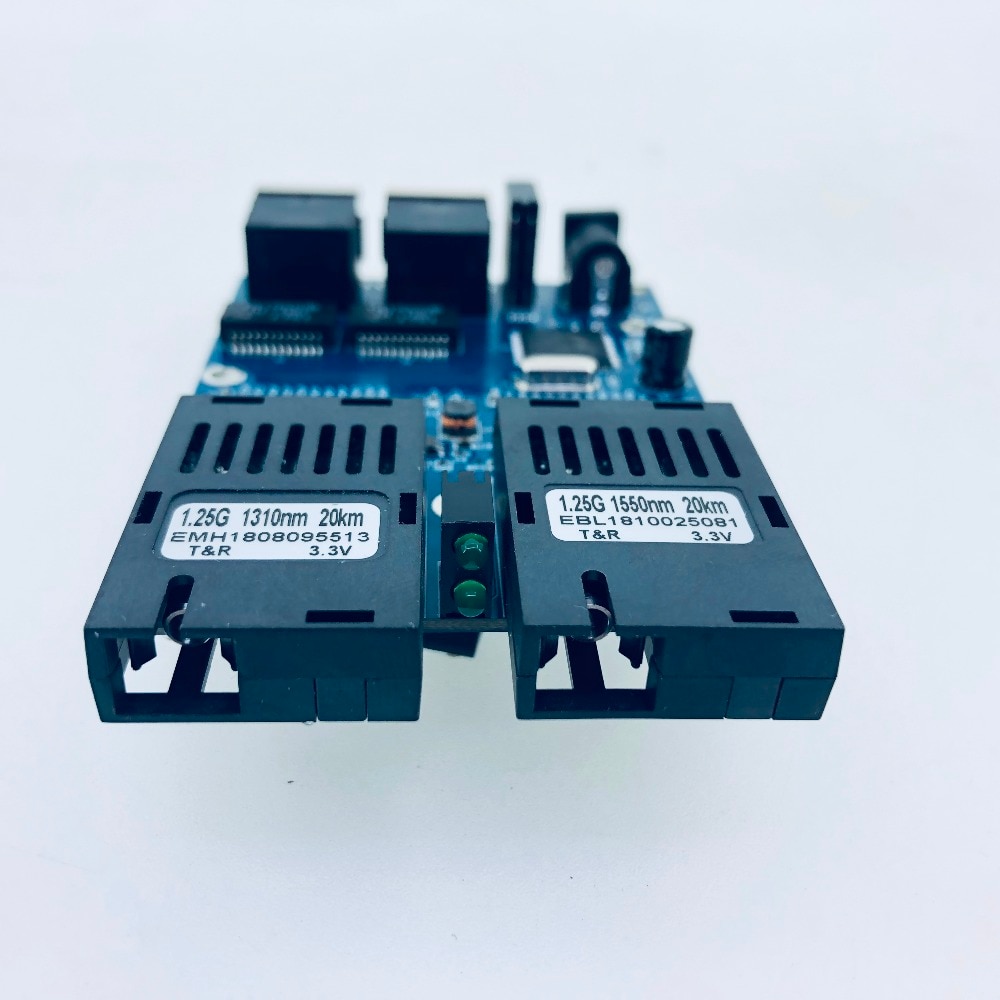

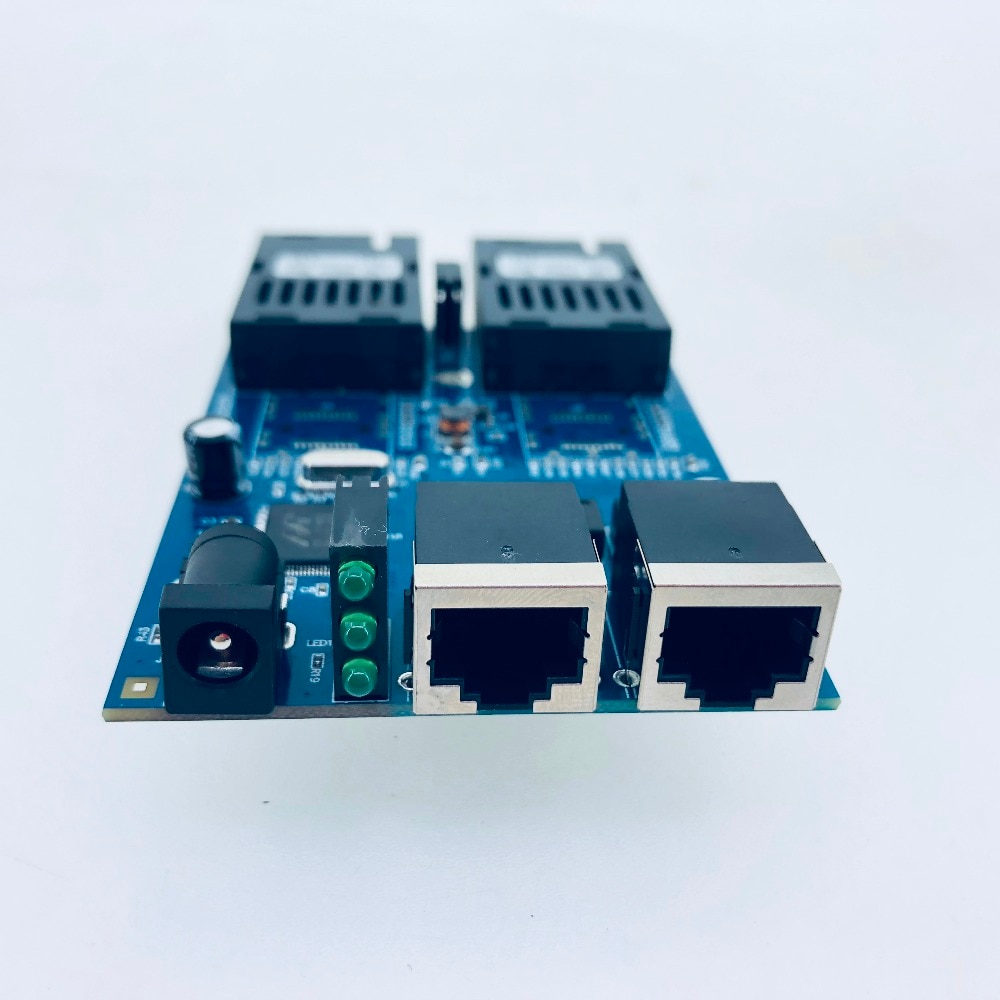

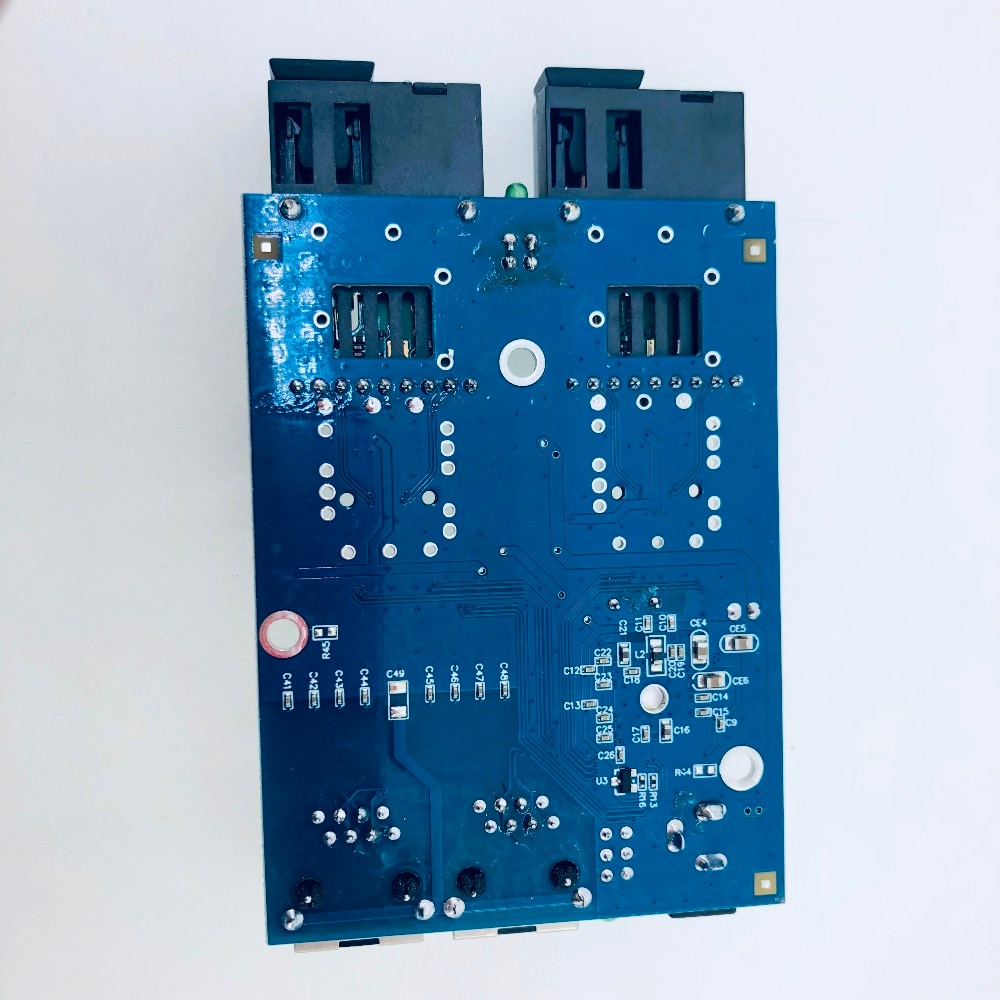

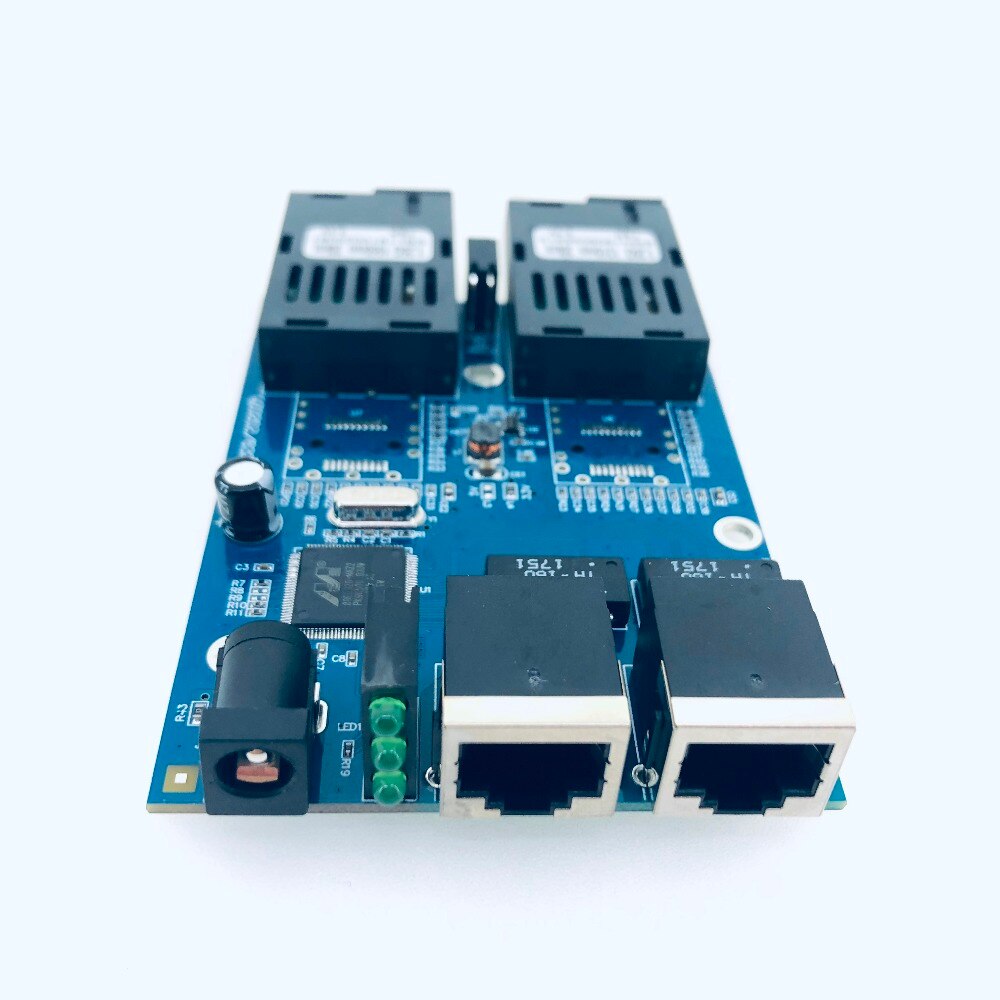

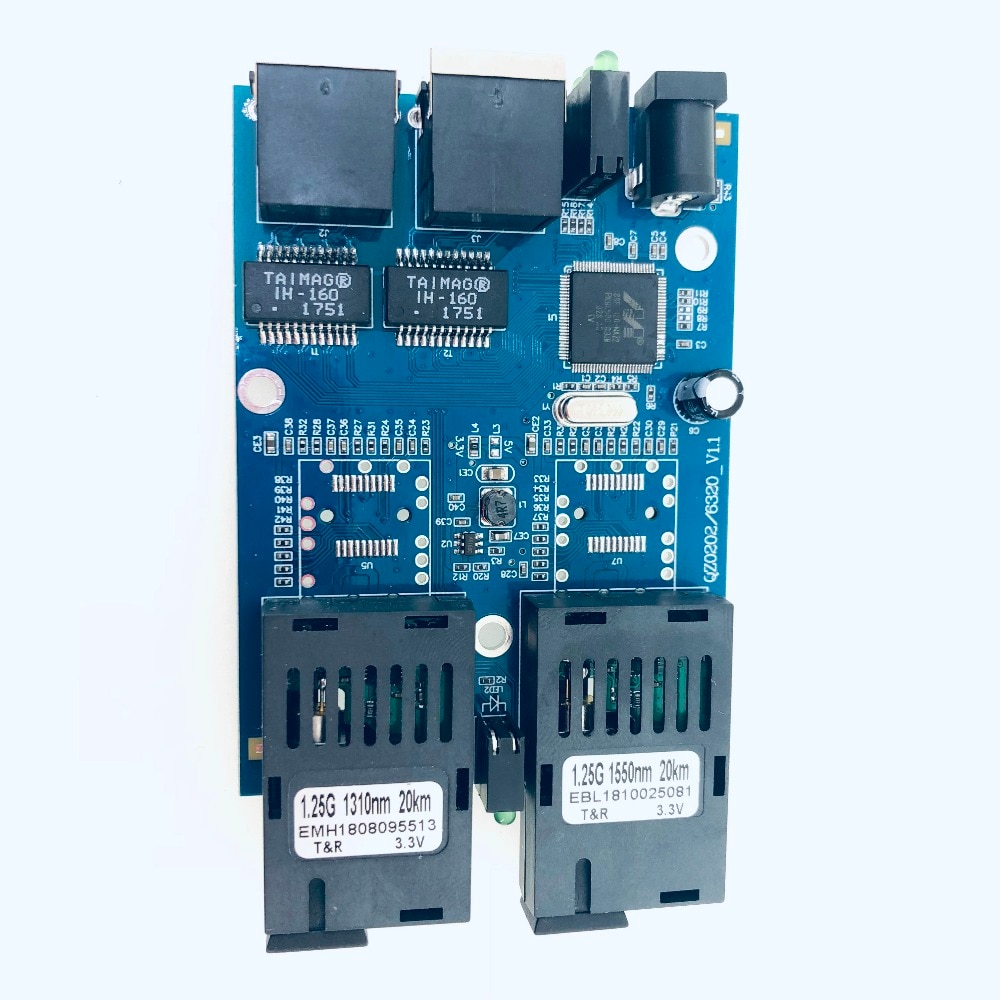

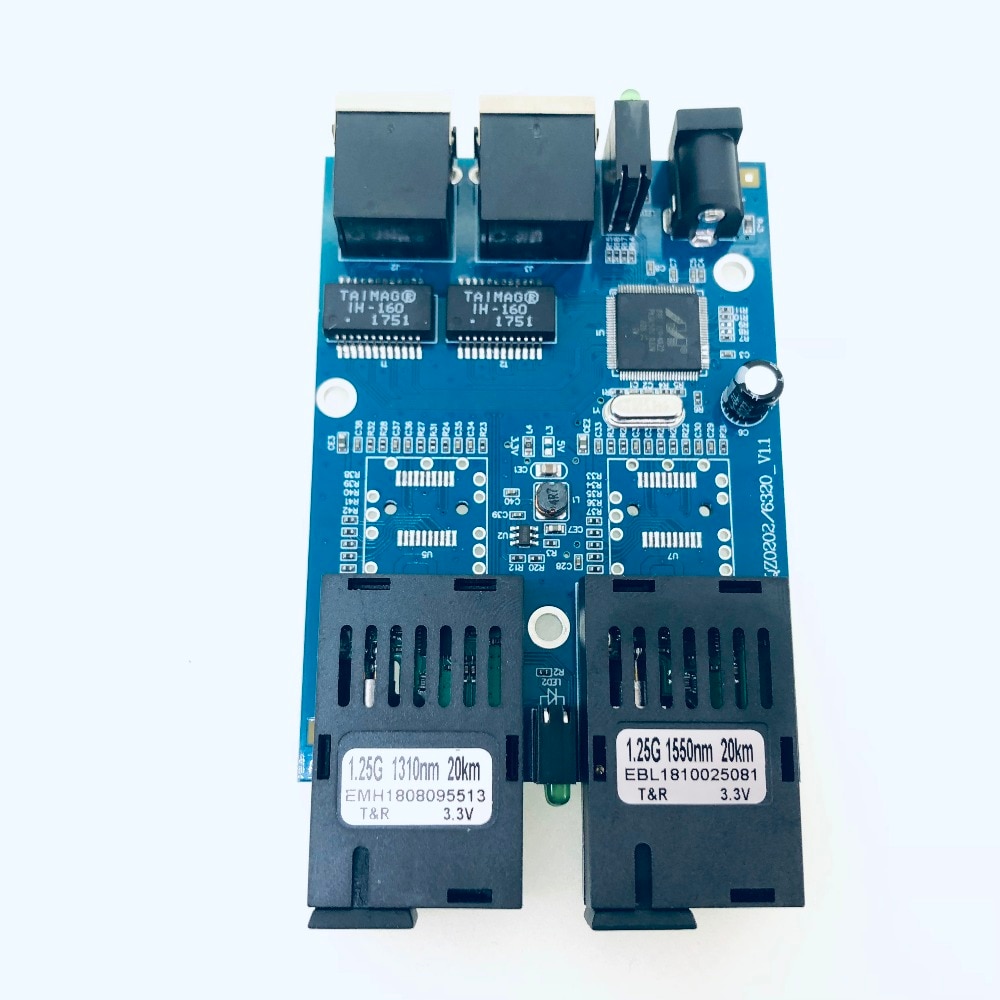

PCB  main board

OEM&ODM

Supportive

1IMG_6465(20181104-193619)IMG_6466(20181104-193648)IMG_6467(20181104-193811)IMG_6468(20181104-193837)IMG_6469(20181104-193920)IMG_6470(20181104-193938)IMG_6471(20181104-194021)

Package includes:

1.Ethernet Media Converter 2G2E*1PCS( A side,B side)










  • Brand Name: MEIBAI
  • Item Length: 1m
  • Compatible: Intel
  • Compatible: Arista
  • Compatible: Transition Networks
  • Compatible: Mellanox
  • Compatible: Avaya
  • Compatible: Dell Force10
  • Compatible: Hirschmann
  • Compatible: Ciena
  • Compatible: IBM
  • Fiber Type: Single Mode
  • Connector Type: SC/APC
  • Size: 8.5CM*6.5CM
  • Model Number: Gigabit-2G2E
  • Fiber type: single fiber single mode
  • Fiber Port: 1.25G 2 Port TX/RX
  • Ethernet port: 10/100/1000Mbps 2 port RJ45
  • Wavelength: 1310nm/1550nm
  • Power Supply: DC 5V 2A
  • Product: PCBA Board with fiber module
  • Connector: APC/SC or UPC/SC
