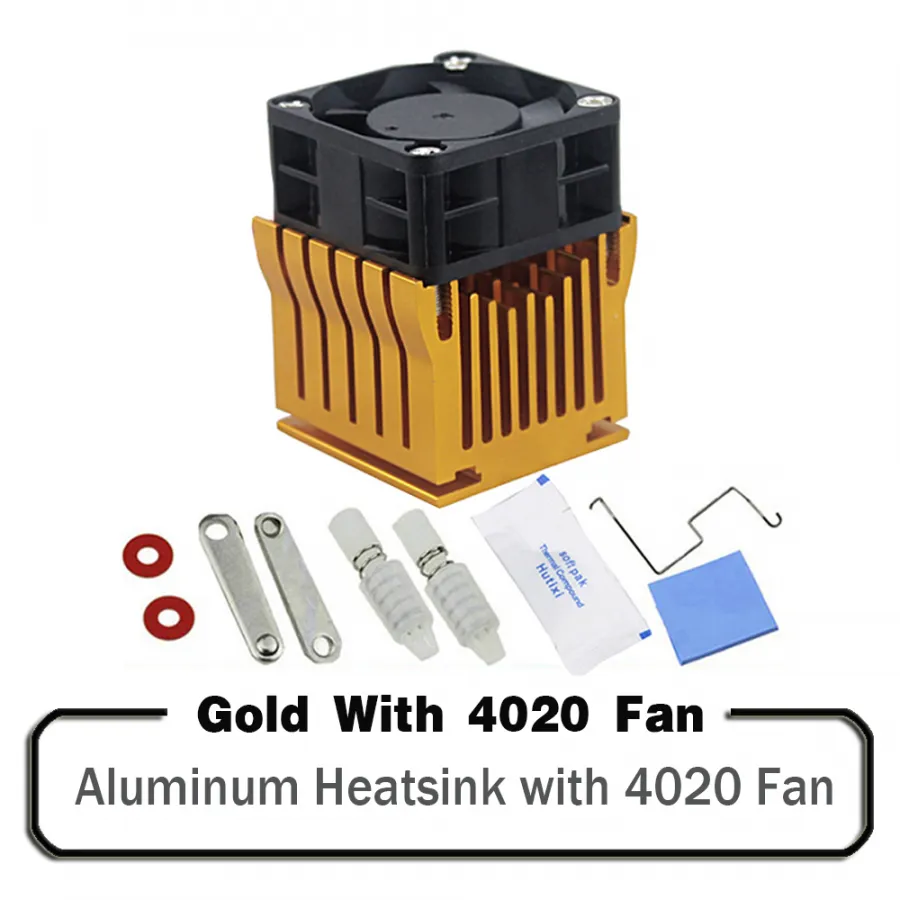

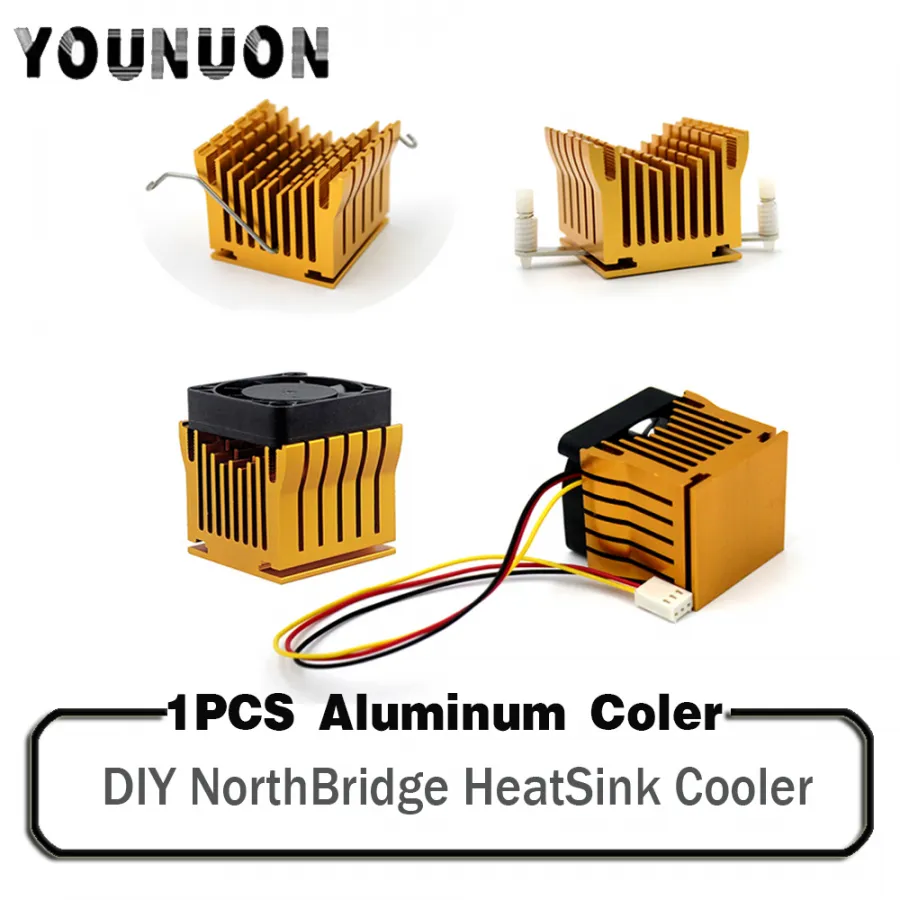

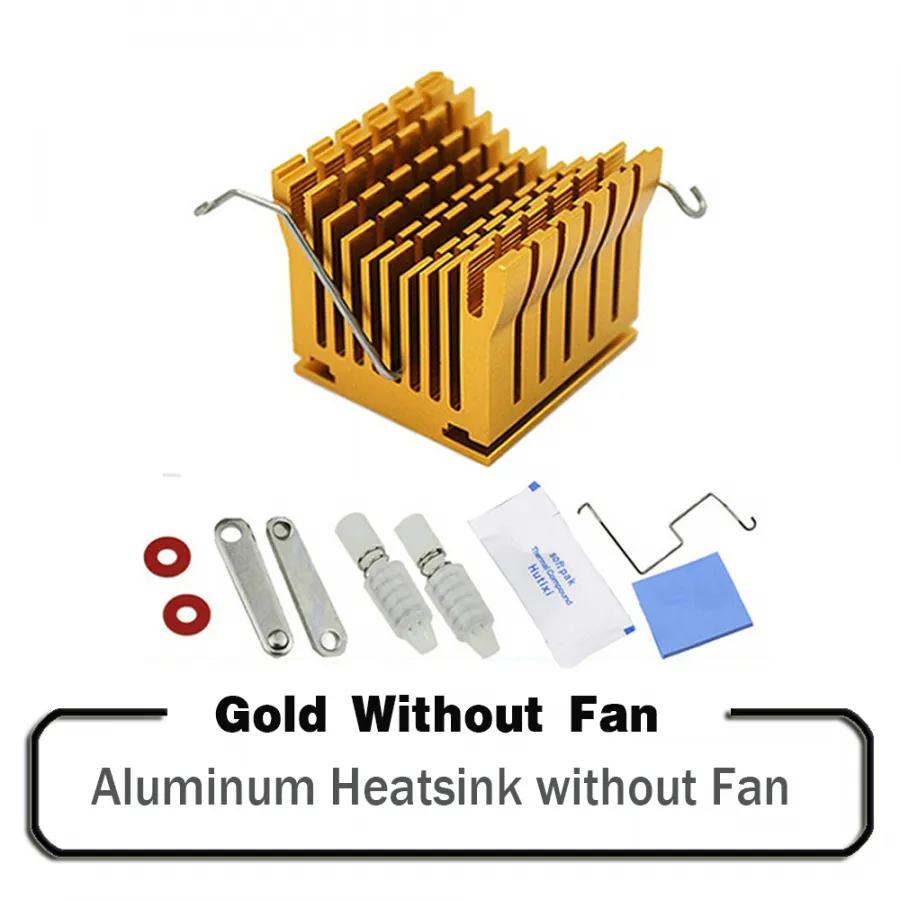

1 Piece Golden DIY Northbridge Heatsink Cooler with 40mm Fan 12V 40x40x10mm 40x40x20mm Cooling Fan
4.9 (12 votes) | 53 orders
Price:
US $33.04
Discount Price:
US $
17.98
-46%
- Blade Color
-
-
Model | DIY Northbridge Cooler | Color | Blue Heatsink | |||||||||
Frame | Aluminum Heatsink&Plastic Cooling Fan | Impeller | PBT+30%GF | |||||||||
Fan'Bearing | Sleeve | Led wire | UL Type | |||||||||
Rated Voltage | 12V | Connector | 3PIN-2510 | |||||||||
Accessories | 1x Soft pack Thermal paste | |||||||||||
2x Metal Connecting Piece | ||||||||||||
2x White Plastic Fastener | ||||||||||||
1x Metal Hook | ||||||||||||
1xThermal pad | ||||||||||||
1xInsulating Gasket | ||||||||||||
Package Include | 1pcs Aluminum Heatsink with Accessories | |||||||||||
Application | Suitable for most motherboards to replace North and South Bridge radiators | |||||||||||
Notes | Pin fixation is suitable for the use of the motherboard with a hole pitch of 50-80mm. | |||||||||||
The hook wire buckle is used with 75-80mm hole spacing. | ||||||||||||
Other specifications need to use the motherboard's own steel wire for DIY installation | ||||||||||||
Smart Toilet,Intelligent Household lampblack Machine,Air Purifier,Car GPS | ||||||||||||
The buckle adopts hook and double slide buckle, which is more convenient to disassemble and assemble! | ||||||||||||
Listed | Bearing | Rated | Operation | Rated | Rated | Air | Air | Noise | Connector | Cable Length | Weight |
Model | System | Voltage | Voltage | Current | Speed | Flow | Pressure | Level | |||
VDC | VDC | A | RPM | CFM | mmH2O | dBA | 3PIN | MM | G | ||
4010-Black Fan | Sleeve | 12V | 10.8~13.2 | 0.06 | 5500 | 6.2 | 0.15 | 22 | 3PIN-2510 | 250 | - |
4020-TransparentFan | Sleeve | 12V | 10.8~13.2 | 0.06 | 5500 | 6.2 | 0.15 | 22 | 3PIN-2510 | 350 | |
4020-Black Fan | Sleeve | 12V | 10.8~13.2 | 0.05 | 6000 | 7.85 | 0.16 | 23 | 3PIN-2510 | 250 |
Packaging Details
- Unit Type:
- Package Weight: 0.030
- Package Size: 2x2x2
- Brand Name: YOUNUON
- Certification: CE
- Certification: EAC
- Certification: FCC
- Certification: RoHS
- Certification: UL
- Origin: Mainland China
- Application: Computer Case
- Package: No
- Compatible CPU: -
- Power (W): 3W
- Bearing: Oil Bearing
- Fan Life: 40000 hrs
- Fan Speed Control: No RPM
- Noise: 26dB
- Air Volume: 38CFM
- Lines: 2 lines
- Type: Fan
- Power Interface: 2pin
- Model Number: YN-DIY NorthBridge-Cooler
- Heatsink Material: Plastic
- Fan Size: 40MM
